Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
OL2K2RTHD
Category
General Purpose UPS
Overview

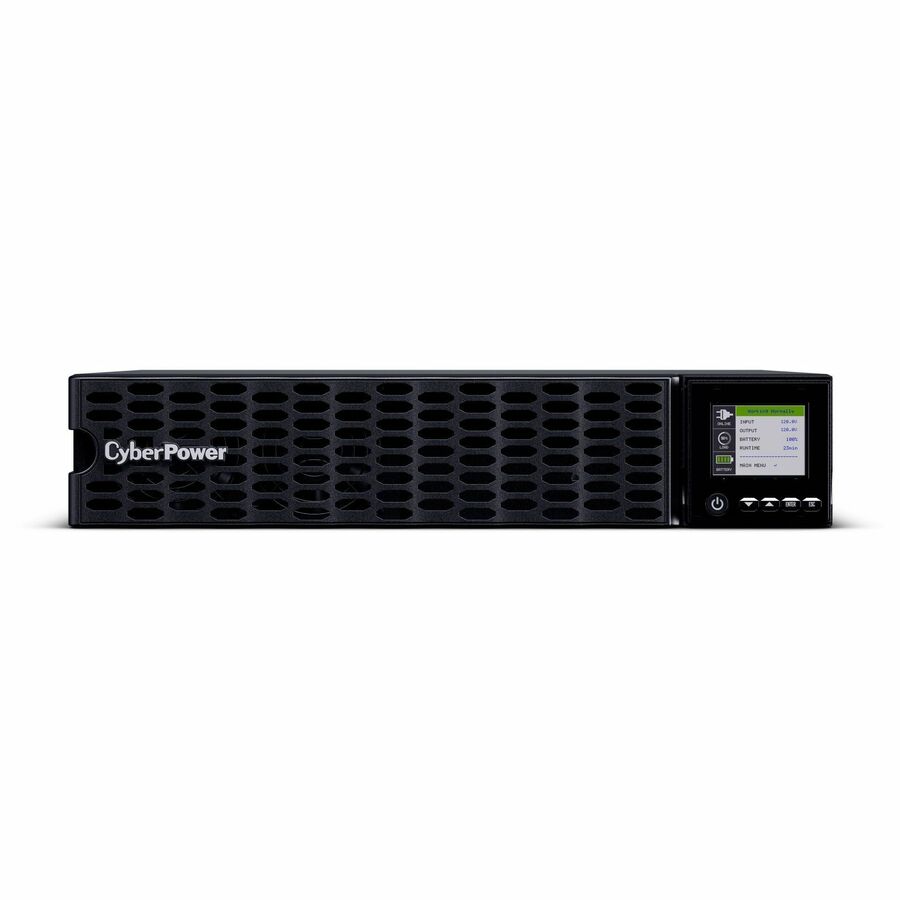

The OL2K2RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.

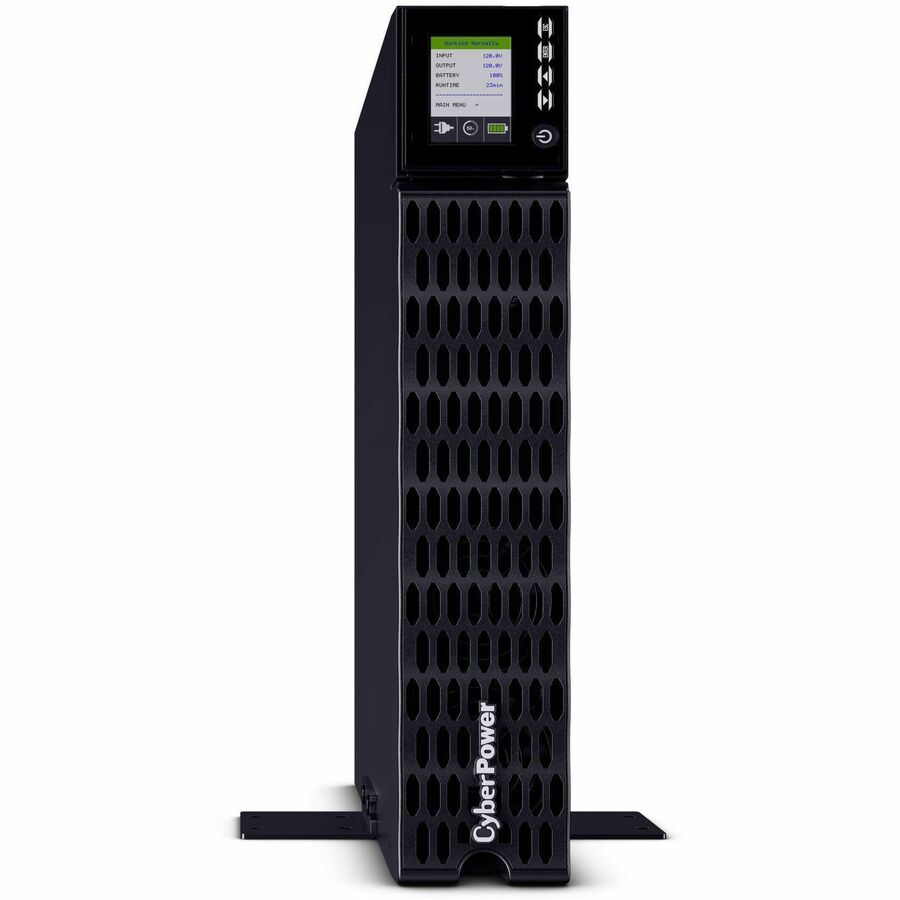

For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL2K2RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.82. The energy-saving GreenPower UPS? ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.
The optional BP36VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year warranty (including batteries) and a $400,000 Connected Equipment Guarantee.
More from the Manufacturer
Highlights
Capacity: 2200 VA / 1800 W
High Density: 2U Size
Power Factor (PF): 0.82
Topology: Double-Conversion
Waveform: Sine Wave
Output: 100, 110, 115, 120, 125 Vac User Configurable ±2%
Runtime (half/full): 10.3 minutes / 3.1 minutes

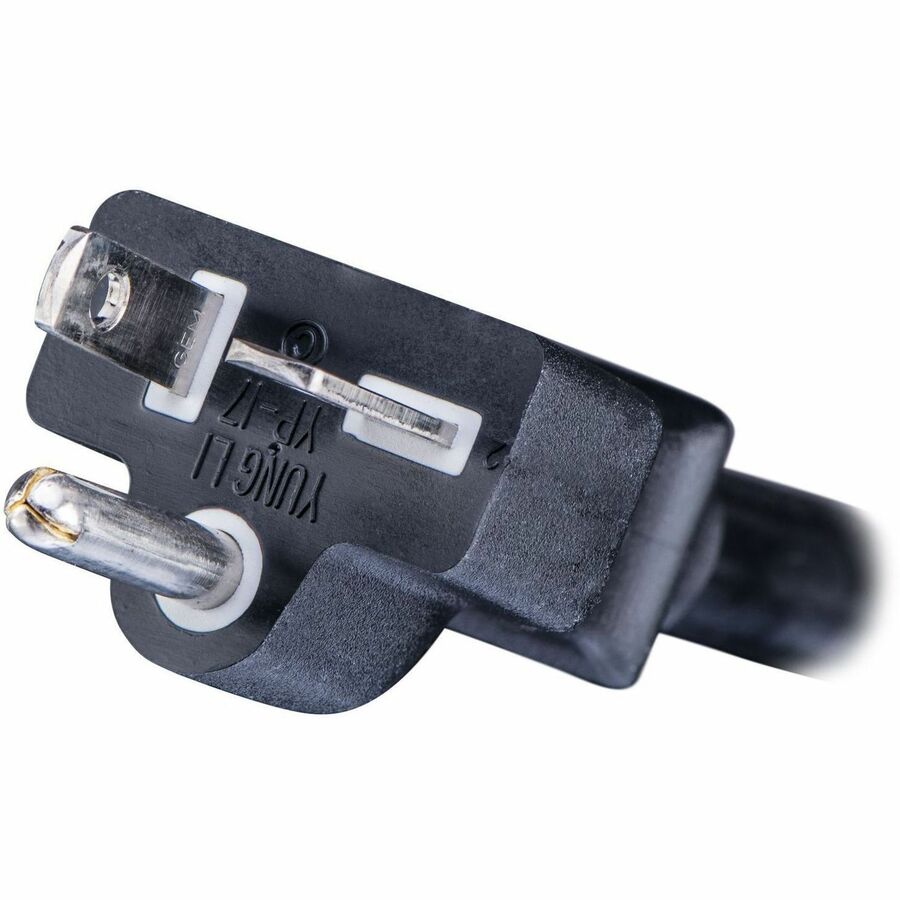

Plug type & cord: NEMA 5-20P
Outlet types: 7 × 6 NEMA 5-20R & 1 NEMA L5-20R, Switchable
Communication ports: USB, Serial, SNMP, EPO
Management software: PowerPanel® Business Edition
Remote management: Yes, RMCARD205 Optional
Warranty: 3 year
Specifications
Additional Warranty Information
Three-year warranty (including batteries)
Battery Chemistry
Lead Acid
Product Type
Double Conversion Online UPS
Circuit Breaker
Yes
Display
LCD
Hot Swappable
Yes
Input Voltage
120 V AC
Manufacturer Part Number
OL2K2RTHD
Limited Warranty
3 Year
Output Voltage
100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC
Weight (Approximate)
38.58 lb
Features
Built-in Bypass Switch, Audible Alarm, Cold Start Function
