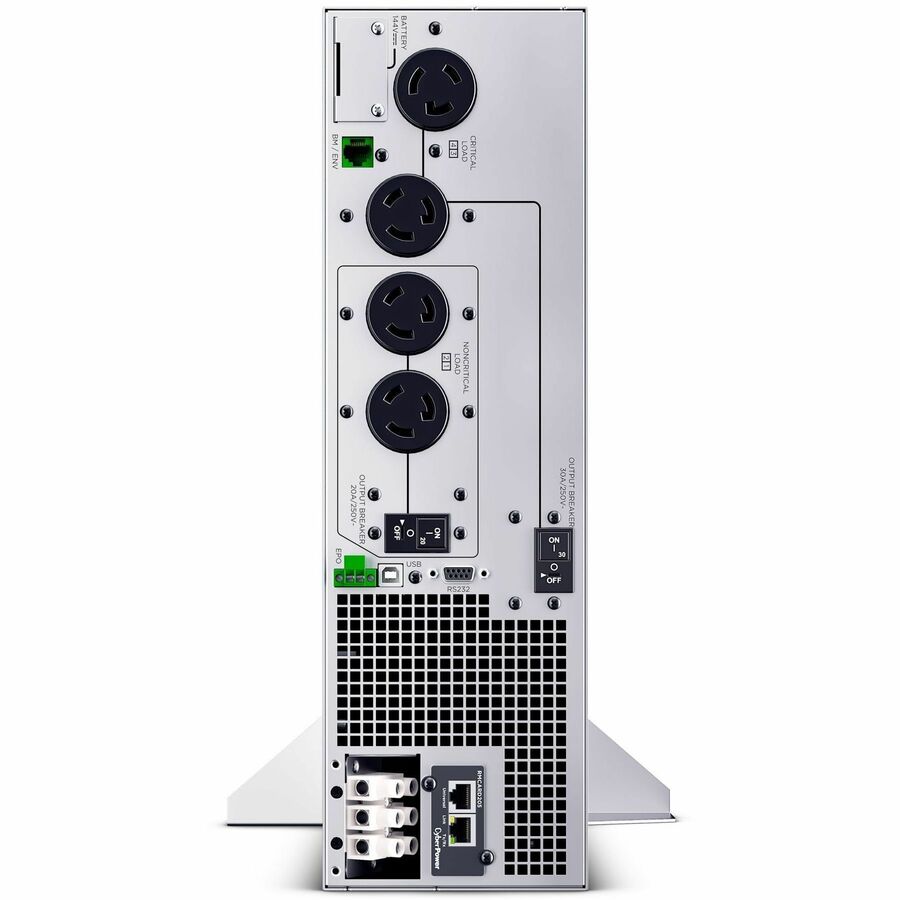

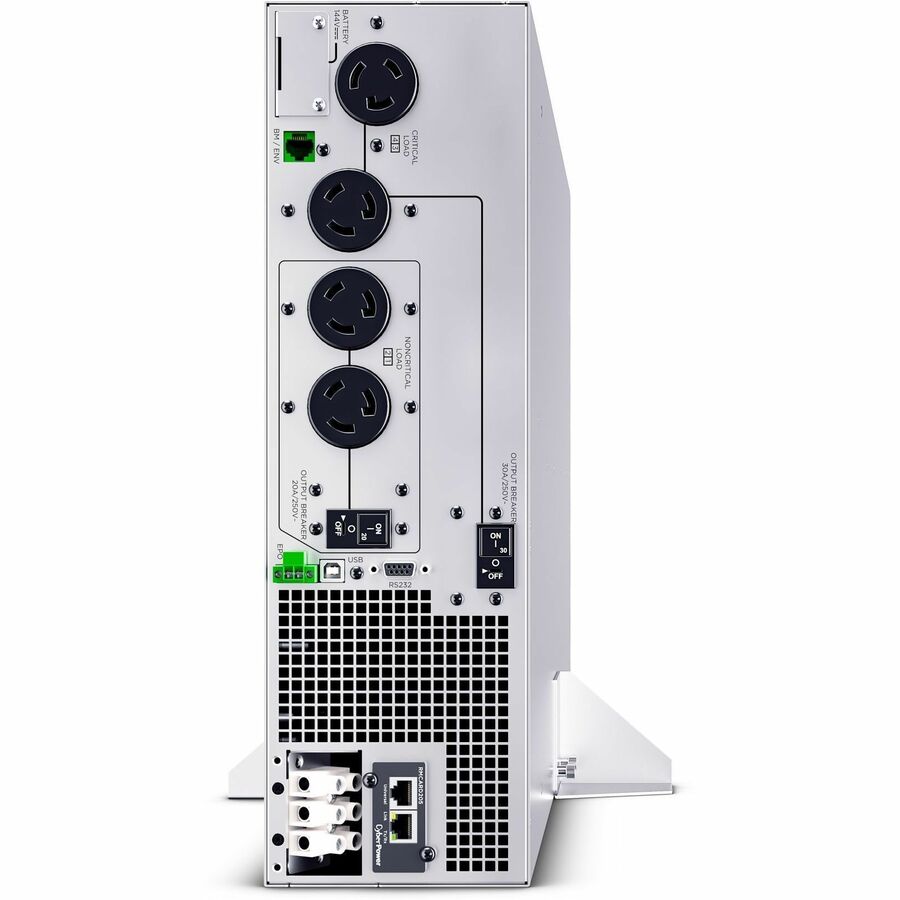

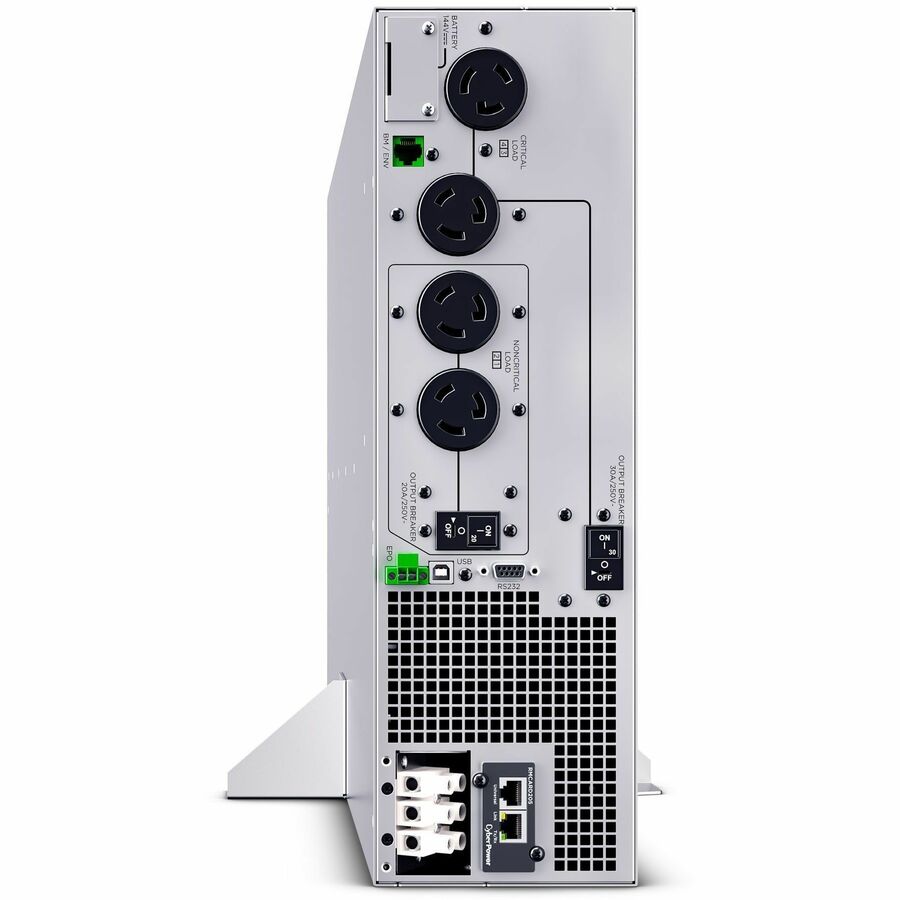

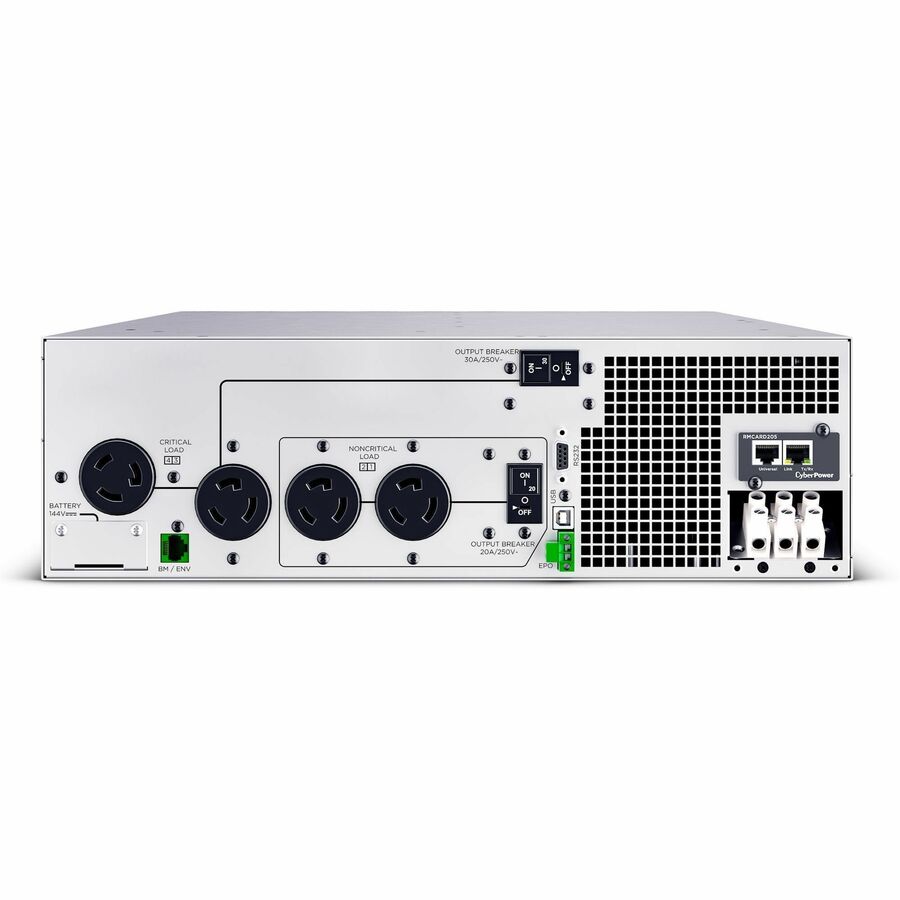

5000VA/5000W, 200 - 240 VAC, Hardwire Terminal (NEMA L6-30P power cord included), 3U, Rack / Tower, Sine Wave, 4 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
MSRP$8,580.00
$7,948.34
Save 7%Special order — estimated available by September 10, 2026.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The CyberPower Smart App Online OL5KRTHDL high-density design offers more power and longer run times. The OL5KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

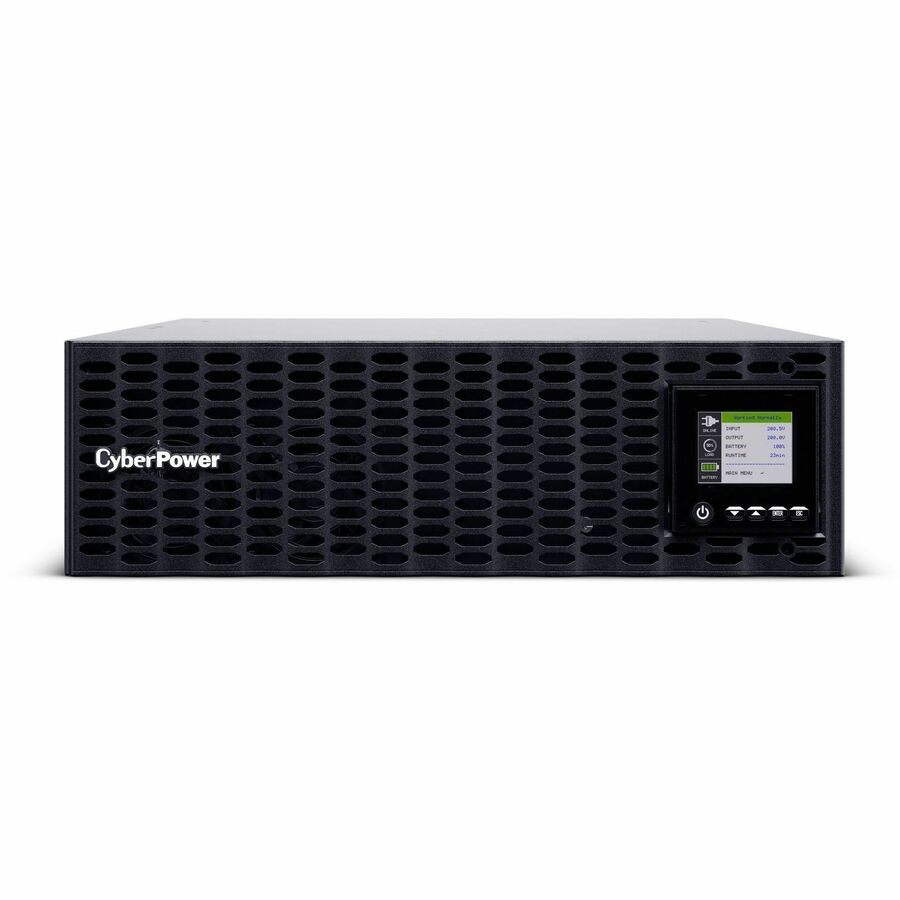

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL5KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
More from the Manufacturer
How long will the UPS power my systems after the power goes out?
Run times vary based on the power required by connected devices. This system is estimated to run for 14.3 minutes at half load, 4.9 minutes for a full load. The LCD provides an estimated run time based on the required power usage during blackouts.
Can this UPS model be monitored?
Yes, the OL5KRTHDL comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
Do all of the outlets have battery backup power and surge protection?
Yes, all four outlets provide battery backup power and surge protection. Two outlets provide critical load protection to maximize the run time for critical equipment.
Can the battery capacity be expanded?
Yes, the OL5KRTHDL can support the optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power.
How do I mute the alarms?
Users can disable or enable the audible alarms from the basic set up via the LCD screen, navigate to audible alarm and then set to Mute on battery.
Proposition 65 Disclaimer
This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Battery Information | |
|---|---|
| Number of Batteries | 12 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Backup/Run Time (Half Load) | 14.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | No |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On LCD Display: UPS status Controls Most recent event logs Diagnostics Power Failure Fault Notices |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 50000 ft |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 43 dB(A) |
| Thermal Dissipation | 308.02 W |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL5KRTHDL |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Model | OL5KRTHDL |
| Product Name | OL5KRTHDL Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode, Low Battery, Overload, UPS Fault |
| Physical Characteristics | |
| Product Color | Black |
| Height | 5.12" |
| Width | 17.01" |
| Depth | 28.31" |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 117.99 lb |
| Power Description | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 5000 W |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 120 V AC - 139 V AC, 200 V AC - 240 V AC |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Input Frequency | 50 Hz, 60 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P, Hardwired |
| Receptacle Type | NEMA L6-20R, NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R, 2 x NEMA L6-30R |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Application/Usage | High-end System Component, Corporate, Server, Lab Equipment, Electronic Device, Network Equipment, Hyperconverged Infrastructure (HCI), Server Room, Infrastructure, Storage System, VoIP |
| Features | Audible Alarm, Built-in Bypass Switch, Green Energy Saving, Cold Start Function |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel® Business Edition |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
