2U Rack/Tower - 1.50 Hour Recharge - 208 V AC Input - 208 V AC Output - Single Phase - Sine Wave - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s)
MSRP$16,920.00
$11,001.23
Save 35%Back-ordered — ships when restocked.
Special order — estimated available by September 17, 2026.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
More from the Manufacturer

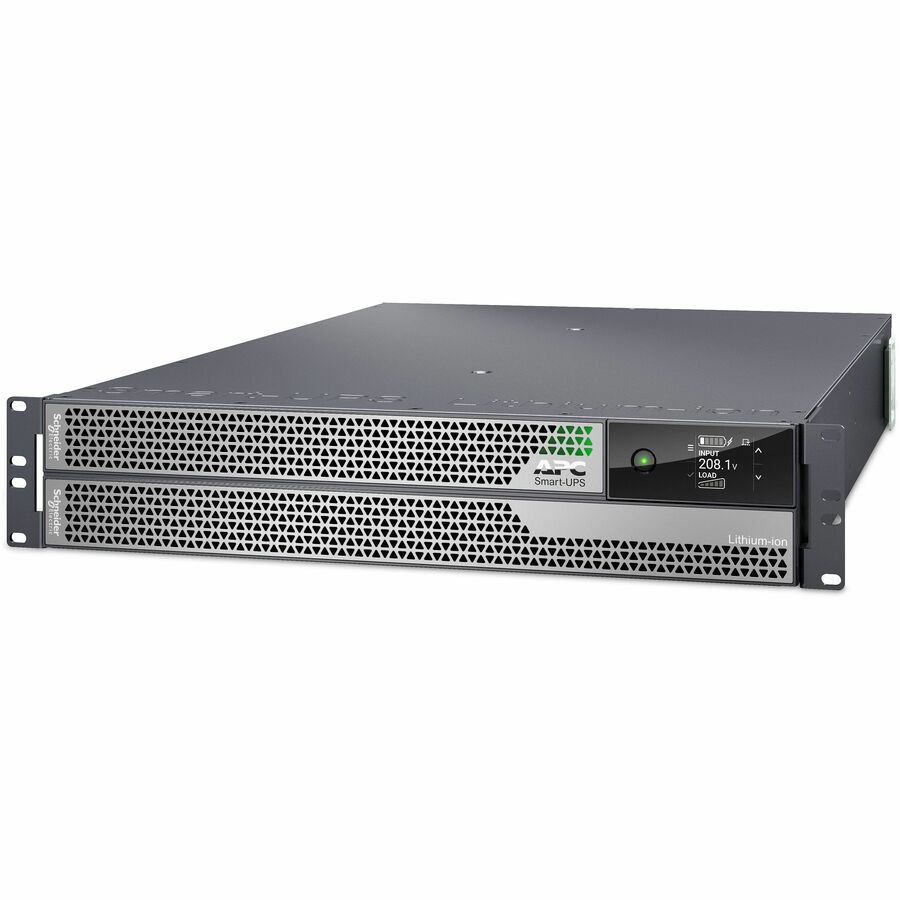

APC Smart-UPS Ultra (SRTL5KRM2UT)
The APC Smart-UPS Ultra 5000W 2U 208V with Embedded Network Port. Its next generation semiconductor technology delivers 5000W in a 2U form factor. In addition to long lasting Lithium-ion batteries the weight is reduced by half in comparison to Lead Acid VRLA UPS. With the Embedded Network management you can monitor and manage your UPS anytime, anywhere.
Compact, Powerful and Reliable Power Protection

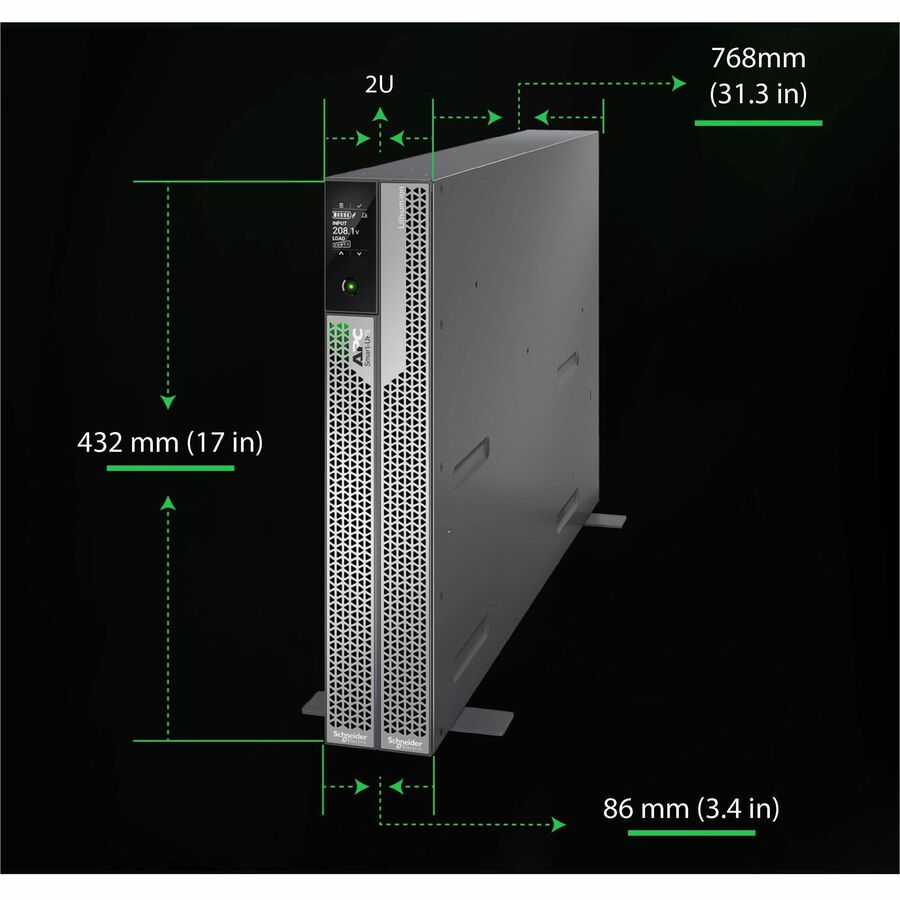

1) 2U design with flexible installation
2U design saves valuable space for IT.
2) LED Status Indicator
green, amber or red in case of an event

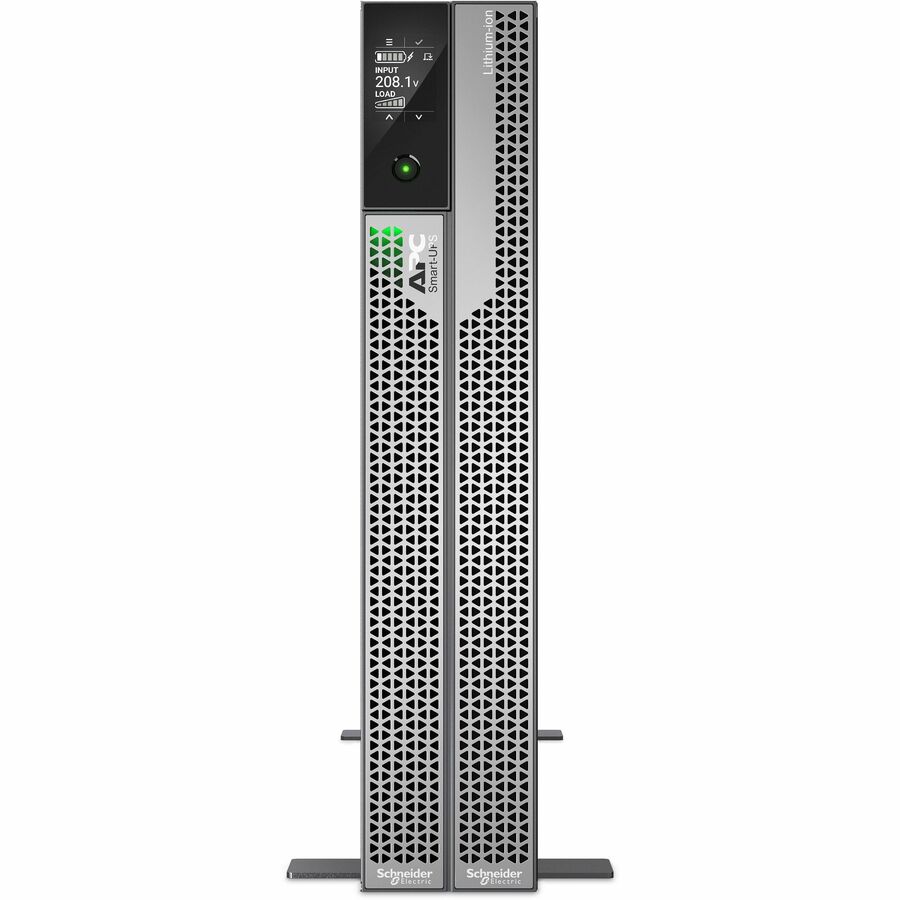

3) LCD Touch Screen
Autorotates based on horizontal or vertical installation
4) EcoStruxure ™ Ready
Via embedded network port

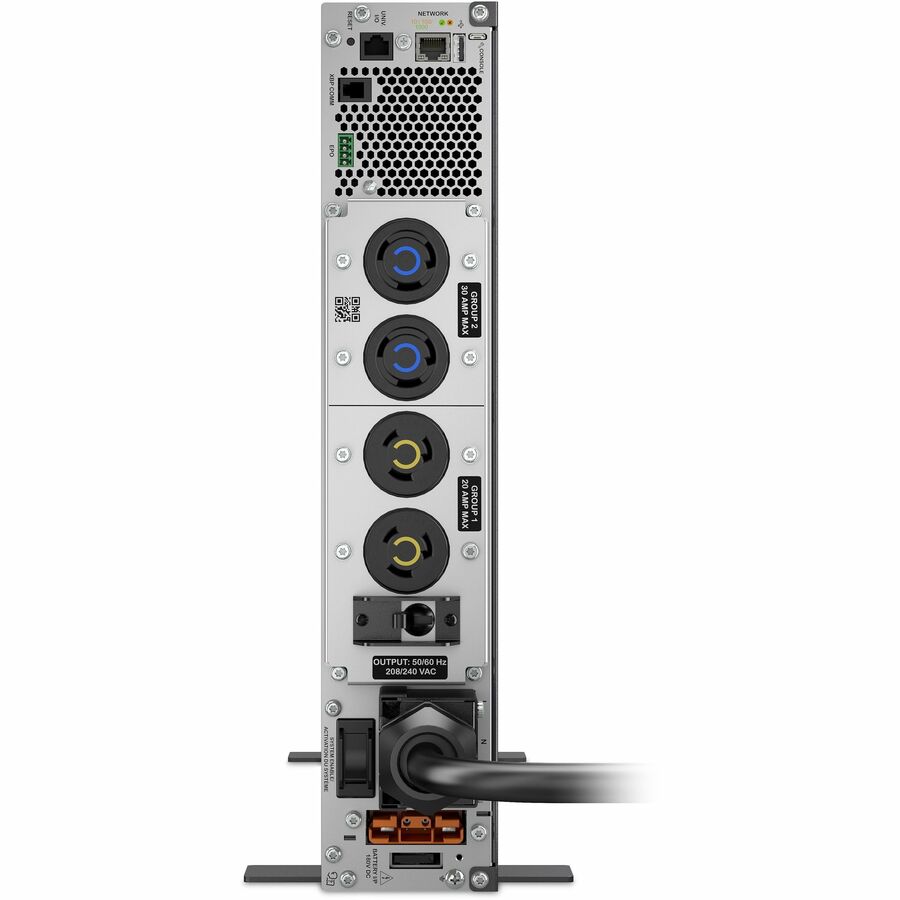

5) 4 outlets in 2U
(2) L6-20R with DPCB 20A, (2) L6-30R
6) Extended runtime options
Up to 5 External Battery packs for extended runtime needs
FAQ
Q1- How is Smart-UPS Ultra 5kVA just 2U in height?
A1- We leveraged the combination of innovative UPS Design, next-generation semiconductor technology and lithium-ion batteries allowed us to create the smallest, lightest 5kVA UPS to date.
Q2- Will I need to replace the UPS Lithium-ion batteries?
A2- Smart-UPS Ultra features Lithium-ion batteries designed to last as long as the UPS. No replacement will be necessary under normal operating conditions.
Q3- Does Smart-UPS Ultra offer extended runtime options?
A3- Yes, Smart-UPS Ultra supports the APC external battery packSRTL180RM2UBP.
Q4- How long is the Smart-UPS Ultra warranty?
A4- There is a 5-year warranty for both the electronics and the internal batteries.
Comparison Table
Limited Warranty: 5 Year
| Battery Life | 10 Year |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Input Voltage | 208 V AC |
| Manufacturer Part Number | SRTL5KRM2UT |
| Packaged Quantity | 4 Pack |
| Limited Warranty | 5 Year |
| Output Voltage | 208 V AC |
| Weight (Approximate) | 64.37 lb |
| Form Factor | Rack/Tower |
| Status Indicators | Multi-function LCD Status and Control Console |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V |
| Surge Energy Rating | 1260 J |
| Thermal Dissipation | 306.85 W |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC |
| Plug/Connector Type | NEMA L6-30P |
| Output Frequency | 60 Hz |
| Country of Origin | Philippines |
| Cord Length | 10.01 ft |
| Height | 3.39" |
| Width | 17.01" |
| Depth | 27.60" |
| Input Frequency | 70 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA L6-30P |
| Environmentally Friendly | Yes |
| Battery Energy | 2592 kJ |
| Maximum Operating Temperature | 104°F (40°C) |
| Load Capacity (VA) | 4900 VA |
| Load Capacity (Watt) | 5000 W |
| Energy Star | Yes |
| DC System Voltage | 180 V DC |
| EPO Port | Yes |
| USB (HID Compliant) Port | No |
| Maximum Operating Elevation | 10000 ft |
| Storage Relative Humidity | 0% - 95% |
| Typical Battery Recharge Time | 1.50 Hour |
| Product Color | Silver Gray |
| Receptacle Detail | 2 x NEMA L6-20R, 2 x NEMA L6-30R |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
