1U Rack/Tower/Wall/Ceiling/Desktop Mountable - 1.50 Hour Recharge - 6.05 Minute Stand-by - 120 V AC, 125 V AC Input - 120 V AC, 125 V AC Output - Single Phase - Sine Wave - USB - LCD Display - 1 x NEMA L5-20R, 5 x NEMA 5-20R Receptacle(s)
MSRP$7,040.00
$5,264.63
Save 25%Special order — estimated available by September 10, 2026.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

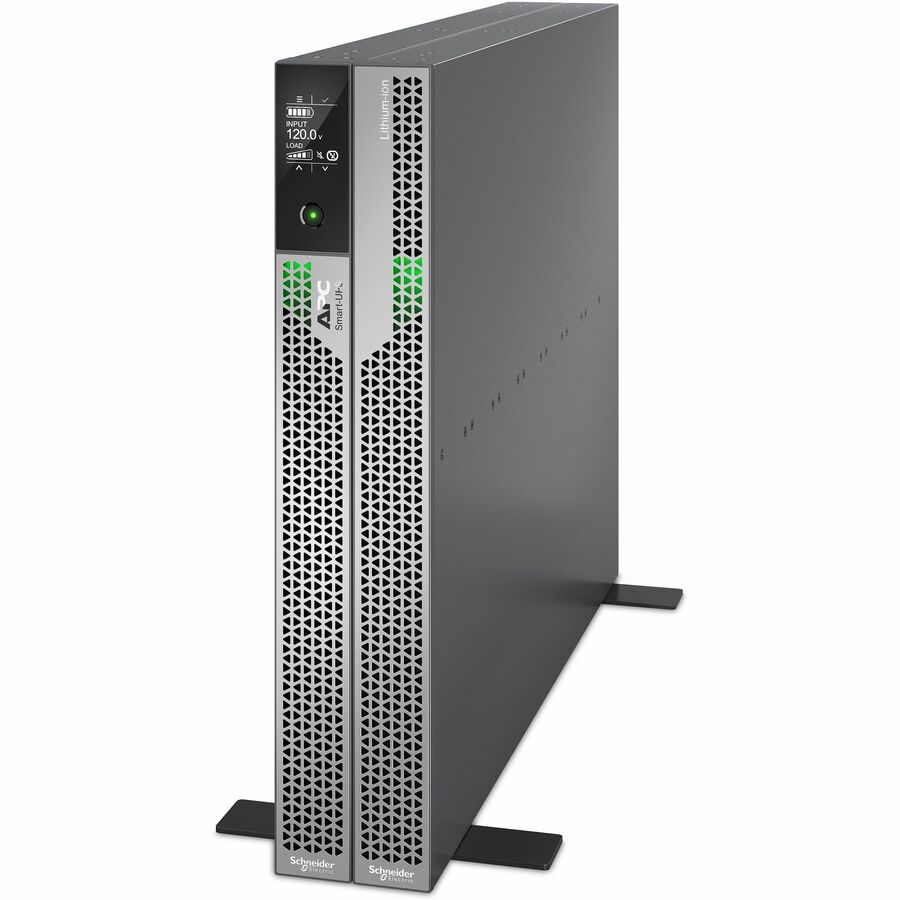

APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with SmartConnect Ethernet Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
More from the Manufacturer
APC Smart-UPS Ultra (SRTL2K2RM1UC)
The APC Smart-UPS Ultra 2200VA with SmartConnect leverages next-generation semiconductor technology to deliver more power in a 1U form factor, giving you more space for IT equipment. The Lithium-ion battery eliminates the need for battery replacements, reducing the total cost of ownership. Smart-UPS Ultra’s EcoStruxure Ready remote monitoring and management options allow many tasks to be handled without stepping foot in your IT installation.
Reclaim your space
Key features
Software Features
Hot Spots

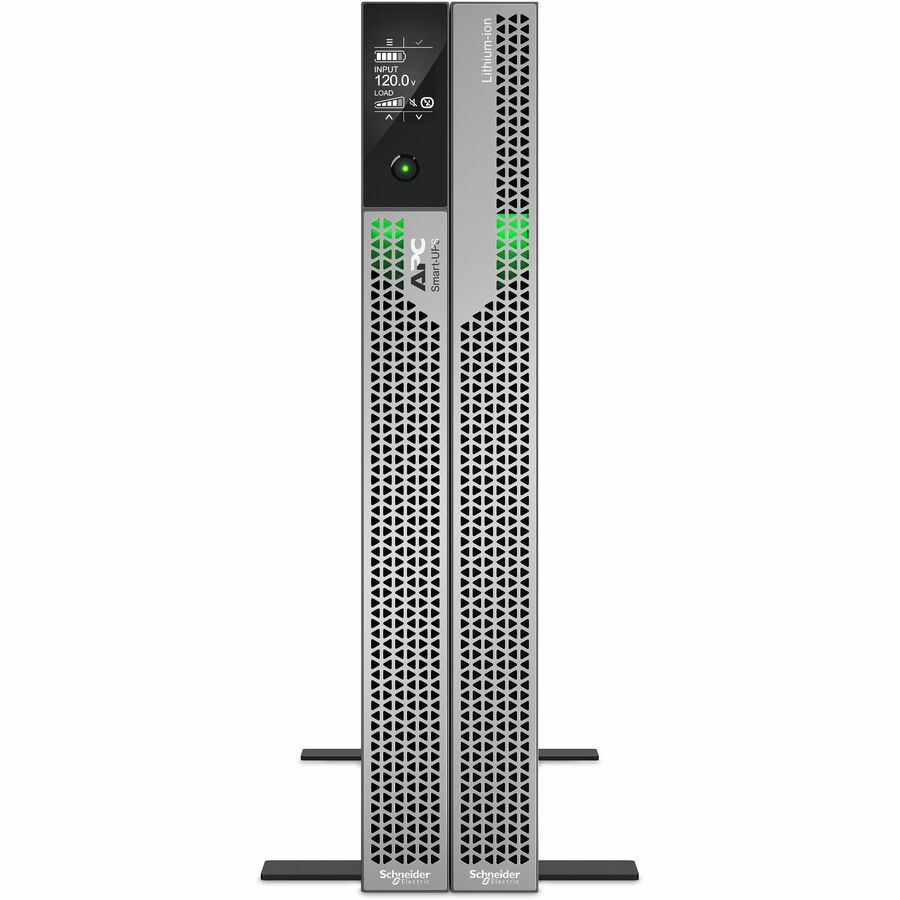

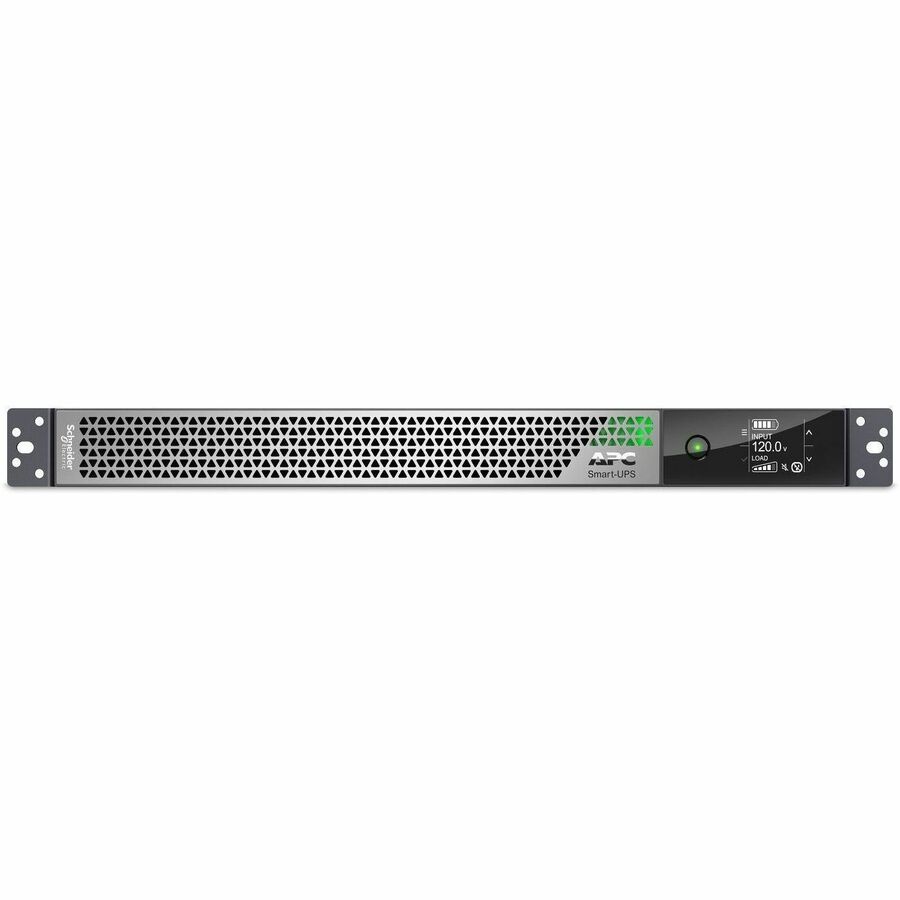

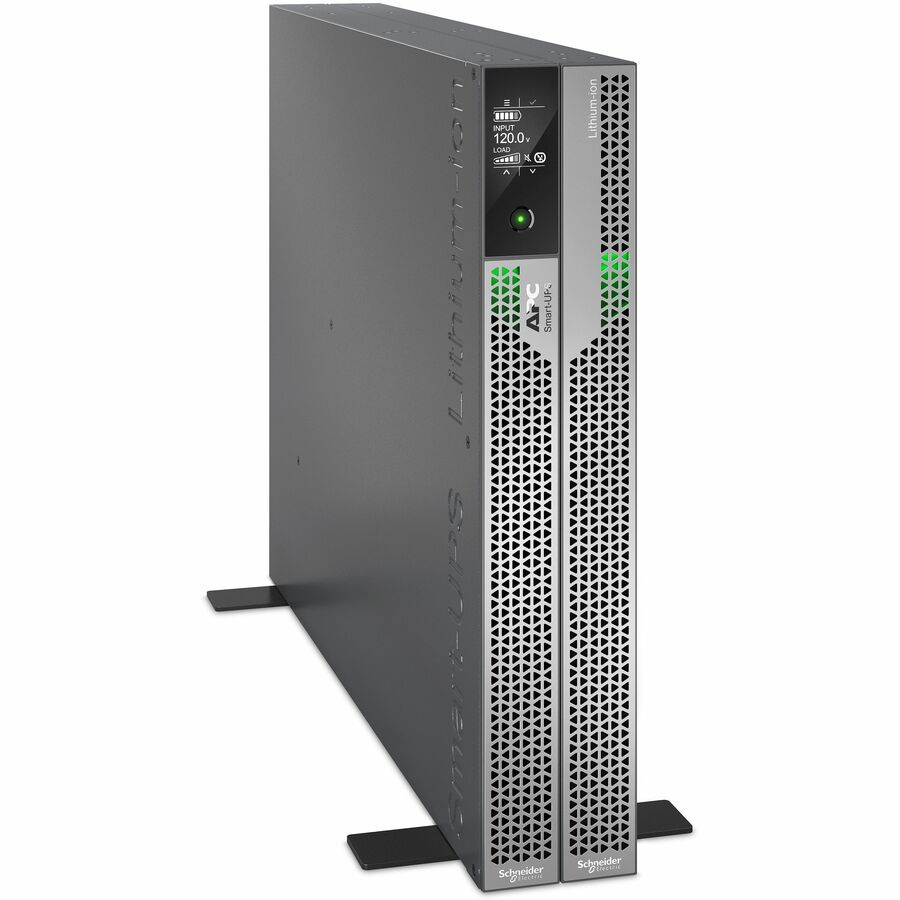

1) 1U design with flexible installation
1U design saves valuable space for IT. 5 mounting styles: rack, tower, wall, ceiling, and desk under mount
2) LED Status Indicator
green, amber or red in case of an event
3) LCD Touch Screen
LCD Touch Screen autorotates based on horizontal or vertical installation
4) EcoStruxure™ Ready
SmartConnect Ethernet Port (C Model)
5) Extended runtime options
Connect external battery packs for extended runtime needs
6) 6 outlets in 1U
5 NEMA 5-20R outlets, 1 pigtail NEMA L5-20R, and a switched outlet group
FAQ
How is Smart-UPS Ultra just 1U height 22" in depth?
We leveraged the combination of innovative UPS Design, next-generation semiconductor technology and Lithium-ion batteries allowed us to create the smallest, lightest up to 3kW UPS to date.
Will I need to replace the UPS Lithium-ion batteries?
Smart-UPS Ultra features Lithium-ion batteries designed to last as long as the UPS. No replacement will be necessary under normal operating conditions.
Does Smart-UPS Ultra offer extended runtime options?
Yes, Smart-UPS Ultra supports up to 5 1U external battery packs.
How long is the Smart-UPS Ultra warranty?
There is a 5-year warranty for both the electronics and the internal batteries.
Comparison Table
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
Limited Warranty: 5 Year
| Battery Information | |
|---|---|
| DC System Voltage | 50 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 1123.2 kJ |
| Backup/Run Time (Full Load) | 6.05 Minute |
| Backup/Run Time (Half Load) | 12.65 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Replaceable Battery | Yes |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 50000 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 95% |
| Sound Emission | 55 dB |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL2K2RM1UC |
| Brand Name | APC |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS |
| Packaged Quantity | 1 |
| Product Type | Dual Conversion Online UPS |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| Physical Characteristics | |
| Product Color | Silver Gray |
| Height | 1.69" |
| Width | 17.01" |
| Depth | 22.05" |
| Rack Height | 1U |
| Form Factor | Rack/Tower/Wall/Ceiling/Desktop Mountable |
| Weight (Approximate) | 35.05 lb |
| Power Description | |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 2200 W |
| Input Voltage | 120 V AC, 125 V AC |
| Output Voltage | 120 V AC, 125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 1 x NEMA L5-20R, 5 x NEMA 5-20R |
| Cord Length | 7.87 ft |
| Phase | Single Phase |
| Application/Usage | Network, Server |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
