2000VA/1540W, 120 VAC, NEMA 5-20P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
$807.10
In stock: 22
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

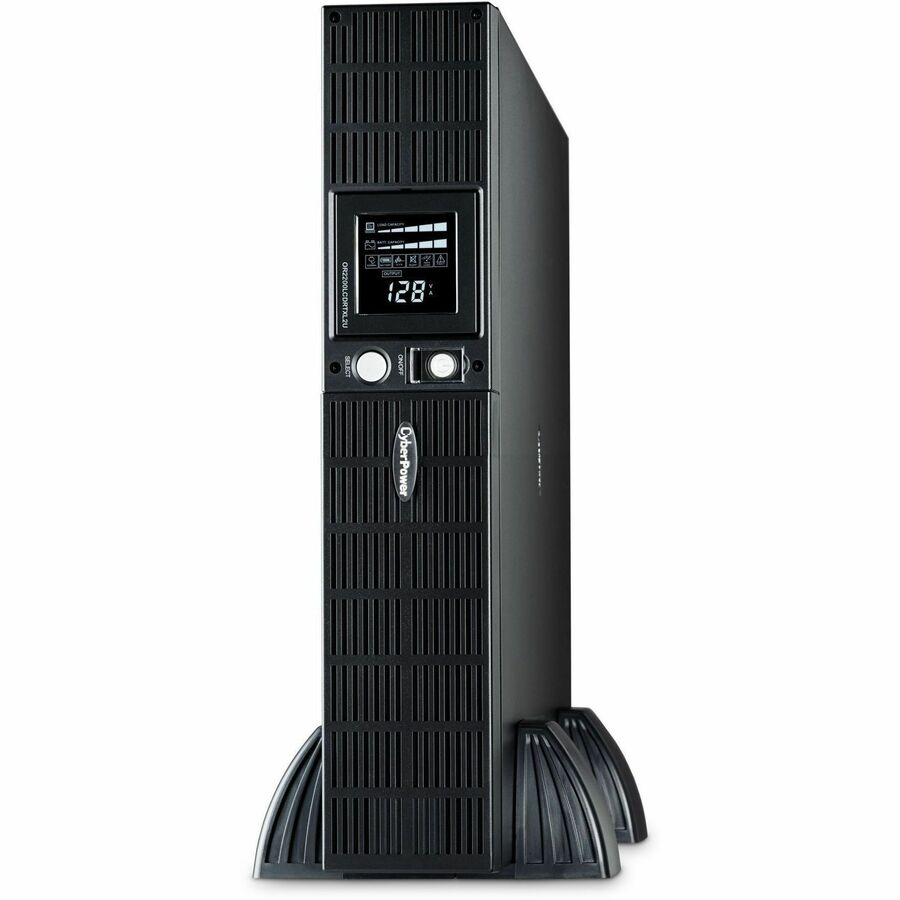

A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
More from the Manufacturer
Why Do You Need a UPS System?
Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.
Sine Wave Output
The UPS generates energy that is identical to, or cleaner than the utility company's power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

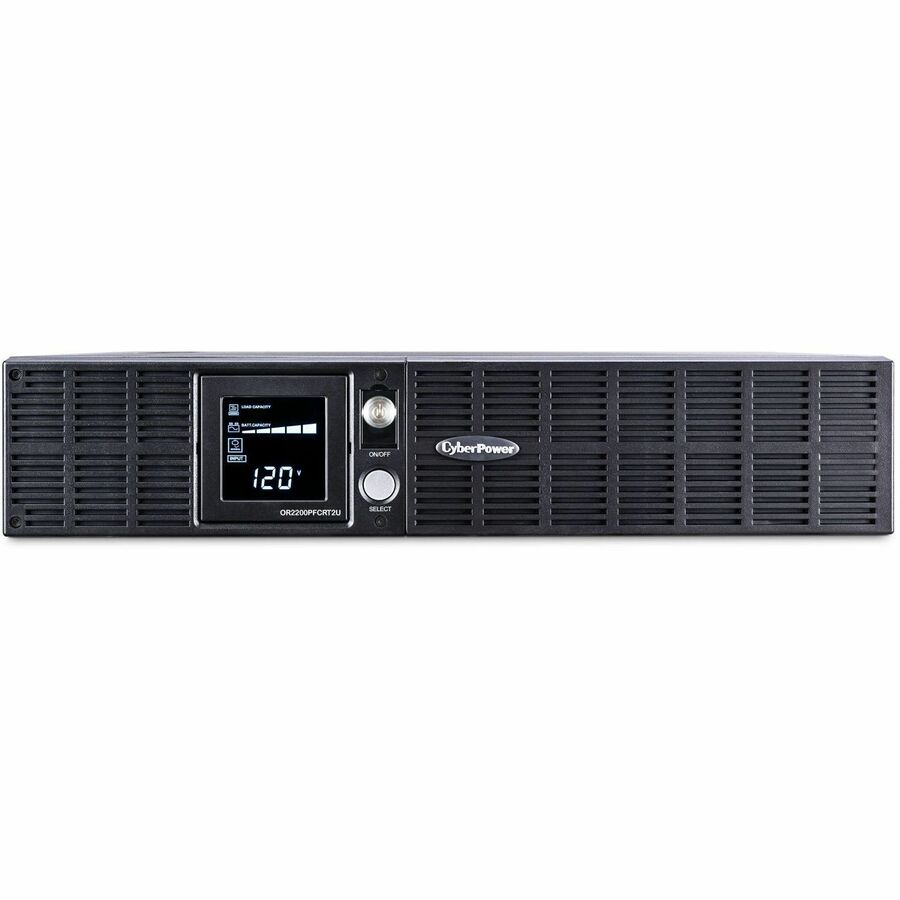

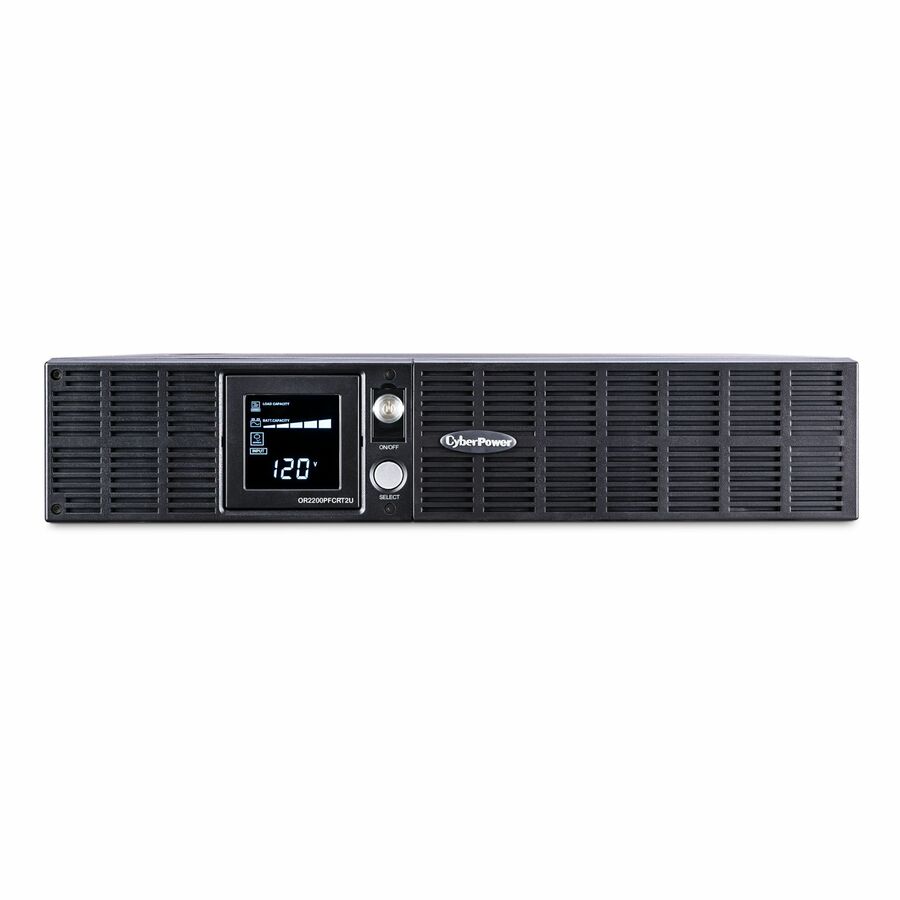

Rotatable Multifunction LCD Panel
The rotatable panel displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
GreenPower UPS Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

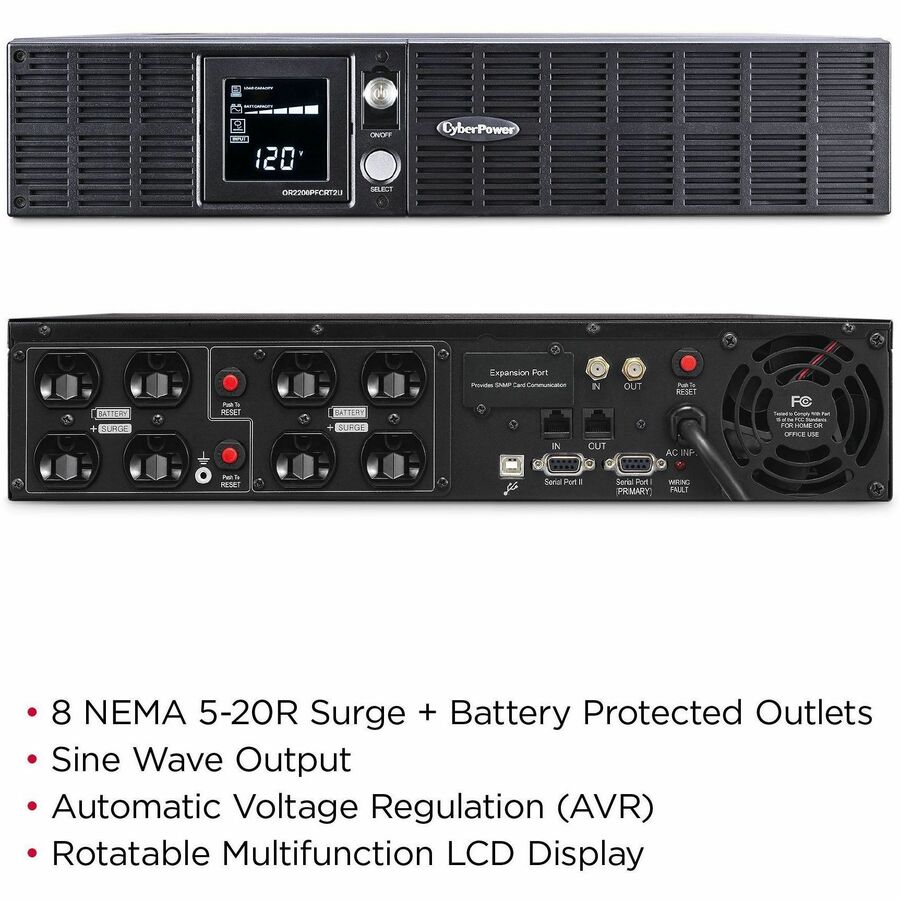

Battery Backup & Surge Protected Outlets
This unit is equipped with eight battery backup and surge protected outlets to keep your equipment protected from power surges and spikes.
Data Line Protection
Prevents power surges that travel through Ethernet lines from causing damage to electronics.
Workstations
Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.
Network Devices
Keep smart devices connected and running during power outages and brownouts.
Corporate & Department Servers
Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.
Product Q&A

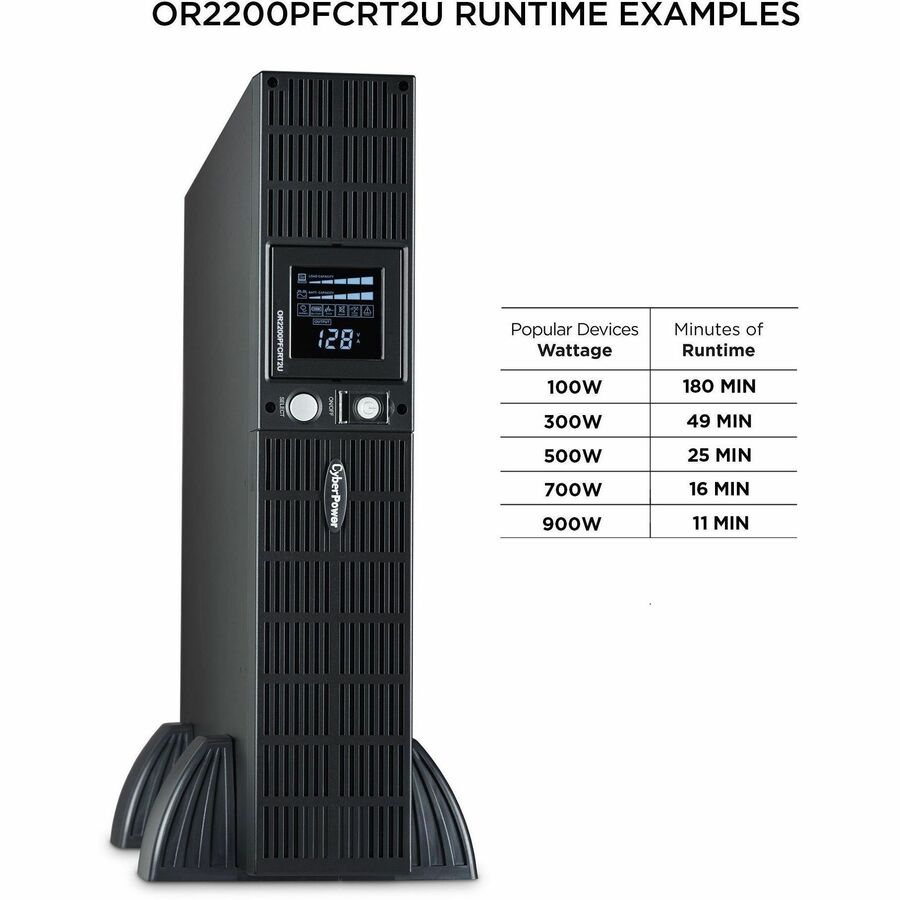

How long will the UPS power my systems after the power goes out?
Run times vary based on the power required by connected devices. This unit is estimated run for 15.5 minutes at half load, 4.5 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.
Can this UPS model be monitored?
Yes, the OR2200PFCRT2U comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
Can the batteries be replaced?
Yes, this unit can have the batteries replaced. The replacement battery cartridge is the CyberPower RB1290X4C.
Does this come with rackmount hardware?
Yes, all CyberPower rackmount units come with the necessary hardware to mount the UPS. However, the unit does not have to be mounted to work. It can operate in any well-ventilated environment within 32 °F to 104 °F (0 °C to 40 °C).
How do I mute the alarms?
Press the SELECT button for 3 seconds to access the Audible Alarm within the set-up mode functions. Use the same button to select OFF within the Audible Alarm function and hold for 3 seconds to mute the alarm. Repeat this step to enable the alarms.
Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Battery Information | |
|---|---|
| DC System Voltage | 24 V DC |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 15.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 10 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | Power On |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 50000 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 48.5 dB(A) |
| Thermal Dissipation | 374.54 W |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR2200PFCRT2U |
| Brand Name | CyberPower |
| Product Series | PFC Sinewave UPS |
| Product Model | OR2200PFCRT2U |
| Product Name | OR2200PFCRT2U PFC Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | Battery Mode |
| Physical Characteristics | |
| Product Color | Black |

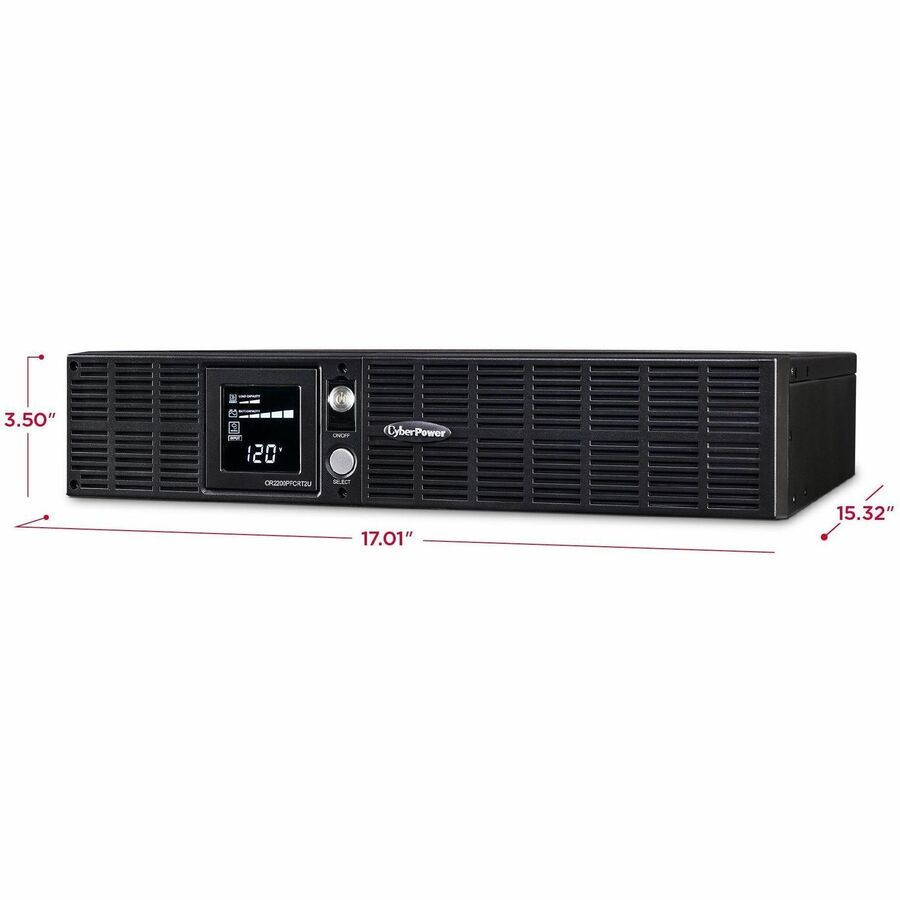

| Height | 3.50" |
| Width | 17.01" |
| Depth | 15.32" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 57.20 lb |
| Power Description | |
| Load Capacity (VA) | 2000 VA |
| Load Capacity (Watt) | 1540 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 88 V AC - 139 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1470 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.8 |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R, NEMA 5-15R |
| Receptacle Detail | 2 x NEMA 5-20R, 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Dataline Protection | RJ-45, RJ-11 |
| Overload Protection | Yes |
| Cord Length | 10 ft |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel Business Edition Software |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
