1500VA/1350W, 100 - 125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
MSRP$2,400.00
$1,856.09
Save 23%In stock: 1
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The OL1K5RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL1K5RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.9. The energy-saving GreenPower UPS ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.
The optional BP36VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year limited warranty (including batteries) and a $400,000 Connected Equipment Guarantee.
More from the Manufacturer

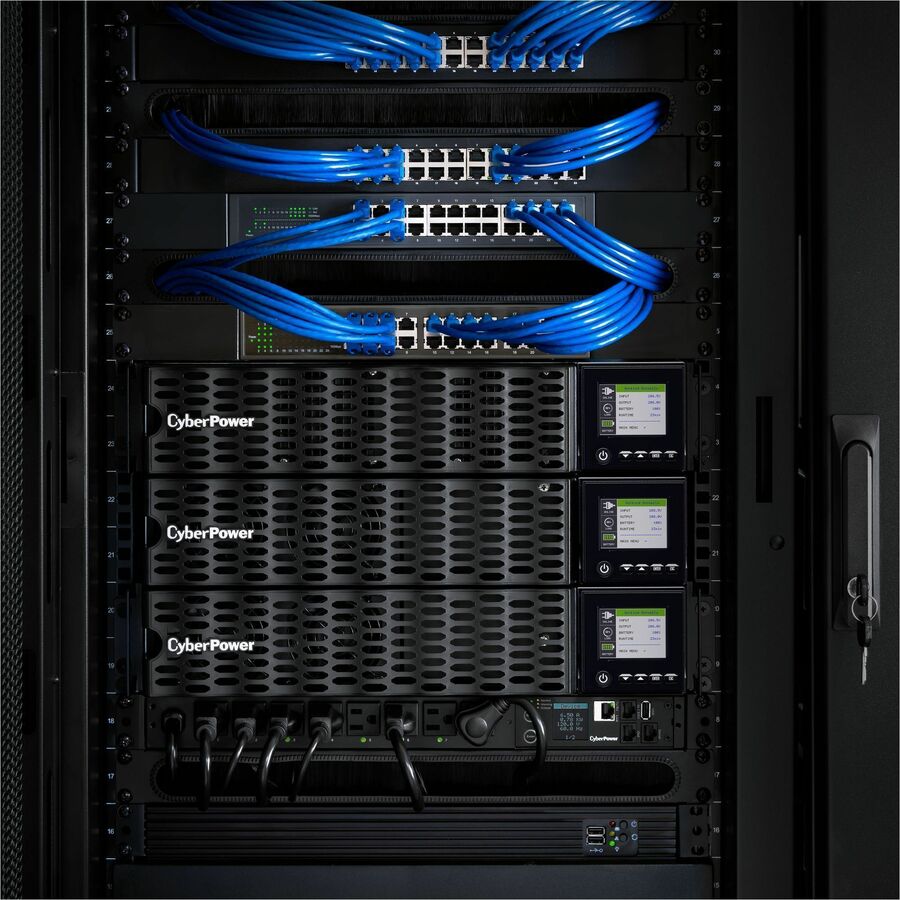

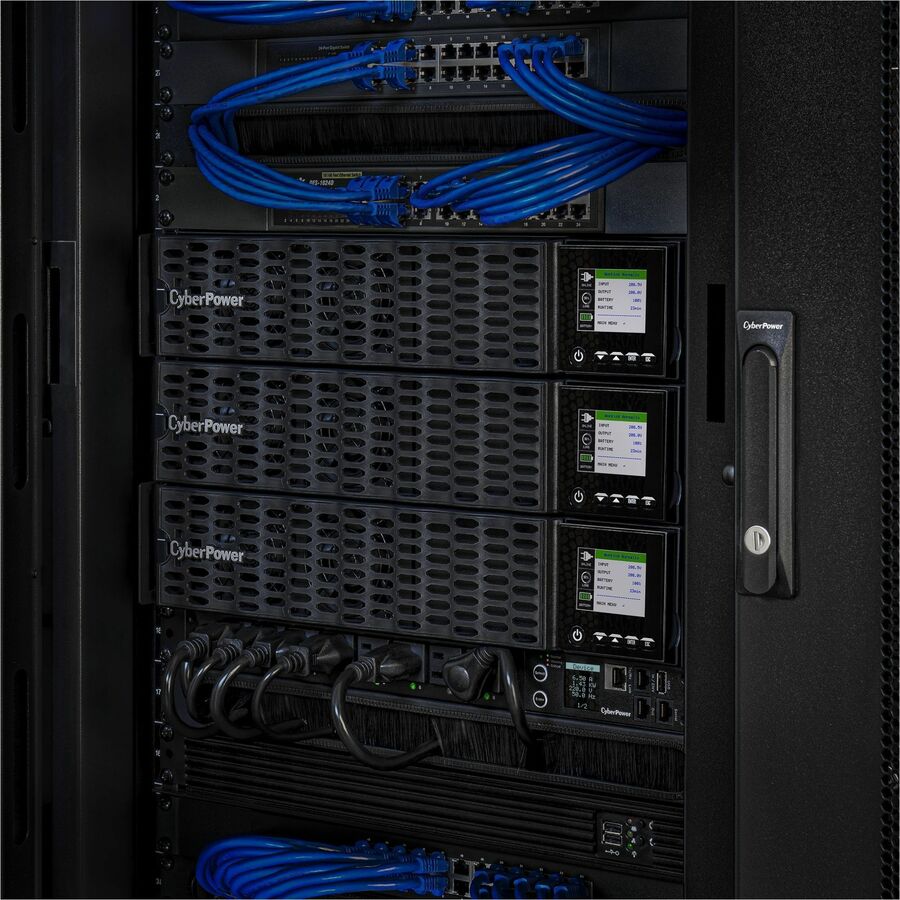

More Power, Less Space
The CyberPower Smart App UPS Online high-density design offers more power in less space allowing more room to grow. It features double-conversion topology for seamless power protection and a user-friendly, full color matrix LCD control panel that is simple to set up and easy to use.

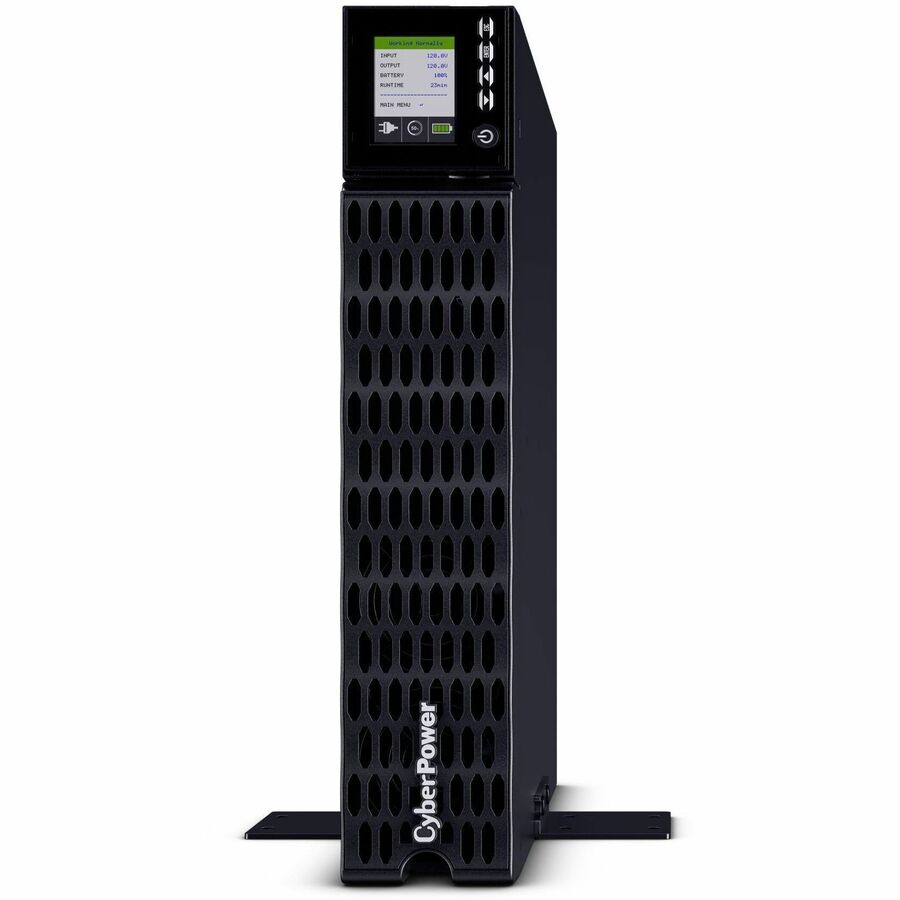

Full Color Matrix LCD Control Panel
The auto-rotating, multi-function color LCD shows the UPS status: green is normal, yellow is a warning, red is a power failure, or fault notices. It provides UPS controls, event logs, and diagnostics.
Toolless Battery Panel Access
Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
Individual Outlet Control
Individual outlets can be programmed, scheduled, or remote controlled to supply power to different devices.
Battery & Surge Protected Outlets
This unit is equipped with eight NEMA 5-15R battery and surged protected outlets to keep your equipment protected from power surges and spikes.

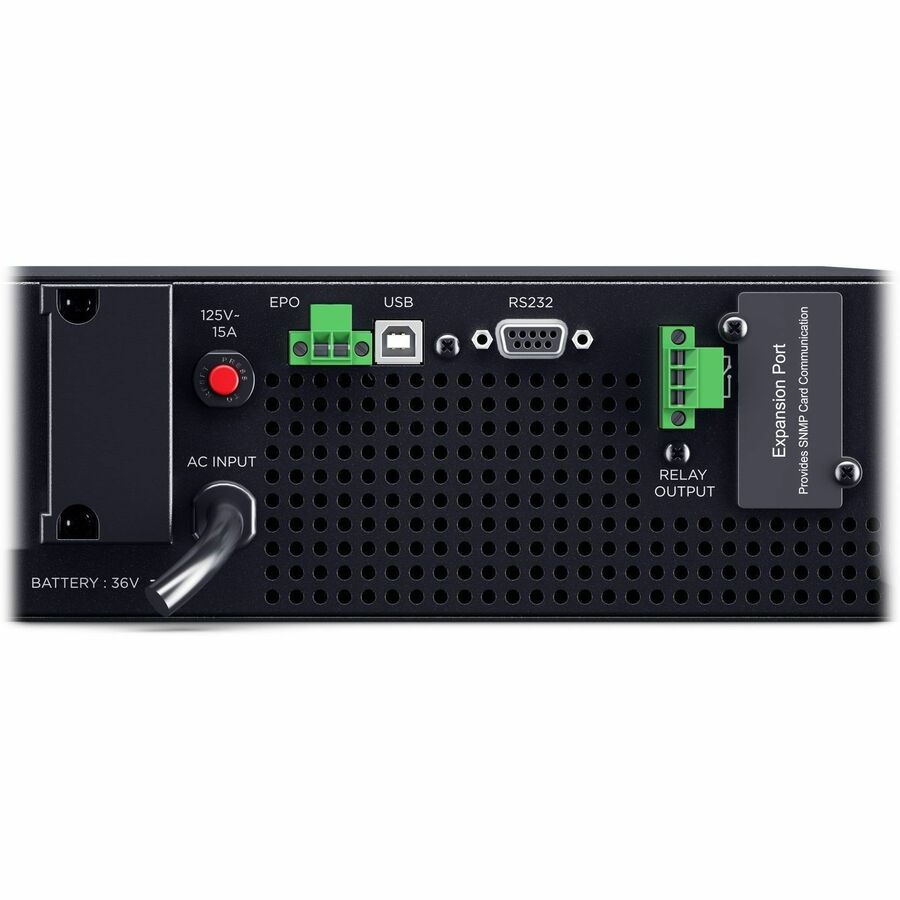

USB & Serial Connectivity
Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
Optional Remote Management
Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.
How long will the UPS power my systems after the power goes out?
This system is estimated to run for 12.5 minutes at half load, 5 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.
Can the battery be expanded?
Yes, this UPS can have up to 10 BP24VL2U01 extended battery modules connected to increase the run time.
What does Smart Battery Management do?
Smart Battery Management improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
Will this UPS work with a generator?
Yes, the UPS is generator compatible, ensuring a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
How do I mute the alarms?
Users can disable or enable the audible alarms from the basic set up via the LCD screen, navigate to audible alarm and then set to Mute on battery.
Proposition 65 Disclaimer
This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
Additional Warranty Information: <p>Three-year warranty (including batteries)</p> Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Battery Information | |
|---|---|
| Number of Batteries | 3 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On (White) |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Elevation | 9843 ft |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 49213 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 47.6 dB(A) |
| Thermal Dissipation | 115.76 W |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL1K5RTHD |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL1K5RTHD |
| Product Name | Smart App Online UPS OL1K5RTHD 1500VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | Dry Contact, SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" |
| Width | 17.05" |
| Depth | 14.96" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 37.26 lb |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1350 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC, 60 V AC - 69 V AC |
| Output Voltage | 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC |
| Input Frequency | 40 Hz, 70 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 710 J |
| Circuit Breaker | Yes |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Overload Protection | Yes |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Surge Suppression | Yes |
| Features | Audible Alarm, Built-in Bypass Switch, Cold Start Function |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year warranty (including batteries) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
