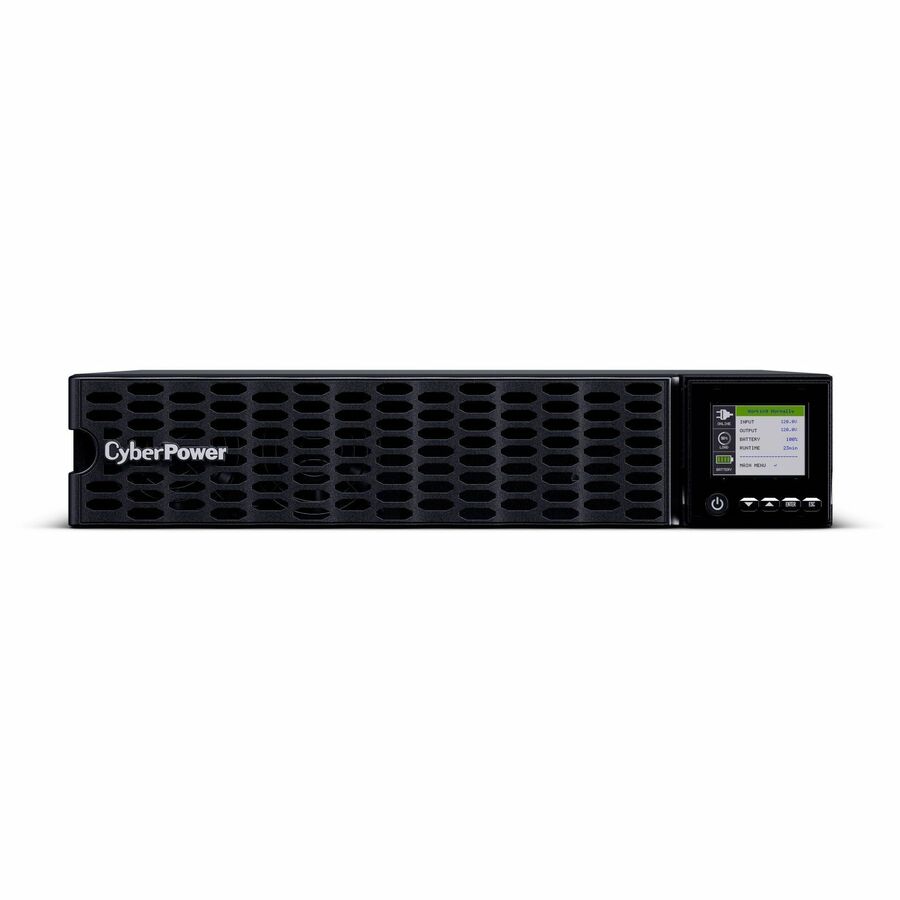

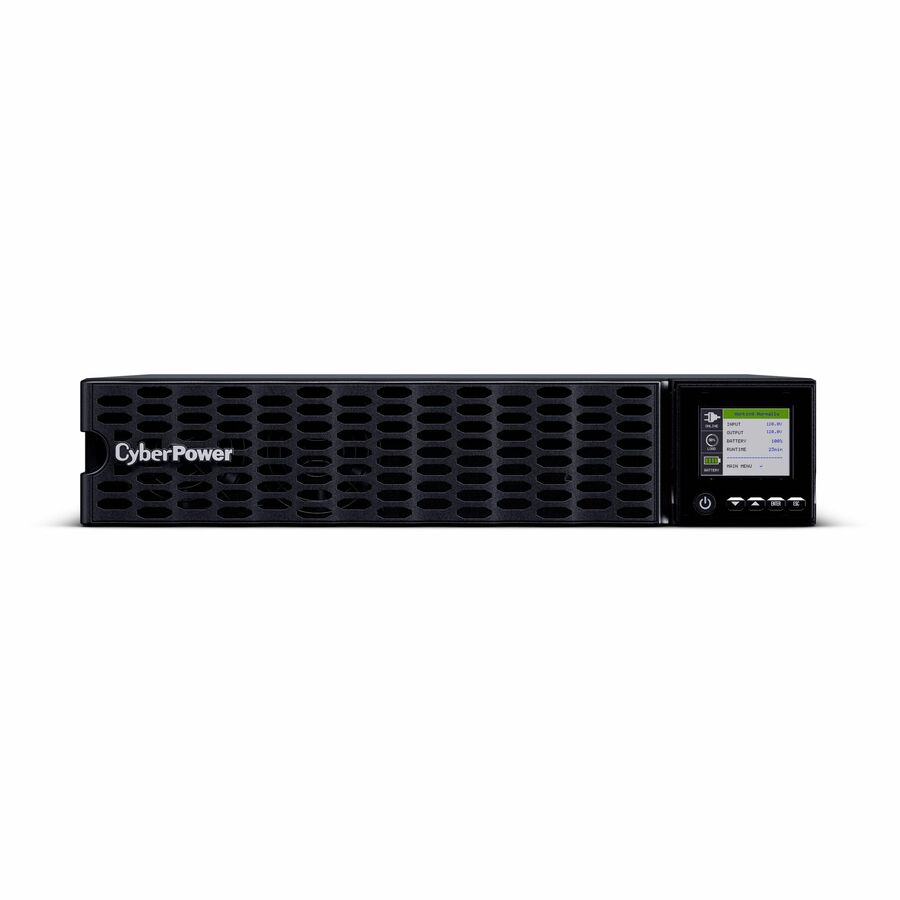

CyberPower OL2K2RTHDTAA Smart App Online UPS Systems
2200VA/1800W, 100-125 VAC, Switchable Outlets, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
- SKU
- OL2K2RTHDTAA
- Category
- General Purpose UPS
MSRP$3,600.00
$2,610.46
Save 27%Back ordered — ships when restocked.
Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- OL2K2RTHDTAA
- Category
- General Purpose UPS
Overview
The OL2K2RTHDTAA features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.

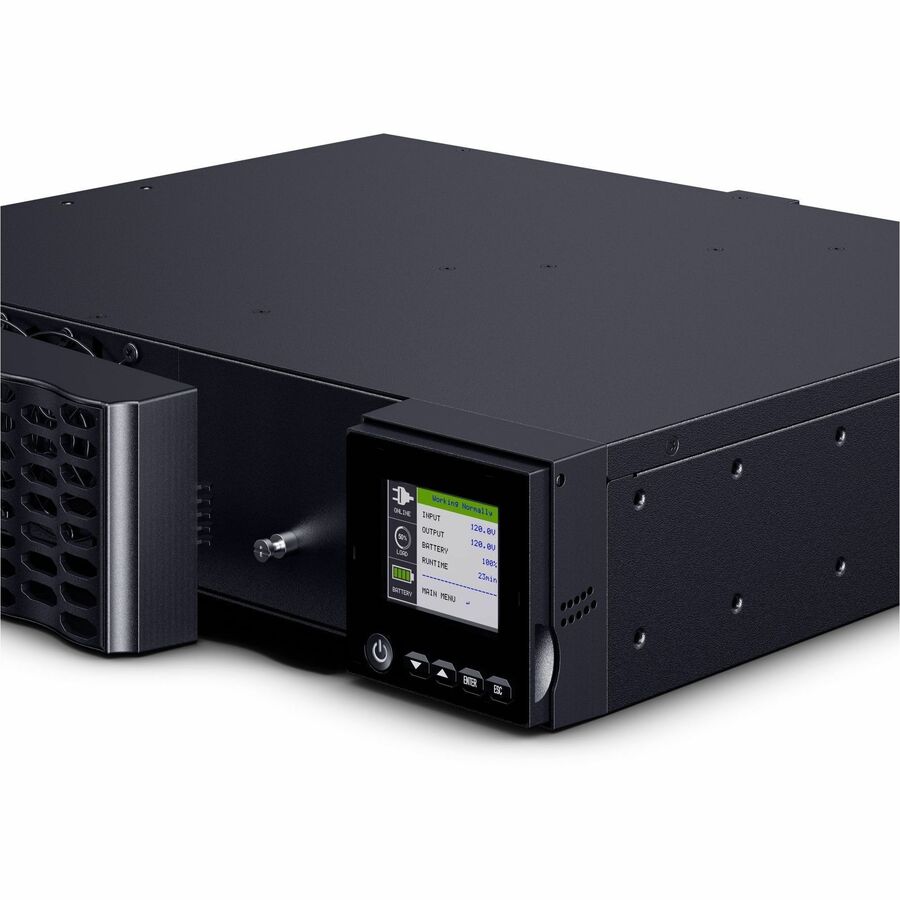

For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL2K2RTHDTAA ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.82. The energy-saving GreenPower UPS? ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.
The optional BP48VL2U01TAA Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year warranty (including batteries) and a $400,000 Connected Equipment Guarantee.
Highlights
- Capacity: 2200 VA / 1800 W
- High Density: 2U Size
- Power Factor (PF): 0.82
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 Vac User Configurable ±2%
- Runtime (half/full): 16 minutes / 6 minutes
- Plug type & cord: NEMA 5-20P

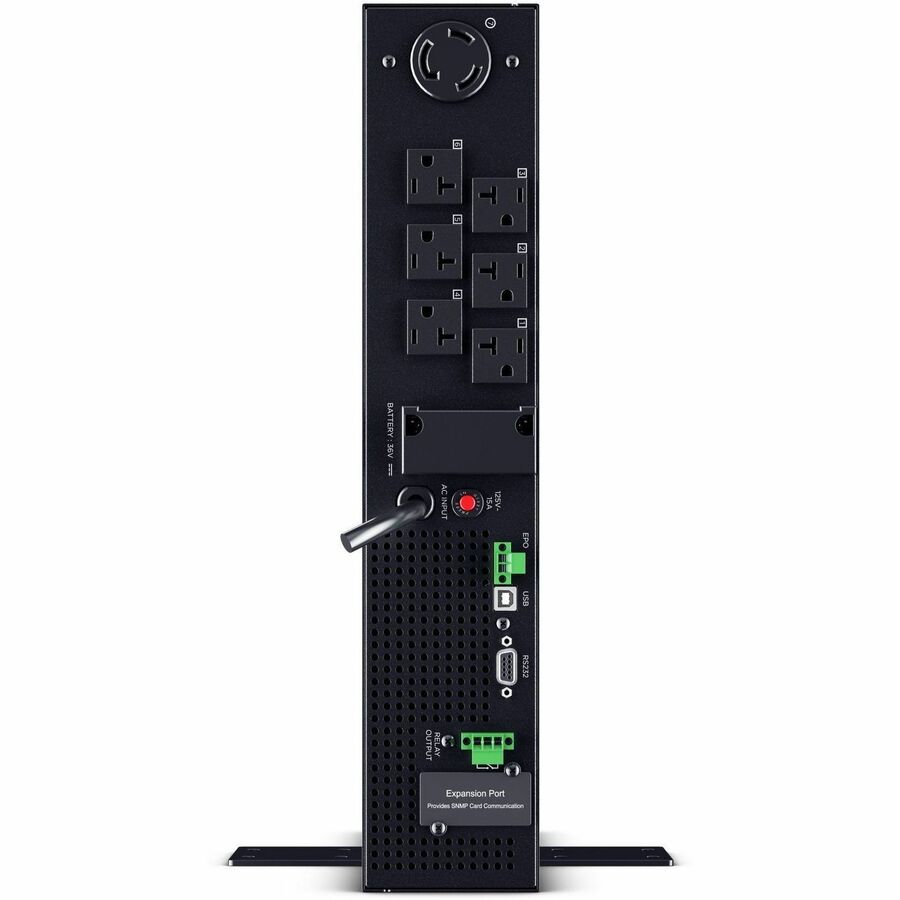

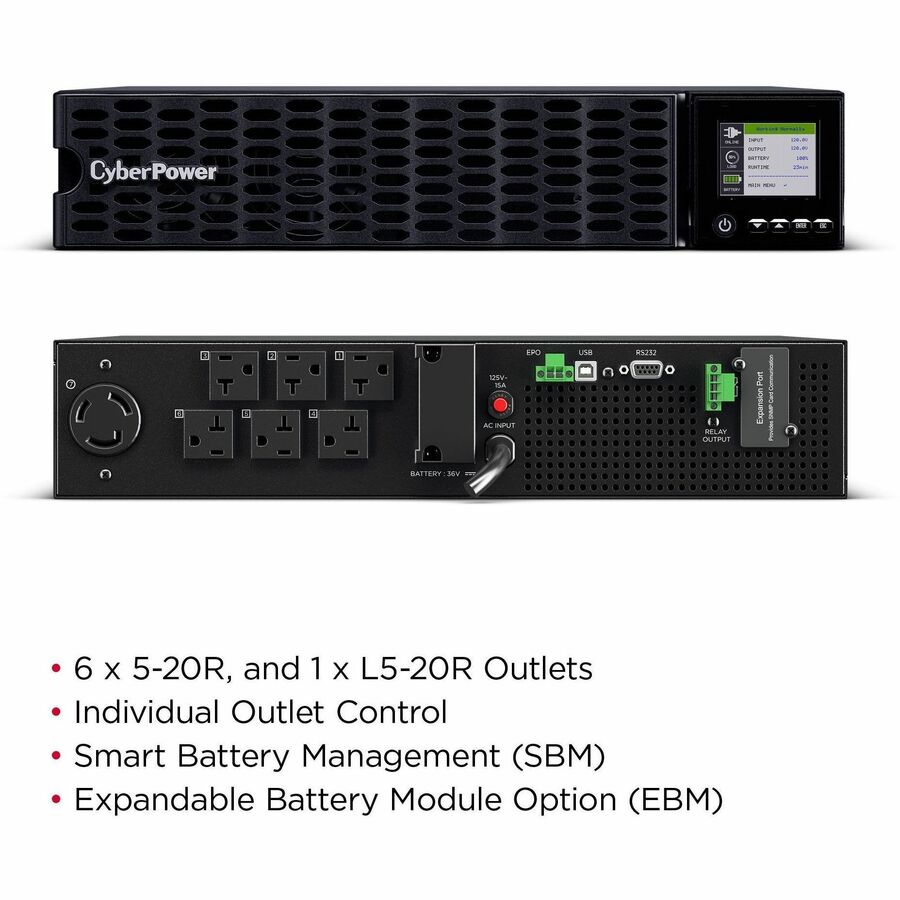

- Outlet types: 7 × 6 NEMA 5-20R & 1 NEMA L5-20R, Switchable
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes, RMCARD205 Optional
- Warranty: 3 year
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Software Included | PowerPanel Business Edition |
| Product Type | Double Conversion Online UPS |
| Circuit Breaker | Yes |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | OL2K2RTHDTAA |
| Limited Warranty | 3 Year |
| Output Voltage | 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC |
| Weight (Approximate) | 38.58 lb |
| Features | Cold Start Function, Built-in Bypass Switch, Audible Alarm |
| Form Factor | Rack/Tower |
| Status Indicators | LED Indicators: Power On (White) |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL2K2RTHDTAA |
| Product Name | OL2K2RTHDTAA |
| Network Management | Dry Contact, SNMP/HTTP Remote Monitoring, RS-232 |
| Overload Protection | Yes |
| Product Line | Smart App Online |
| Surge Energy Rating | 710 J |
| Surge Suppression | Yes |
| Thermal Dissipation | 145.66 W |
| Waveform Type | Sine Wave |
| Product Series | Smart App Online UPS |
| Rack Height | 2U |
| Brand Name | CyberPower |
| Plug/Connector Type | NEMA 5-20P |
| Input Voltage Range | 60 V AC - 69 V AC, 100 V AC - 125 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Alarm | Battery Mode |
| Cord Length | 10 ft |

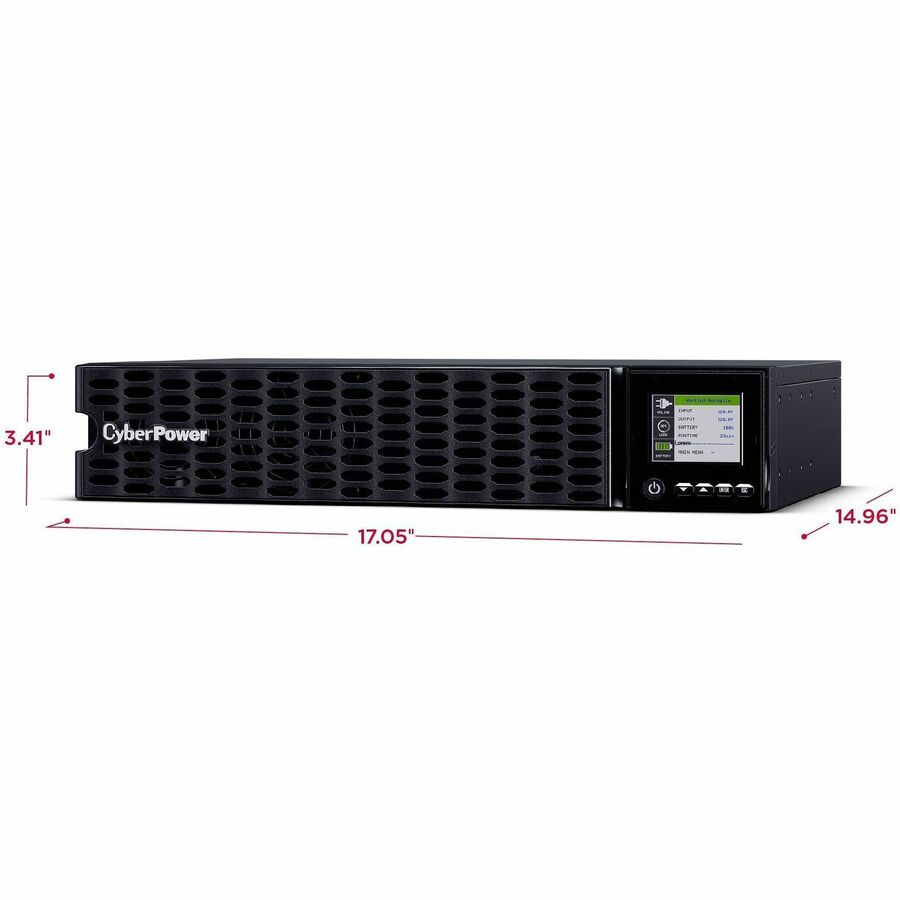

| Height | 3.40" |
| Width | 17.05" |
| Depth | 14.96" |
| Input Frequency | 40 Hz, 70 Hz |
| Battery Size | 12V |
| Receptacle Type | NEMA 5-20R, NEMA L5-20R |
| Battery Capacity | 9000 mAh |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 16 Minute |
| Backup/Run Time (Full Load) | 6 Minute |
| Battery Characteristics | Sealed |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 1800 W |
| EMI/RFI Noise Filter | Yes |
| Replaceable Battery | Yes |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 9843 ft |
| Maximum Storage Elevation | 49213 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 4 Hour |
| Product Color | Black |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.82 |
| Receptacle Detail | 6 x NEMA 5-20R, 1 x NEMA L5-20R |
| Sound Emission (A-Weighted) | 57.1 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
