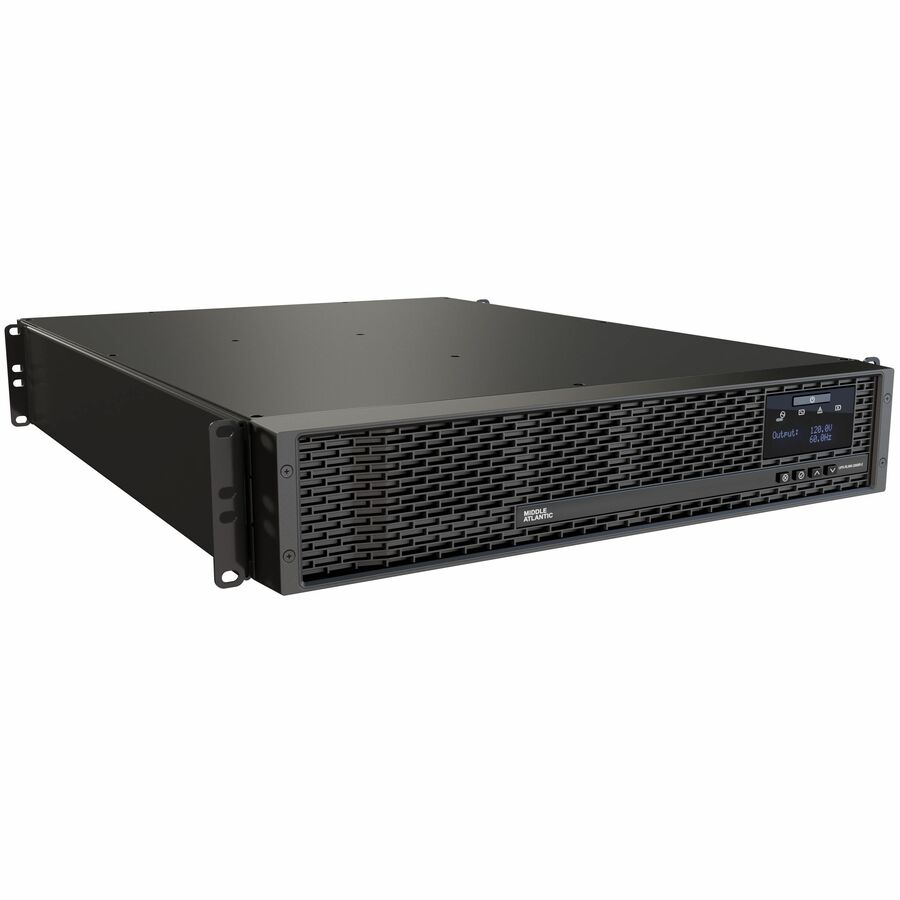

Middle Atlantic NEXSYS Series 2RU 20 Amp UPS Backup Power System with NEXSYS - 2000VA
2U Rack/Tower - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-20R
- SKU
- UPX-RLNK-2000R-2
- Category
- General Purpose UPS
MSRP$3,911.00
$2,317.63
Save 41%In stock: 368
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- UPX-RLNK-2000R-2
- Category
- General Purpose UPS
Overview
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPS backups prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. 2000VA and 20 amp. 8 Outlet UPS with Bank Control, (2) outlet banks with 4 outlets each. An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rack rails. The battery is already connected so just plug it in. Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended. Set reminders or notifications for things like battery replacement, etc. via email or on the UPS. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6' (1.8m) IEC power core. Easily locate the IP, MAC address, and device name via the front LCD screen. You can even see the battery installation date. Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment. Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards. Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system. RackLink Remote Management Built-In. The NEXSYS UPS is RackLink enabled out of the box and discoverable on the RackLink Discovery Tool on PC, Apple, or Android devices. Included RS232 port for control, (2) dry contact ports for alerts, 1 contact is defined to alert users of a battery switchover when the UPS loses utility power or hits a set threshold, 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds. Energy Star Certified.
Highlights
- Experience higher efficiency with lower energy cost
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
- 1800 W load capacity - backup power for your valuable electronics
- 2000 VA load capacity provides sufficient backup during power failures
- 8 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry for your convenience and better usability
- NEMA 5-20P plug/connector type for convenient usage with added dependability
- NEMA 5-20R receptacle type offers maximum safety, convenience, and increased usability
- 120 V AC input voltage for better reliance and maximum dependability
Specifications
| Additional Warranty Information | 2 Years Battery |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | UPX-RLNK-2000R-2 |
| Limited Warranty | 3 Year |
| Output Voltage | 110 V AC, 120 V AC, 127 V AC |
| Weight (Approximate) | 63.05 lb |
| Dataline Protection | RJ-45 |
| Form Factor | Rack/Tower |
| Input Current | 20 A |
| Manufacturer | Legrand Group |
| Product Name | NEXSYS Series 2RU 20 Amp UPS Backup Power System with NEXSYS - 2000VA |
| Network Management | Dry Contact, DB-9 RS-232, SmartSlot, Network Card |
| Product Line | NEXSYS |
| Surge Energy Rating | 1000 J |
| Waveform Type | Pure Sine Wave |
| Rack Height | 2U |
| Brand Name | Middle Atlantic |
| Plug/Connector Type | NEMA 5-20P |
| Input Voltage Range | 80 V AC - 145 V AC |
| Country of Origin | China |
| Cord Length | 5.91 ft |
| Height | 3.50" |
| Width | 19" |
| Depth | 22" |
| Input Frequency | 60 Hz |
| Receptacle Type | NEMA 5-20R |
| Environmentally Friendly | Yes |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Load Capacity (VA) | 2000 VA |
| Load Capacity (Watt) | 1800 W |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| AVR | Yes |
| DC System Voltage | 48 V DC |
| EPO Port | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Operating Humidity | 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 8 Hour |
| Product Color | Black |
| Receptacle Detail | 8 x NEMA 5-20R |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
