Genuine Legrand through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
General Purpose UPS
Overview
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Online UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
• 8 Outlets with Bank Control; (2) outlet banks with 4 outlets each
• 1000VA and 15 Amp
• An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations; Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3 rd pair of rackrail - The battery is already connected so just plug it in
• Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
• Pure Power. All NEXSYS Online Double Conversion UPSs have a Pure Sine Wave output providing the cleanest power to your connected equipment, especially the most sensitive equipment
• No time to wait. Absolute zero transfer time because the connected equipment is ALWAYS powered from the battery. Keep in mind, that batteries in Online UPSs do need to be replaced more frequently, but NEXSYS will give you the heads up when that time comes.
• "NEXSYS, alert me when...". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
• Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system
• The IEC Input allows for better cable management of the power cord if shorter or longer cords are required; Includes a 6' (1.8m) SignalSAFE IEC power cord
• Energy Star Certified; The ONLY Online UPS with Energy Star in the AV market
• U.S. Department of Energy Compliant for energy efficiency
Warranty
Limited Warranty: 2 Year
About Legrand
Middle Atlantic Products designs and manufactures innovative foundational products like system enclosures, tech-enabled furniture, and power distribution and backup to support integrated systems for residential, commercial, broadcast, government, education and security applications. Since 1979 Middle Atlantic is what great systems are built on.
Highlights
Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
1000 W load capacity - backup power for your valuable electronics
1000 VA load capacity - work without any interruption during power outages
Replaceable battery for optimal performance with maximum charged dependability
NEMA 5-15P plug/connector type for a secure, feasible operation
NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
Double Conversion Online UPS with equipment application/usage to ensure maximum usability and reliable power supply
110 V AC output voltage for better reliance and maximum usability
Rack-mountable double conversion online ups allows easy and convenient usage without any hassle
Specifications
Battery Information
Hot Swappable
Yes
Replaceable Battery
Yes
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
104°F (40°C)
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
UPX-OL1000R-2
Brand Name
Middle Atlantic
Product Line
NEXSYS
Product Name

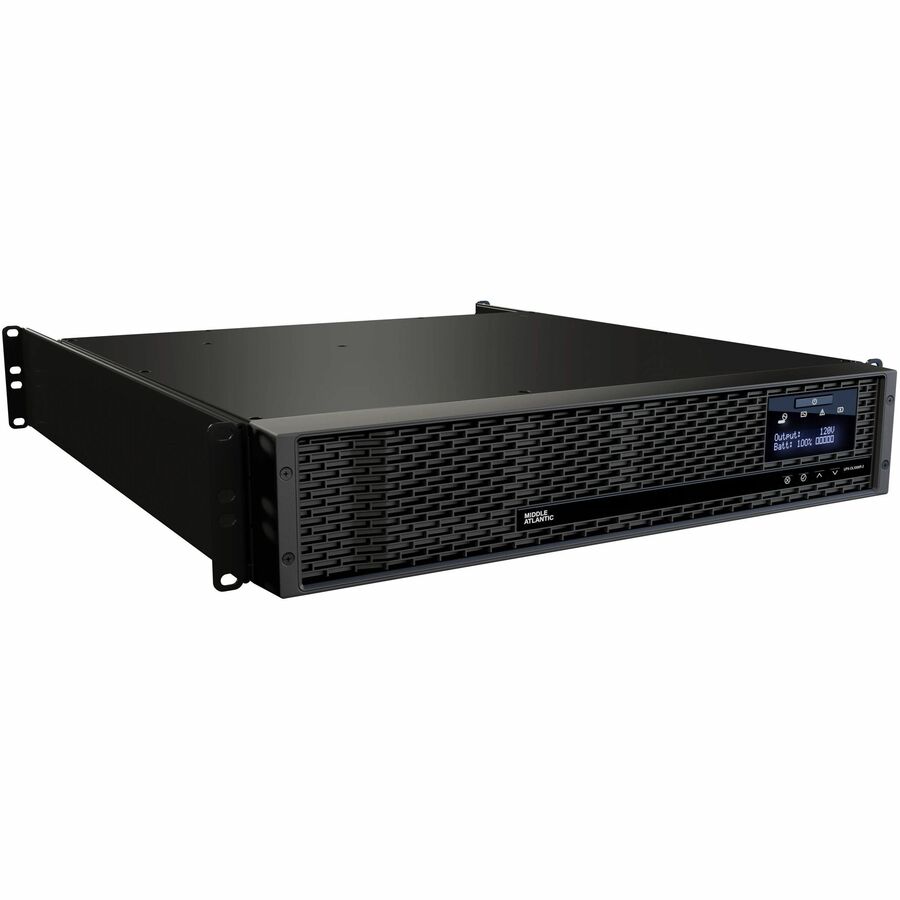

NEXSYS 1000VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
Product Type
Double Conversion Online UPS
Physical Characteristics
Product Color
Black
Height
3.50"
Width
19"
Depth
16"
Form Factor
Rack-mountable
Weight (Approximate)
33.10 lb
Power Description
Load Capacity (VA)
1000 VA
Load Capacity (Watt)
1000 W
Output Voltage
110 V AC, 127 V AC
Waveform Type
Pure Sine Wave
Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
8 x NEMA 5-15R
Cord Length
6 ft
Application/Usage
Equipment
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
NEXSYS 1000VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
6' (1.8m) SignalSAFE IEC Power Cord
Energy Star
Yes
TAA Compliant
No
Energy Efficiency Certification
ENERGY STAR 2.0
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
