Comprehensive CHE-HDBTWP121K Video Extender Transmitter/Receiver
Comprehensive Connectivity

Comprehensive CHE-HDBTWP121K Video Extender Transmitter/Receiver

1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 3 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Category 7, Category 6, Category 6a, Category 5e - Meeting Room, Conference Room, Classroom - Wall Plate - Yes

SKU
CHE-HDBTWP121K
Category
Audio & Video Consoles/Extenders

MSRP$651.99

$472.86

Save 27%

In stock: 1

Get a quote

Genuine Comprehensive Connectivity through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CHE-HDBTWP121K
Category
Audio & Video Consoles/Extenders

Overview

Extend 4K HDMI, Audio and USB 2.0 High Speed Signals over a Single UTP Cable up to 230ft

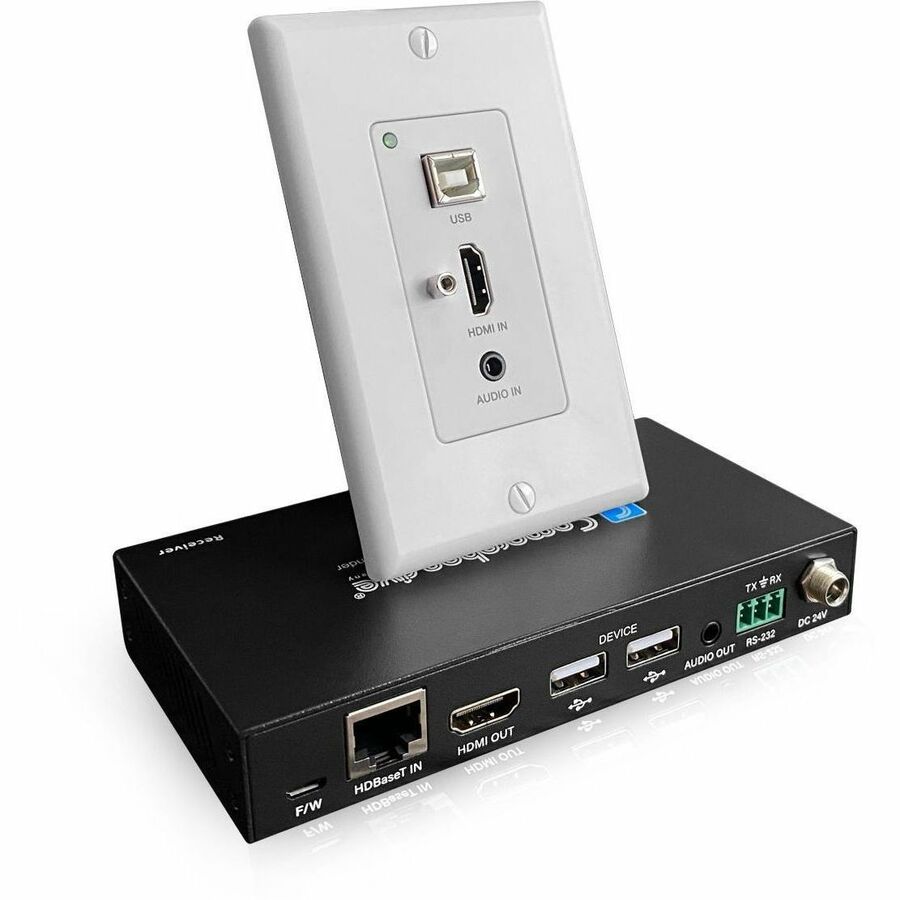

Comprehensive's CHE-HDBTWP121K Wall Plate Extender kit was designed to extend HDMI, analog audio and high speed USB 2.0 signals up to 230ft over Cat5e or Cat6 cables. Perfect for all commercial AV/IT installations that requires HDMI and USB 2.0 and audio inputs.

Supports 4K HD Video up to 4K@60Hz (4:4:4)

This versatile USB/HDMI extender can transmit 4K resolutions up to 4K@60Hz 4:4:4 up to 131ft and 1080P@60Hz up to 230ft, making it perfect for classrooms, meeting rooms, huddle spaces and other AV installations.

Supports Bi-directional POC (Power over Cable) Delivery

The CHE-HDBTWP121K includes 24V POC function support. Either the TX or RX can be powered by the included 24V/1A power adapter or Phoenix jack.

Dual USB 2.0 Ports

The two high speed USB 2.0 ports allow you to connect two USB devices and use them simultaneously.

Dedicated Analog Audio

The 3.5mm analog audio jack delivers audio independent from the HDMI signal for additional audio routing.

A Must Have Device for Every AV Space

Ideal for use in court rooms, classrooms, conference rooms and anywhere audio-visual devices can be extended from a remotely located HDMI source device.

Compatible with Promethean® Interactive Whiteboard

This USB extender supports and is fully compatible with the Promethean® Interactive Whiteboard.

Highlights

  • Extends your 4K HDMI, Audio and USB 2.0 High Speed Signals over a single UTP cable up to 230ft
  • HDMI 2.0, 18Gbps
  • HDCP 2.2 & 1.4 Compliant
  • One HDMI input supports resolutions up to 4K2K@50/60Hz (4:2:0), 4K2K@60Hz (4:4:4), 1080p@120Hz HDBaseT? over a single CAT 6/6a/7 cable up to 230ft/70m distance to 1080p or 132ft/40m distance to 4K60.
  • One USB 2.0 High Speed port up to 190 Mbps
  • One 3.5mm Audio Port to independently transit analog audio signal from the Transmitter to the Receiver
  • Supports HDR, CEC pass through
  • 24V POC (Power Over Cable) function is supported, either TX or RX is powered by 24V1A power supply, the another does not need power supply from the DC jack.
  • POC power consumption is less than 10W.
  • Transfer Bidirectional RS-232 control signal together with the HDMI signal.
  • 3 Year Warranty

Specifications

Application/UsageMeeting Room, Conference Room, Classroom
Package Contents

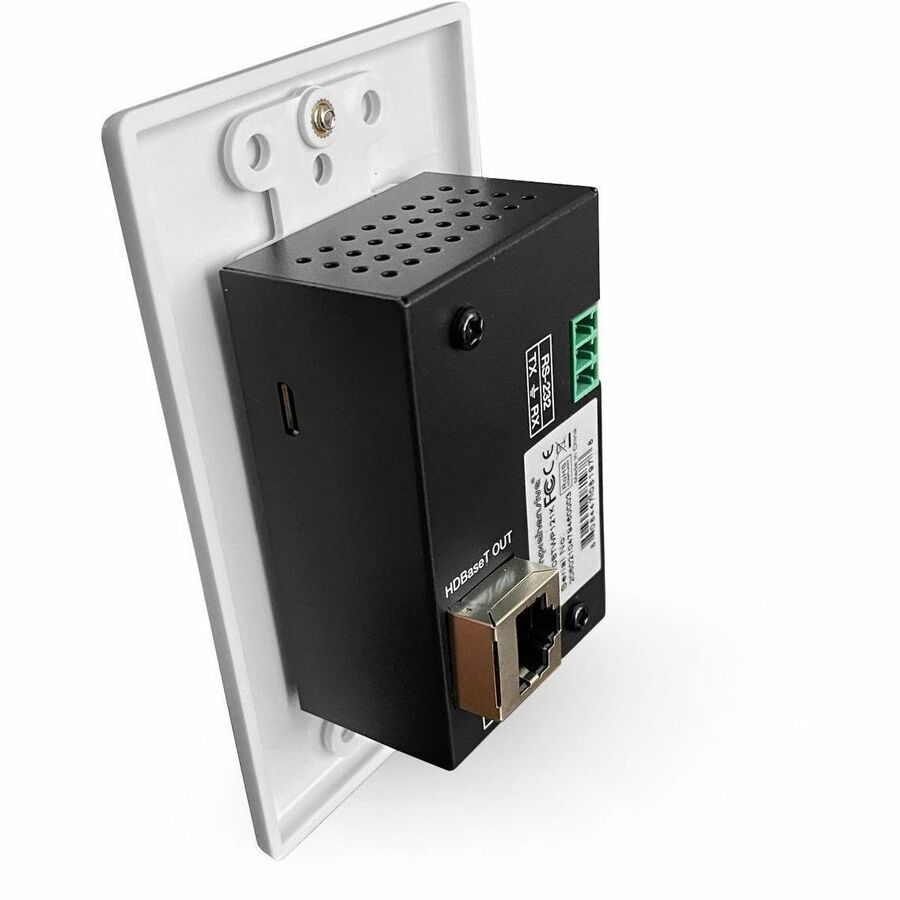

  • 1 x Single Gang HDMI/USB Wall Plate Extender (white)

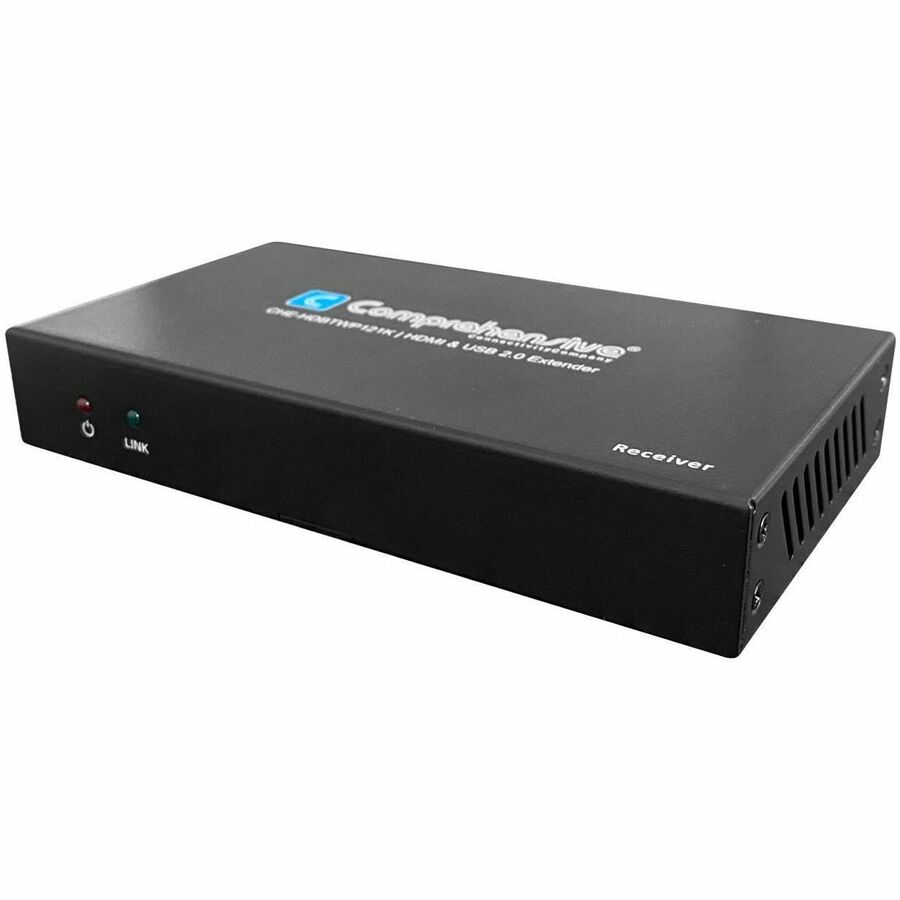

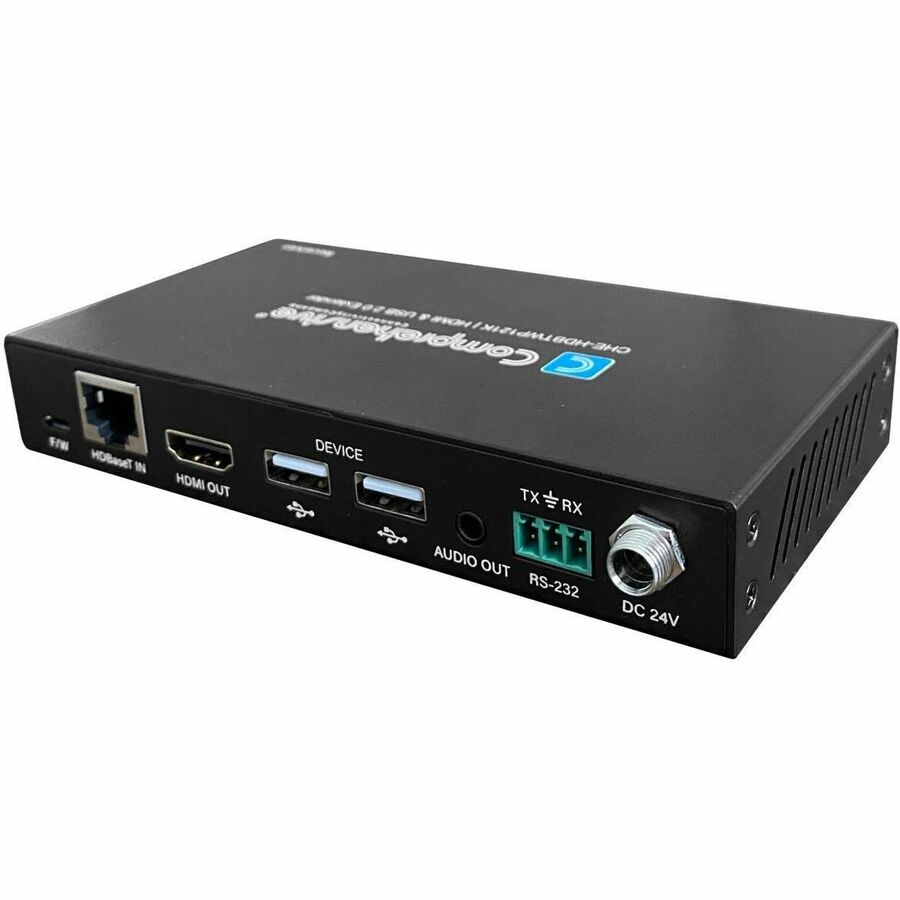

  • 1 x HDMI/USB Receiver box (black)
  • 1 x Vinyl Decora Plate With 2 Screws
  • 2 x 3-pin Phoenix Connector
  • 1 x 2-pin Phoenix Connector
  • 1 x Mounting Ears With Mounting Screws DC 24V/1A Power Adapter
  • 1 x USB 2.0 Type A Male To Type B Male Cable 3 Feet
  • 1 x User Manual
Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberCHE-HDBTWP121K
Limited Warranty3 Year
Connectivity TechnologyWired
Form FactorWall Plate
ManufacturerComprehensive Connectivity Company
Product ModelCHE-HDBTWP121K
Product NameCHE-HDBTWP121K Video Extender Transmitter/Receiver
Brand NameComprehensive
Graphics Modes4K
Twisted Pair Cable StandardCategory 7, Category 6, Category 6a, Category 5e
Maximum Operating Distance230 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports3
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height1.80"
Transmitter Width4"
Transmitter Depth1.20"
Receiver Height9"
Receiver Width5.50"
Receiver Depth2.90"
Transmitter Weight (Approximate)5.75 oz
Receiver Weight (Approximate)7.05 oz
Product ColorWhite/Black
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
HDBase-TYes
