Genuine Comprehensive Connectivity through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
USB5GX-530WPK
Category
Audio & Video Consoles/Extenders
Overview
Features
• Extension of USB 3.2 5Gbps up to 100m/330ft via a CAT6a cable
• USB 3.2 Gen 1 connectivity with data transfer rates up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfer
• TX features 1x USB-B and 1x USB-C selectable input ports
• Supports auto switching and manual switching modes

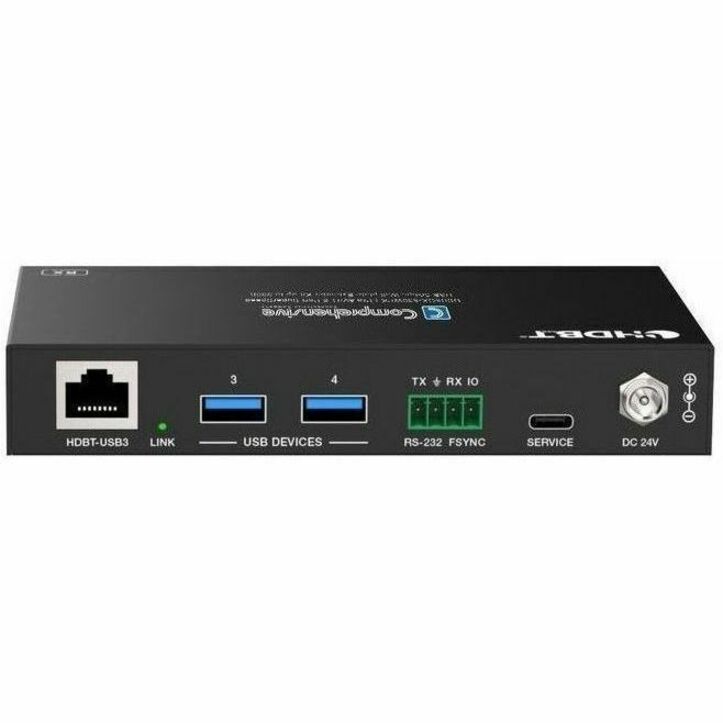

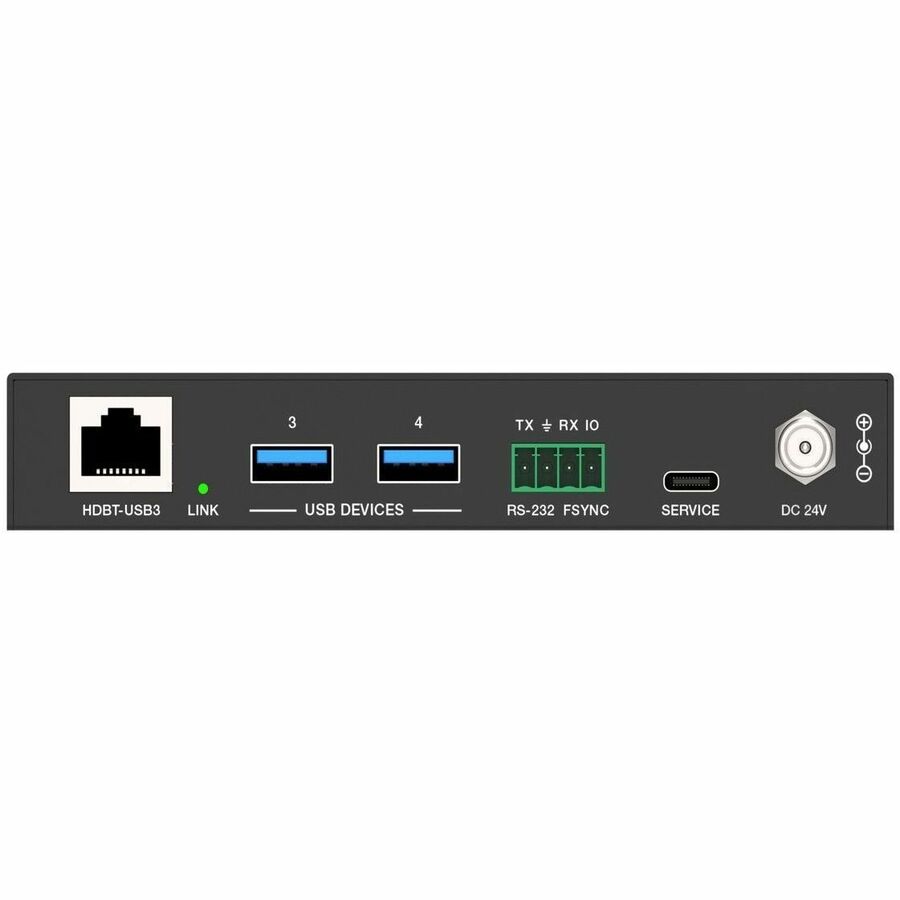

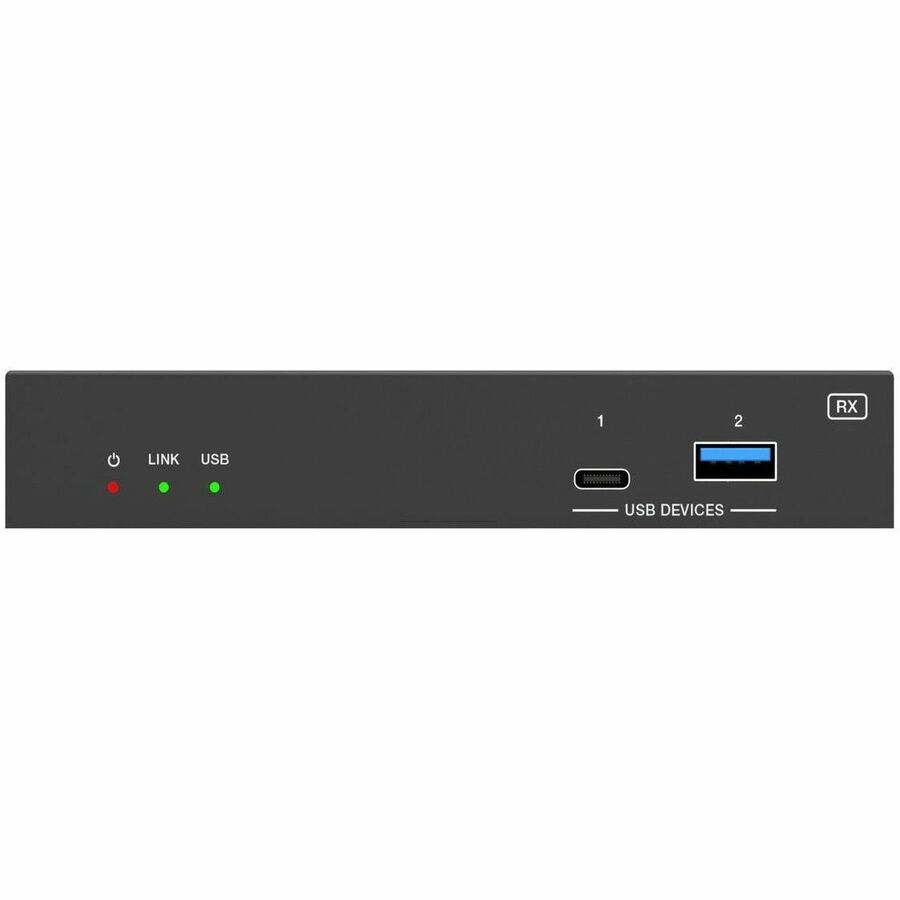

• RX features 1x USB-C and 3x USB-A output ports (2x 5V@1A and 2x [email protected])
• Supports RS-232 pass-through and API control
• Supports firmware upgrade via USB-C service port
• Supports FSYNC GPIO pass-through for industry camera use
• Supports bi-directional 24V PoC (Power over Cable), when TX or RX gets power, the other end does not need an external power supply
• Plug-and-play with no drivers, downloads, or software required
• Supports all USB transfer types (Control, Interrupt, Isochronous and Bulk)
• Optimized for cameras and video capture devices & touch screens
• Works with all major operating systems: Windows®, macOS?, Linux® and Chrome OS?
• 3 Year Warranty
Applications
• Industrial Control
• KVM Extension
• Professional Audio-Visual
• Digital Signage
• Security and monitoring
• Medical Device Connectivity
• Security: web camera, access control
• Conferencing Cameras
What is this product used for? (primary use):
Extends SuperSpeed USB 3.2 5Gbps: Extends USB 3.2 devices such as webcams, touch boards, video bars, Capture cards and VR headsets up to 330ft over a single Cat6A cable.
USB 3.2 Hub: Provides a 6-Port USB Hub to connect USB-A and USB-C devices.
Extends RS232 & FSYNC GPIO: Extends RS232 & FSYNC GPIO signals which is used to control switchers, control systems, industrial cameras, TVs, and audio equipment.
USB 3.2 Sharing: Allows 2x PCs to share and take advantage of a room's Webcam, Video bar, mouse, keyboard and also supports BYOM applications..
Warranty
Limited Warranty: 3 Year
Highlights
Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution
Connect your video extender transmitter/receiver to your PC to supply power and conveniently transfer the photos and videos for editing and sharing on the social media
Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
328.08 ft maximum operating distance for feasible operation and optimal coverage
Video Extender Transmitter/Receiver with industrial application/usage to ensure maximum dependability and optimal performance
Video Extender Transmitter/Receiver allows you to store much more data and access files everywhere you want on the iOS platform
Specifications
General Information
Manufacturer
Comprehensive Connectivity Company
Manufacturer Part Number
USB5GX-530WPK
Brand Name
Comprehensive
Product Series
GX
Product Name
GX Video Extender Transmitter/Receiver
Product Type
Video Extender Transmitter/Receiver
Interfaces/Ports
Network (RJ-45)
Yes
USB
Yes
Number of Network (RJ-45) Ports
2
Number of USB Ports
9
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 6a, Category 6, Category 5e, Category 7
Physical Characteristics
Color Family
Black
Product Color
Black
Transmitter Height
0.90"
Transmitter Width
5.50"
Transmitter Depth
3"
Receiver Height
0.90"
Receiver Width
5.50"
Receiver Depth
3"
Technical Information
Connectivity Technology
Wired
Maximum Operating Distance
328.08 ft
HDBase-T
Yes
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents

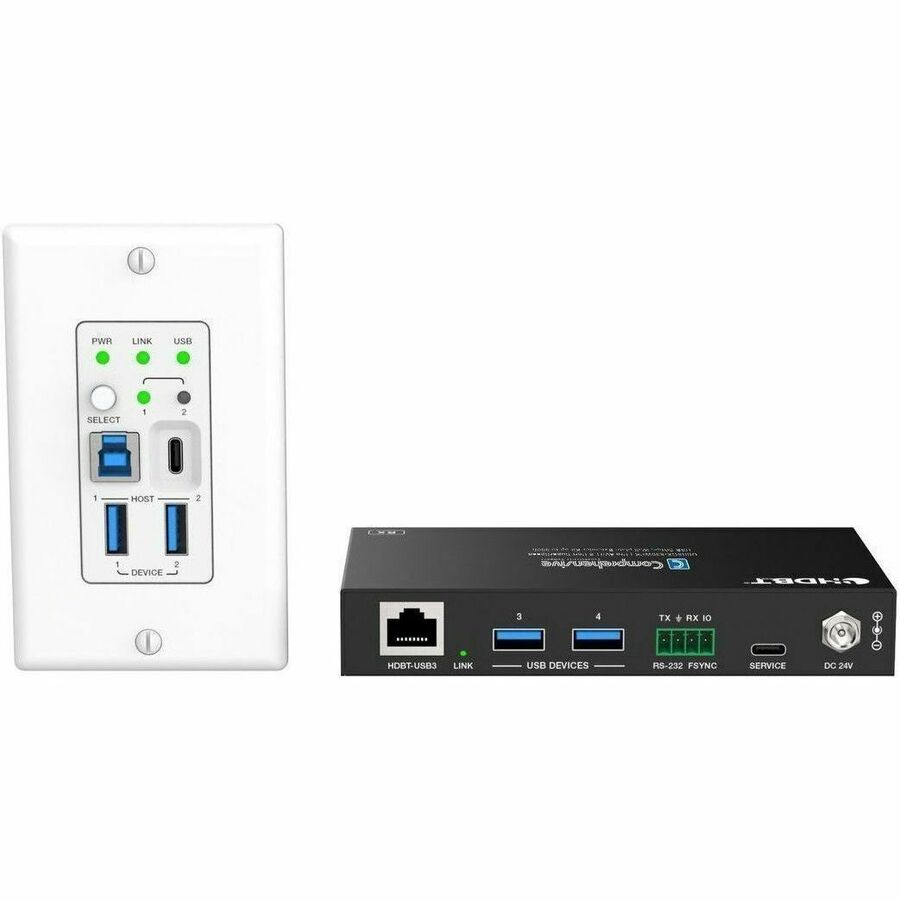

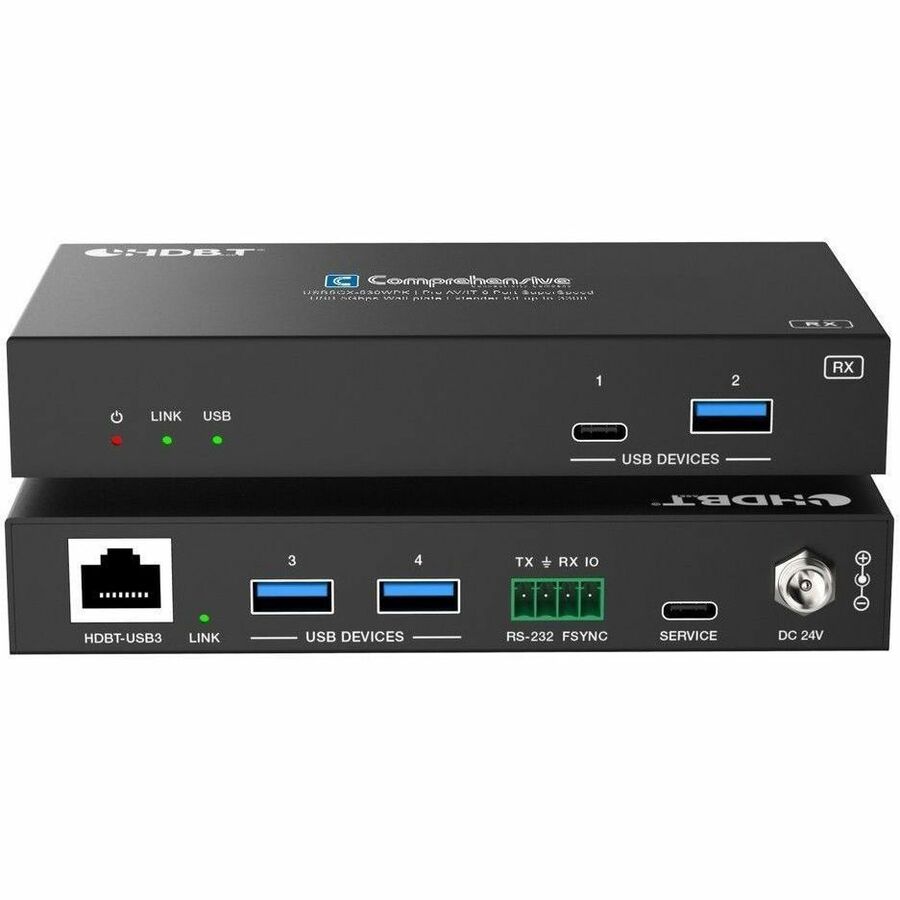

1x USB5GX-530WPK (Tx & Rx Kit)
1x 24V/3.75A DC Power Adapter with locking connector
4x Mounting Ear
8x Machine Screw (KM3*4)
2x 4pin-3.5mm Phoenix Connector (Male)
1x Operation Manual
Application/Usage
Industrial, Digital Signage System, IP Camera, Conference Room, TV, Desktop PC, Mouse, Keyboard, Scanner, Printer
