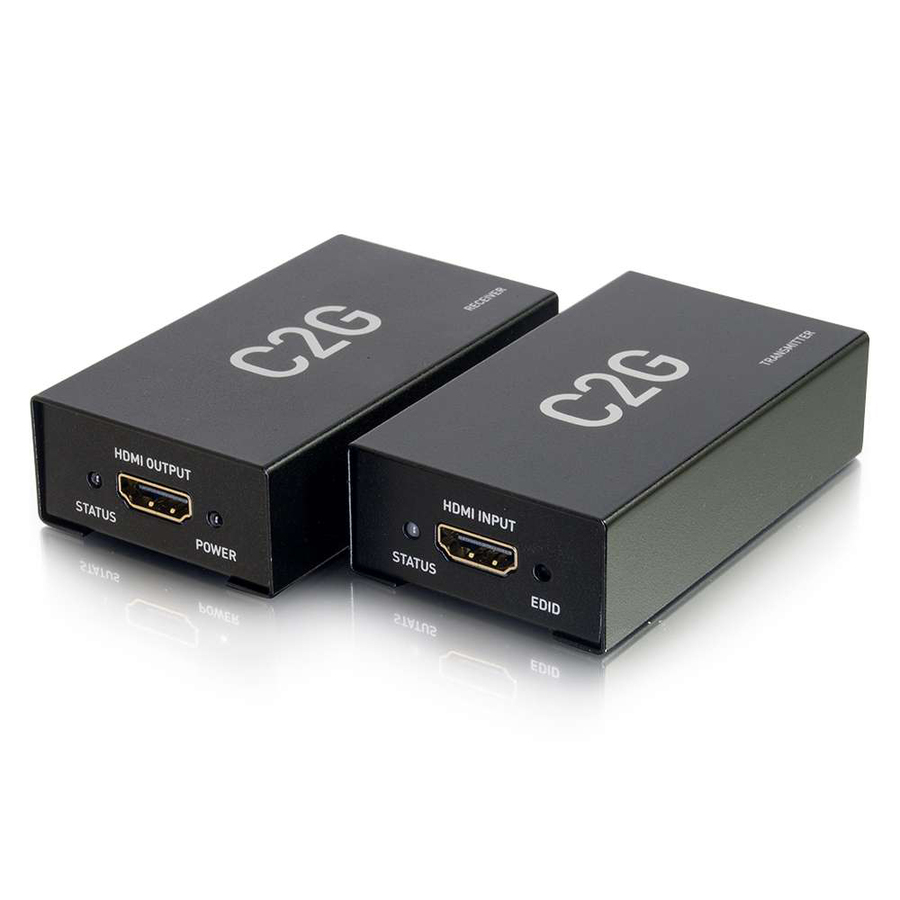

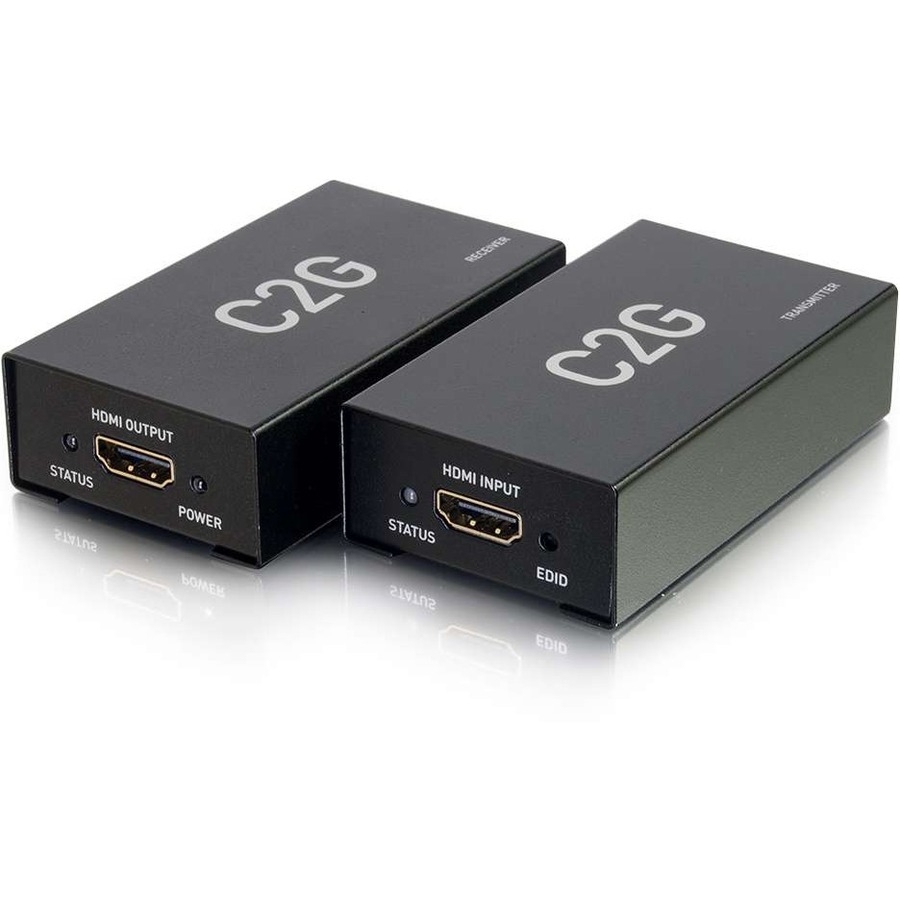

C2G HDMI Over Cat5/6 Extender up to 164ft (50m)
1 Input Device - 1 Output Device - 164.04 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6
- SKU
- CG60180
- Category
- Audio & Video Consoles/Extenders
MSRP$198.99
$107.81
Save 46%Back ordered — ships when restocked.
Genuine C2G through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CG60180
- Category
- Audio & Video Consoles/Extenders
Overview
The HDMI Over Cat5/6 Extender is ideal for extending digital video and audio, making it a great solution for digital signs, schools, churches, trade show presentations, or any application where the HDMI source is farther than 50 feet from the display. The extender can also send HDMI signals over existing Cat5 or Cat6 cable infrastructure for cost-effective reliability, while maintaining high performance quality.
Convenience
This solution is able to extend HDMI video and audio up to 164 feet and requires the use of a single Cat5 or Cat6 patch cable. With no drivers or software to install, the HDMI over Cat5/6 Extender provides total plug and play convenience. Simply connect the transmitter to the video source, the receiver to the display, and extend with a single category cable for quality video and audio.
Performance
Supporting resolutions up to 1080p at 60Hz and delivering quality sound allows the HDMI extender to meet the requirements for high performance applications and adds greater functionality to displays.
Highlights
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- 1920 x 1080 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 input devices supported to better accommodate your specific requirements
- 1 output devices supported for maximum productive usability
- 164.04 ft maximum operating distance for reliable coverage and maximum portability
- Full HD graphics mode for stunning, lively video quality
Specifications
| Product Type | Video Extender Transmitter/Receiver |
|---|---|
| Manufacturer Part Number | CG60180 |
| Limited Warranty | 3 Year |
| Connectivity Technology | Wired |
| Manufacturer | Legrand Group |
| Product Name | HDMI Over Cat5/6 Extender up to 164ft (50m) |
| Brand Name | C2G |
| Country of Origin | China |
| Graphics Modes | Full HD |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Twisted Pair Cable Standard | Category 6 |
| Maximum Operating Distance | 164.04 ft |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 0.94" |
| Transmitter Width | 1.93" |
| Transmitter Depth | 3.33" |
| Transmitter Weight (Approximate) | 1.40 lb |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
