SKU
LHC301A-R4
Category
Transceivers/Media Converters
Overview
• Autonegotiates for speed and duplex.
• A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.
• Powered by the included universal AC power supply, a PC's USB port (with optional USB Power Adapter Cable), or the optional rackmountable PowerTray.
• Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

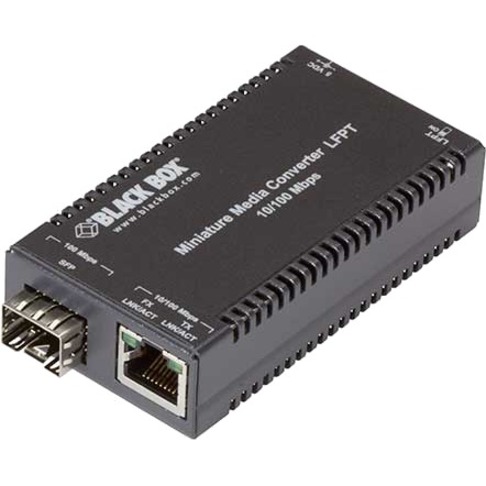

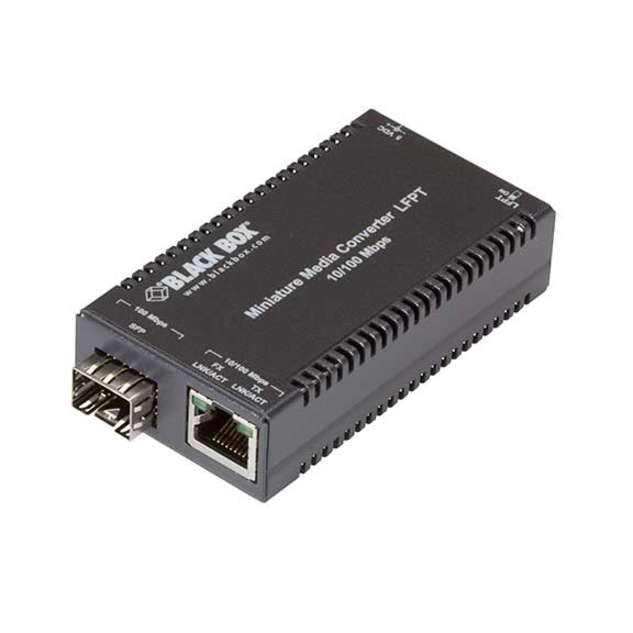

This Black Box MultiPower Miniature Media Converter makes it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to an SFP installed in the converter's opposite side. The SFP slot enables you to adapt the converter to any 100-Mbps fiber interface. Best of all, you can tuck this tiny converter unobtrusively behind your PC. The converter not only links 10- and 100-Mbps segments to fiber cabling, it also works as a data rate converter, performing 10/100 autonegotiation on the twisted-pair port. For extra versatility, you can power the Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), or through the optional rackmount PowerTray (LHC018A-AC-R2).
Warranty
Limited Warranty: 2 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure. On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Compliant to EN62368
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
Compact size; measures just 0.8"H x 1.8"W x 3.4"D.
Powered by a universal AC power supply or the optional rackmountable PowerTray.
Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
Converters may also be powered from a USB port using the LHC021A USB power cable.
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
LHC301A-R4
Brand Name
Black Box
Product Line
Multipower Miniature
Product Name
MultiPower Miniature Transceiver/Media Converter
Product Type
Transceiver/Media Converter
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP
Number of SFP Slots
1
Interfaces/Ports
Total Number of Ports
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Network & Communication
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T, 100Base-X
Physical Characteristics
Height
0.8"
Width
1.8"
Depth
3.4"
Power Description
Power Source
AC Adapter
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
MultiPower Miniature Transceiver/Media Converter
100-240-VAC, 50-60-Hz Adapter
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
