Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
KVXLCDPF-200-SFPBN2
Category
KVM Consoles/Extenders
Overview

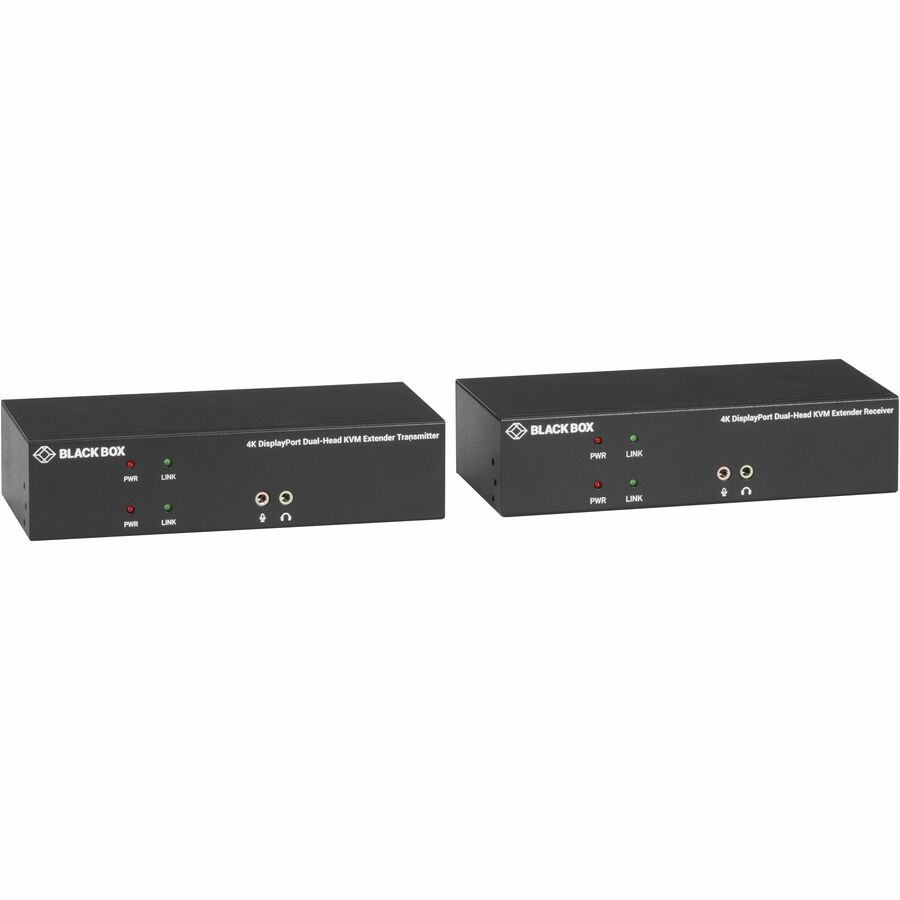

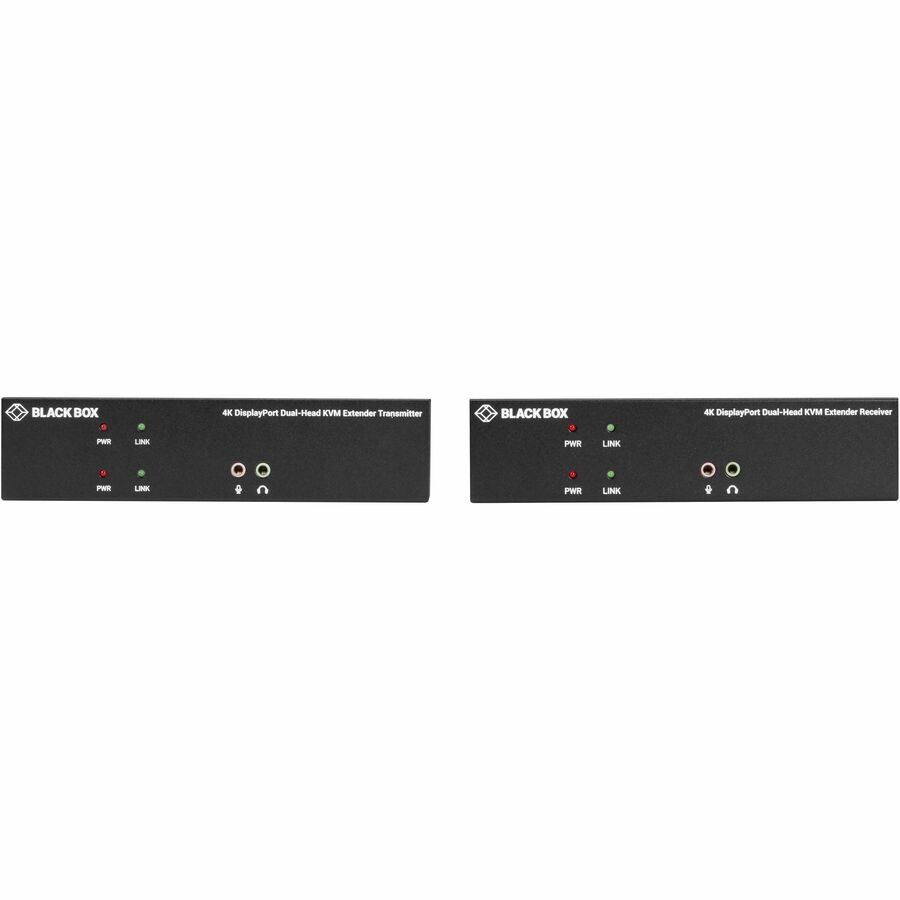

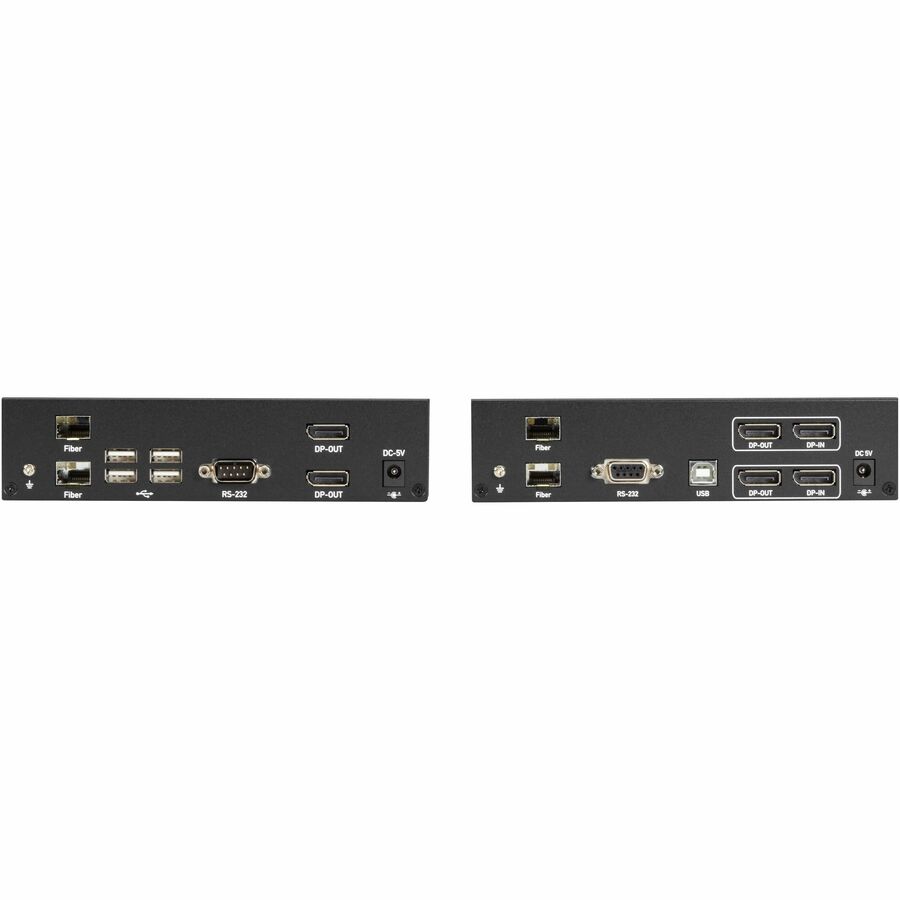

The KVXLCDPF-100 DisplayPort KVM Console Extender lets you control a server, or computer over single-mode fiber at distances of up to 30 km. PC connection cables are included with this product making it a solution that is ready right out of the box.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Series Extenders also include local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.
KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution that allows them to operate servers or PCs from remote locations. Or, customers who require control of physically inaccessible systems, placed in secure locations, or otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
DisplayPort 4K transmission up to 30 km over singlemode cable
Local and remote units connect at distances of up to 10 km using SFP below 1250 Mbps
Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz
Transparent USB 2.0 extension supports HID devices, mass storage devices
Supports RS-232 peripheral (serial) devices
Bi-directional audio via speaker/mic connection
Local video port loopback for monitoring on transmitter (TX) unit
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
KVXLCDPF-200-SFPBN2
Brand Name
Black Box
Product Series
KVX
Product Name
KVX Series KVM Extender Kit over Fiber - 4K, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video
Product Type
KVM Extender
Interfaces/Ports
Host Interface
DisplayPort
USB
Yes
DisplayPort
Yes
Number of USB Ports
5
Physical Characteristics
Form Factor
Desktop
Power Description
Input Voltage
5 V DC
Technical Information
Connectivity Technology
Wired
Maximum Operating Distance
6561.68 ft
Device Type
KVM Extender
Video
Graphic Mode
4K
Maximum Video Resolution
3840 x 2160
Miscellaneous
Package Contents

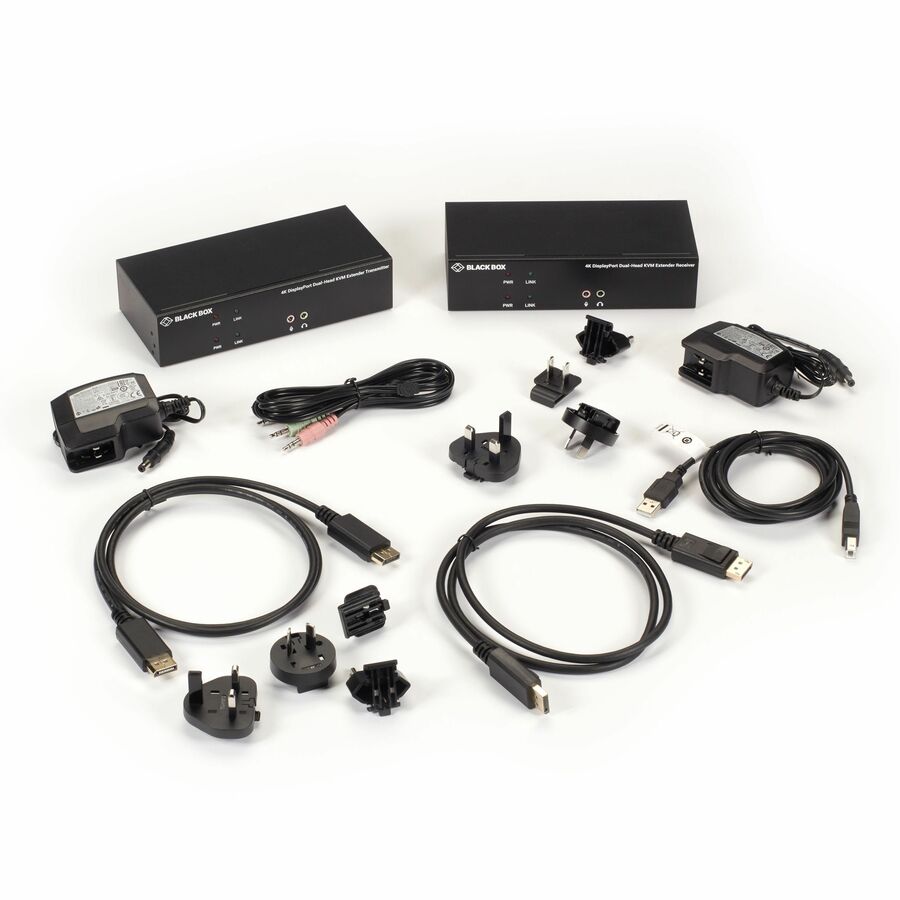

(1) Transmitter (1) Receiver (2) 5V, 2A Power Supplies (includes US, EU, AU & UK Plug types) (1) or (2) DisplayPort Cables 1.2m (4 ft.) (1) USB Type A To B Cable, Male/Male 1.8m (6 ft.) (1) 3.5-mm Dual Audio/Mic Cable, Male/Male 1.8m (6 ft.) (2) Deskmounting Brackets (with Screws)
