SKU
ACX2MR-DP11ATH-SM
Category
KVM Consoles/Extenders
Overview
The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.
The DKM Modular KVM Extenders are comprised of modular housing chassis with 2, 4, 6, or 21 slots, basic link modules and upgrade module for your peripheral needs. Special converter modules provide a video conversion for analog video input formats and DVI output or a 8-port DKM FXC switching module build into the DKM Extender housing to save even more space.
Basic link Modules
The modules featured on this page provide the cable connection to the remote end in a point-to-point extension respectively in a switched extension the connection to the DKM FC/FXC matrix switch. Each Modular DKM Extender housing must be equipped with at least one basic link module
Choose from CATx, fiber at 1 Gbps or high-speed fiber at 2.5 Gbps depending on your distance and bandwidth requirements. CATx is ideal for shorter distances up to 140 meters, the fiber modules work with both multi-mode (< 1km) and single mode (< 10km) fiber. The high-speed modules with 2.5 Gbps are ideal for demanding video applications.
Basic link modules are available with Single Link DVI-D, DVI-I with VGA input and DVI-D output, or HDMI video plus USB HID. Dual Link DVI-D modules will soon round up the portfolio offering either one dual link DVI-D channel up to 2560 x 1600 or two Single Link DVI-D channels up to 1920 x 1200.
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
ACX2MR-DP11ATH-SM
Brand Name
Black Box
Product Series
DKM FX
Product Name

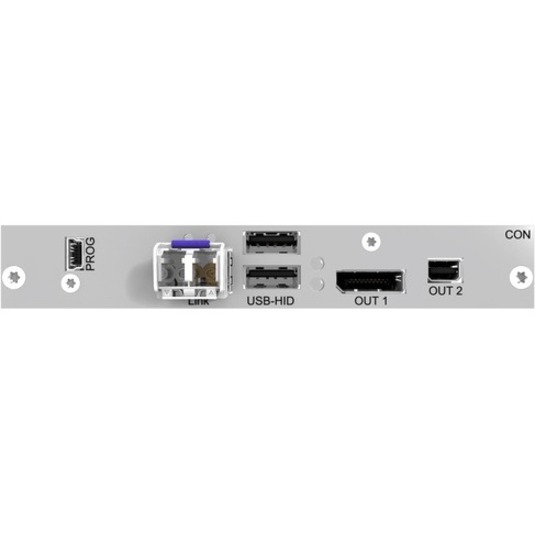

DKM FX KVM Extender Receiver
Product Type
KVM Extender Receiver
Interfaces/Ports
USB
Yes
DisplayPort
Yes
Number of USB Ports
2
Technical Information
Connectivity Technology
Wired
Maximum Operating Distance
32808.40 ft
Device Type
KVM Extender
Video
Graphic Mode
4K
Maximum Video Resolution
3840 x 2160
Miscellaneous
Platform Supported
Windows, Sun, Unix, Linux, Mac
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
