Black Box KVX Series Dual-Head HDMI KVM Fiber Extenders (KVXLCHF-200)
1 Computer(s) - 1 Local User(s) - 98425.20 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 5 x USB - 6 x HDMI - 5 V DC Input Voltage
- SKU
- KVXLCHF-200
- Category
- KVM Consoles/Extenders
MSRP$1,475.93
$1,156.05
Save 22%In stock: 60
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- KVXLCHF-200
- Category
- KVM Consoles/Extenders
Overview
The KVX HDMI KVM Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.
KVX Series Extenders are TAA compliant and backed by free lifetime technical support.
KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.
Highlights
- HDMI video resolution up to UHD 4K|Remote access up to 30 kilometers
- HDMI video resolution up to 3840x2160 at 30Hz over Fiber optic
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- Supports RS-232 peripheral (serial) devices
- Bi-directional audio via speaker/mic connection
- Local video port loopback for monitoring on transmitter (TX) unit
- Supports EDID pass-through
Specifications

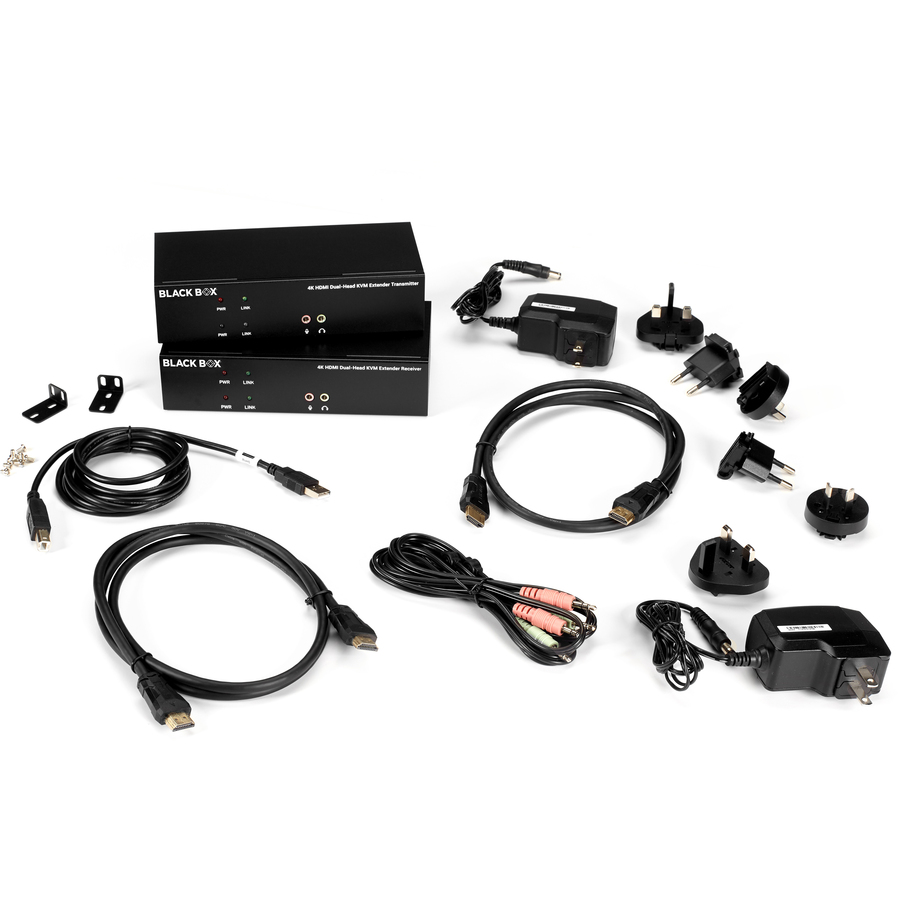

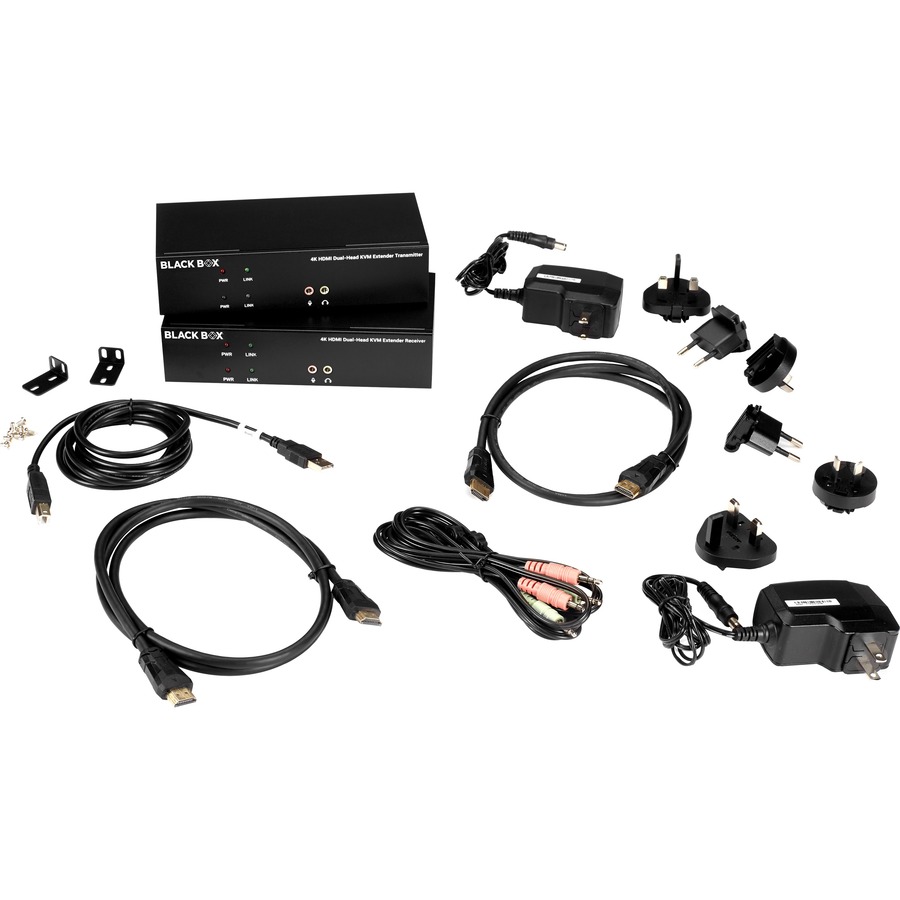

| Package Contents | 1 x Transmitter 1 x Receiver 2 x 5V, 2A Power Supplies (includes US, EU,and UK plug types) 2 x HDMI Cables 1.2M (4 ft.) 1 x 3.5MM Audio Cable 1.8M (6 ft.) 1 x USB-B TO USB-A Cable 1.8M (6 ft.) 2 x Deskmount Kits With Screws |
|---|---|
| Product Type | KVM Console/Extender |
| Input Voltage | 5 V DC |
| Manufacturer Part Number | KVXLCHF-200 |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Manufacturer | Black Box Corporation |
| Product Model | KVXLCHF-200 |
| Product Name | KVX Series Dual-Head HDMI KVM Fiber Extenders (KVXLCHF-200) |
| Product Series | KVX |
| Brand Name | Black Box |
| Country of Origin | Taiwan |
| Maximum Video Resolution | 3840 x 2160 |
| Graphic Mode | 4K |
| Maximum Operating Distance | 98425.20 ft |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 6 |
| Number of USB Ports | 5 |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Transmitter Height | 1.10" |
| Transmitter Width | 7.15" |
| Transmitter Depth | 3.25" |
| Receiver Height | 1.10" |
| Receiver Width | 7.15" |
| Receiver Depth | 3.25" |
| Transmitter Weight (Approximate) | 13.12 oz |
| Receiver Weight (Approximate) | 13.28 oz |
| Device Type | KVM Extender |
