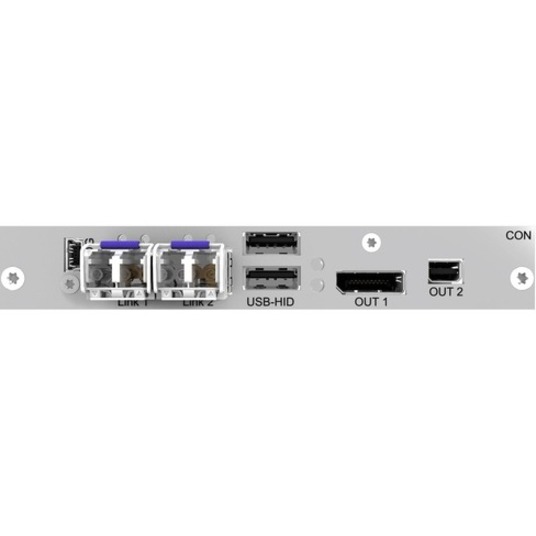

Black Box DKM FX KVM Extender Receiver

The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.

The DKM Modular KVM Extenders are comprised of modular housing chassis with 2, 4, 6, or 21 slots, basic link modules and upgrade module for your peripheral needs. Special converter modules provide a video conversion for analog video input formats and DVI output or a 8-port DKM FXC switching module build into the DKM Extender housing to save even more space.

Basic link Modules

The modules featured on this page provide the cable connection to the remote end in a point-to-point extension respectively in a switched extension the connection to the DKM FC/FXC matrix switch. Each Modular DKM Extender housing must be equipped with at least one basic link module

Choose from CATx, fiber at 1 Gbps or high-speed fiber at 2.5 Gbps depending on your distance and bandwidth requirements. CATx is ideal for shorter distances up to 140 meters, the fiber modules work with both multi-mode (< 1km) and single mode (< 10km) fiber. The high-speed modules with 2.5 Gbps are ideal for demanding video applications.

Basic link modules are available with Single Link DVI-D, DVI-I with VGA input and DVI-D output, or HDMI video plus USB HID. Dual Link DVI-D modules will soon round up the portfolio offering either one dual link DVI-D channel up to 2560 x 1600 or two Single Link DVI-D channels up to 1920 x 1200.
