SKU
VE1812R
Category
Audio & Video Consoles/Extenders
Overview

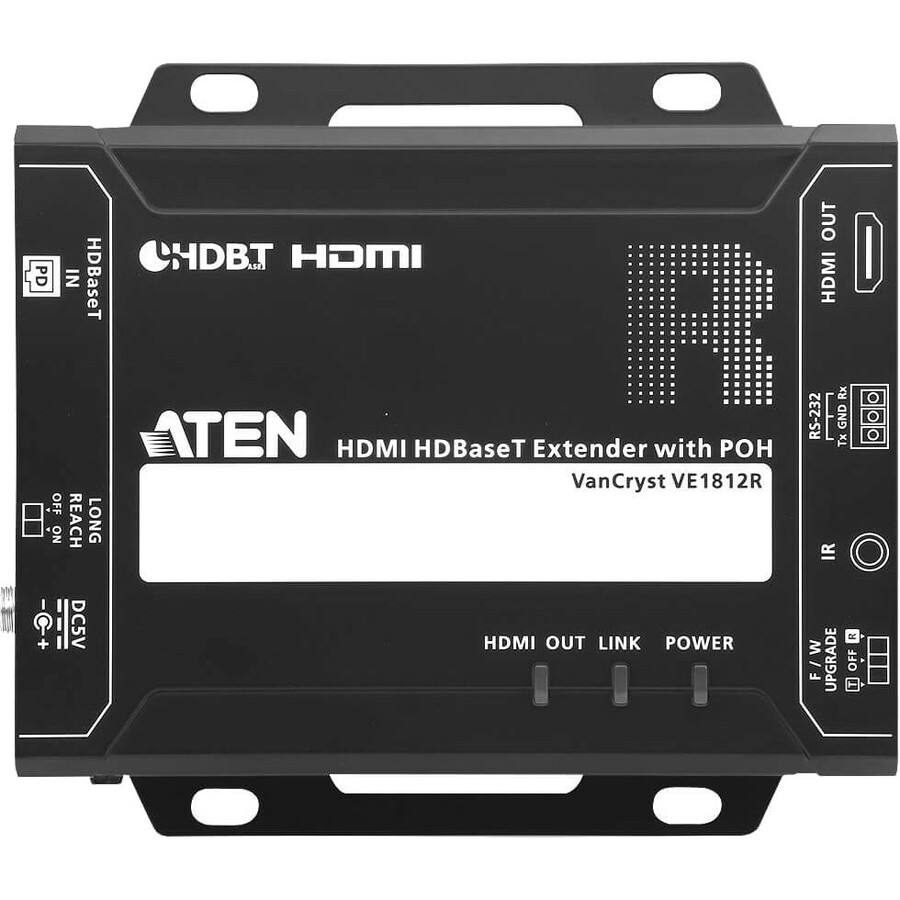

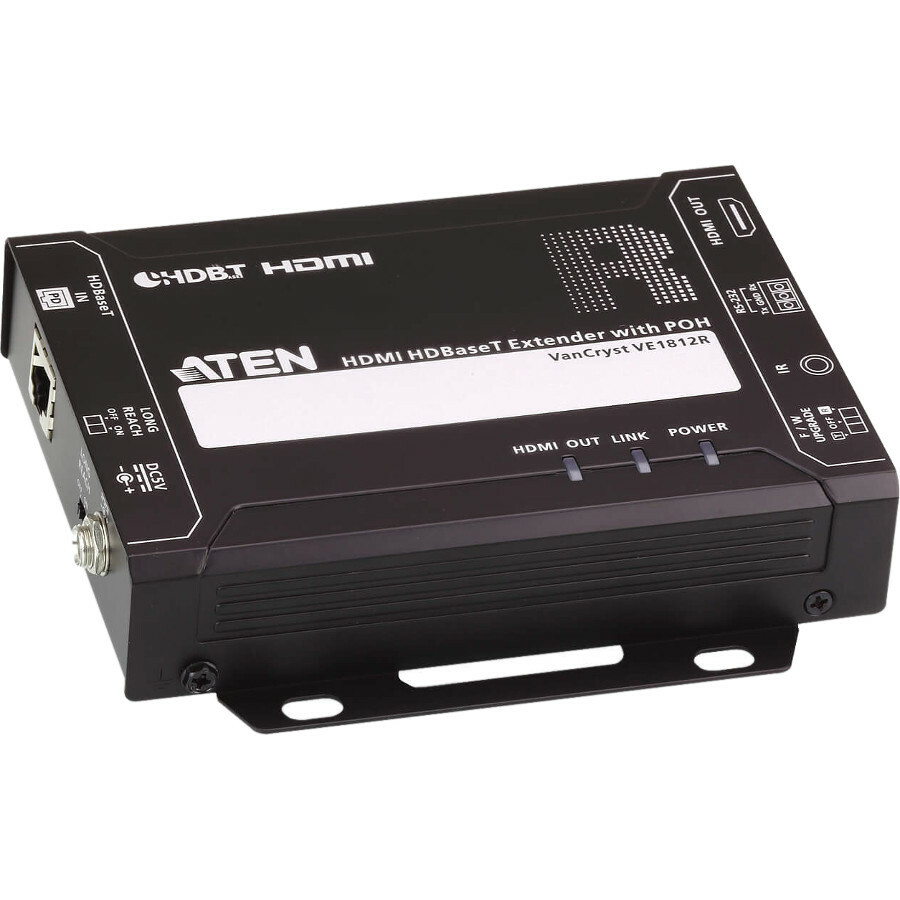

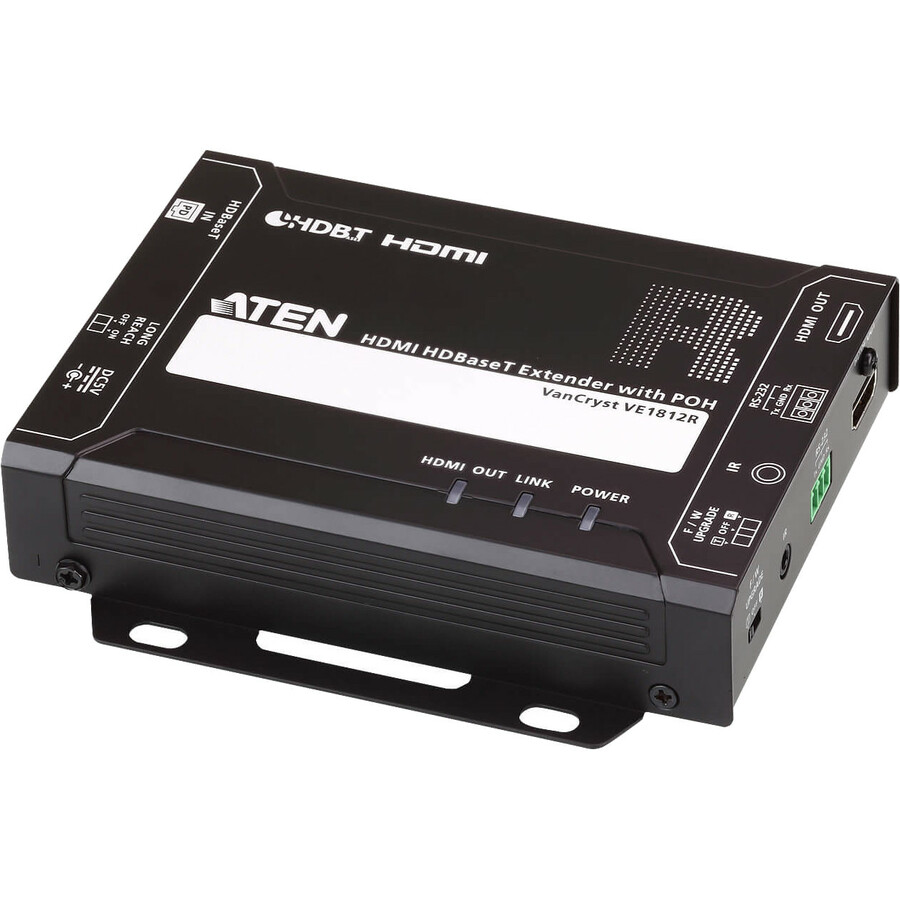

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Highlights
HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable

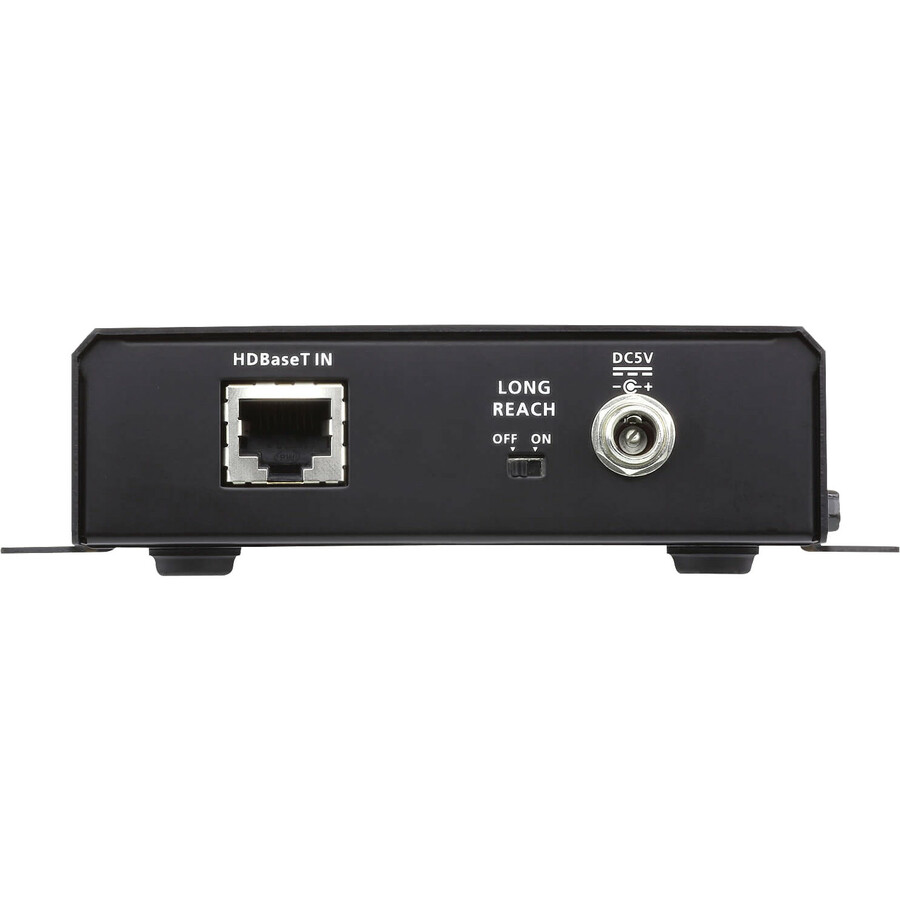

Supports HDBaseT Long Reach Mode - Up to a maximum range of 150 meters @ 1080p
4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
HDBaseT Anti-jamming - resists signal interference during high - quality video transmission using HDBaseT technology
POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable

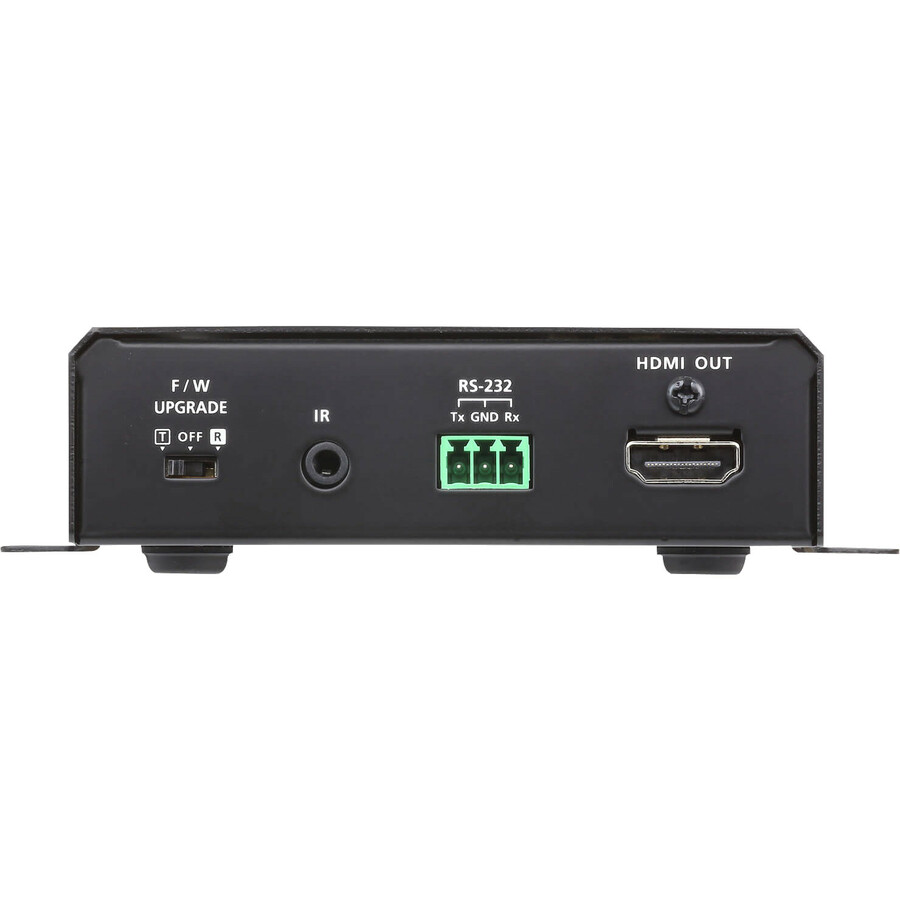

Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel - Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable
Specifications
Package Contents
HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)
1 x Power Adapter
1 x RS-232 Terminal Block
1 x User Instructions
Product Type
Video Extender Receiver
Manufacturer Part Number
VE1812R
Limited Warranty
2 Year
Connectivity Technology
Wired
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VE1812R
Product Name
HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)
Product Line
VanCryst
Brand Name
ATEN
Country of Origin
Taiwan
Graphics Modes
4K
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
Twisted Pair Cable Standard
Category 6a
Maximum Operating Distance
492.13 ft
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of HDMI Outputs
1
HDMI Out
Yes
Media Type Supported
Twisted Pair
Number of Output Devices Supported
1
Receiver Height
1.18"
Receiver Width
4.84"
Receiver Depth
5.53"
Receiver Weight (Approximate)
15.87 oz
Product Color
Black
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
