Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
UCE32100
Category
Audio & Video Consoles/Extenders
Overview
The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.
A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.
Highlights
True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters
Supports all USB 2.0 devices up to 480Mbps
USB Lossless - Higher compatibility of remote USB devices

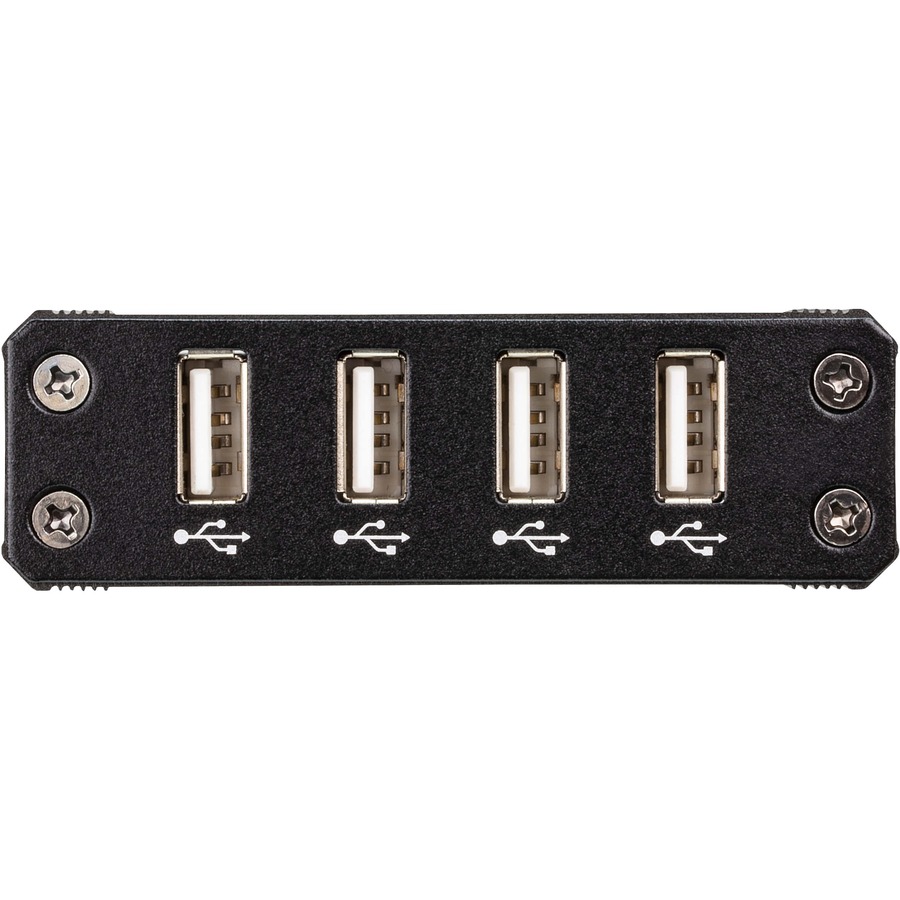

An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
Power supply for remote unit to ensure power delivery to multiple devices at once
Compact size with wall mounting and din rail included for flexible installation
DC jack lock kit included to ensure durable power adapter connection
Supports Windows®, OS X®, and Linux®
Plug-and-play
Specifications
Package Contents

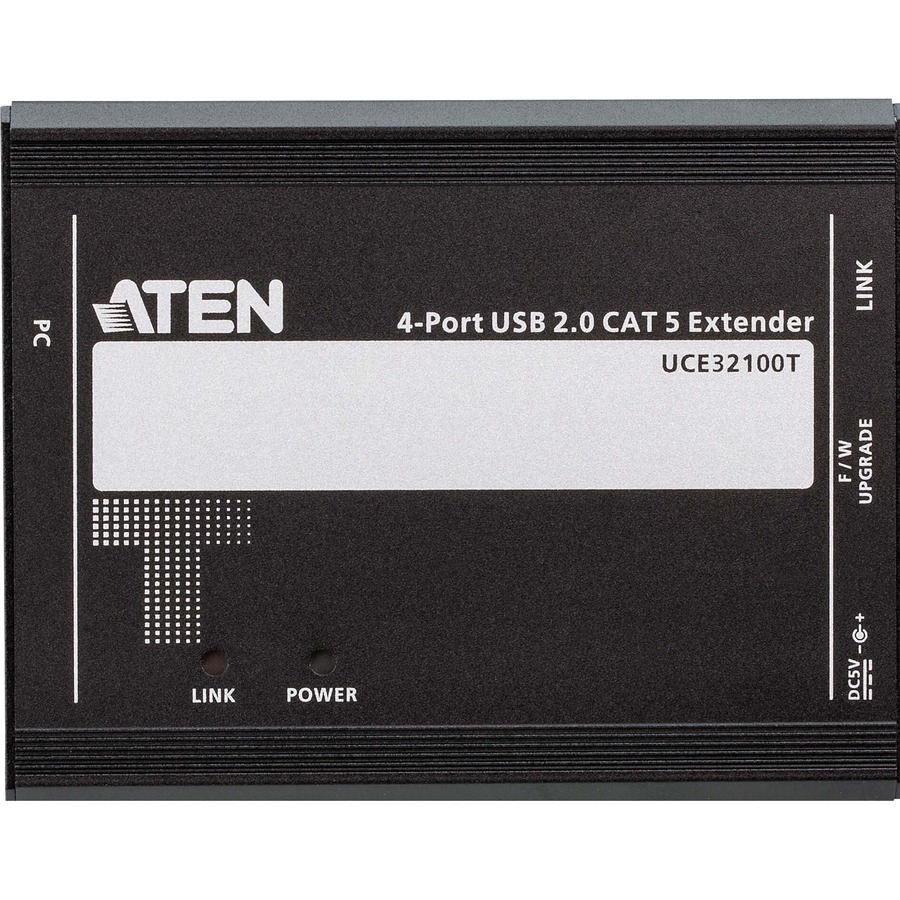

1 x UCE32100T USB 2.0 CAT 5 Transmitter

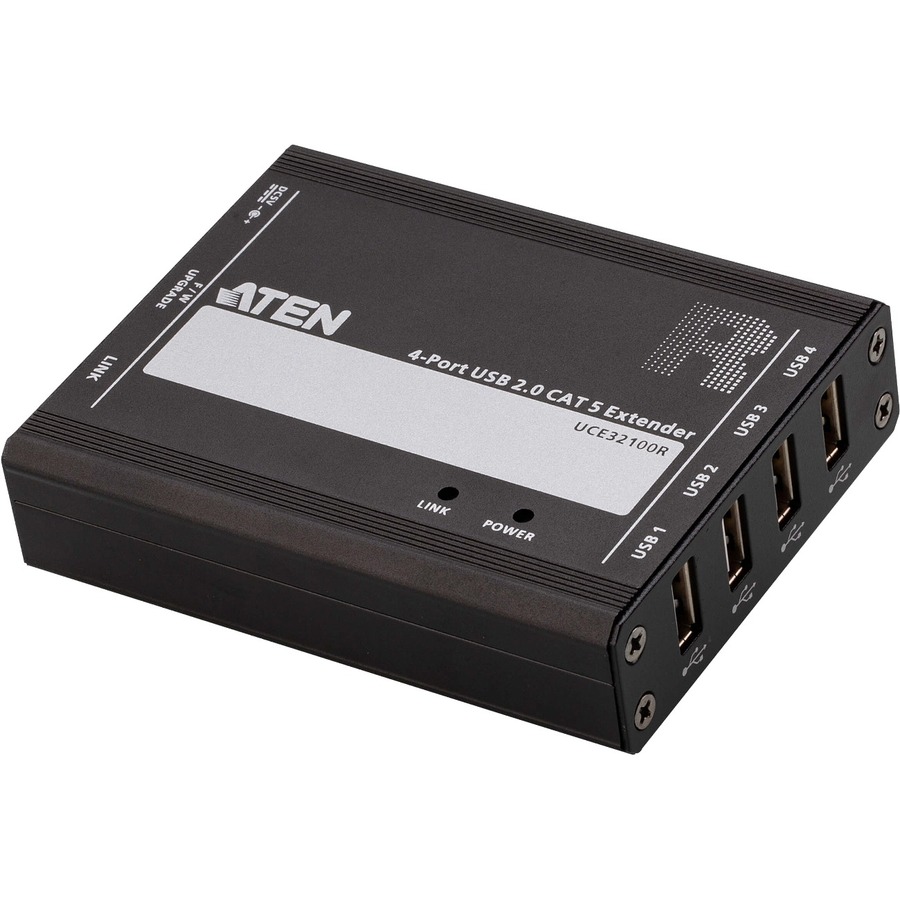

1 x UCE32100R USB 2.0 CAT 5 Receiver
1 x USB 2.0 Type-A Male to Type-B Male Cable
1 x Power Adapter
1 x Power Cord
4 x Mounting Kit
2 x Din Rail
2 x DC Jack Lock Kit
2 x Rubber Feet Sets
1 x User Instructions
Product Type
Video Extender Transmitter/Receiver
Manufacturer Part Number
UCE32100
Connectivity Technology
Wired
Form Factor
Rack-mountable, Wall Mountable
Manufacturer
ATEN Technology, Inc
Product Model
UCE32100
Product Name
4-port USB 2.0 CAT 5 Extender (100m)
Brand Name
ATEN
Environmentally Friendly
Yes
Twisted Pair Cable Standard
Category 5
Maximum Operating Distance
3.94"
USB
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
7
Media Type Supported
Twisted Pair
Transmitter Height
0.96"
Transmitter Width
4"
Transmitter Depth
3.11"
Receiver Height
0.96"
Receiver Width
4"
Receiver Depth
3.11"
Transmitter Weight (Approximate)
7.41 oz
Receiver Weight (Approximate)
7.41 oz
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
