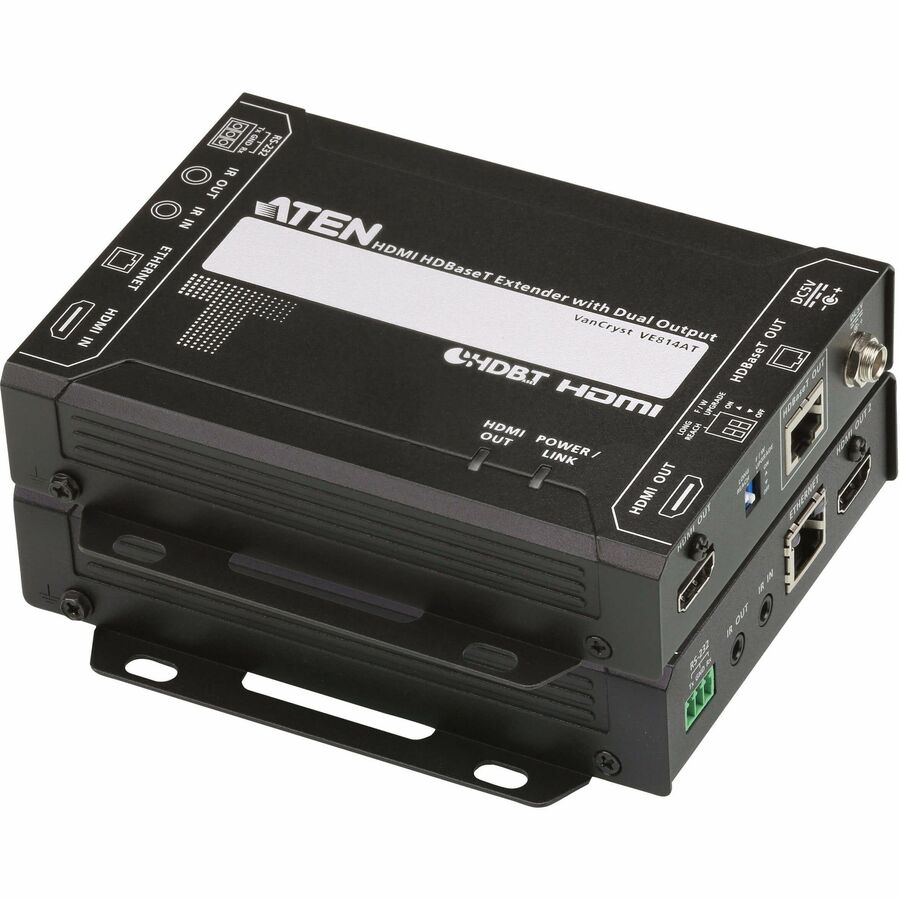

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
1 Input Device - 1 Output Device - 492.13 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 3 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
- SKU
- VE814A-ATA
- Category
- Audio & Video Consoles/Extenders
MSRP$1,010.00
$537.35
Save 47%Back ordered — ships when restocked.
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- VE814A-ATA
- Category
- Audio & Video Consoles/Extenders
Overview

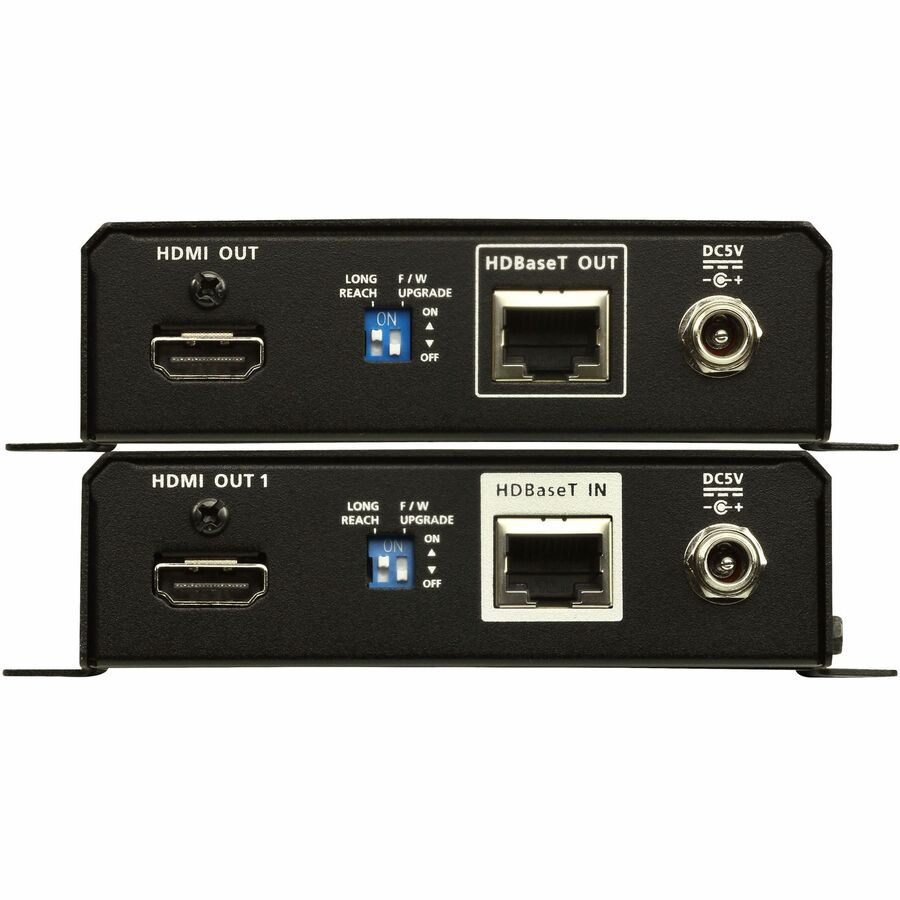

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

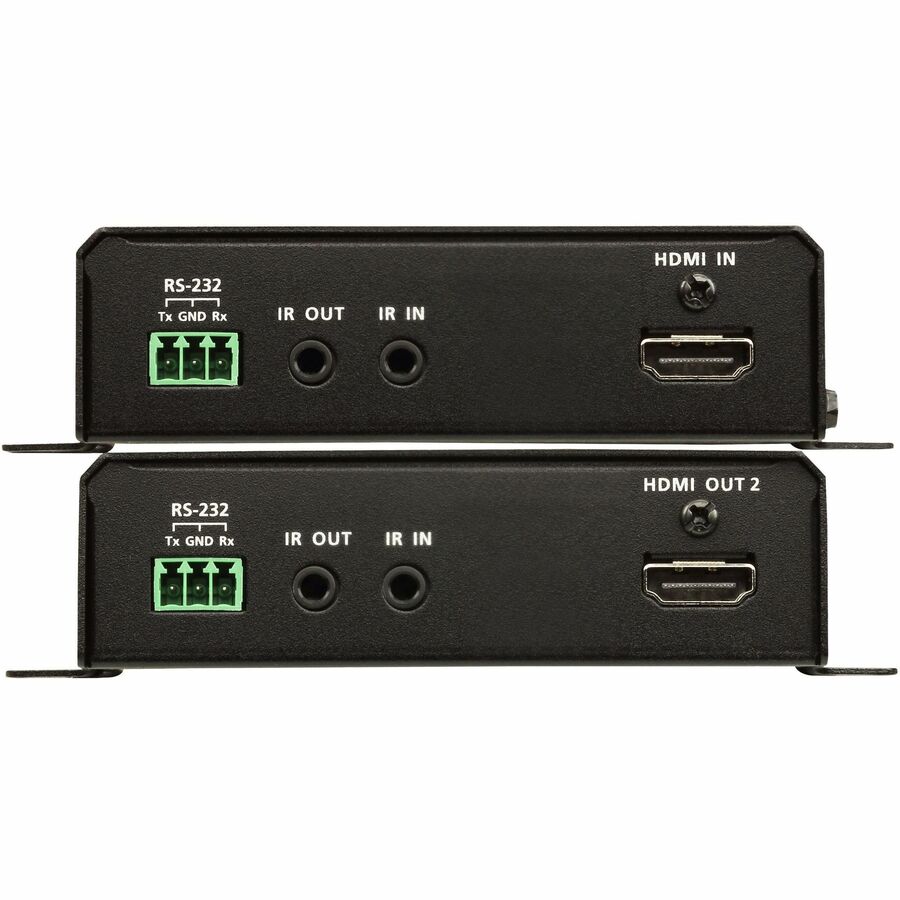

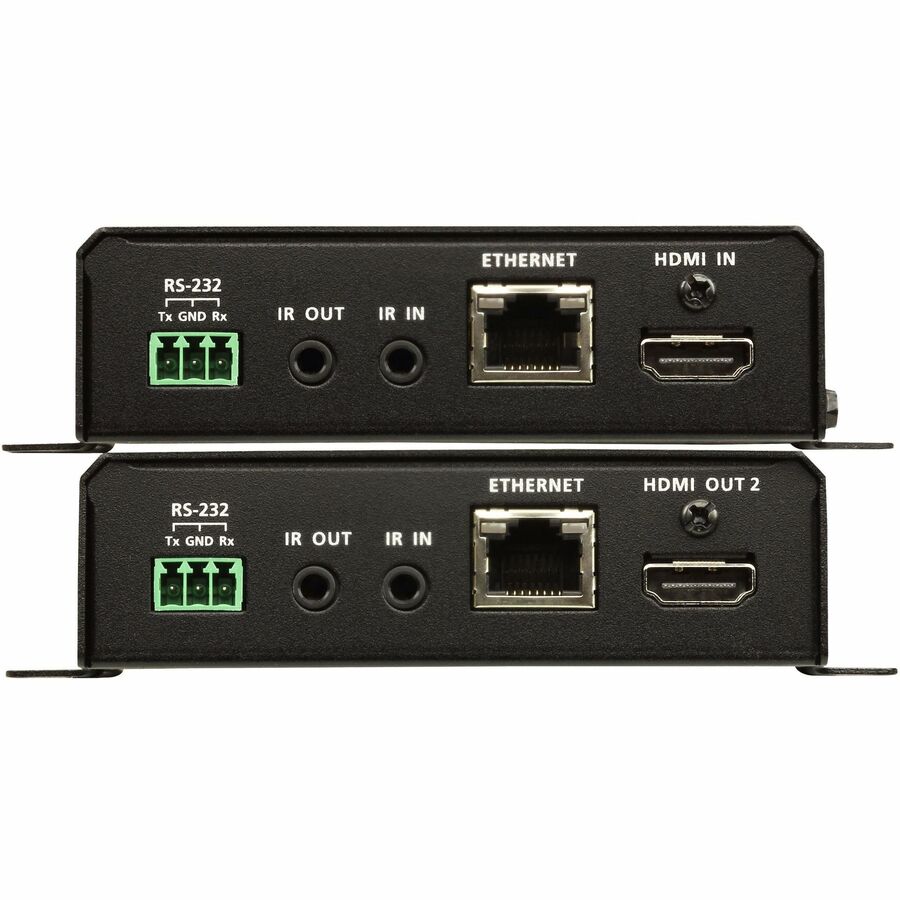

The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Highlights
- Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 4096 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The VE814A video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported to better accommodate your specific requirements
- 1 output devices supported for maximum productive usability
- 492.13 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode provides optimal video output with remarkable picture clarity
- Rack-mountable video extender transmitter/receiver allows maximum space utilization with easy and convenient access to the equipment
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | VE814A-ATA |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Manufacturer | ATEN Technology, Inc |
| Product Model | VE814A |
| Product Name | HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A) |
| Product Line | VanCryst |
| Brand Name | ATEN |
| Graphics Modes | 4K |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 4096 x 2160 |
| Twisted Pair Cable Standard | Category 6a |
| Maximum Operating Distance | 492.13 ft |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 3 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 1.14" |
| Transmitter Width | 3.98" |
| Transmitter Depth | 5.35" |
| Receiver Height | 1.14" |
| Receiver Width | 3.98" |
| Receiver Depth | 5.35" |
| Transmitter Weight (Approximate) | 15.87 oz |
| Receiver Weight (Approximate) | 1.04 lb |
