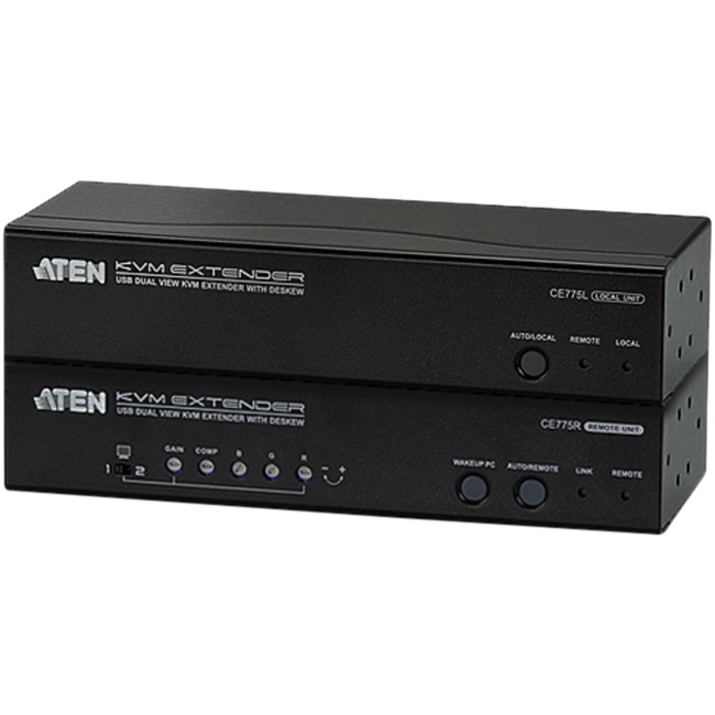

ATEN USB Dual View KVM Extender with Deskew-TAA Compliant
1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 5 x VGA - Proprietary Interface - 5.3 V DC Input Voltage
SKU
CE775
Category
KVM Consoles/Extenders
MSRP$1,284.00
$895.38
Save 30%
Back-ordered
Back-ordered — ships when restocked.
Special order — estimated available by August 14, 2026.
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE775
Category
KVM Consoles/Extenders
Overview
ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible.
More from the Manufacturer
Highlights
Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
PC Wakeup support - from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
Superior video quality - 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)
Gain/Compensation Control - adjusts signal strength in order to compensate for distance
On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
RS-232 Channel - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Sun/Mac keyboard support and emulation
Specifications
Package Contents
1 x CE775L USB KVM Extender (Local Unit)
1 x CE775R USB KVM Extender (Remote Unit)
1 x VGA Cable
1 x USB KVM Cable Set
2 x Power Adapters
1 x Mounting Kit
1 x User Instructions
Product Type
KVM Console/Extender
Input Voltage
5.3 V DC
Manufacturer Part Number
CE775
Connectivity Technology
Wired
Manufacturer
ATEN Technology, Inc
Microphone
Yes
Product Name
USB Dual View KVM Extender with Deskew
Brand Name
ATEN
Environmentally Friendly
Yes
Maximum Video Resolution
1920 x 1200
Graphic Mode
WUXGA
Maximum Operating Distance
984.25 ft
USB
Yes
VGA
Yes
Headphone
Yes
Number of Network (RJ-45) Ports
4
Network (RJ-45)
Yes
Number of USB Ports
4
Proprietary Interface
Yes
Number of VGA Ports
5
Number of Computers Supported
1
Number of Local Users Supported
1
Number of Remote Users Supported
1
Transmitter Height
2.98"
Transmitter Width
41.65"
Transmitter Depth
7.87"
Receiver Height
2.98"
Receiver Width
41.65"
Receiver Depth
7.87"
Transmitter Weight (Approximate)
1.52 lb
Receiver Weight (Approximate)
1.52 lb
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
