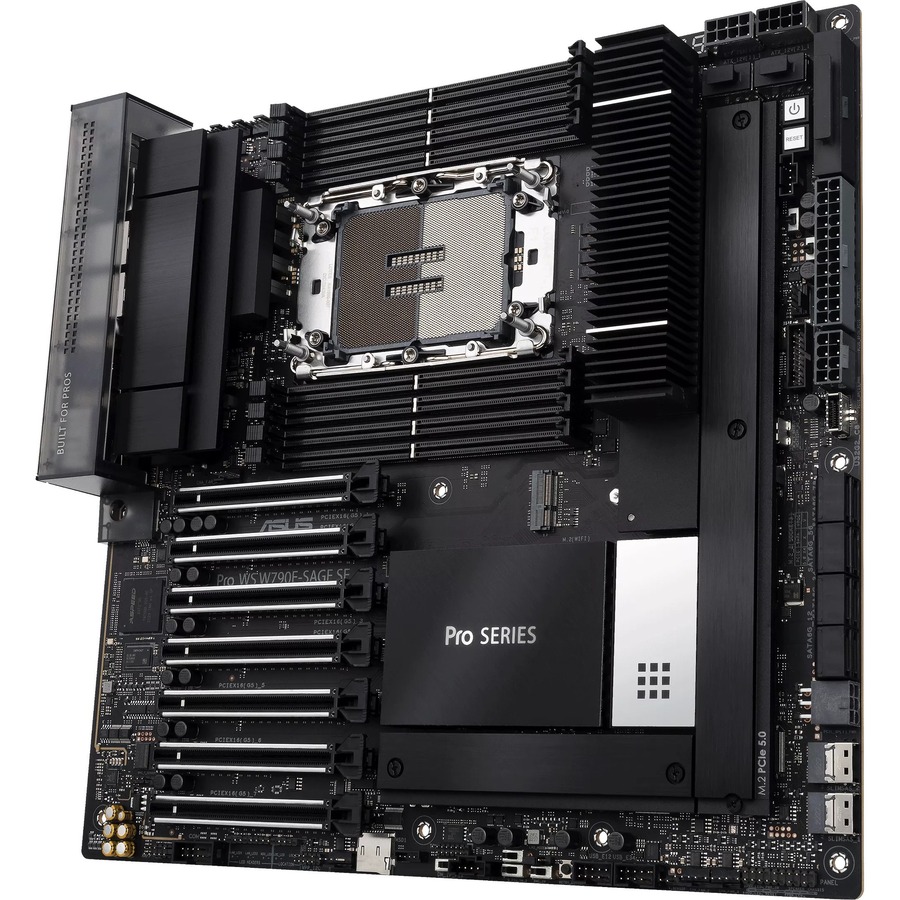

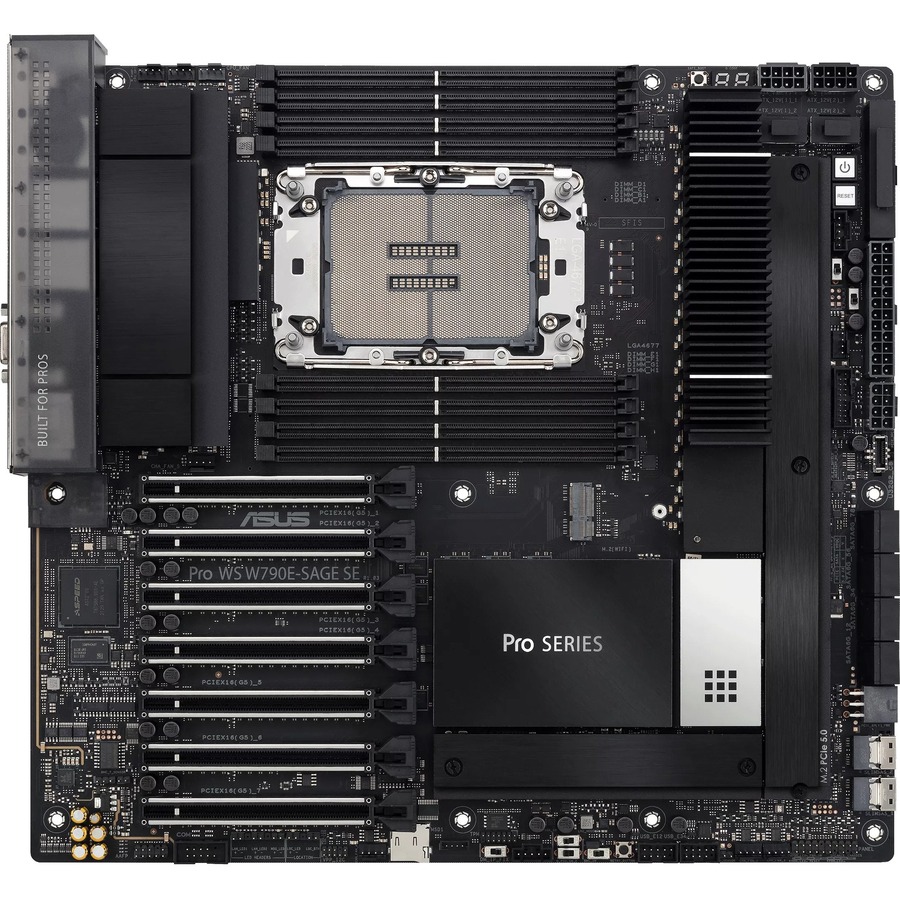

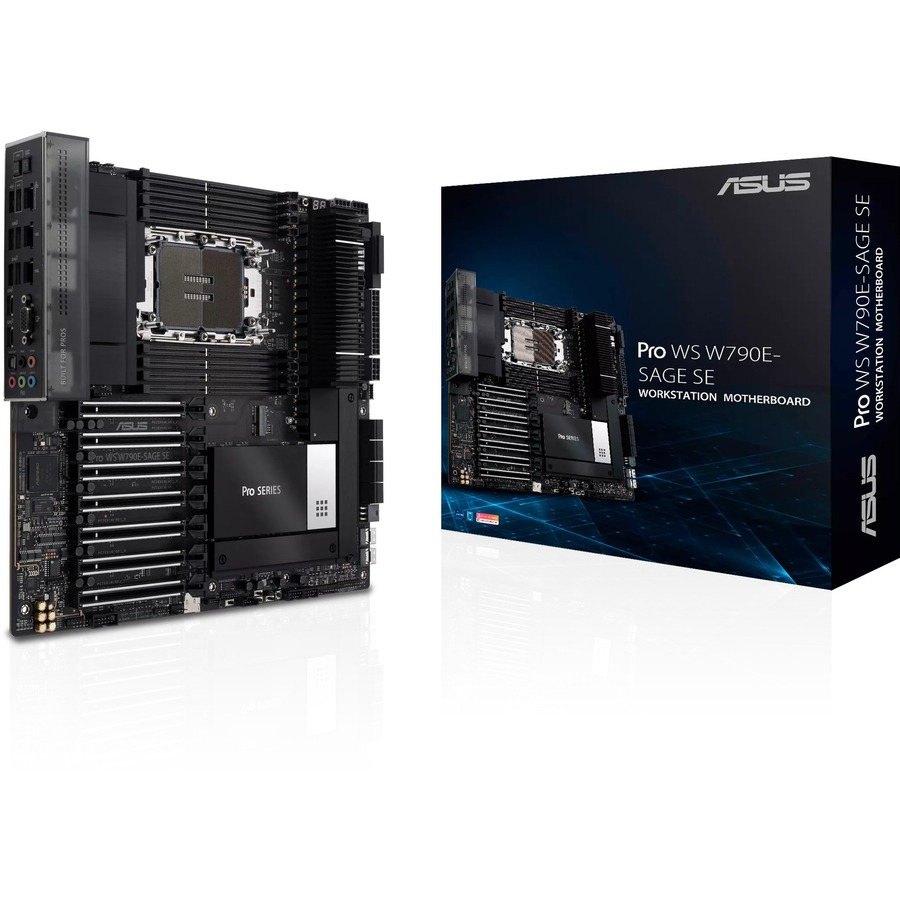

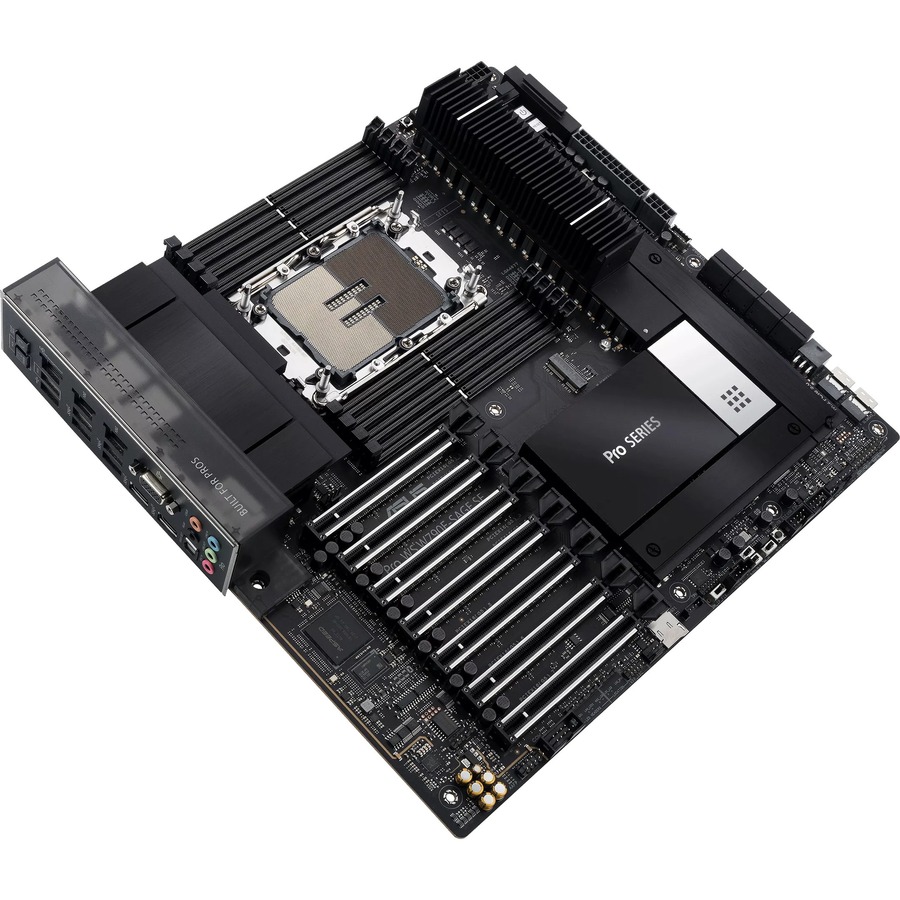

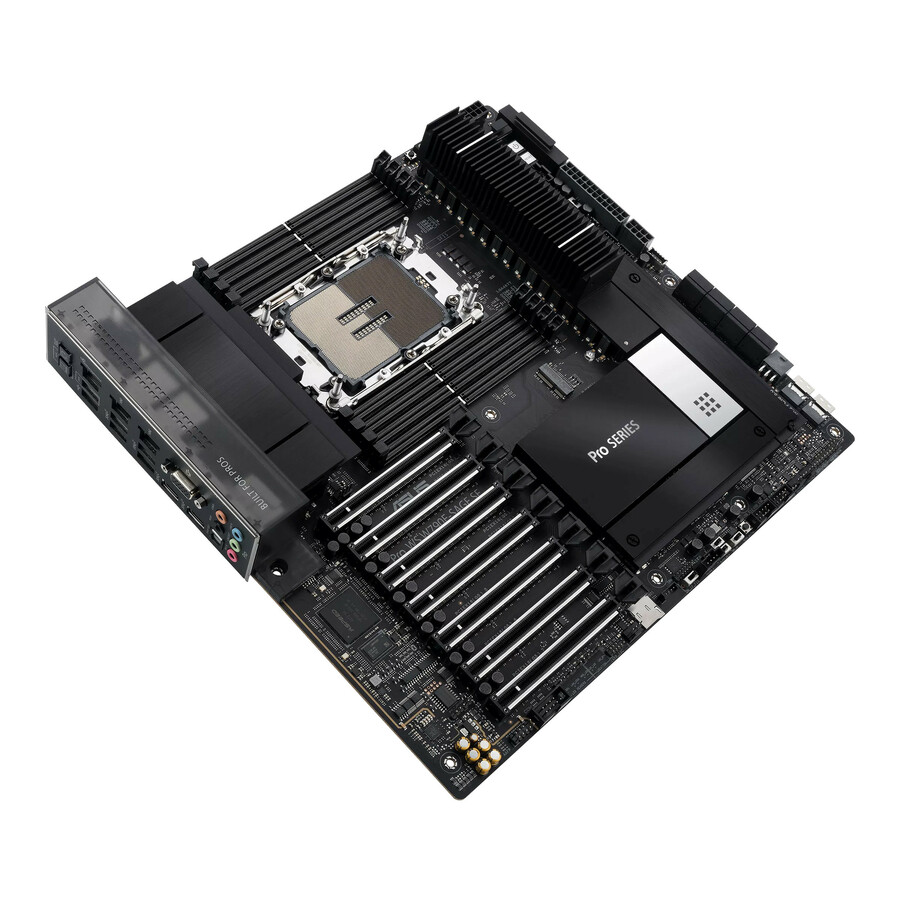

Asus PRO WS W790E-SAGE SE Desktop Motherboard - Intel W790 Chipset - Socket LGA-4677
ASUS Computer International

Asus PRO WS W790E-SAGE SE Desktop Motherboard - Intel W790 Chipset - Socket LGA-4677

Xeon Processor Supported - 2 TB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 8 x Memory Slots - Gigabit Ethernet - 8 x SATA Interfaces

SKU
PRO WS W790E-SAGE SE
Category
Motherboards

$1,056.88

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PRO WS W790E-SAGE SE
Category
Motherboards

Overview

Productivity, Proven

The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.

ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices

Low-profile professionalism

With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790 series presents a professional, low-profile look for content creators

Multi-GPU support

Pro WS W790E-SAGE SE features seven PCIe® 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.

Highlights

  • Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
  • CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
  • Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS
  • Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software - ASUS Control Center Express
  • Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
  • Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility

Specifications

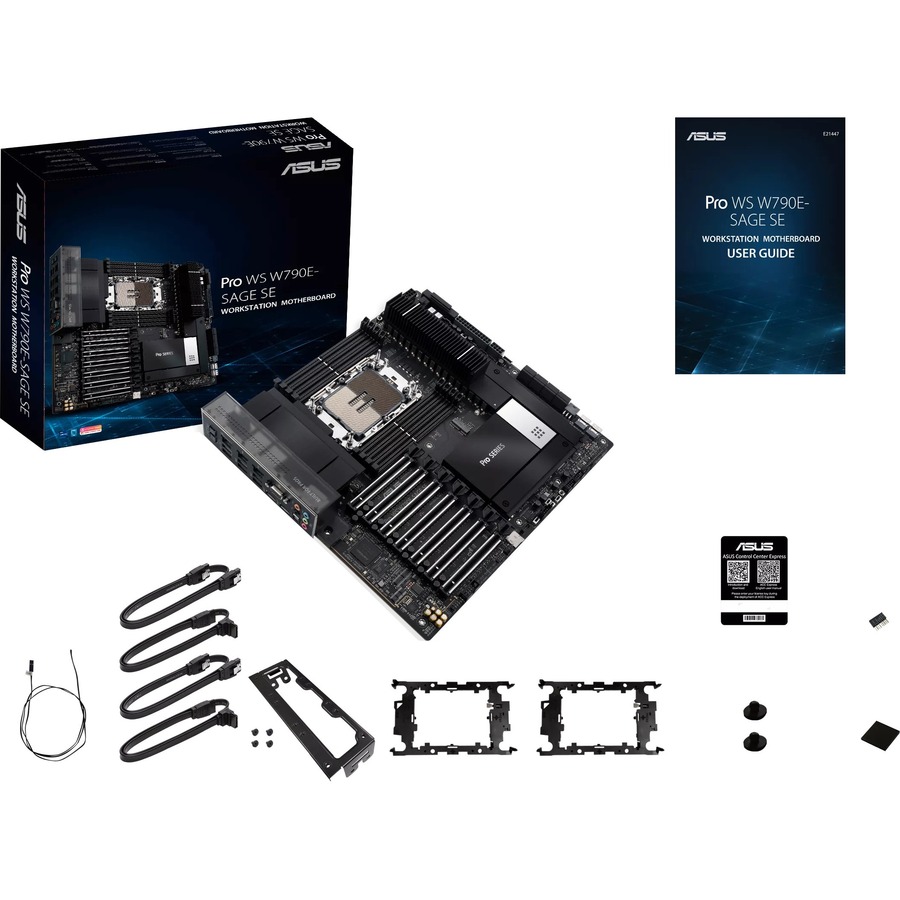

Package Contents
  • PRO WS W790E-SAGE SE Desktop Motherboard
  • 4 x SATA 6Gb/s cables
  • 1 x Thermistor cable pack
  • 1 x VRM Fan holder
  • 1 x Q-connector
  • 1 x M.2 Rubber Package(s)
  • 1 x M.2 backplate Rubber Package(s)
  • 1 x Screw package for M.2 Key E
  • 1 x CPU guard for LGA 4677 E1A
  • 1 x CPU guard for LGA 4677 E1B
  • 1 x ACC Express Activation Key Card
  • 1 x User guide
Product TypeDesktop Motherboard
Manufacturer Part NumberPRO WS W790E-SAGE SE
Maximum Memory Supported2 TB
S/PDIFYes
ManufacturerASUS Computer International
Product ModelPRO WS W790E-SAGE SE
Product NamePRO WS W790E-SAGE SE Desktop Motherboard
Processor SupportedXeon
RAID Levels10, 1, 0, 5
Total Processor Supported1
Controller TypeSerial ATA/600
Product SeriesPRO
Processor SocketSocket LGA-4677
Brand NameAsus
Memory TechnologyDDR5 SDRAM
Width13"
Depth12"
Environmentally FriendlyYes
Chipset ManufacturerIntel
Chipset ModelW790
Number of Memory Slots8
Audio Channels7.1
Gigabit EthernetYes
Number of SATA Interfaces8
Onboard VideoCPU Dependent Video
RAID SupportedYes
Number of PCI Express x8 Slots1
Number of PCI Express x16 Slots10
VGAYes
Number of Network (RJ-45) Ports2
Total Number of USB Ports8
Total Number of Onboard USB Ports7
Number of Onboard USB 2.0 Ports4
PCI Express StandardPCI Express 5.0
Total Number of PCI Express Slots11
Memory Form FactorDIMM, UDIMM
Total Number of Expansion Slots11
10Gigabit EthernetYes
Number of M.2 Interfaces3
Memory Speed Supported6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5800 MHz, 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz
Number of USB 3.2 Gen 2 Type-C Ports1
Number of USB 3.2 Gen 2 Type-A Ports4
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
