Kryo 260 Gold Quad-core (4 Core) 2.20 GHz + Kryo 260 Silver Quad-core (4 Core) 1.80 GHz - Upto 2 TB Memory Card Supported Capacity - microSD Supported - 800 Nit - 1920 x 1200 - Cellular Phone Capability - LTE, GPRS, EDGE - 8 Megapixel Front Camera - 6 Hours Maximum Battery Run Time
$1,520.51
Special order — expected back in stock the week of Sep 7–13.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

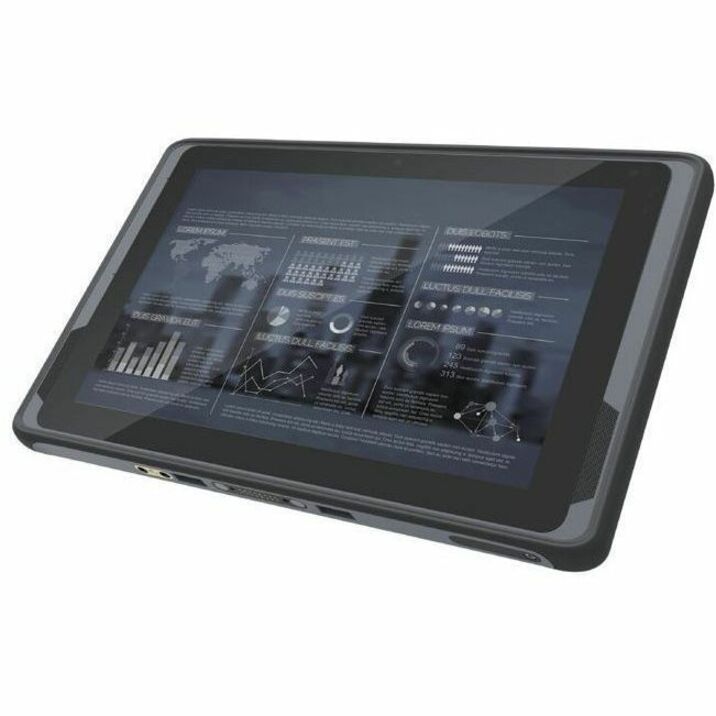

AIM-78S is an industrial grade tablet for vertical markets of manufacturing, warehousing management, field service. Features with 6 hours battery life,integrated barcode scanner, high brightness LCD and IP65. The WIFI/LTE connectivity brings the mobility to users, and plus the extension and docking peripheral. AIM-78S is suitable to use in indoor and outdoor environment.
Moreover, AIM-78S is equipped with Advantech's DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
More from the Manufacturer
AIM-78S
10.1" Industrial-Grade Tablet with Qualcomm® Snapdragon™ 660 Processor, Android 10/13
Qualcomm SDA660/SDM660 with Android 10/13
10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass and multi-touch PCAP control supports glove mode
Integrated barcode scanner supports data collection
Fast roaming and dual band WLAN, BT 5.0, NFC, 4G LTE connectivity for seamless communications
Optional extension include 1D/2D barcode scanner, LAN+COM module, UHF RFID module
| Battery Information | |
|---|---|
| Battery Capacity | 2400 mAh |
| Maximum Battery Run Time | 6 Hours |
| Built-in Devices | |
| Sensor Type | Ambient Light Sensor, eCompass, G-sensor, Gyroscope |
| Front Camera | Yes |
| Front Camera Resolution | 8 Megapixel |
| Rear Camera | Yes |
| Rear Camera Resolution | 13 Megapixel |
| Focus Modes | Fixed Focus, Auto-focus |
| Chipset | |
| Chipset Manufacturer | Qualcomm |
| Chipset Model | SDA660 |
| Display & Graphics | |
| Screen Size | 10.1" |
| Display Screen Type | LCD |
| Screen Mode | WUXGA |
| Screen Resolution | 1920 x 1200 |
| Brightness | 800 Nit |
| Graphics Controller Manufacturer | Qualcomm |
| Graphics Memory Technology | LPDDR4X |
| Graphics Memory Accessibility | Shared |
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | AIM-78S-610S20 |
| Brand Name | Advantech |
| Product Model | AIM-78S |
| Product Name | AIM-78S Tablet |
| Product Type | Tablet |
| Interfaces/Ports | |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB3.1 Type C supporting data transmission and USB tethering, |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | LPDDR4X |
| Memory Card Supported | microSD |
| Memory Card Supported Capacity | 2 TB |
| Network & Communication | |
| WWAN Supported | Yes |
| Wireless Connectivity Technology | Wi-Fi + Cellular |
| Cellular Phone Capability | Yes |
| Cellular Generation | 4G |
| Cellular Data Connectivity Technology | LTE, GPRS, EDGE |
| GPS | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac/r/k/v |
| Bluetooth | Yes |
| Near Field Communication | Yes |
| Operating System | |
| Operating System Platform | Android |
| Operating System | Android 10 |
| Physical Characteristics | |
| Rugged | Yes |
| Color Family | Gray |
| Product Color | Dark Gray |
| Form Factor | Slate |
| Height | 7.1" |
| Width | 11" |
| Depth | 0.7" |
| Weight (Approximate) | 2.16 lb |
| Processor | |
| Processor Manufacturer | Qualcomm |
| Processor Type | Kryo 260 Gold |
| Processor Speed | 2.20 GHz |
| Processor Core | Quad-core (4 Core) |
| 2nd Processor Manufacturer | Qualcomm |
| 2nd Processor Type | Kryo 260 Silver |
| 2nd Processor Speed | 1.80 GHz |
| 2nd Processor Core | Quad-core (4 Core) |
| Storage | |
| Flash Memory Capacity | 64 GB |
| Miscellaneous | |
| Package Contents |
|
| Features | Corning Gorilla Glass, Drop Resistant, Glove Touch, Gorilla Glass 3, Pogo Pin, Removable Battery, Shock Resistant, Vibration Resistant, Volume Control Button, Dust Resistant, Water Resistant |
| Ingress Protection (IP) Rating | IP65 |
| Charger Included | Yes |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
