For Data Networking, Optical Network - 1 x LC Duplex 10GBase-LR Network - Optical Fiber - 1310 nm - Single-mode - 10 Gigabit Ethernet - 10GBase-LR - 10.31 Gbit/s - 65616.80 ft Maximum Distance - Hot-pluggable - TAA Compliant
$93.52
Special order — expected back in stock the week of Sep 7–13.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
• Transmission distance of up to 20km (12.42 mi.)
• Duplex LC optical interface
• Supports data rates of up to 10.31Gbps
• Supports 1310nm single mode network transmissions
• Low Electromagnetic Interference (EMI) design
• Compliant with IEEE 802.3ae 10 Gigabit Ethernet
• Digital Diagnostics Monitoring (DDM) support
• Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
• Low power consumption
• Lifetime Warranty
• NDAA / TAA compliant (U.S. and Canada only)
TRENDnet's SFP+ Single Mode LC Modules are compatible with standard SFP+ slots found on network switches and fiber converters. Each single mode 10G SFP+ transceiver is equipped with a duplex LC fiber connection interface, and supports highspeed data rates up to 10.31Gbps. All TRENDnet 10G SFP+ fiber modules support connections for reliable, long- distance network applications

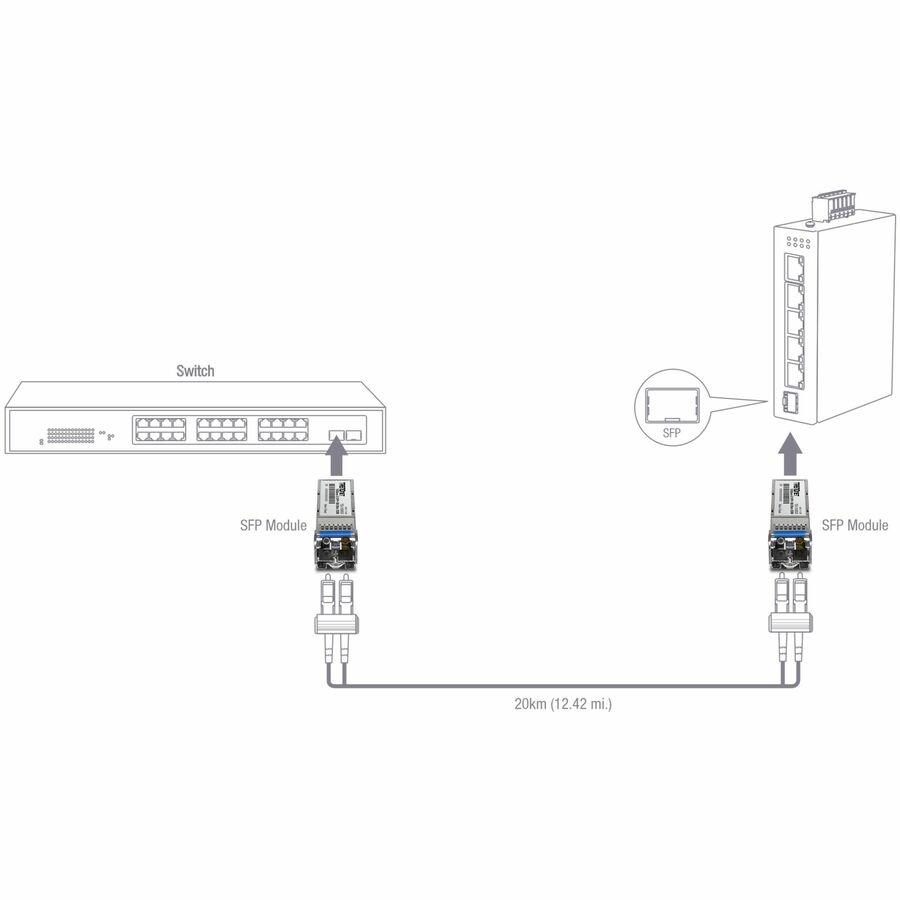

Fiber Applications
Long- distance fiber networking for manufacturing, business parks, and school campus applications.
Fiber Distance
Single mode 10G SFP+ transceiver spans distances up to 20km (12.42 mi.) at 10G speeds
Compatibility
Hot-pluggable SFP+ transceiver works with an MSA compliant 10G SFP+ slot.

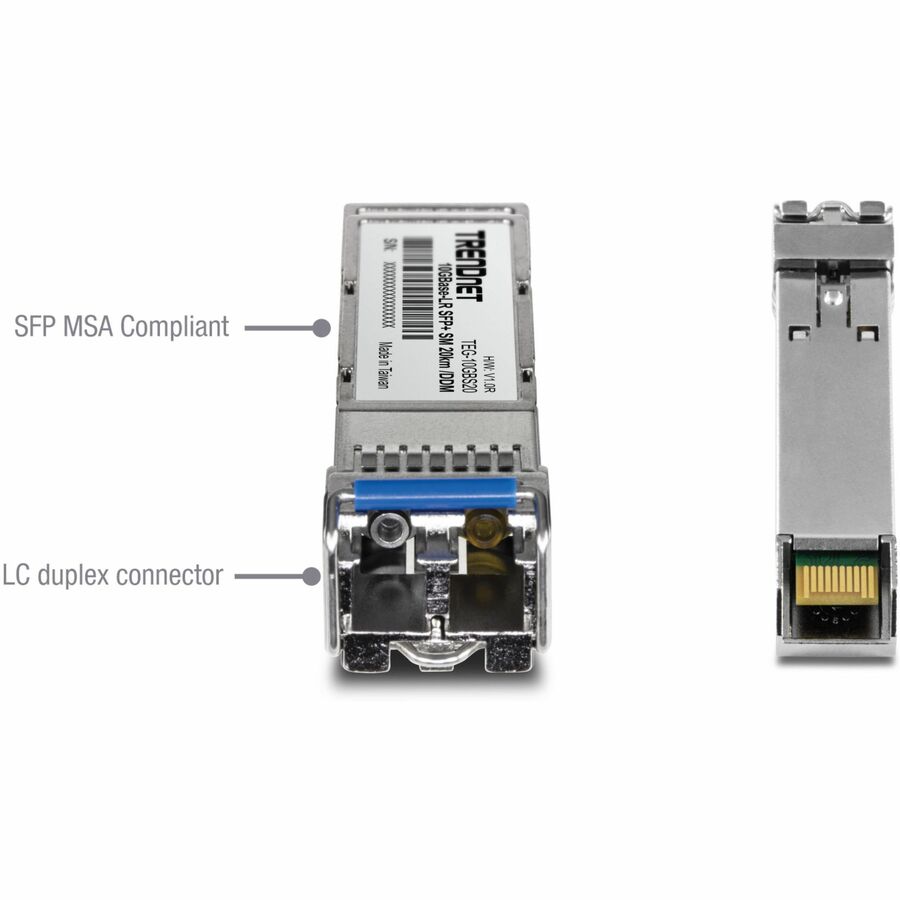

FEATURES | Fiber Distance
Ideal for long-range networking distances up to 20km (12.42 mi.)
Fiber Interface
This single mode fiber SFP+ transceiver supports LC type duplex connector
Fiber Wavelength
Single mode fiber SFP+ module compatible with 1310nm wavelength
Data Rate
10G SFP+ supports data rates up to 10.31Gbps
Hot-Pluggable SFP
Hot-pluggable 10G SFP+ transceiver compatible with an MSA compliant SFP slot
More from the Manufacturer
OVERVIEW
TRENDnet’s SFP+ Single Mode LC Modules are compatible with standard SFP+ slots found on network switches and fiber converters. Each single mode 10G SFP+ transceiver is equipped with a duplex LC fiber connection interface and supports highspeed data rates up to 10.31Gbps. All TRENDnet 10G SFP+ fiber modules support connections for reliable, long- distance network applications.
Fiber Applications
Long- distance fiber networking for manufacturing, business parks, and school campus applications.
Fiber Distance
Single mode 10G SFP+ transceiver spans distances up to 20km (12.42 mi.) at 10G speeds.
Compatibility
Hot-pluggable SFP+ transceiver works with an MSA compliant 10G SFP+ slot.
Lorem ipsum dolor sit amet
Fiber Distance
Ideal for long-range networking distances up to 20km (12.42 mi.)
Fiber Interface
This single mode fiber SFP+ transceiver supports LC-type duplex connector
Fiber Wavelength
Single mode fiber SFP+ module compatible with 1310nm wavelength
Data Rate
10G SFP+ supports data rates up to 10.31Gbps
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3z
IEEE 802.3ae
10GBASE-LR
Device Interface
SFP+ MSA Compliant
LC duplex connector
Data Transfer Rate
10.31Gbps
Wavelength
1310nm
Optical Output Power
-5 ~ 1 dBm
Distance
20km (12.4 mi)
Special Features
Hot pluggable
Metal enclosure
DDM support
Sensitivity
-15 dBm
Power
Max. Consumption: 0.8W
Operating Temperature
0° – 70° C (32° – 158° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight
18g (0.6 oz.)
Certifications
CE
FCC
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TEG-10GBS20
TRENDnet TEG-10GBS20, SFP+ Single Mode LC Module (20km), Lifetime Protection
Transmission distance of up to 20km (12.42 mi.); Duplex LC optical interface
LIFETIME PROTECTION -We stand by the quality of our products. The TEG-10GBS20 SFP+ Single Mode LC Module (20km) is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
NDAA + TAA COMPLIANT: With our NDAA and TAA compliant SFP+ Single Mode LC Module (20km), you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
Supports data rates of up to 10.31Gbps; Supports 1310nm single mode network transmissions
Low Electromagnetic Interference (EMI) design; Compliant with IEEE 802.3ae 10 Gigabit Ethernet
Digital Diagnostics Monitoring (DDM) support
Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
Low power consumption
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-10GBS20 |
| Brand Name | TRENDnet |
| Product Name | SFP+ Single Mode LC Module (20km) |
| Product Type | SFP+ |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Wavelength | 1310 nm |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Maximum Distance Supported | 20 km |
| Maximum Data Transfer Rate | 10.31 Gbit/s |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 0.5" |
| Width | 0.5" |
| Depth | 2.2" |
| Weight (Approximate) | 0.04 lb |
| Technical Information | |
| Application/Usage | Data Networking, Optical Network |
| Features | Digital Diagnostics Monitoring Interface (DDMI) |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
