For Data Networking - 1 x RJ-45 10GBase-T Network LAN - Twisted Pair10 Gigabit Ethernet - 10GBase-T - Hot-pluggable
$102.52
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 11 and Nov 15, then process your delivery right after.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
• DEVICE INTERFACE: Small Form-Factor Pluggable (SFP+) Multi-Source Agreement (MSA) Compliant; Shielded RJ-45 Copper Interface
• DATA TRANSFER RATE: The RJ-45 10G SFP+ module supports up to 10Gbps speeds
• RJ-45 COPPER SFP+: Take advantage of unused SFP+ slots and repurpose them for RJ-45 copper multi-gigabit connectivity.
• ETHERNET DISTANCE AND GIGABIT SPEEDS: The SFP module supports distances at 10Gbps up to 30m (98ft.) with Cat. 6a/7; Backwards compatible with IEEE 802.3bz multi-gigabit (2.5G / 5G) speeds. 2.5G/5Gbps up to 50m (164ft.) with Cat. 5E; 1Gbps up to 100m (328ft.) with Cat. 5E
• HOT-PLUGGABLE: Hot-pluggable 10G copper SFP+ module compatible with an MSA compliant SFP+ slot
• IEEE COMPLIANCE: Compliant with IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet, and IEEE 802.3an 10 Gigabit Ethernet
• ADDITIONAL FEATURES: Low Electromagnetic Interference (EMI) design; Digital Diagnostics Monitoring (DDM) support; Hot-Pluggable; Low power consumption;
• TRENDnet LIFETIME PROTECTION: The TEG-10GBRJ 10G RJ-45 Copper SFP+ Module is backed by TRENDnet?s Lifetime Manufacturer Protection.
• NDAA / TAA compliant (U.S. and Canada only)

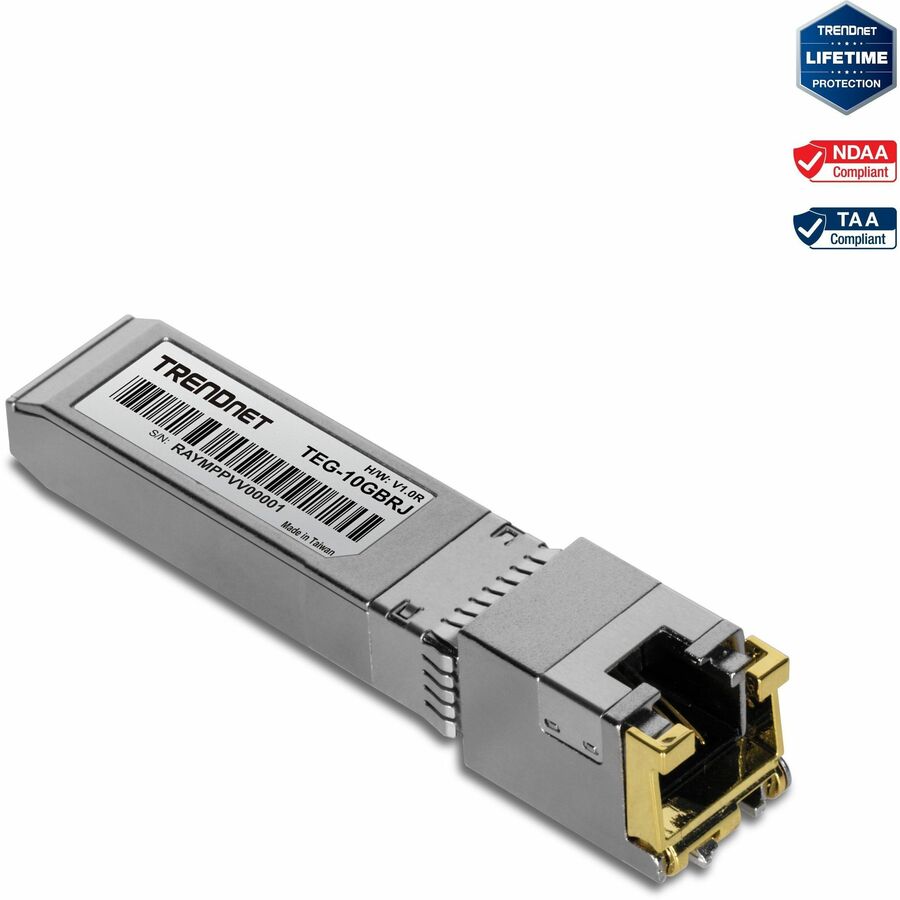

TRENDnet?s 10G RJ-45 Copper SFP+ Module, model TEG-10GBRJ, converts a standard SFP+ slot into an RJ-45 multi-gigabit port for additional high-speed copper connectivity. This 10G copper SFP+ module works with standard SFP+ slots commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch?s unused SFP+ slots for reliable copper connectivity with TRENDnet?s 10G copper SFP+ module.
RJ-45 Copper SFP+
Take advantage of unused SFP+ slots and repurpose them for RJ-45 copper multi-gigabit connectivity.
Gigabit Speeds
The 10G RJ-45 copper SFP+ spans distances up to 30m (98 ft.) and supports up to 10Gbps speeds.

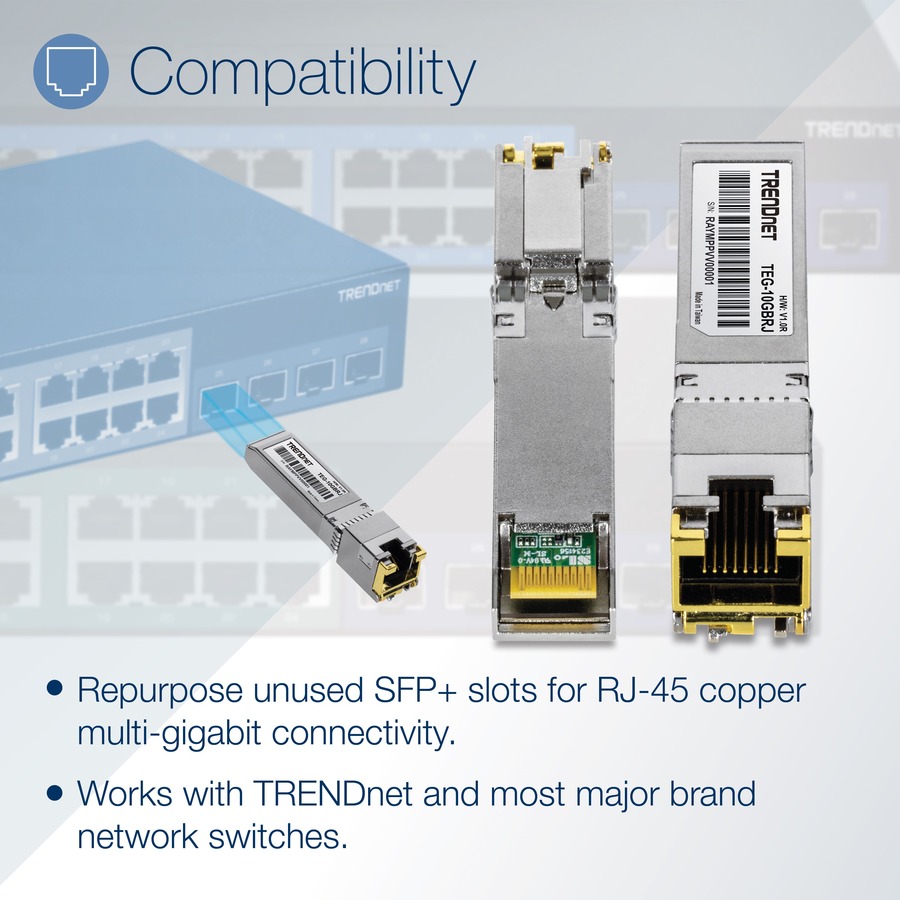

Compatibility
Compatible with an MSA compliant SFP+ slot and multi-gigabit RJ-45 copper connections.
More from the Manufacturer
OVERVIEW
TRENDnet’s 10G RJ-45 Copper SFP+ Module, model TEG-10GBRJ, converts a standard SFP+ slot into an RJ-45 multi-gigabit port for additional high-speed copper connectivity. This 10G copper SFP+ module works with standard SFP+ slots commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch’s unused SFP+ slots for reliable copper connectivity with TRENDnet’s 10G copper SFP+ module
RJ-45 Copper SFP+
Take advantage of unused SFP+ slots and repurpose them for RJ-45 copper multi-gigabit connectivity.
Gigabit Speeds
The 10G RJ-45 copper SFP+ spans distances up to 30m (98 ft.) and supports up to 10Gbps speeds.
Compatibility
Compatible with an MSA compliant SFP+ slot and multi-gigabit RJ-45 copper connections.
Ethernet Distance
Supports networking distances up to 30m (98 ft.)
Connection Interface
RJ-45 10 gigabit port to convert SFP+ to RJ-45
Hot-Pluggable SFP+
Hot-pluggable 10G copper SFP+ compatible with an MSA compliant SFP+ slot
Operating Temperature
This 10G copper SFP+ module features an operating temperature range of 0°– 65° C (0° – 149° F)
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3ae
IEEE 802.3az
IEEE 802.3an
IEEE 802.3ab
Device Interface
SFP+ MSA Compliant
RJ-45 connector
Data Transfer Rate
Up to 10Gbps
Distance
10Gbps up to 30m (100ft.) with Cat. 6a/7
2.5G/5Gbps up to 50m (164ft.) with Cat. 5E
1Gbps up to 100m (328ft.) with Cat. 5E
Special Features
Hot pluggable
Metal enclosure
DDM support
Power
Max. Consumption: 3W
Operating Temperature
0° – 65° C (32° – 149° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
68 x 13.4 x 13.8mm (2.6 x 0.52 x 0.53 in.)
Weight
24g (0.8 oz.)
Certifications
CE
FCC
Warranty
Lifetime Warranty
PACKAGE CONTENTS
TEG-10GBRJ
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-10GBRJ |
| Brand Name | TRENDnet |
| Product Model | TEG-10GBRJ |
| Product Name | 10G RJ-45 Copper SFP+ Module |
| Product Type | SFP+ |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 1 x RJ-45 10GBase-T Network LAN |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a, Category 7, Category 5e |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 0.5" |
| Width | 0.5" |
| Depth | 2.7" |
| Weight (Approximate) | 0.05 lb |
| Technical Information | |
| Application/Usage | Data Networking |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
