Overview
TRENDnet's 10G SFP+ Dual Wavelength Single Mode LC Module, model TEG-10GBS10D2, is compatible with standard SFP+ ports found on network switches and fiber converters. The single mode 10G BiDi SFP+ transceiver is equipped with a simplex LC fiber connection interface, supports high-speed data rates up to 10.31Gbps, and spans distances up to 10km. This 10G SFP+ transceiver needs to be paired with the TEG-10GBS10D3 SFP+ transceiver. These 10G BiDi SFP+ fiber modules support connections for reliable, long-distance network applications.
Fiber Applications
Long-distance fiber networking for manufacturing, business parks, and school campus applications.
Fiber Distance
Single mode 10G SFP+ transceiver spans distances up to 10km (6.21 mi.) at 10G speeds.
Compatibility
Hot-pluggable SFP+ transceiver works with an MSA compliant 10G SFP+ port.
Fiber Distance
Ideal for long-range networking distances up to 10km (6.21 mi.)
Electromagnetic Interference
Low Electromagnetic Interference (EMI) design
Fiber Interface
This single mode fiber 10G SFP+ BiDi transceiver supports an LC-type simplex connector
Bi-Directional SFP
Transmit: 1270nm / Receive: 1330nm; must pair with TEG-10GBS10D3
Data Rate
10G SFP+ supports data rates up to 10.31Gbps
Hot-Pluggable SFP
Hot-pluggable 10G BiDi SFP+ transceiver compatible with an MSA compliant SFP port
Warranty
Limited Warranty: Lifetime
Highlights
Transmission distance of up to 10km (6.21 mi.)
Simplex LC optical interface
Supports data rates of up to 10.31Gbps
Supports Transmit: 1270nm / Receive: 1330nm
Digital Diagnostics Monitoring (DDM) support

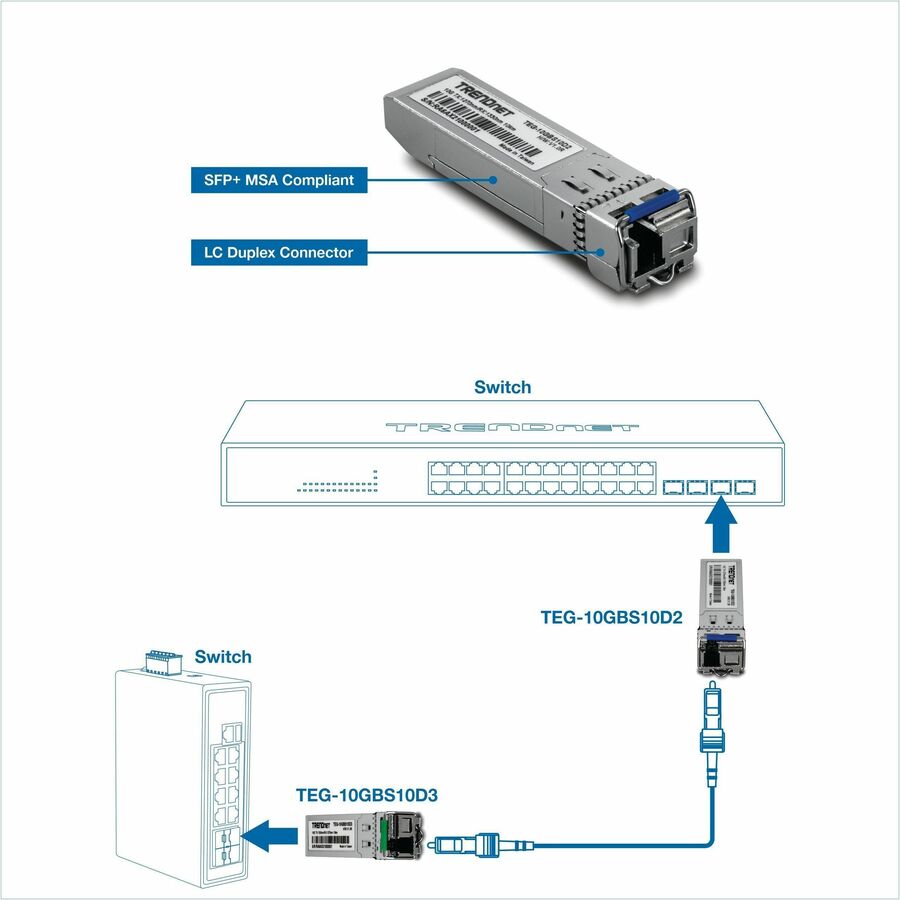

Must be paired with TEG-10GBS10D3
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warrant
Specifications
General Information
Manufacturer
TRENDnet
Manufacturer Part Number
TEG-10GBS10D2
Brand Name
TRENDnet
Product Model
TEG-10GBS10D2
Product Name
10G SFP+ Dual Wavelength Single Mode LC Module (10km)
Product Type
SFP+
Packaged Quantity
40 / Case
Interfaces/Ports
Total Number of Ports
1
Connector Type
LC
Interfaces/Ports Details
1 x LC 10GBASE-LR Network
Media & Performance
Media Type Supported
Optical Fiber
Fiber Optic Cable Wavelength
1270 nm, 1330 nm
Fiber Mode Supported
Single-mode
Ethernet Technology
10 Gigabit Ethernet
Network Technology
10GBase-LR
Maximum Distance Supported
10 km
Maximum Data Transfer Rate
10.31 Gbit/s
Physical Characteristics
Form Factor
Hot-pluggable
Height
0.5"
Width
0.5"
Length
2.28"
Weight (Approximate)
0.05 lb
Technical Information
Application/Usage
Data Networking, Optical Network
Features
Digital Diagnostics Monitoring Interface (DDMI), Bi-Directional (BiDi)
