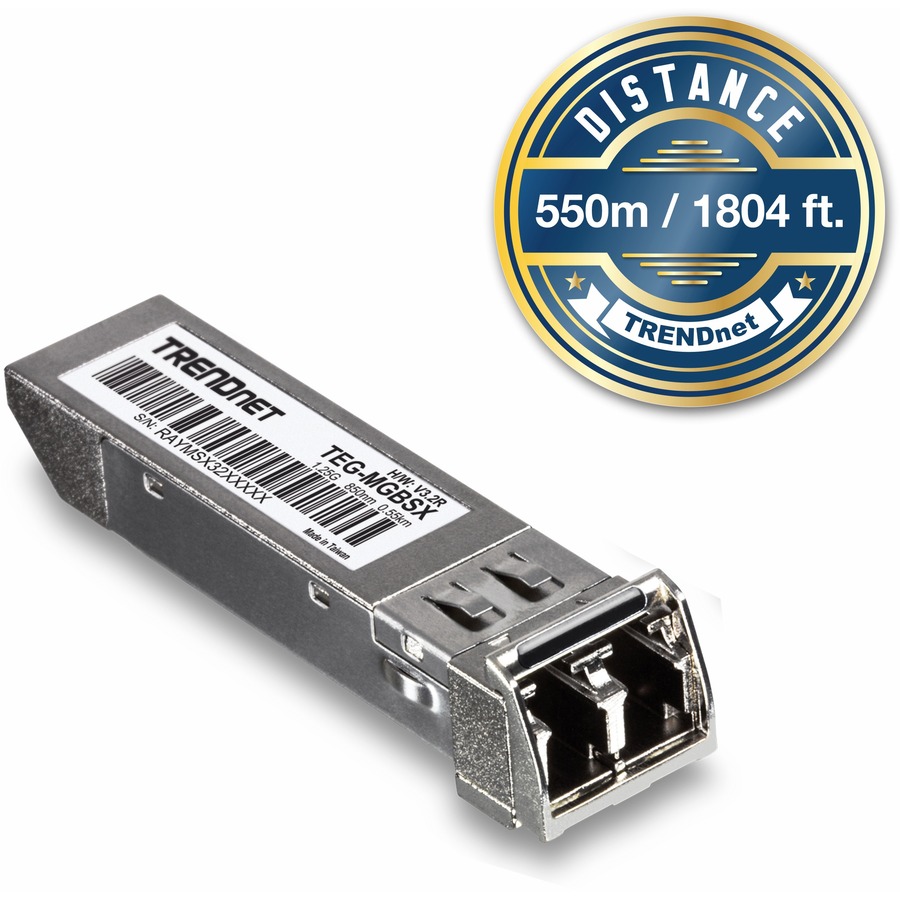

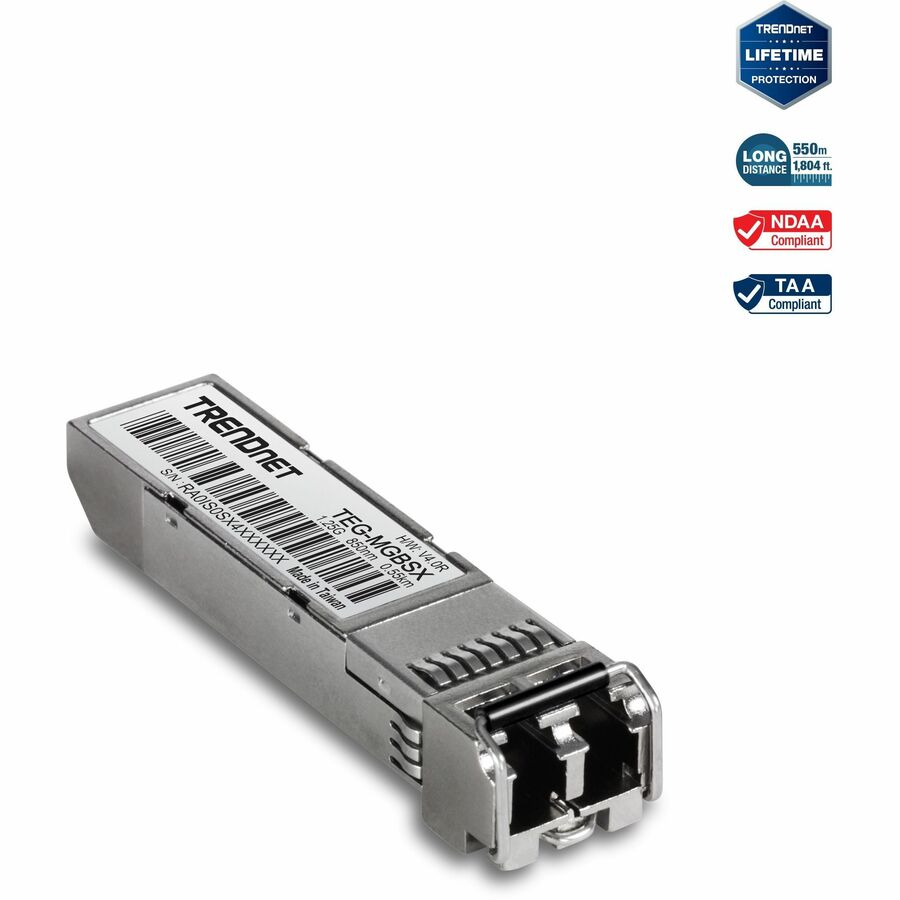

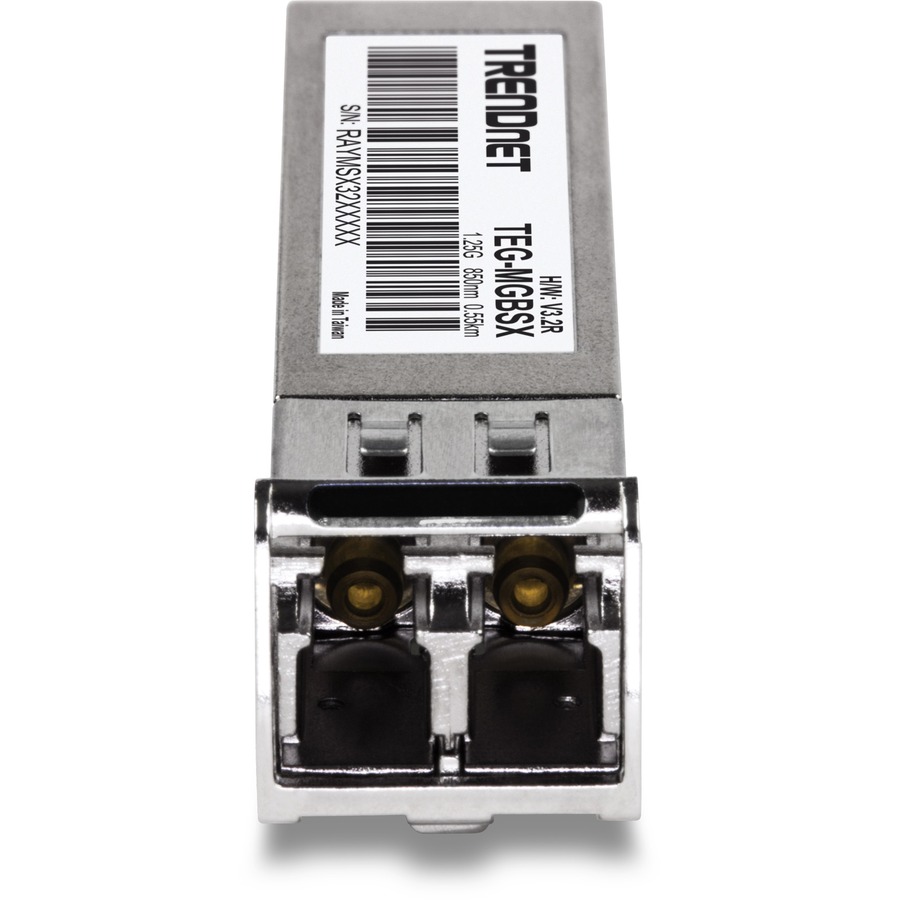

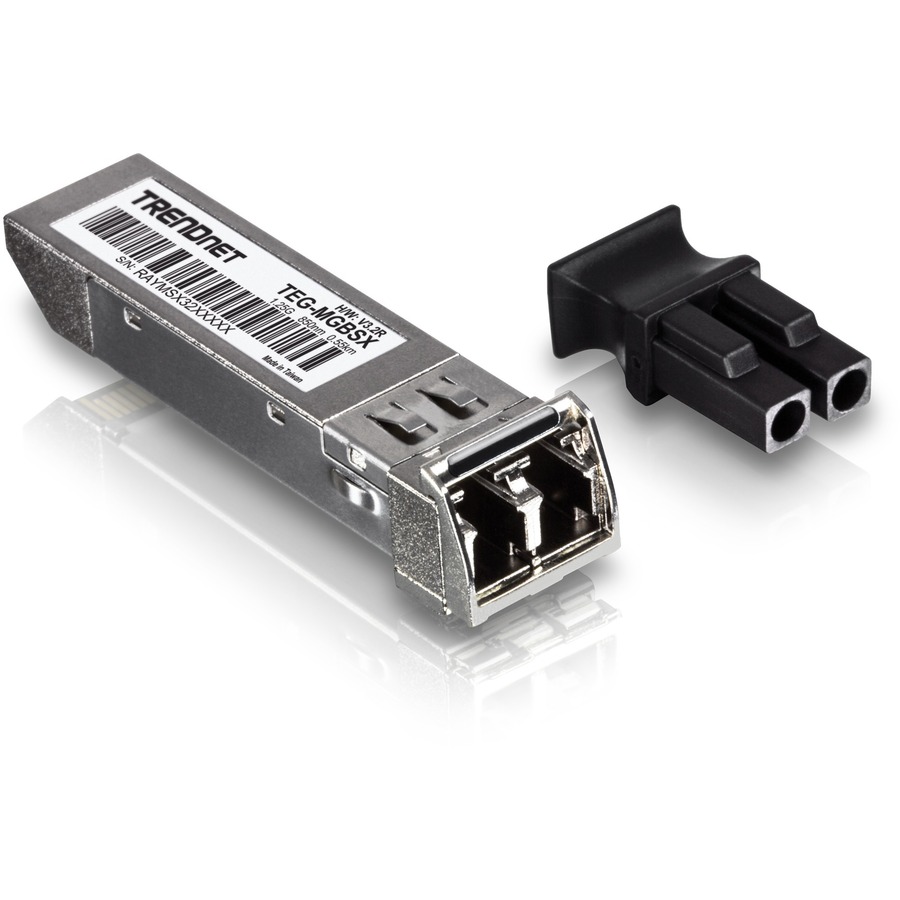

Mini GBIC Multi-mode SX Module
$30.74
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
• Transmission distance of up to 550m (1804 ft.)
• Supports data rates of up to 1.25Gbps
• Compliant with IEEE 802.3z Gigabit Ethernet
• ANSI Fiber Channel compliant
• Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
• Low Electromagnetic Interference (EMI) design
• Supports 850nm multi-mode network transmissions
• Duplex LC optical interface
• Low power consumption
• NDAA / TAA compliant (U.S. and Canada only)
• TRENDnet LIFETIME PROTECTION: This module comes with lifetime manufacturer protection.
TRENDnet's SFP Multi-Mode LC Module, model TEG-MGBSX, are compatible with standard SFP slots found on network switches and fiber media converters. The Multi-Mode SFP LC module is equipped with a duplex LC fiber connection interface, and supports gigabit multi-mode fiber connections for long distance networking applications.
Fiber Applications Long distance fiber networking for manufacturing, business parks, and school campus applications.
Fiber Mode/Distance Multi-Mode transceiver spans distances up to 550m (1804 ft.) at gigabit speeds.
Compatibility Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors.
More from the Manufacturer
Fiber Applications
Long distance fiber networking for manufacturing, business parks, and school campus applications.
Fiber Mode/Distance
Multi-Mode transceiver spans distances up to 550m (1804 ft.) at gigabit speeds.
Compatibility
Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors.
The TEG-MGBSX Mini-GBIC Multi Mode module works with standard Mini-GBIC slots on most switches. This Multi-Mode LC Type module spans distances up to 550m (1,800ft).
Transmission distance of up to 550m (1804 ft.)
Supports data rates of up to 1.25Gbps
Compliant with IEEE 802.3z Gigabit Ethernet
ANSI Fiber Channel compliant
Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
Low Electromagnetic Interference (EMI) design
Supports 850nm multi-mode network transmissions
Duplex LC optical interface
Low power consumption
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3z
Device Interface
SFP MSA Compliant
LC duplex connector
Data Transfer Rate
1.25Gbps
Wavelength
850nm
Optical Output Power
-9 ~ -3 dBm
Distance
550m (1804 ft.)
Special Features
Hot pluggable
Metal enclosure
Sensitivity
-20 dBm
Power
Max. Consumption: 0.8W
Operating Temperature
0° – 70° C (32° – 158 °F)
Operating Humidity
Max. 85% non-condensing
Dimensions
57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
Weight
18g (0.6 oz.)
Certifications
CE
FCC
PACKAGE CONTENTS
TEG-MGBSX
Quick Installation Guide
Limited Warranty: 3 Year Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-MGBSX |
| Brand Name | TRENDnet |
| Product Model | TEG-MGBSX |
| Product Name | Mini GBIC Multi-mode SX Module |
| Product Condition | New |
| Product Type | SFP (mini-GBIC) |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX |
| Maximum Distance Supported | 0.55 km |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 3" |
| Width | 3" |
| Depth | 5" |
| Weight (Approximate) | 0.39 lb |
| Technical Information | |
| Application/Usage | Data Networking |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
| Miscellaneous | |
| Compatibility |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
