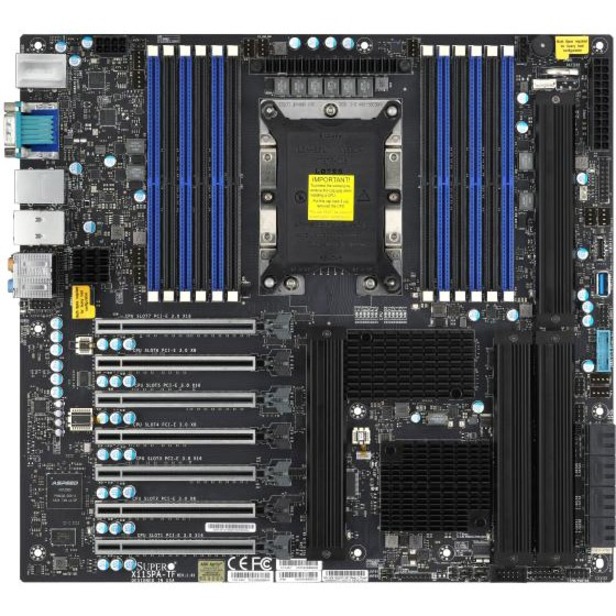

Supermicro X11SPA-T Workstation Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX
Supermicro

Supermicro X11SPA-T Workstation Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX

3 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 12 x Memory Slots - Gigabit Ethernet - 8 x SATA Interfaces

SKU
MBD-X11SPA-T-O
Category
Motherboards

MSRP$772.00

$715.69

Save 7%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MBD-X11SPA-T-O
Category
Motherboards

Overview

BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)

Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 2TB DDR4 2933MHz in 8 DIMM slots with support for Intel® Optane? DC Persistent Memory per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.

Warranty

Limited Warranty: 3 Year

Highlights

  • Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • Extended ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability

Specifications

Product TypeWorkstation Motherboard
CompatibilitySupermicro Chassis: 3U SC835BTQC-R1K23B SC835BTQC-R1K23B SC835TQC-R1K03B Mid/Mini-Tower SC732D3-1200B SC732D3-903B 4U/Tower SC743AC-1200B-SQ SC743TQ-1200B-SQ SC743AC-668B SC745BAC-R1K28B2 SC745BTQ-R1K28B-SQ SC747BTQ-R1K62B SC842XTQC-R804B SC842XTQ-R606B SC842TQC-668B SC842TQ-865B
Manufacturer Part NumberMBD-X11SPA-T-O
Maximum Memory Supported3 TB
Packaged Quantity1
Limited Warranty3 Year
Form FactorExtended ATX
ManufacturerSupermicro Computer, Inc
Product ModelX11SPA-T
Product NameX11SPA-T Workstation Motherboard
Package TypeRetail
Processor SupportedXeon
RAID Levels0, 1, 5, 10
Total Processor Supported1
Controller TypeSerial ATA/600
Processor SocketSocket P LGA-3647
Brand NameSupermicro
Memory TechnologyDDR4 SDRAM
Country of OriginChina
Width12"
Depth13"
Chipset ManufacturerIntel
Chipset ModelC621
Number of Memory Slots12
Graphics Controller ModelAST2500
Gigabit EthernetYes
Number of SATA Interfaces8
Onboard VideoOn-board Video Chipset
RAID SupportedYes
Number of PCI Express x16 Slots7
VGAYes
Number of Network (RJ-45) Ports2
Total Number of USB Ports6
Total Number of Onboard USB Ports6
Number of Onboard USB 2.0 Ports2
Total Number of PCI Express Slots7
Memory Form FactorRDIMM, LRDIMM, DIMM
Total Number of Expansion Slots7
10Gigabit EthernetYes
Number of M.2 Interfaces1
Number of USB 3.1 Ports6
Number of Onboard USB 3.1 Ports4
Memory Speed Supported2933 MHz, 2666 MHz
