StarTech USB VGA KVM Console Extender over Cat5 UTP 1000 ft
StarTech.com

StarTech USB VGA KVM Console Extender over Cat5 UTP 1000 ft

Control a KVM or server from up to 300m (984ft) away - kvm extender - KVM Extender CAT5 - Console extender

SKU
SV565UTPUL
Category
KVM Consoles/Extenders

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SV565UTPUL
Category
KVM Consoles/Extenders

Overview

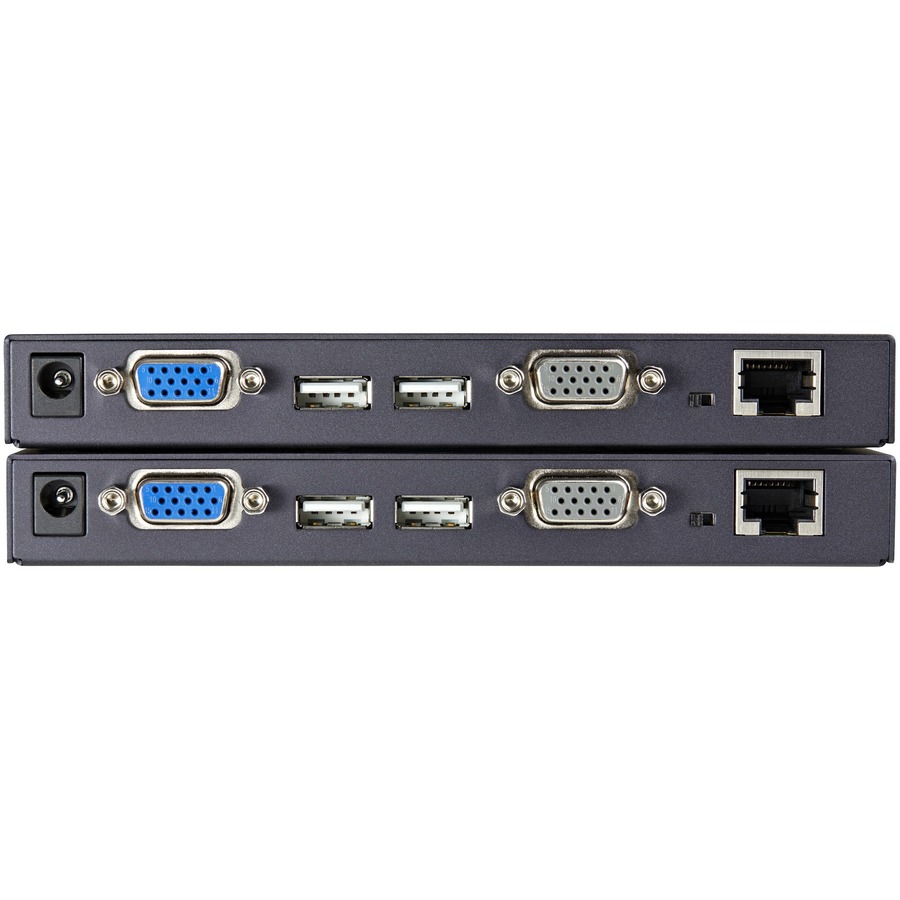

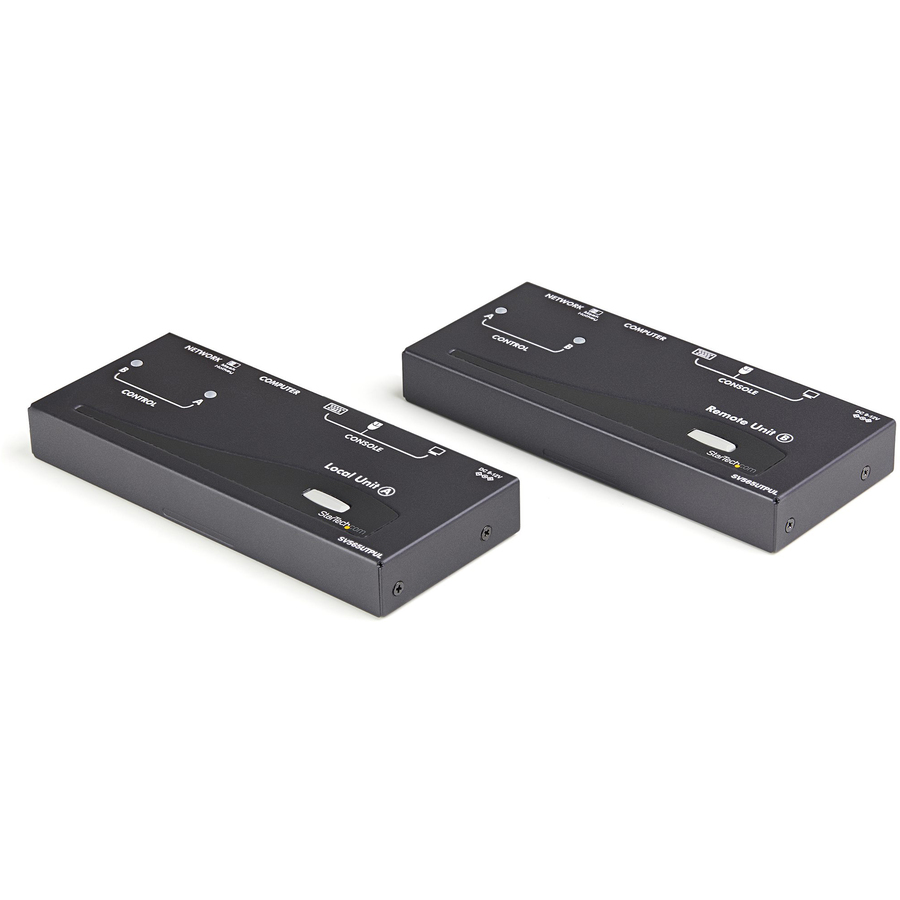

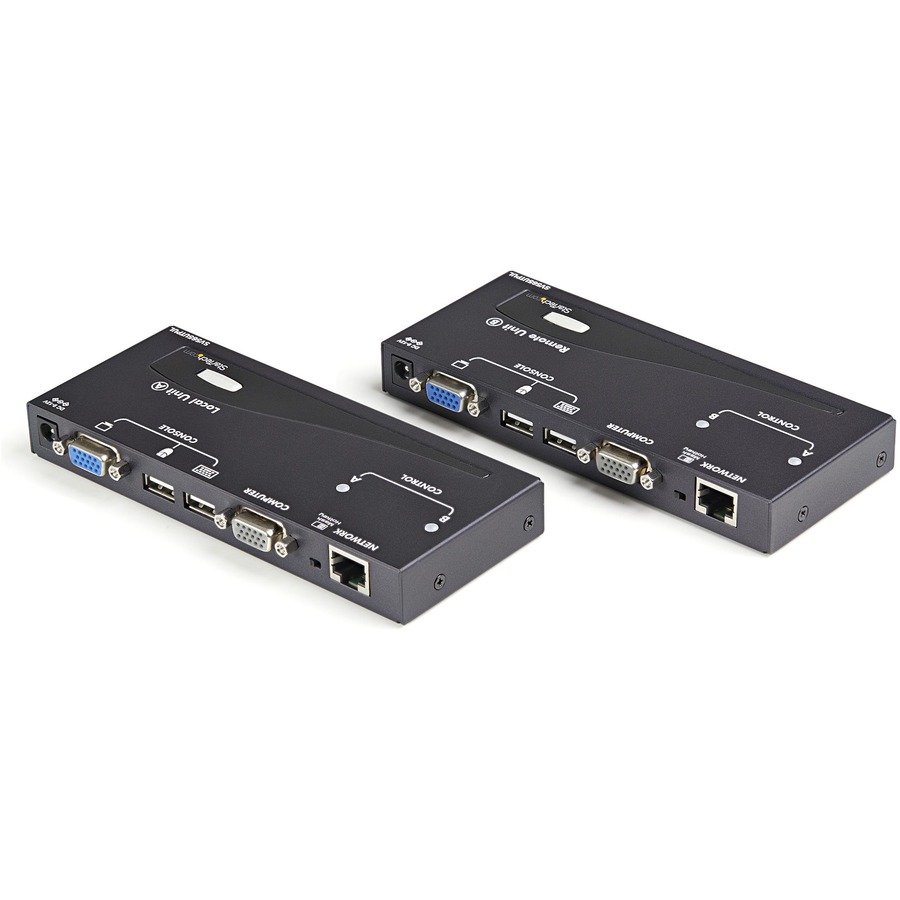

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away. You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. More from the Manufacturer More from the Manufacturer

Highlights

  • High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)
  • Kit includes both local and remote units
  • Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
  • USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
  • Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
  • Supports auto-switching between host and remote users or dedicated control
  • Compatible with CAT 5, 5e, or 6 UTP cabling
  • Intuitive hotkey commands
  • Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
  • Supports most combo keyboard and mouse sets (including Wireless)

Specifications

Package Contents
  • 2 x KVM Extenders (1x Local, 1x Remote)
  • 2 x 2n1 USB VGA KVM Cables
  • 1 x Rubber Feet
  • 1 x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
  • 1 x User Manual
Product TypeKVM Console/Extender
Input Voltage120 V AC, 240 V AC
Manufacturer Part NumberSV565UTPUL
Packaged Quantity1 Kit
Limited Warranty3 Year
Connectivity TechnologyWired
Form FactorRack-mountable, Desktop
ManufacturerStarTech.com
Product NameUSB VGA KVM Console Extender over Cat5 UTP 1000 ft
Power Consumption18 W
Brand NameStarTech.com
Input Voltage Range110V AC to 240V AC
Country of OriginTaiwan
Environmentally FriendlyYes
Environmental CertificationEU RoHS
Maximum Video Resolution1920 x 1200
Graphic ModeWUXGA
Maximum Operating Distance984.25 ft
USBYes
VGAYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports4
Number of VGA Ports2
KVM TechnologyAnalog
Number of Computers Supported2
Number of Local Users Supported1
Number of Remote Users Supported1
Transmitter Height0.80"
Transmitter Width6.20"
Transmitter Depth2.80"
Receiver Height0.80"
Receiver Width6.20"
Receiver Depth2.80"
Transmitter Weight (Approximate)1.37 lb
Receiver Weight (Approximate)1.37 lb
TAA CompliantYes
Product ColorBlack
Color FamilyBlack
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
