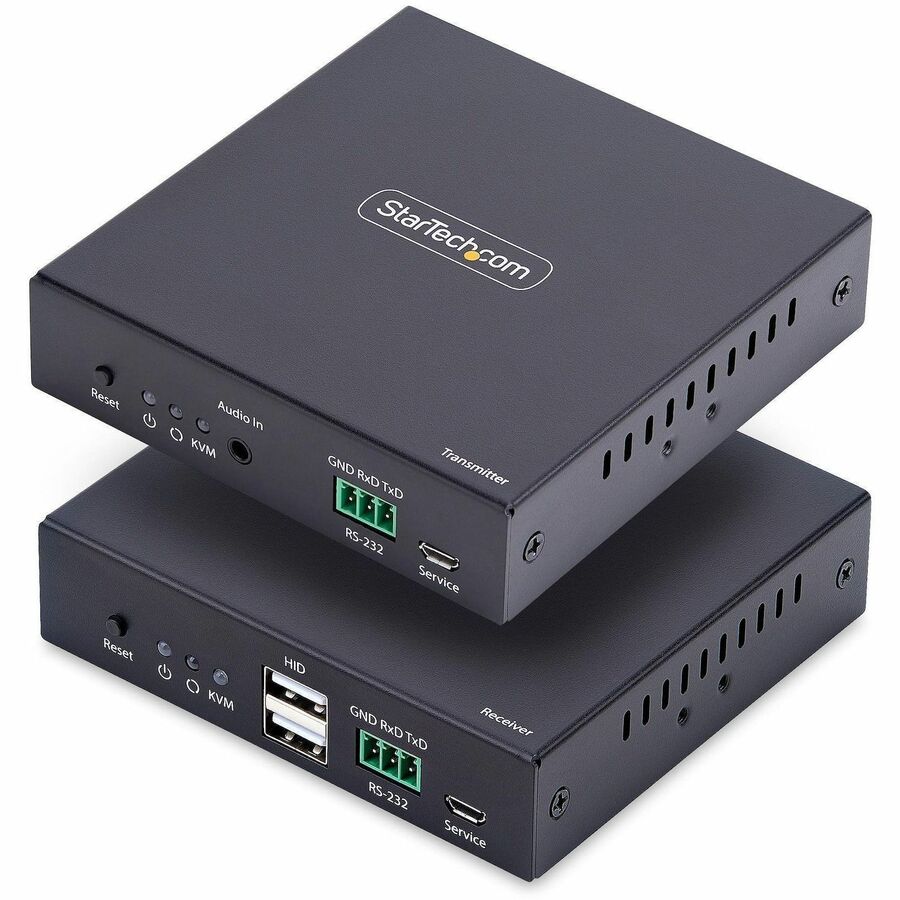

StarTech HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB Over Ethernet/CAT6, AVoIP, Transmitter/Receiver Kit
Control a computers keyboard/mouse/4K 60Hz HDMI monitor from a remote location over an existing IP network; Additional IP KVM receivers sold separately; No Drivers/Software; Works with any OS/hardware platform; Transmitter has a local HDMI output
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
IH2006-KVM-EXTENDER
Category
KVM Consoles/Extenders
Overview
The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.
Professional-Grade Design

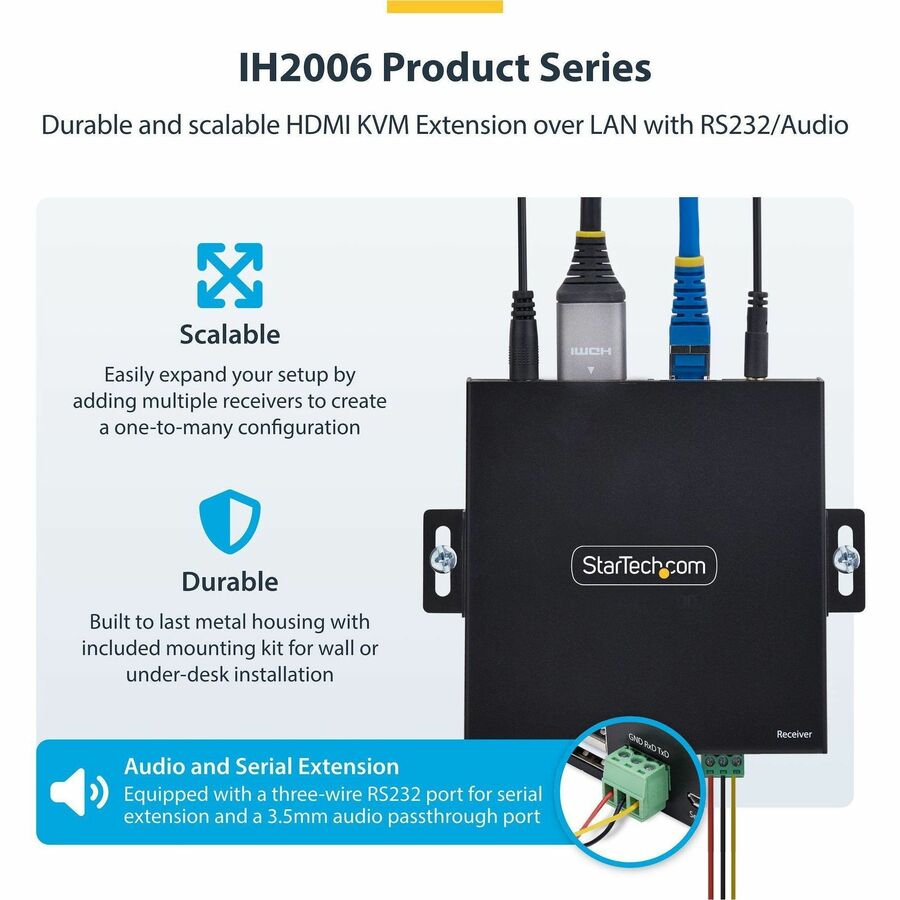

Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
Highlights
AVoIP KVM EXTENDER: Remotely access and control a computer over a TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor, while keeping the system secure from unauthorized access or physical damage
NO DRIVERS OR SOFTWARE: IP Video Distribution kit requires no configuration to get it working; Compatible with any operating system including Windows, macOS and Linux, as well as all hardware platforms such as Intel, AMD, Snapdragon/ARM and Apple Silicon

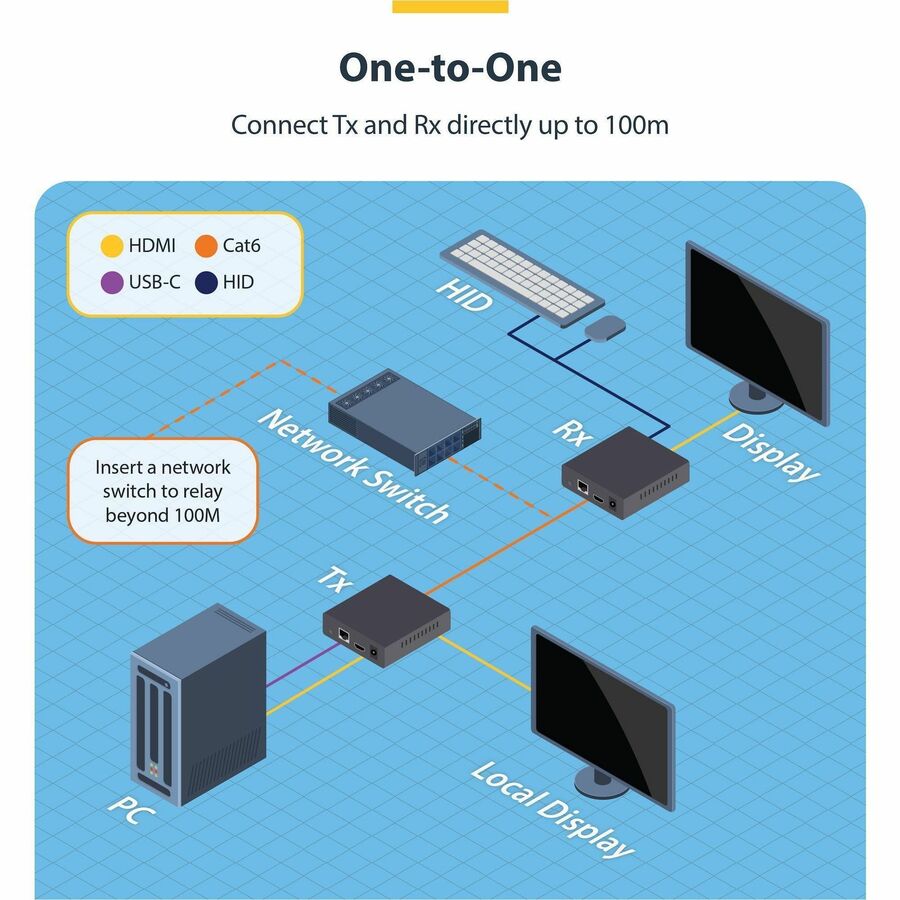

SCALABLE SETUP: Start with a point-to-point setup, then expand to a one-to-many setup by adding IP KVM receivers (sold separately), allowing your setup to grow with your business needs and ensuring a scalable, future-proof solution

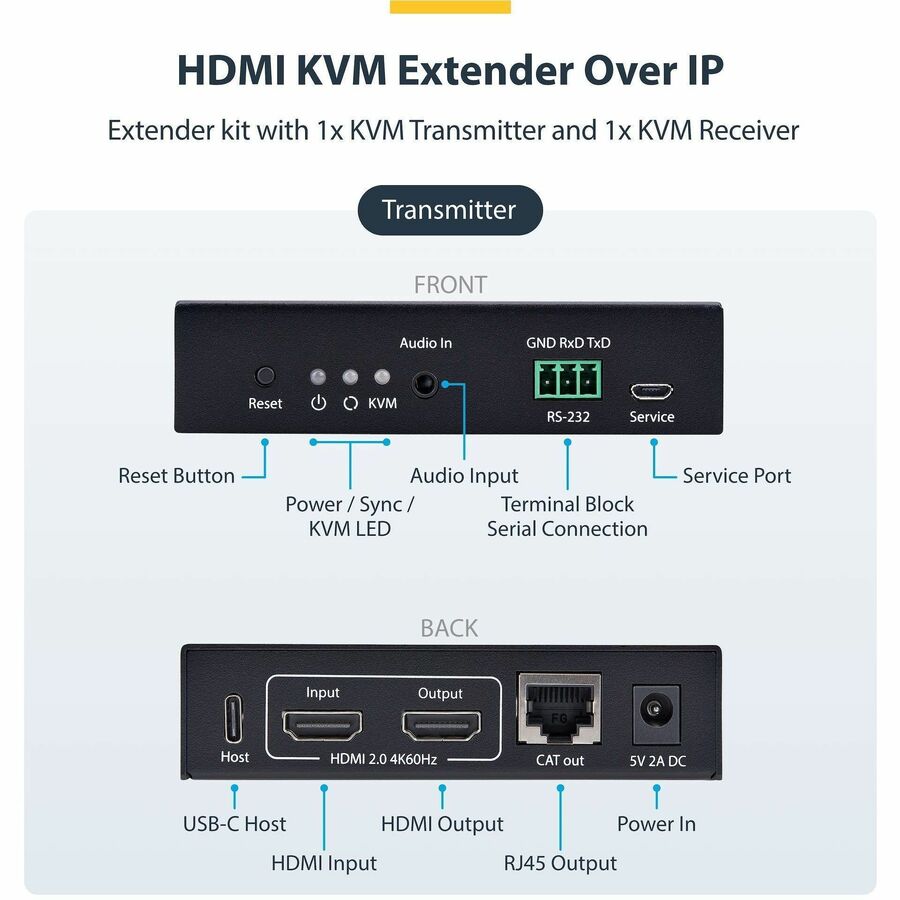

LOCAL HDMI OUTPUT: IP KVM Transmitter features an HDMI output to connect a local display, allowing you to view the content without being at the receiver's location; Three-wire RS232 port and a 3.5mm audio passthrough port offer serial and audio extension
SECURE & FLEXIBLE INSTALLATION: Durable metal housing with included mounting kits for wall or under-desk installation; Rubber feet prevent slipping for desktop use; Ideal for industrial and professional environments
Specifications
Package Contents
KVM Extender Transmitter/Receiver
2x RS-232 Terminal Headers
2x Mounting Kit
2x Set of Rubber Feet
2x Universal Power Adapter (NA/EU/UK/ANZ)
1x Quick-Start Guide
Host Interface
HDMI
Product Type
KVM Extender Transmitter/Receiver
Input Voltage
100 V AC, 240 V AC
Manufacturer Part Number
IH2006-KVM-EXTENDER
Packaged Quantity
1
Platform Supported
Windows, Mac, Linux
Limited Warranty
2 Year
Connectivity Technology
Wired
Form Factor
Wall Mountable
Manufacturer
StarTech.com
Product Name
KVM Extender Transmitter/Receiver
Power Consumption
10 W
Brand Name
StarTech.com
Input Voltage Range
100 - 240 AC
Country of Origin
China
Maximum Video Resolution
3840 x 2160
Graphic Mode
4K
USB
Yes
HDMI
Yes
Number of HDMI Ports
3
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
5
Transmitter Height
0.80"
Transmitter Width
4.10"
Receiver Height
0.80"
Receiver Width
4.10"
Transmitter Weight (Approximate)
11.10 oz
Receiver Weight (Approximate)
11.10 oz
Device Type
KVM Extender
Product Color
Black
Data Link Protocols
TCP/IP
Color Family
Black
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
