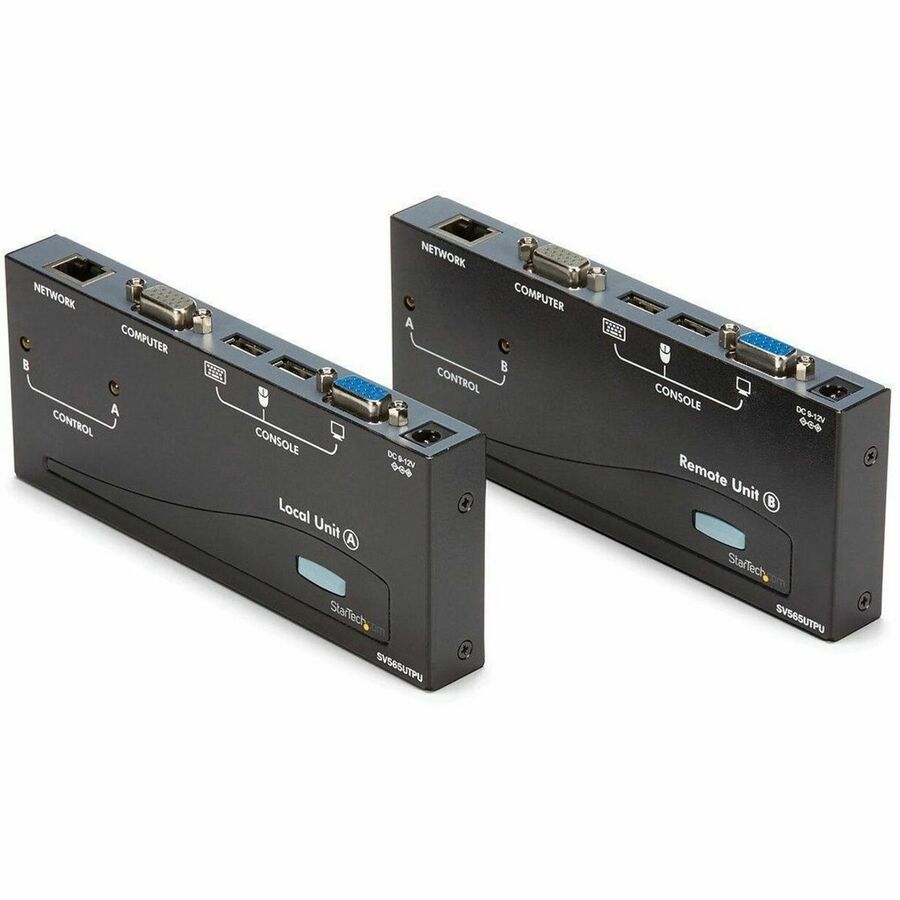

StarTech USB VGA KVM Console Extender over CAT5 UTP (500 ft), TAA
Operate a USB & VGA KVM or PC up to 500ft away as if it were right in front of you - kvm extender - KVM Extender CAT5 - Console extender
- SKU
- SV565UTPU
- Category
- KVM Consoles/Extenders
MSRP$263.41
$247.90
Save 6%In stock: 60
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SV565UTPU
- Category
- KVM Consoles/Extenders
Overview

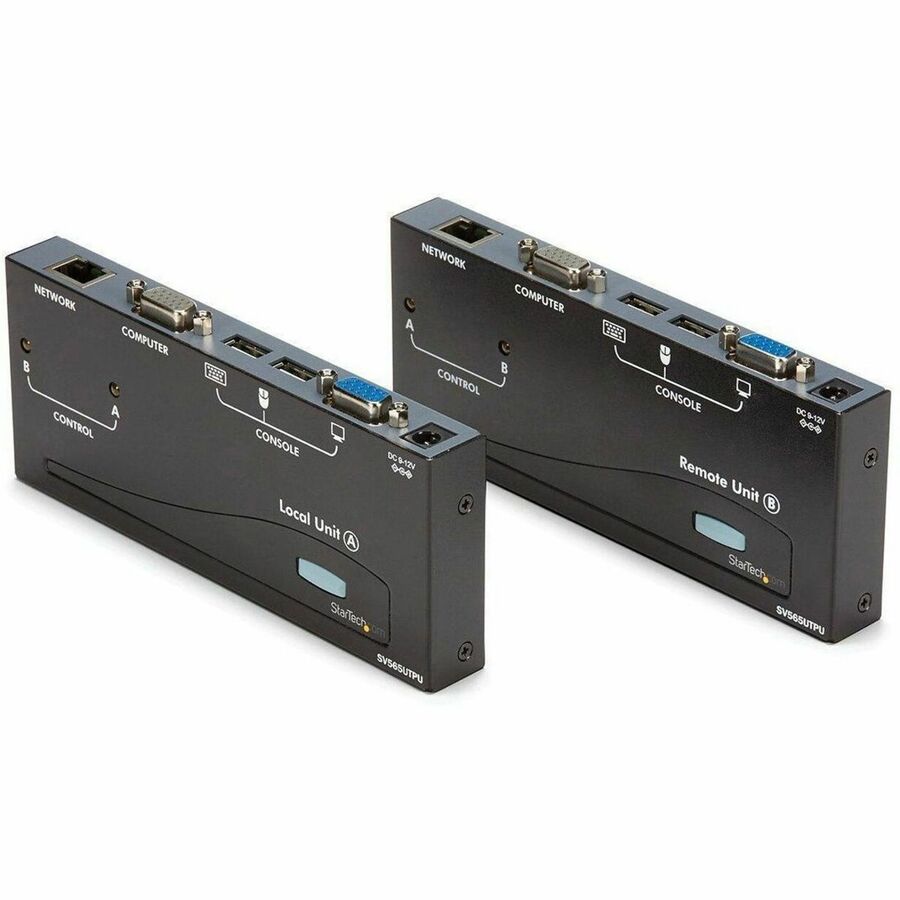

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights

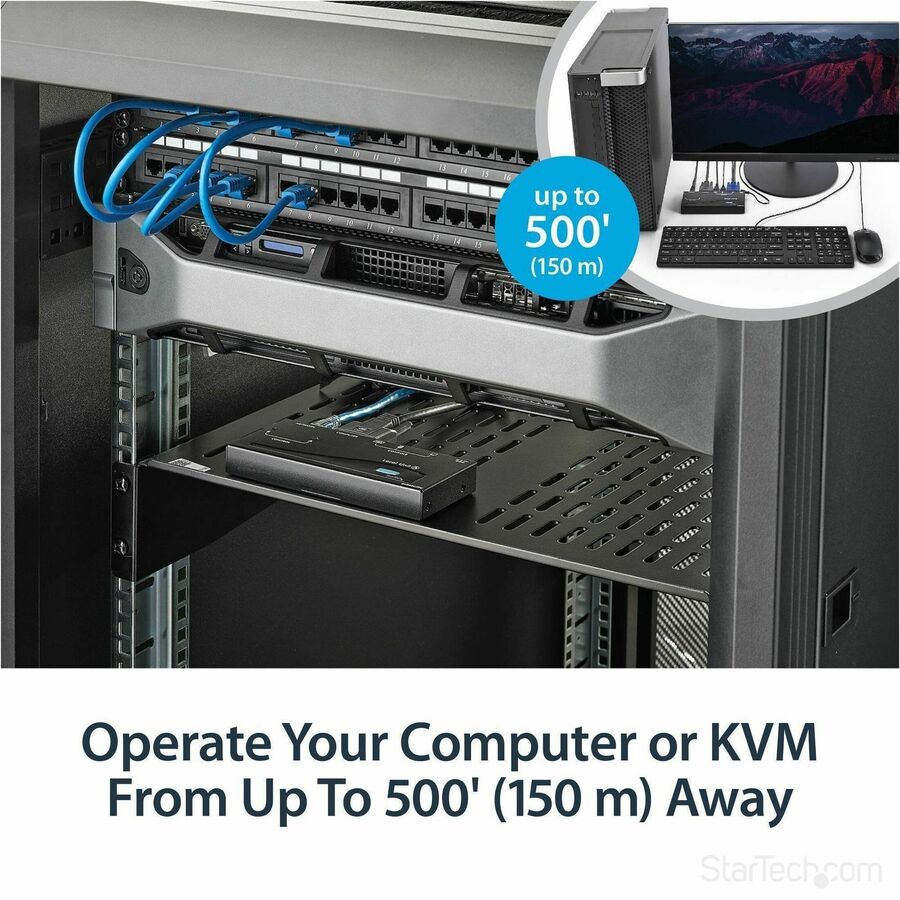

- REMOTE OPERATION: Use the VGA over CAT5 extender to control a USB & VGA KVM or PC up to 500ft (150m) away; Supports hotkey commands, auto-switching between host and remote unit or dedicated control
- COST-EFFECTIVE KVM EXTENSION: The KVM Extender provides a cost-effective way to convert existing standard KVM units into remote-access hardware, extending the capabilities of your hardware

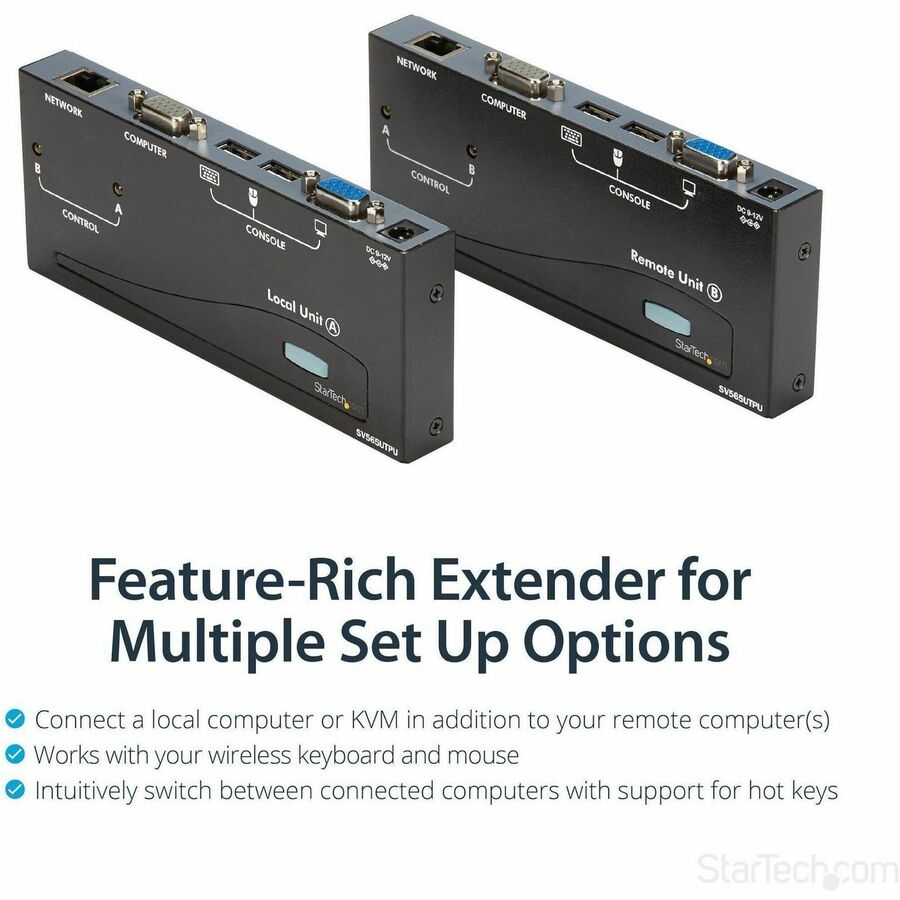

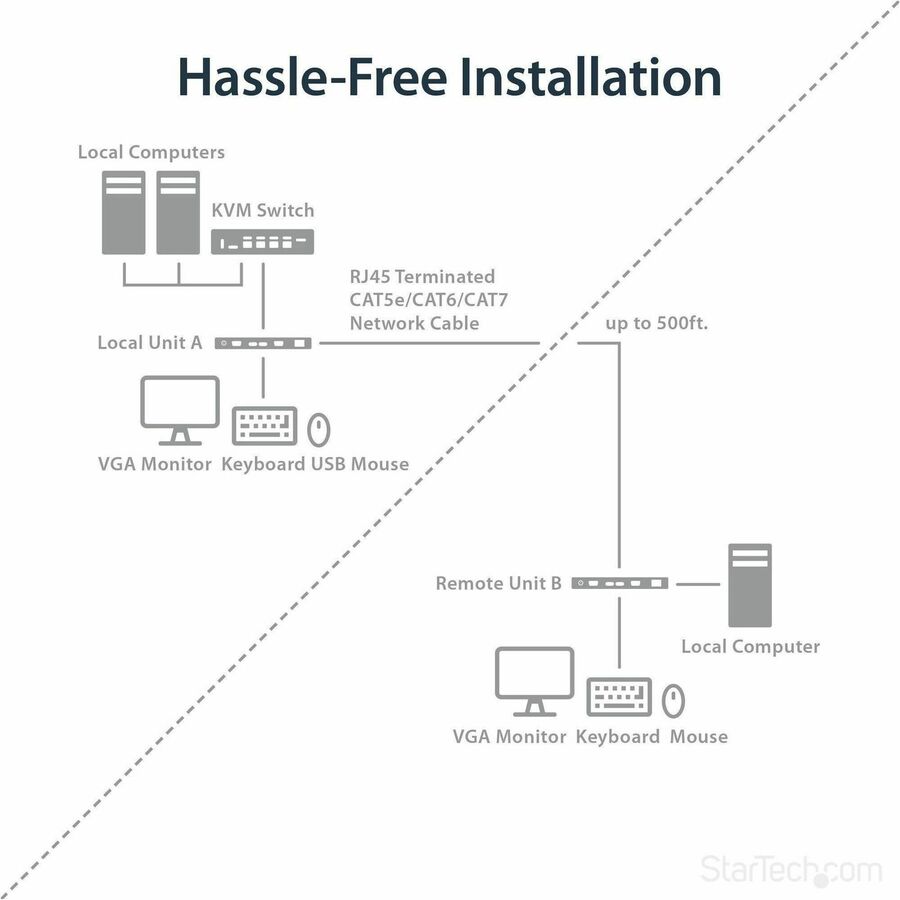

- FLEXIBLE CONFIGURATION: KVM console extender can be used with a single computer or connected to an existing KVM switch; Offers broad support for USB keyboards, mice, and even most combo/wireless configurations
- EASY INSTALLATION: Plug and play KVM over Ethernet extender is easy to install using industry-standard UTP network cables and is OS independent, requiring no software or drivers to install
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this CAT5 KVM extender is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
| Additional Warranty Information | This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
|---|---|
| Package Contents |
|
| Product Type | KVM Console/Extender |
| Input Voltage | 120 V AC, 240 V AC |
| Manufacturer Part Number | SV565UTPU |
| Packaged Quantity | 1 Kit |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Form Factor | Desktop |
| Manufacturer | StarTech.com |
| Product Model | SV565UTPU |
| Product Name | USB VGA KVM Console Extender over CAT5 UTP - 500 ft |
| Power Consumption | 5.40 W |
| Brand Name | StarTech.com |
| Input Voltage Range | 110V AC to 240V AC |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Maximum Video Resolution | 1024 x 768 |
| Graphic Mode | XGA |
| Maximum Operating Distance | 500 ft |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 4 |
| Number of VGA Ports | 4 |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Transmitter Height | 0.80" |
| Transmitter Width | 6.10" |
| Receiver Height | 0.80" |
| Receiver Width | 6.10" |
| Transmitter Weight (Approximate) | 1.32 lb |
| Receiver Weight (Approximate) | 1.32 lb |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
