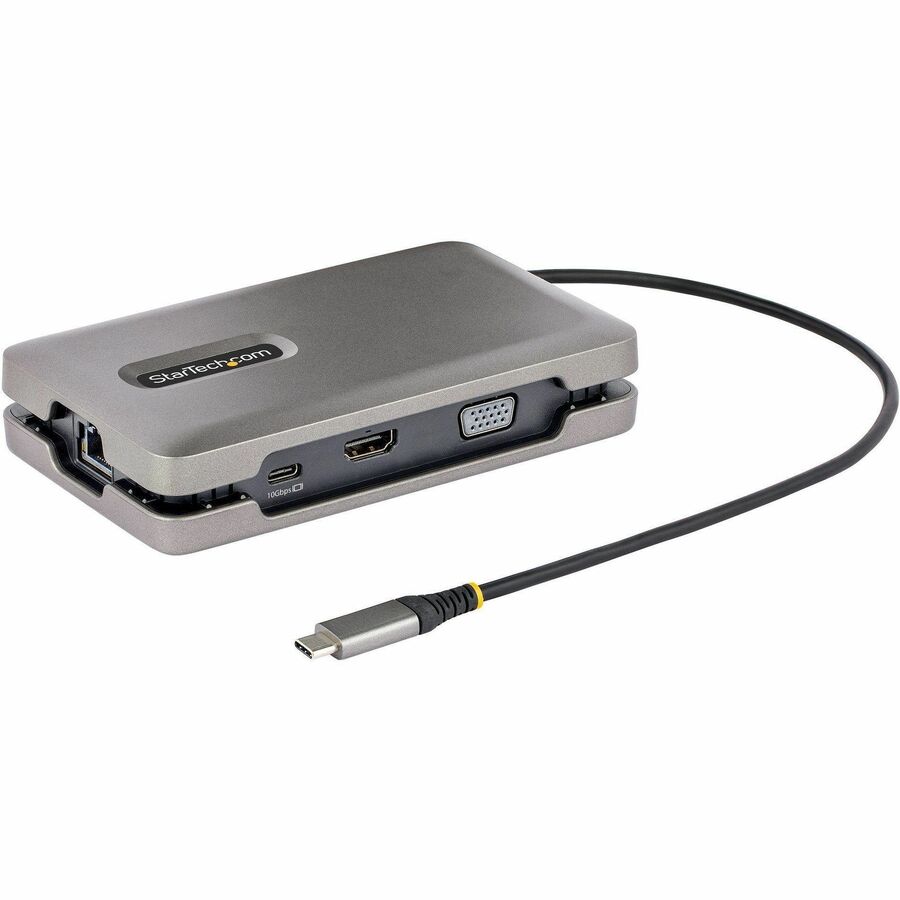

USB-C Multiport Adapter to 4K60Hz HDMI 2.0/USB-C DP 1.4 Alt Mode/1080p VGA (GPU dependent) - 2x USB-A 3.2 Gen 2 10Gbps hub | Gb Ethernet | 100W Power Delivery charging - 10in cable - Compact Type-C Travel Digital AV Mini docking station - Win/Chrome
MSRP$29.99
$25.09
Save 16%In stock: 737
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
This USB-C? Multiport Adapter/Docking Station with DisplayPort? 1.4 (Alt Mode) and Multi-Stream Transport (MST), features three video output options (HDMI, VGA and USB-C video) to support a single or multi-monitor workstation. The USB-C video port supports USB 3.2 Gen 2 (10Gbps) with 10W of power, to connect a USB-C monitor or a USB-C peripheral. In addition, the Docking Station also features a 2-Port USB-A 3.2 Gen 2 (10 Gbps) Hub, a Gigabit Ethernet port, and providing advanced charging through a USB Power Delivery (PD) 3.0 pass-through port. The Multiport Adapter connects to a laptop's USB-C or Thunderbolt 3/4? port, using the integrated 10-inch (25.4cm) USB-C cable. Versatile, High-Performance Video via MST
The compact USB Type-C Docking Station features three video output options to turn your laptop into a single or multi-monitor workstation.

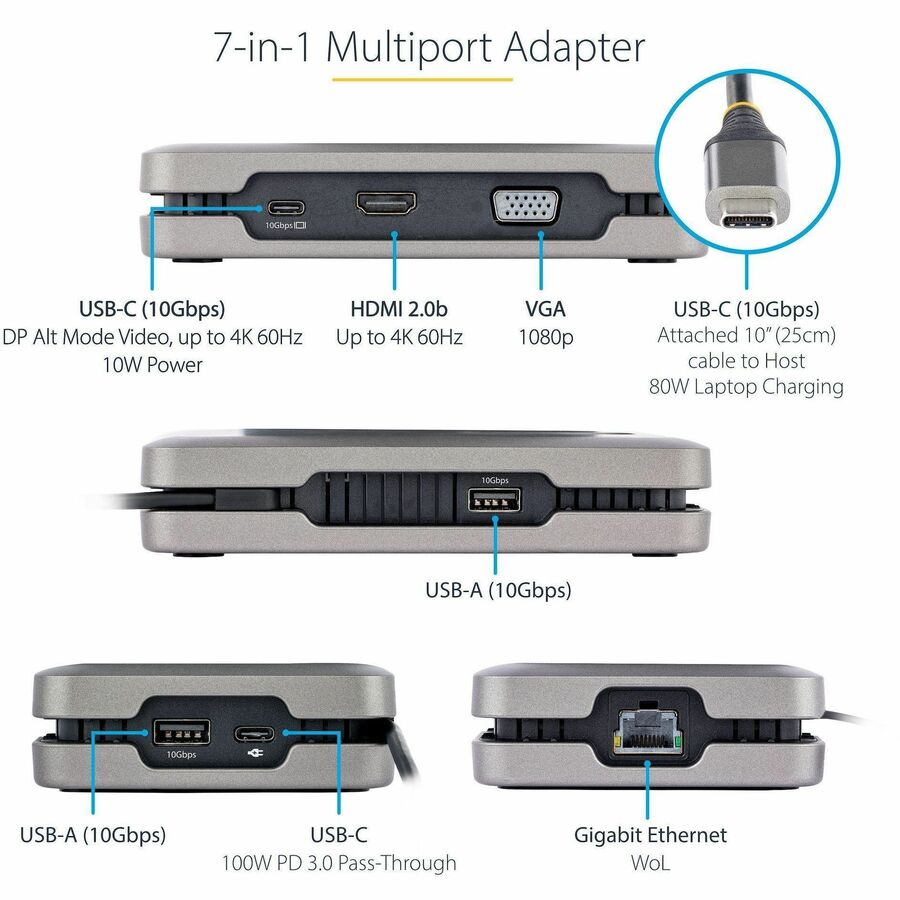

HDMI Port Provides HDR video with resolutions up to 4K 60Hz.
VGA Port Provides analog video with resolutions up to 1080p 60Hz.
USB-C Port Provides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter.
The advanced video versatility of this Multiport Adapter, makes it suitable for a wide variety of applications:
• Connect a portable USB-C monitor as an extended display, to obtain a high resolution external monitor during on-the-go travel between an office desk, home office, hot desk, or the boardroom.
• Connect a USB-C peripheral to the downstream 10Gbps USB-C port, while using the HDMI and/or VGA ports to connect external monitor(s) as extended display(s).

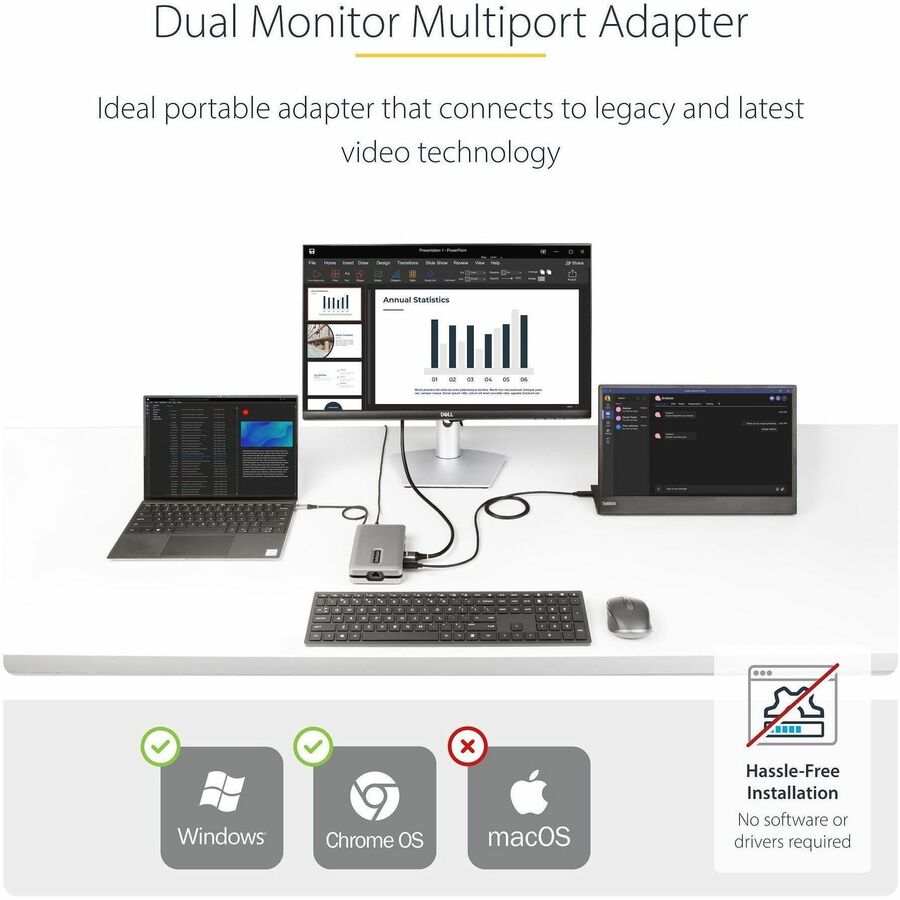

• Connect multiple external monitors as extended displays, using any combination of the two video ports, to create a high-productivity workstation. USB-C video adapters (sold separately) can be used to connect HDMI, DVI, VGA, or DisplayPort monitors to the USB-C video port.

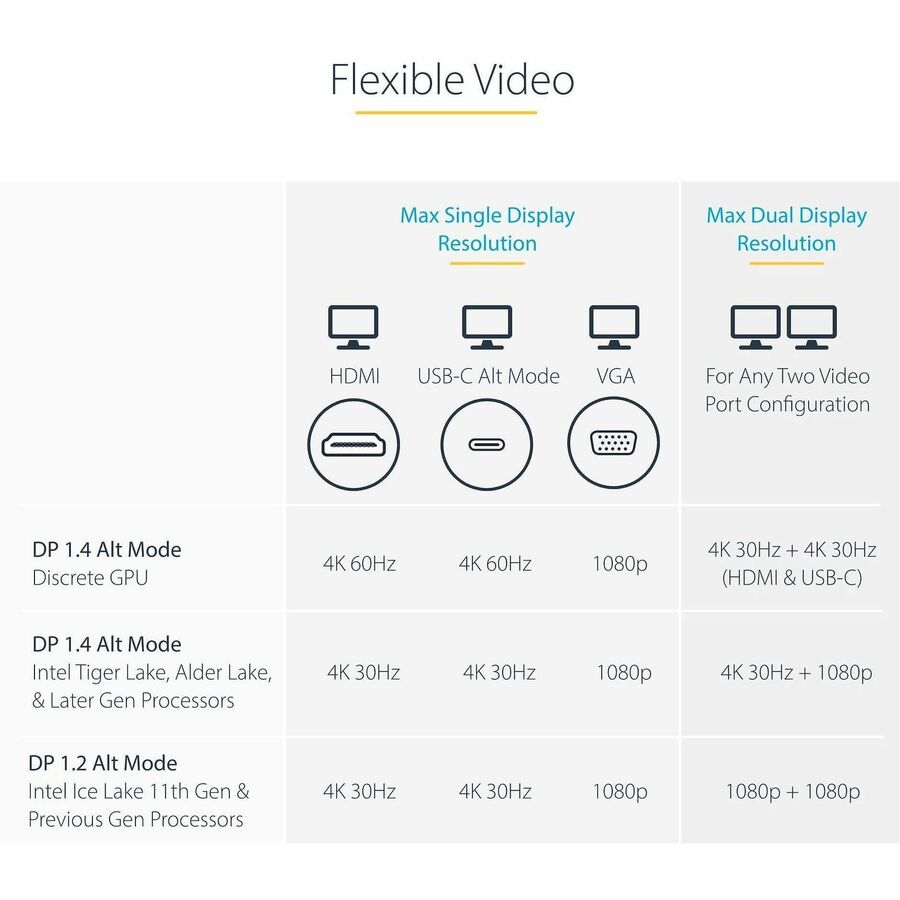

This Docking Station utilizes MST to obtain video versatility. Video performance is based upon the number of attached monitors and the host computer's video controller. Consult the manufacturer of the host computer to determine MST video performance. StarTech.com performs rigorous performance benchmarks with all major host computer video controllers. The video performance results of our testing are listed below:
HDMI Port - Single Monitor USB-C DP Alt Mode Port - Single Monitor VGA Port - Single Monitor Maximum Resolution Dual Display (MST) DisplayPort 1.2 Alt Mode Intel Ice Lake 11th Gen and Previous Generation Processors
4K 30Hz 4K 30Hz 1080p 1080p + 1080p DisplayPort 1.4 Alt Mode Intel Tiger Lake, Alder Lake, and Later Generation Processors
4K 30Hz 4K 30Hz 1080p 4K 30Hz + 1080p DisplayPort 1.4 Alt Mode Discrete GPU
More from the Manufacturer
More from the Manufacturer
Portable Docking Station | Up to 4K 60Hz HDMI | VGA | GbE | Thunderbolt 3 & 4 Compatible
Versatile, High-Performance Video via MST
Features three video output options to turn your laptop into a single or multi-monitor workstation.
HDMI Port Provides HDR video with resolutions up to 4K 60Hz.
VGA Port Provides analog video with resolutions up to 1080p 60Hz. USB-C Port Provides the industry's first downstream full featured video or data (10Gbps)
USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter.
Connect Your Devices
The USB 3.2 Gen 2 (10Gbps) hub features two USB-A ports and one USB-C port, for connecting your USB devices.
The downstream USB-C port can be used to connect a monitor, or USB-C peripheral with up to 10W (5V/2A) of power, to power or charge your peripherals.
Multiple Use Cases
A versatile docking solution for use at an office desk, home office, hot desk, or in the boardroom. It's portable enough to be carried in a bag / backpack for mobile use.
The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the USB Power Delivery pass-through port - for full laptop and USB-C peripheral charging.
The lightweight docking station features a built-in 10 in (25 cm) USB-C host cable for added setup flexibility and to reduce port strain
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (100W - 88W charging, 12W reserved for multiport adapter), the Multiport Adapter enables charging of the host computer and peripherals connected to the USB-C port.
USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. PD 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for Wake-on-LAN (WoL) enables remote booting of the host computer.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: Setup and save custom windows layouts.
MAC Address Pass-Through Utility: Improve network security. USB Event Monitoring Utility: Track and log connected
USB devices. Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
Limited Warranty: 3 Year
The StarTech.com Advantage We simplify the lives of IT Professionals by making it easy to find the connectivity accessories and information they need and getting products to their project sites quickly. StarTech.com products are designed by IT pros, for IT pros, to meet their rigorous technical performance requirements. Who We Are While we may manufacture IT connectivity accessories, StarTech.com is truly in the business of making the lives of IT professionals easy. Founded in 1985 in London, Ontario, Canada by Paul Seed and Ken Kalopsis, StarTech.com has always been dedicated to solving technology problems faced by IT professionals. Originally known as StarTech Computer Accessories, the company had very humble beginnings as a “Visa Card” funded operation, manufacturing products like computer dust covers in the basement of a house. By focusing on the needs of our customers and continual innovation, StarTech.com has evolved into a global organization offering accessories that support over 200 different technologies, from legacy to the latest. StarTech.com Founder and CEO, Paul Seed’s dedication to making IT solutions easy to implement has not wavered, nor has his passion for the community. From individual contributions to organization wide campaigns, StarTech.com is committed to staying connected to the community and supporting non-profit organizations across the globe.
| Package Contents |
|
|---|---|
| Host Interface | USB 3.2 (Gen 2) Type C |
| Product Type | Docking Station |
| Compatibility | Compatibility Products: Mini dock compatible w/USB-C laptops/Ultrabooks/Chromebooks/Surface/Thunderbolt 3/4/USB4 laptops from HP/Dell/Lenovo; Windows/Android/Linux/ChromeOS - For optimal video performance use with Intel 11th & 12th gen+ laptop CPUs |
| Device Supported | Notebook, Smartphone, Tablet |
| Manufacturer Part Number | DKM31C3HVCPD |
| Packaged Quantity | 1 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 6 oz |
| Manufacturer | StarTech.com |
| Product Name | Docking Station |
| Brand Name | StarTech.com |
| Operating System Supported | Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, ChromeOS |
| Country of Origin | Taiwan |

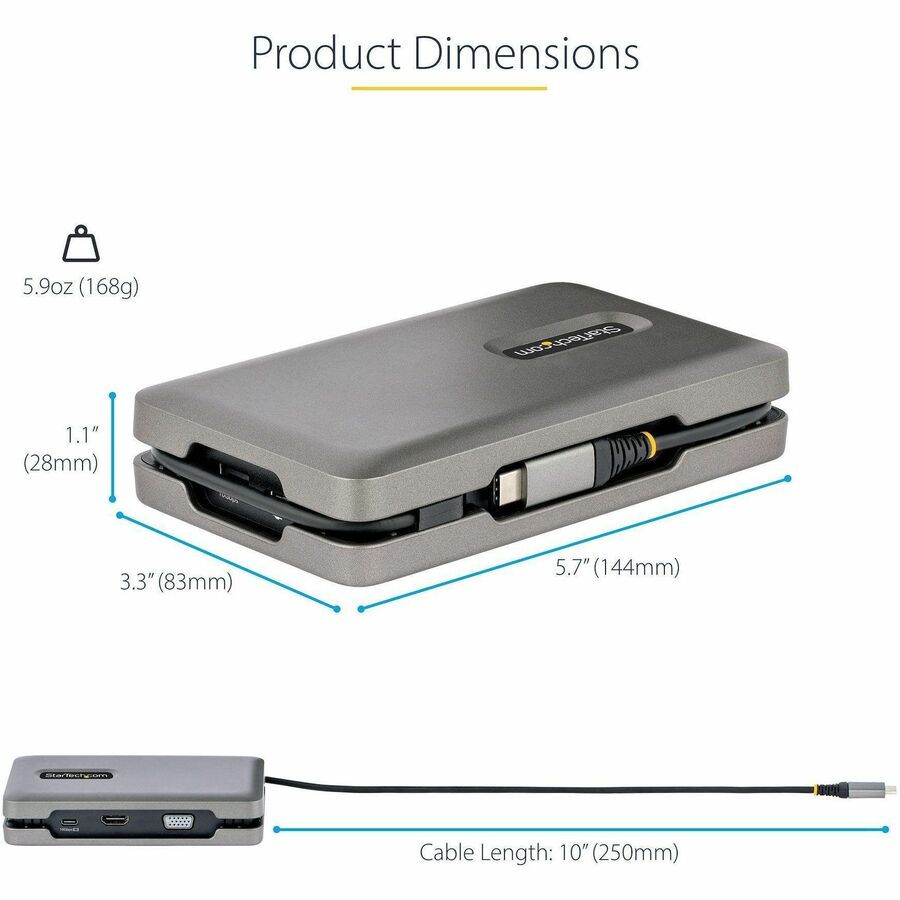

| Height | 1.10" |
| Width | 3.30" |
| Environmentally Friendly | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 100 W |
| DisplayPort | Yes |
| Number of Displays Supported | 2 |
| Number of RJ-45 Ports | 1 |
| TAA Compliant | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | USB Type-C (24 pin) USB Power Delivery Only |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 1 |
| Product Color | Space Gray |
| Supported Resolutions | 3840 x 2160, 1920 x 1200, 1920 x 1080 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
