USB-C docking station enables single/dual monitors via MST with one from a DP 1.4 output and a second from HDMI 2.0b w/HDR or VGA - Port replicator w/7-Port USB hub - Driverless setup - 85W PD w/incl power adapter - Locking USB-C host cable
MSRP$163.99
$158.83
Save 3%In stock: 686
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

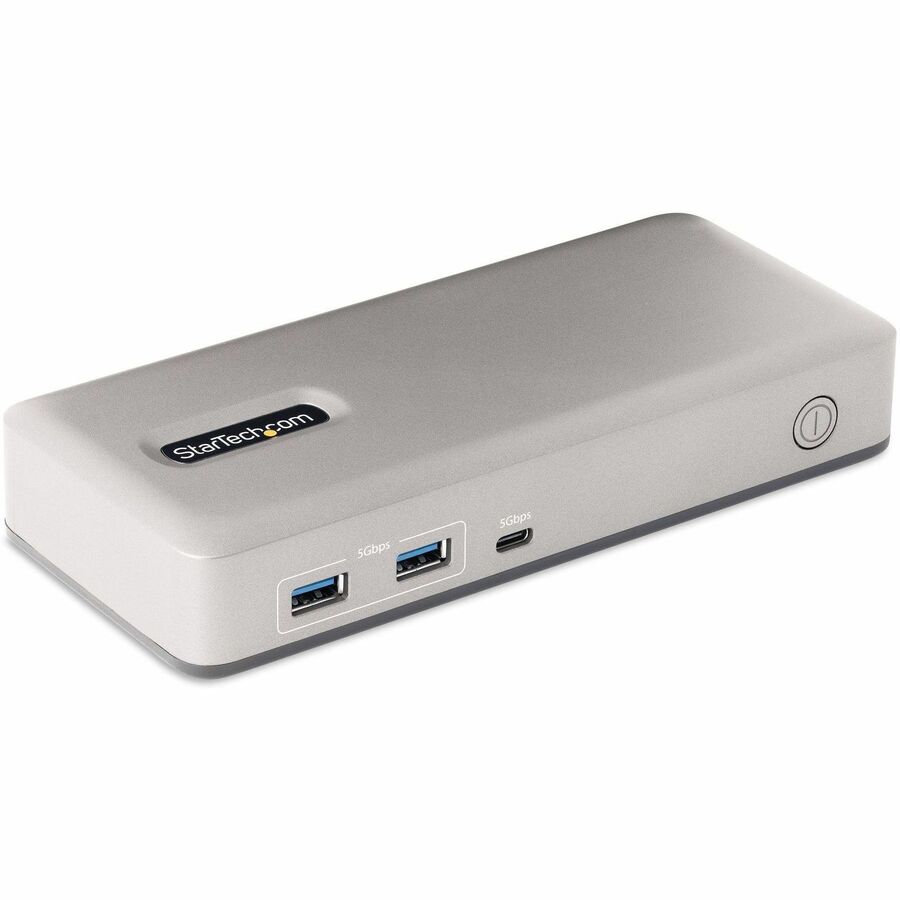

This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.

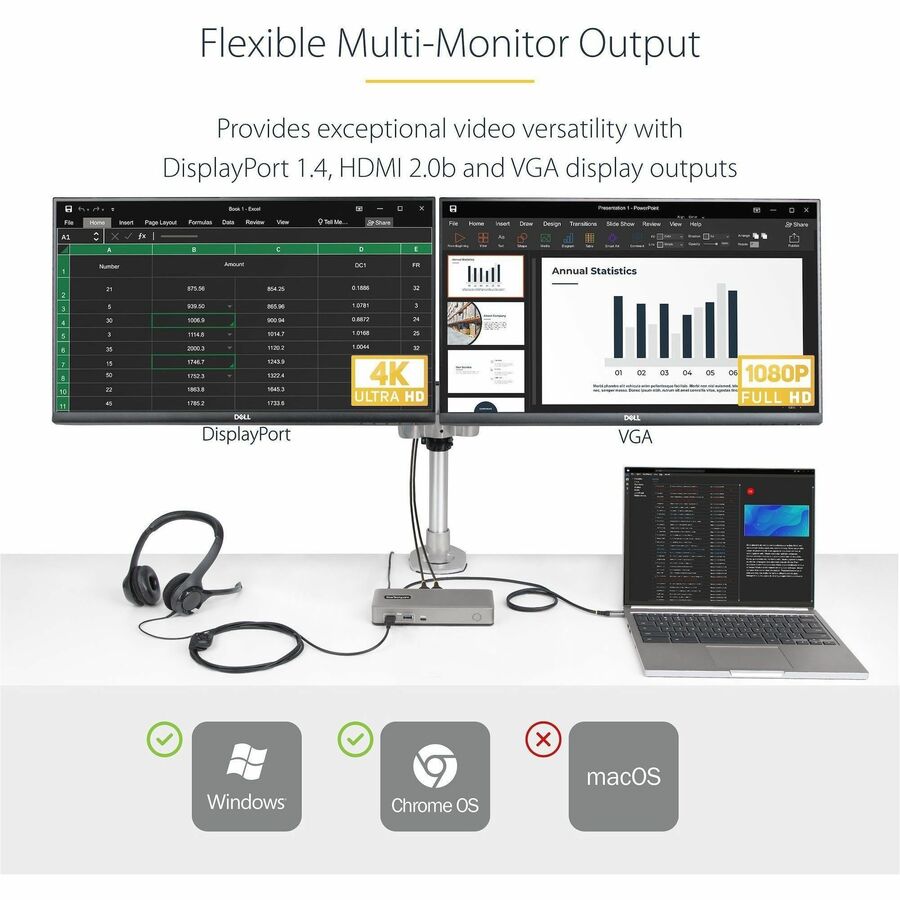

High-Performance Dual Video via MST
The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.
Platform
Single Monitor
Resolution
Dual Monitor
Resolution
DisplayPort 1.4 (Intel 11th Generation and Higher)
1x 4K 60Hz
2x 2560 x 1440p 60Hz
DisplayPort 1.2 (Intel 10th Generation and Below) 1x 4K 30Hz 2x 1920x1200/1080p 60Hz
Notes:
• All specified resolutions support RGB color representation (4:4:4)
• Computers with discrete graphics controllers may achieve higher performance
• Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration

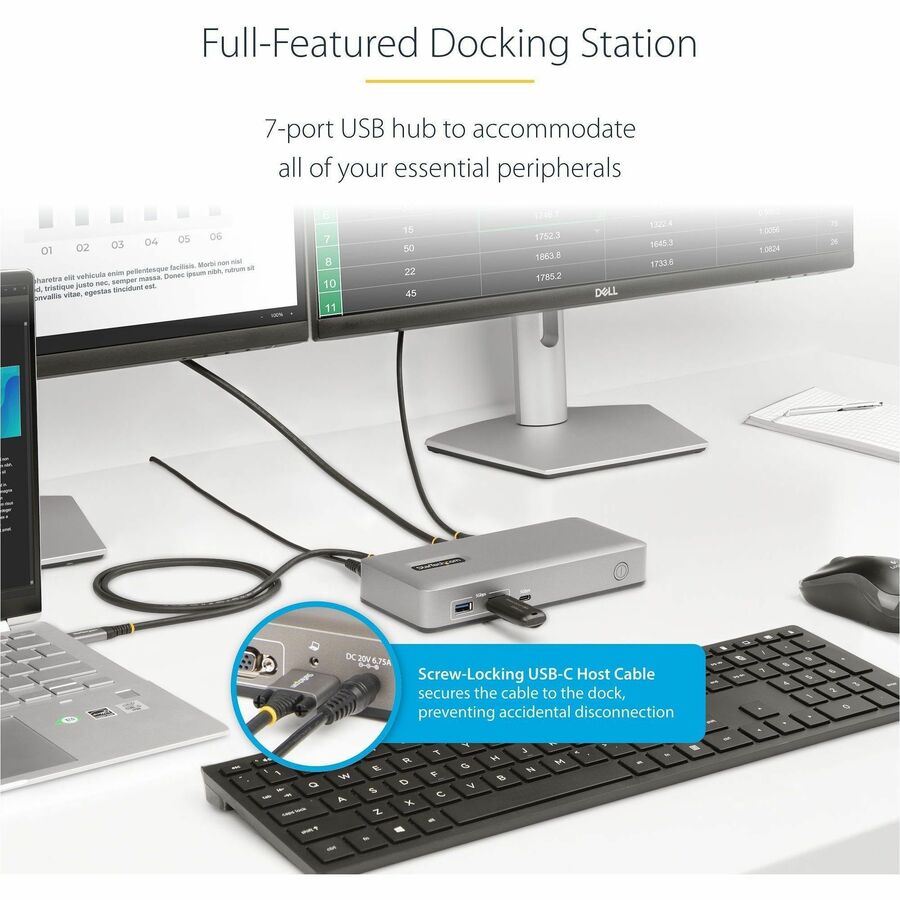

Full-Featured Docking Station with Built-in 7-Port USB Hub

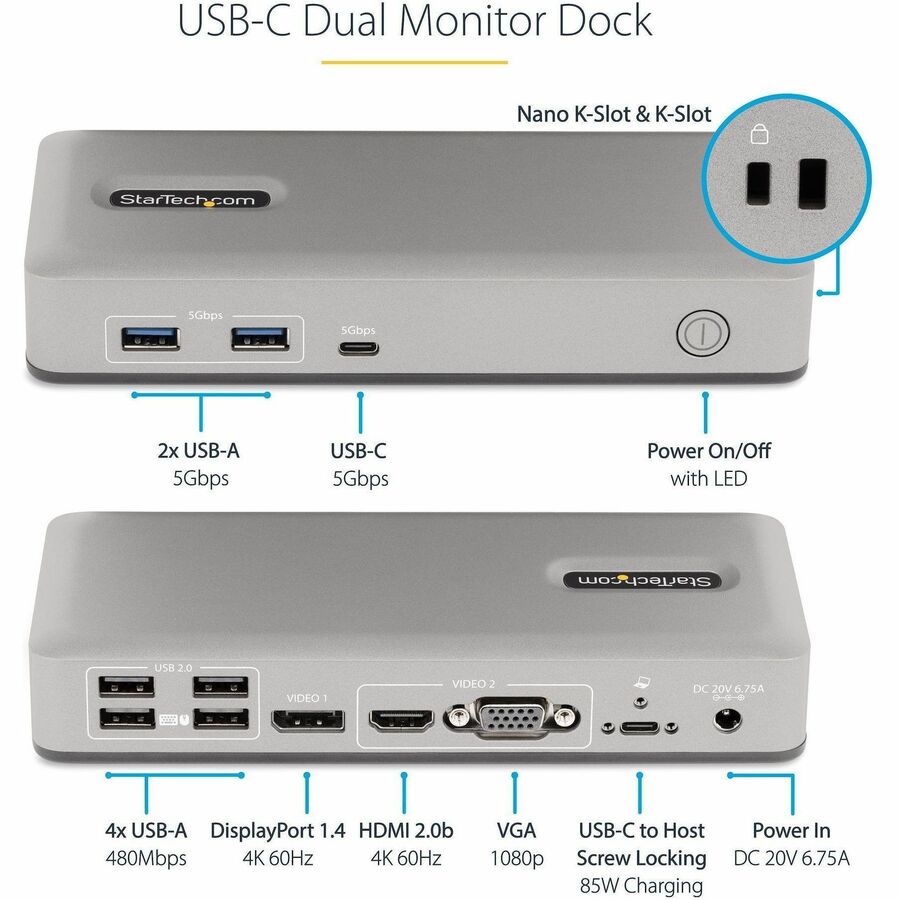

Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:
• 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
• 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
• 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
• 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
More from the Manufacturer
High-Performance Dual Video via MST
The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.
Full-Featured Docking Station with Built-in 7-Port USB Hub
Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
2x K-Slots (regular/nano) to tether the dock with a cable lock (sold separately) for security.
Front facing Power Button to turn the dock on/off.

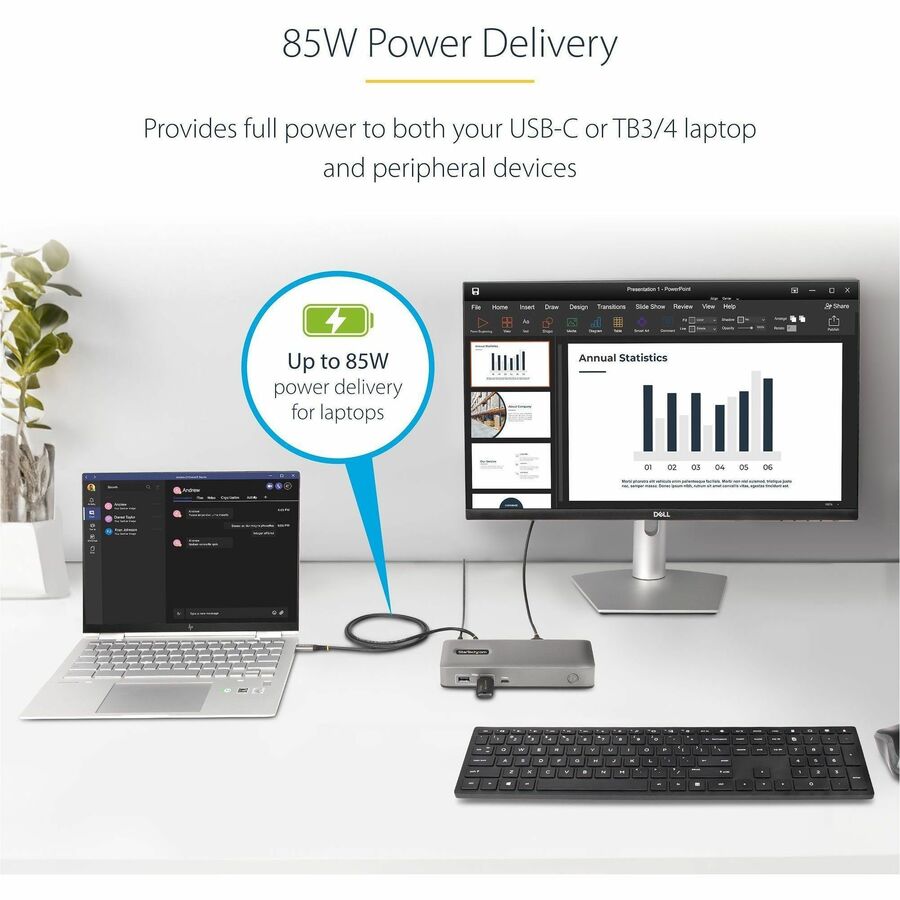

85W Power Delivery 3.0
The USB-C docking station supports 85W power delivery, facilitated by the included power adapter. With power delivery, users can confidently charge their devices while using the docking station. The provided power adapter ensures a consistent and stable power supply, allowing for uninterrupted productivity and device functionality.
Limited Warranty: 3 Year
The StarTech.com Advantage We simplify the lives of IT Professionals by making it easy to find the connectivity accessories and information they need and getting products to their project sites quickly. StarTech.com products are designed by IT pros, for IT pros, to meet their rigorous technical performance requirements. Who We Are While we may manufacture IT connectivity accessories, StarTech.com is truly in the business of making the lives of IT professionals easy. Founded in 1985 in London, Ontario, Canada by Paul Seed and Ken Kalopsis, StarTech.com has always been dedicated to solving technology problems faced by IT professionals. Originally known as StarTech Computer Accessories, the company had very humble beginnings as a “Visa Card” funded operation, manufacturing products like computer dust covers in the basement of a house. By focusing on the needs of our customers and continual innovation, StarTech.com has evolved into a global organization offering accessories that support over 200 different technologies, from legacy to the latest. StarTech.com Founder and CEO, Paul Seed’s dedication to making IT solutions easy to implement has not wavered, nor has his passion for the community. From individual contributions to organization wide campaigns, StarTech.com is committed to staying connected to the community and supporting non-profit organizations across the globe.
| Package Contents |
|
|---|---|
| Host Interface | USB 3.2 (Gen 1) Type C |
| Product Type | Docking Station |
| Compatibility | Compatible with USB-C and Thunderbolt 3/4 computers |
| Device Supported | Mouse, Monitor, Desktop PC, Notebook, Keyboard |
| Manufacturer Part Number | 101N-USBC-DOCK |
| Packaged Quantity | 1 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 9.70 oz |
| Connectivity Technology | Wired |
| Manufacturer | StarTech.com |
| Product Name | Docking Station |
| Brand Name | StarTech.com |
| Operating System Supported | Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, ChromeOS |
| Height | 1.20" |
| Width | 7.30" |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| VGA | Yes |
| Maximum Power Supply Wattage | 135 W |
| DisplayPort | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 4 |
| Number of Displays Supported | 2 |
| Number of DisplayPorts | 1 |
| Kensington Security Slot | Yes |
| TAA Compliant | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 6 |
| Product Color | Space Gray |
| USB Power Delivery | 85W |
| Supported Resolutions | 3840 x 2160, 1920 x 1080, 1920 x 1200, 2560 x 1440 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K @ 60Hz, Full HD, WUXGA, QHD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
