USB-C Quad Hybrid Docking station- Quad displays - 4x DisplayPort and/or 4x HDMI monitors at 4K60Hz - 100W Power Delivery for USB Type-C / Thunderbolt 3 laptop - 2.5G Ethernet - USB-A Hub - 1x 10Gbps / 3x 5Gbps / 1x USB-C PD 30W- SD/Micro SD 4.0 slot- 3.5mm Headset Audio/Mic -Power button- Security lock- DisplayLink solution- 180W power adapter- Power LED Indicator- 2 years warranty - Compliant with Windows/Mac M1/M2 /Chrome system
$487.86
Special order — estimated available by September 10, 2026.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Overview
Advanced Hybrid USB C docking station Quad monitor with 4x HDMI or 4x DisplayPort, one USB-A 10Gbps with 5V/1.5A charging, three USB-A 5Gbps, one USB-C PD 30W, one 2.5G Ethernet, one SD 4.0 card slot, one Micro SD (TF) 4.0 card slot, one stereo audio/microphone, and PD up to 100W for Windows and Mac. Compliant with Mac
system for M1, M2, M3 Pro, & Max
Features
Make the powerful visual solution with 4 Hybrid displays (DisplayPort/HDMI) or 5K displays (2x DisplayPort) and multiple connections for increased productivity
5K/4K Video Resolution
Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, quad 4K (3840x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI with DisplayLink IC, and 5.1-ch surround sound
Monitor Solution
Multiple Connectivity Ports

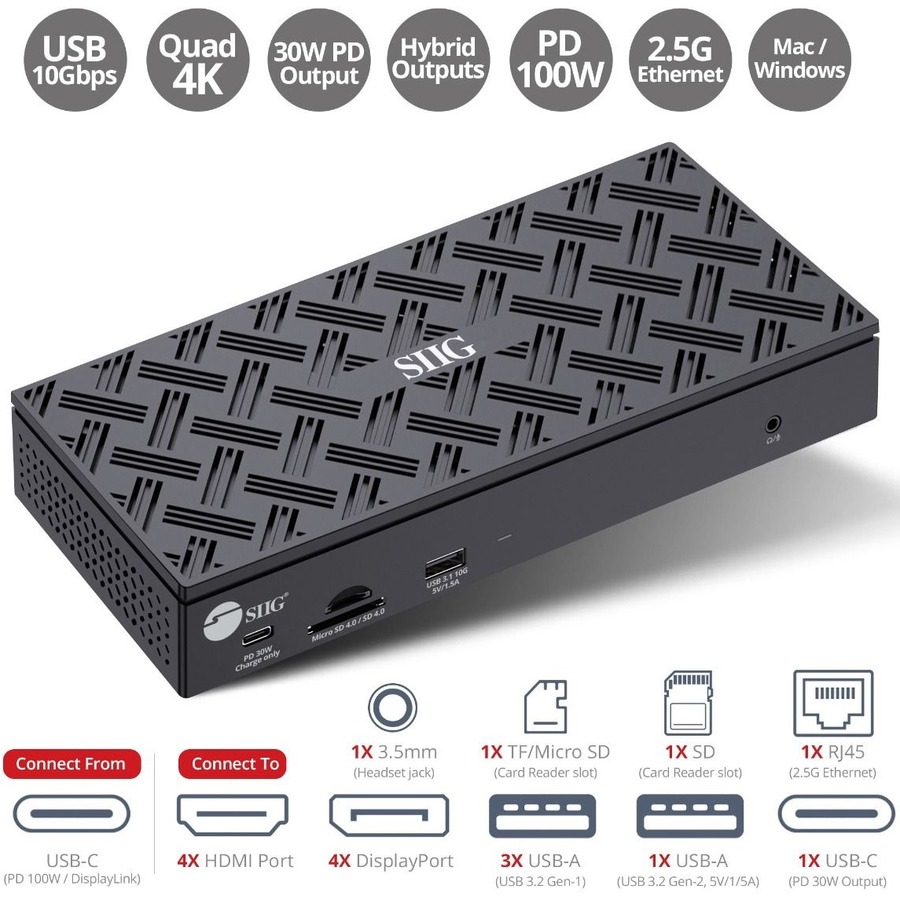

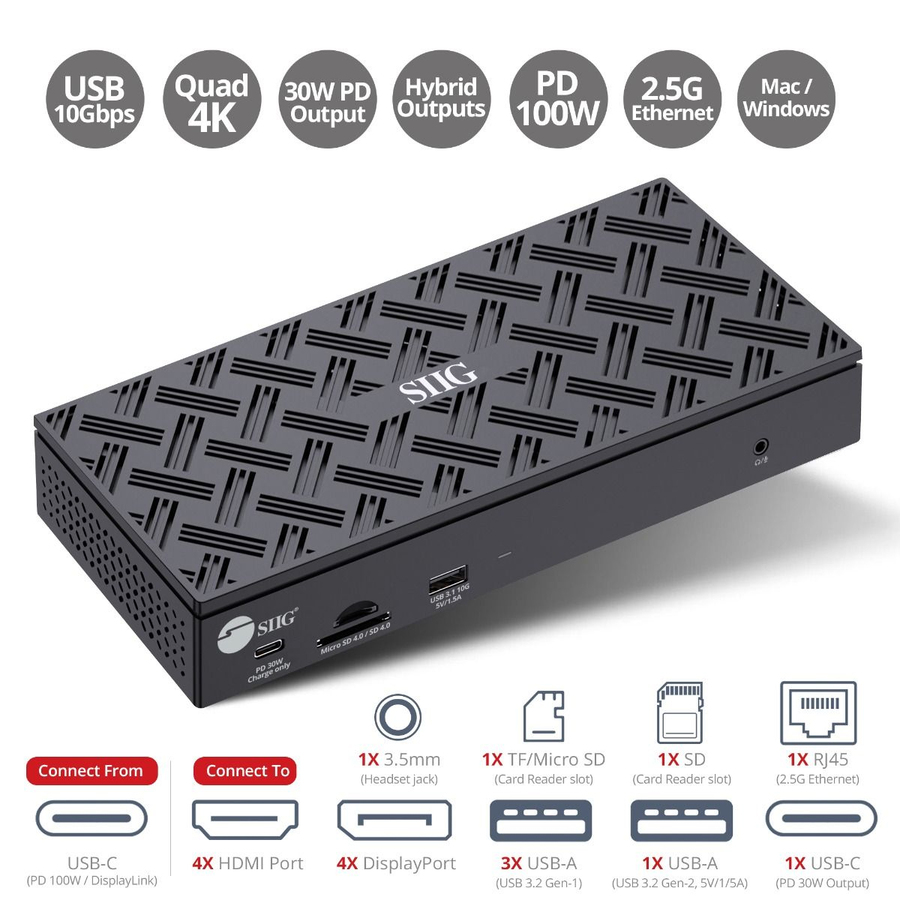

Adds one USB-C port with DP Alt mode and PD 100W (Host)*, four DisplayPort video output ports (with DisplayLink controlled), four HDMI video output ports (with DisplayLink controlled), one USB-A 10Gbps with 5V/1.5A charging port, three USB-A 5Gpbs, one USB-C PD 30W charging only, one 2.5G Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 4.0 UHS-II memory card slot, one Micro SD (TF) 4.0 UHS-II memory card slot, one security lock, one power on/off button, and one DC 20V/9A power jack
* Note: PD charging will not work if you connect a USB-A laptop/notebook
Connection

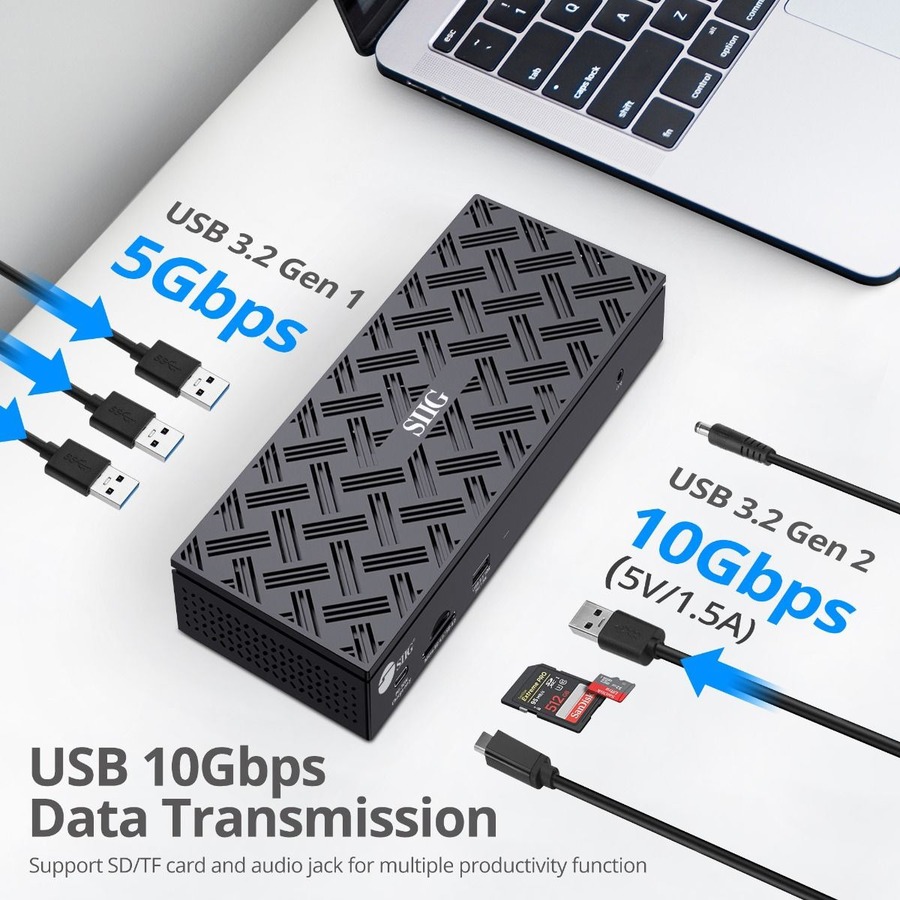

USB-A 10Gbps Data Transfer
Provides one USB-A 10Gbps with 5V/1.5A charging and three USB-A 5Gbps ports to enhance the performance and transfer capability of USB devices
Memory Card Slots
Compatible with SD 4.0 UHS-II and Micro SD (TF) 4.0 UHS-II memory card and data transfer rate up to 312MB

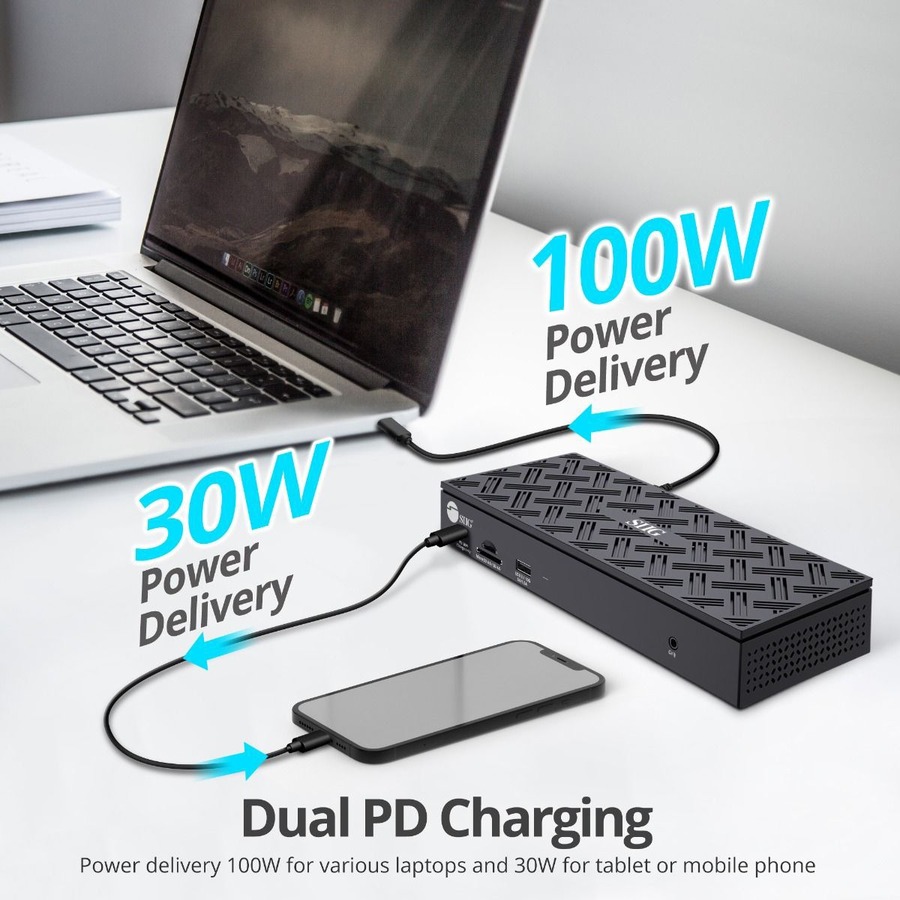

100W Power Delivery
The included 180W power adapter not only provides up to 100W power delivery to charge a laptop or notebook, but also provides up to 30W power delivery to charge a tablet or smartphone
* Note: PD charging will not if you connect a USB-A laptop/notebook
3.5mm Headset Jack
Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection
2.5G Gigabit Ethernet
Reliable wired network connectivity with embedded 10/100/1000/2500BASE-T Gigabit Ethernet port for high bandwidth networking
Enterprise Features:
- Wake on Lan
- PXE boot
*Note: Mac address not supported

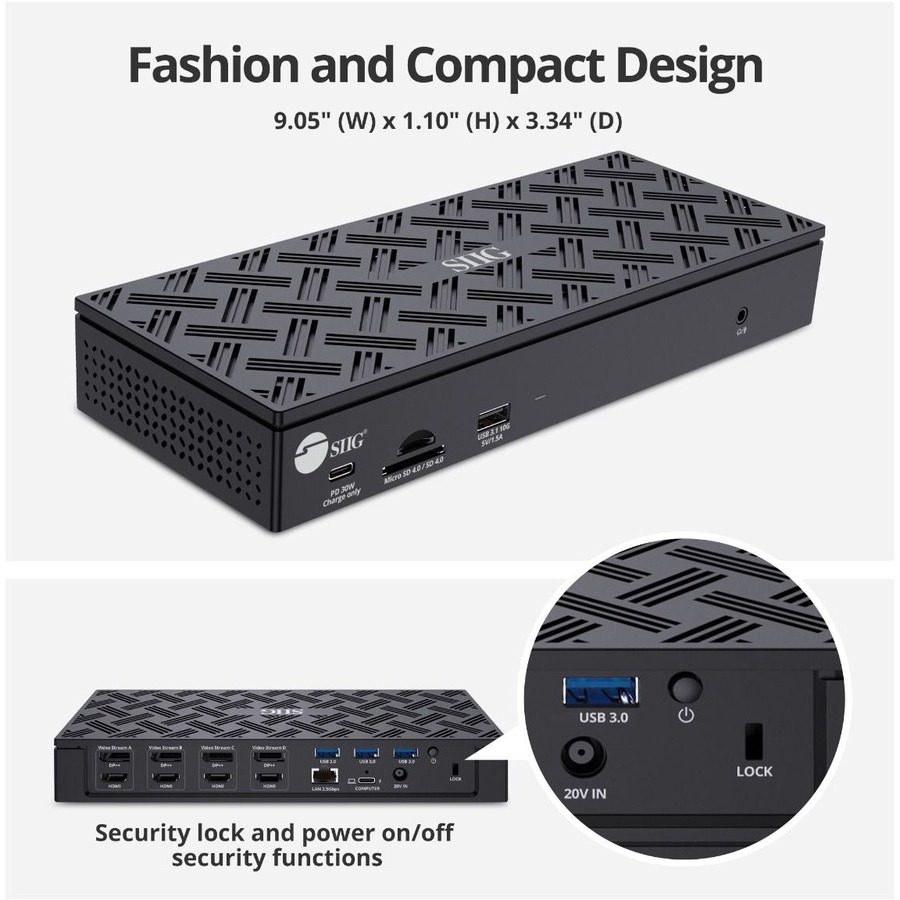

ABS Housing Design
Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in power on/off button with LED provides easy recognition of power status
Security Lock
Keep your laptop safe and secure with a Kensington security lock when you work in a public place
Maximum Compatibility
- Compatible with Windows
(Intel/AMD/Snapdragon) 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit) and macOS
12 / 11 / 10.13 to 10.15
*Note:
- macOS
10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
Limited Warranty: 2 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.

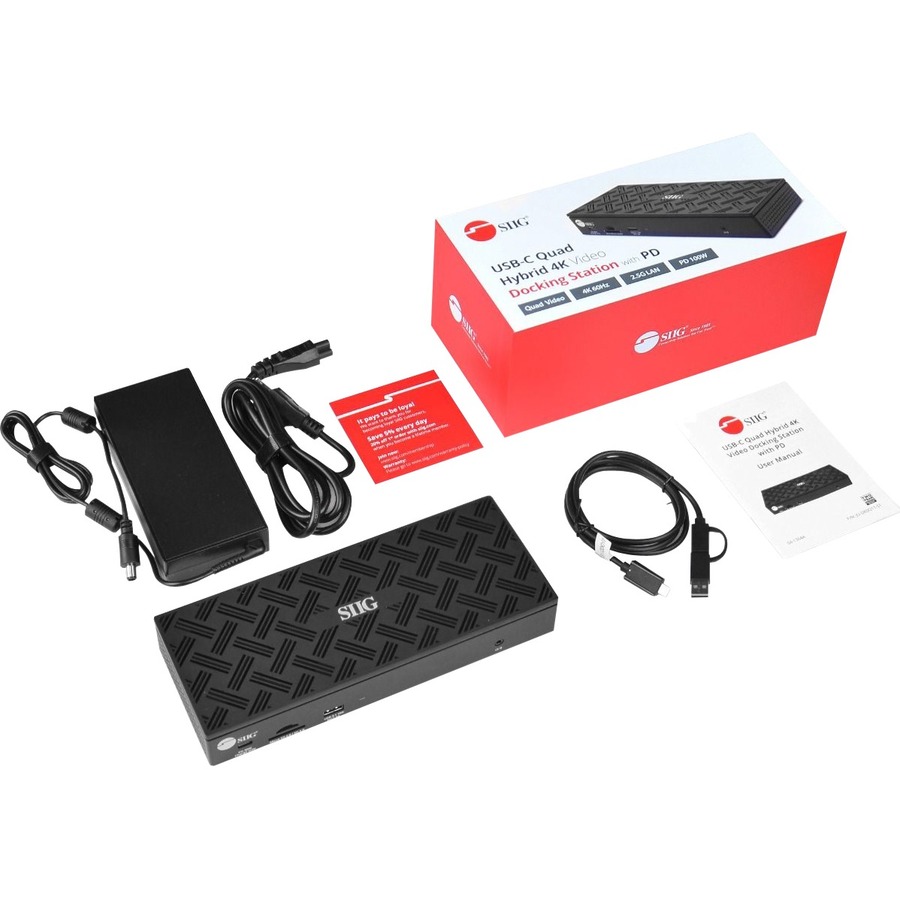

| Package Contents |
|
|---|---|
| Host Interface | USB Type C |
| Product Type | Docking Station |
| Compatibility | Compatible Notebooks: HP Dell Lenovo Apple |
| Device Supported | Desktop PC, Notebook, Monitor, TV |
| Manufacturer Part Number | JU-DK0Q11-S1 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 1.29 lb |
| Connectivity Technology | Wired |
| Manufacturer | SIIG, Inc |
| Product Name | USB-C Quad Hybrid 4K Video Docking Station with PD |
| Brand Name | SIIG |
| Operating System Supported | macOS, Windows |
| Memory Card Supported | SD, microSD |
| Country of Origin | China |
| Height | 1.10" |
| Width | 9.05" |
| Depth | 3.34" |
| Environmentally Friendly | Yes |
| Memory Card Reader | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| HDMI | Yes |
| Number of HDMI Ports | 4 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 100 W |
| DisplayPort | Yes |
| Number of Displays Supported | 4 |
| Number of DisplayPorts | 4 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Kensington Security Slot | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C PD 30W | 1x 24-pin USB-C with PD 100W, Female, input |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 4 |
| Product Color | Black |
| Supported Resolutions | 5120 x 2880, 3840 x 2160, 4096 x 2160 |
| USB Type-A | Yes |
| Screen Mode Supported | 5K, 4K |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
