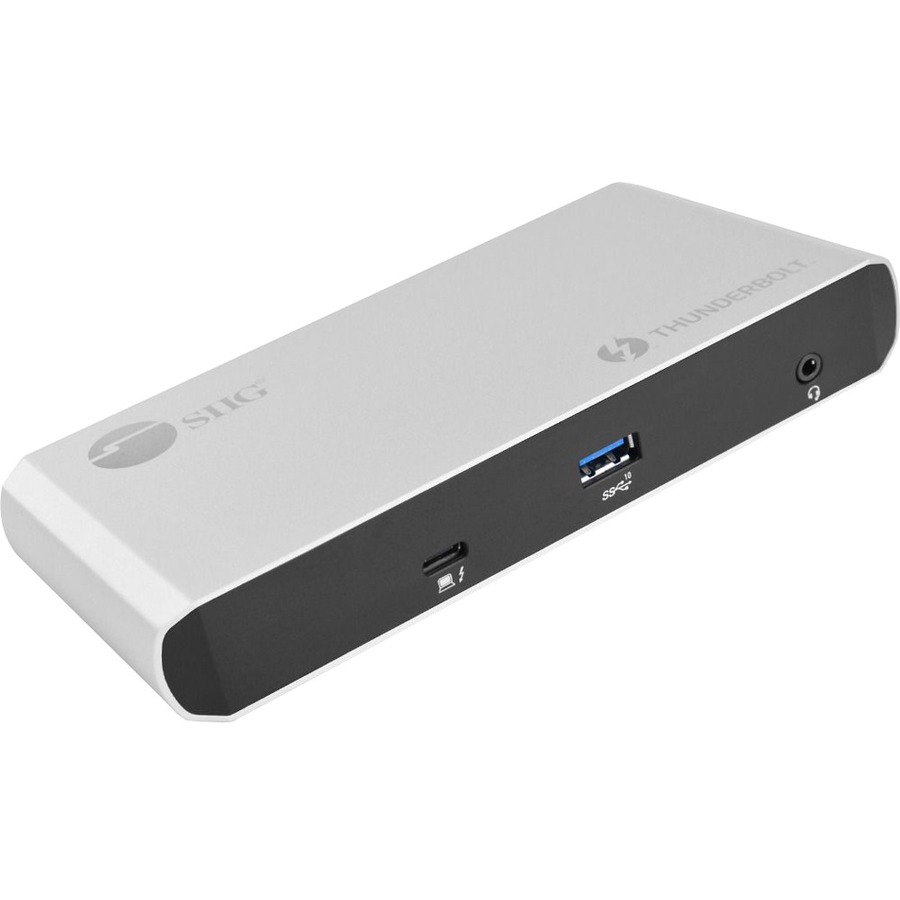

SIIG Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge
Power Delivery 60W - USB 3.1 Gen 2 10Gbps Transfer Rate Thunderbolt 3 Dock - Dual Monitor 4K60Hz DisplayPort Laptop Docking Station - 3x USB-A 1x 10Gbps & 2x 5Gbps / 2x USB-C 10Gbps with fast-charge ports / Up to 60W PD / Gigabit Ethernet / Headset Jack - Compliant with Windows & Mac - TBT3 cable included -Aluminum housing - 2 years warranty - MAC M1/M2 system for one DP video output
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
JU-DK0C11-S1
Category
Docking Stations
Overview
Advanced Thunderbolt 3 docking station adds multiple connectivity ports to your Thunderbolt 3 or USB-C DP Alt mode enabled computer, notebook, or laptop
• Adds additional connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency
• Comes with next generation Intel Titan Ridge IC making the docking station compatible with Thunderbolt 3 and USB-C DP Alt mode compliant systems

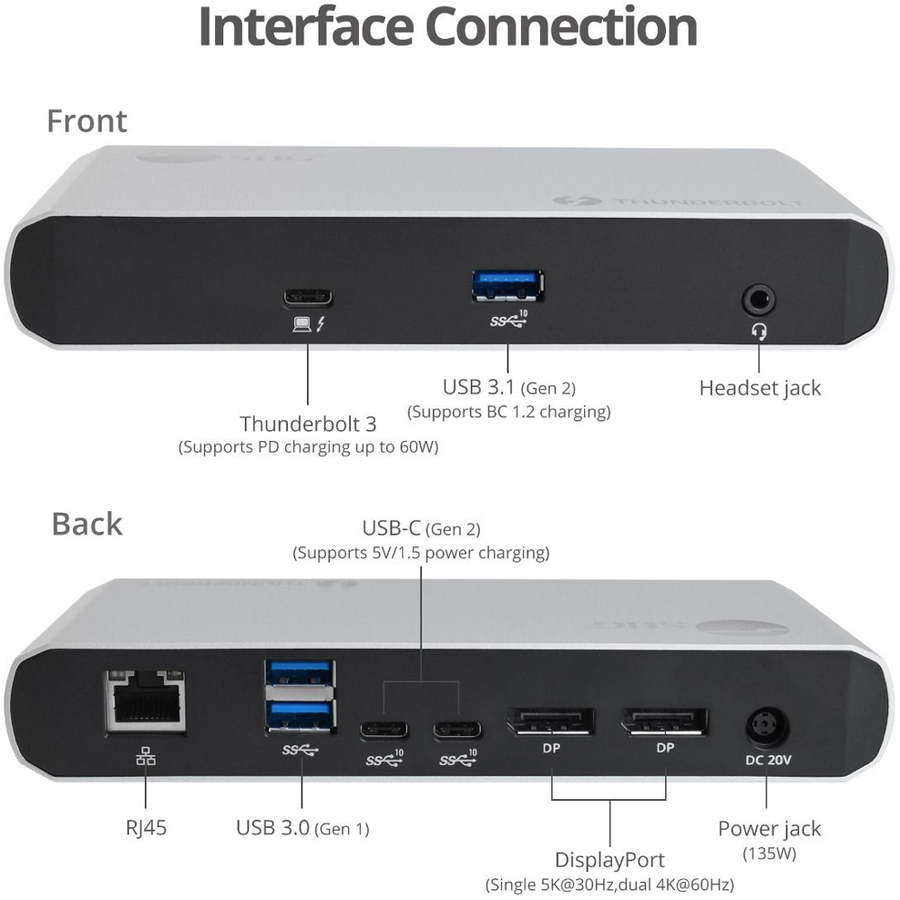

• This docking station adds two USB 3.1 Gen2 Type-C ports, three USB 3.1 Type-A (1 Gen2 with BC 1.2 charging, 2 Gen1) ports, two DisplayPort video ports, one Gigabit Ethernet port, and one dual mode 3.5mm audio jack to connect head phones / Stereo speakers or microphone input
• Experience high resolution graphics by allowing you to connect two 4K Ultra HD displays through DisplayPort connections or a single 5K@60Hz display through dual DisplayPort connection when connected to a Thunderbolt 3 port
• The included 135W power adapter provides sufficient power for the connected peripherals
• PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone
• Delivers USB 3.1 Gen-2 10Gbps transfer rate for USB Type-C port and 1 USB Type-A port (Front side
Note: When connecting to a DP Alt mode USB-C host port the resolution will be 4K@30Hz for single DisplayPort monitor or 1080p for two DisplayPort monitors More from the Manufacturer
Highlights
Wired connectivity technology is highly feasible, offers maximum usability
USB 3.1 Type C host interface Offers a more refined structure and safer to use connectivity
Desktop PC device supported for your convenience and better usability
6 USB ports allows quick transmission of data at a higher rate for your convenience
Specifications

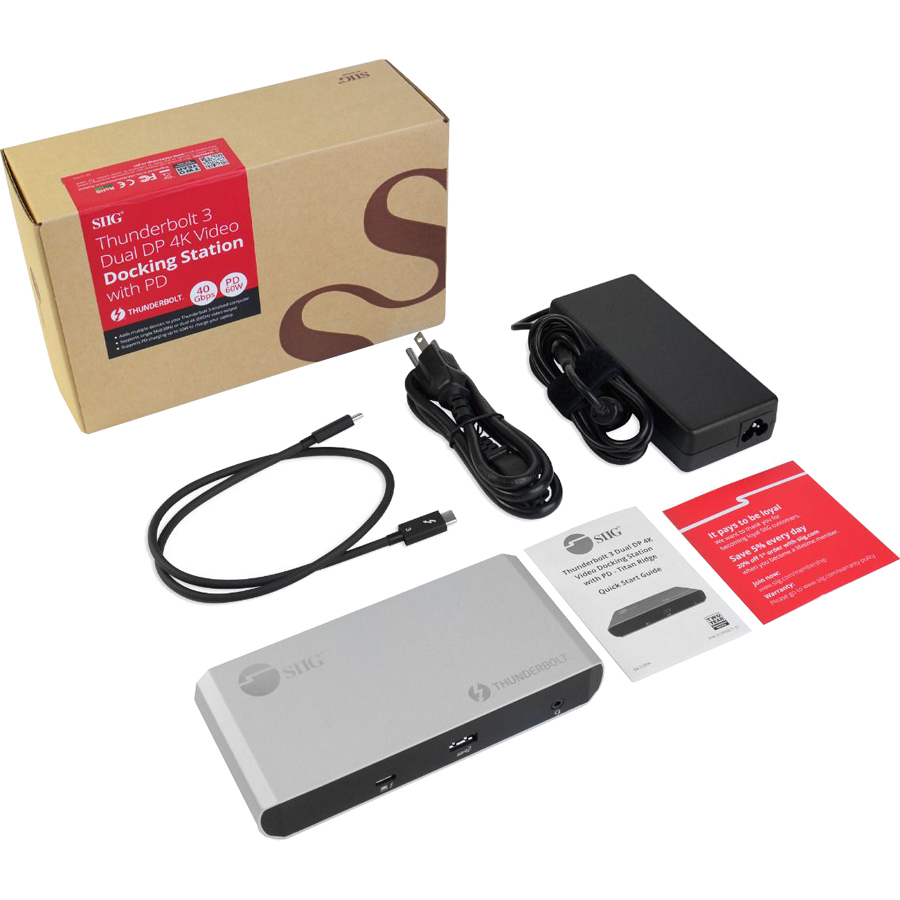

Package Contents
Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge
Power Adapter
Thunderbolt 3 Cable
User Reference Guide
Host Interface
USB 3.1 Type C
Product Type
Docking Station
Device Supported
Desktop PC, Notebook
Manufacturer Part Number
JU-DK0C11-S1
Limited Warranty
2 Year
Connectivity Technology
Wired
Manufacturer
SIIG, Inc
Product Name
Thunderbolt 3 Dual DP 4K Video Docking Station with PD - Titan Ridge
