USB-C DP Alt Compatible - Supports single 8K or 4K 144Hz - Expandable Thunderbolt 3 Daisy Chain - TB3 Docking Station with DisplayPort - PD 60W/ UHS-II SD 4.0/ Micro SD 3.0/ CFast 2.0/ XQD 2.0/ 3-Port USB 3.0/ GbE - Certified Thunderbolt 3 docking station 40Gbps w/ dual monitor 4K 60Hz DisplayPort + TB3 (USB-C) port - 60W Power Delivery- 3x USB-A 5Gbps Hub Mac OS & Windows - Included TB3 host cable
MSRP$299.99
$158.28
Save 47%In stock: 418
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

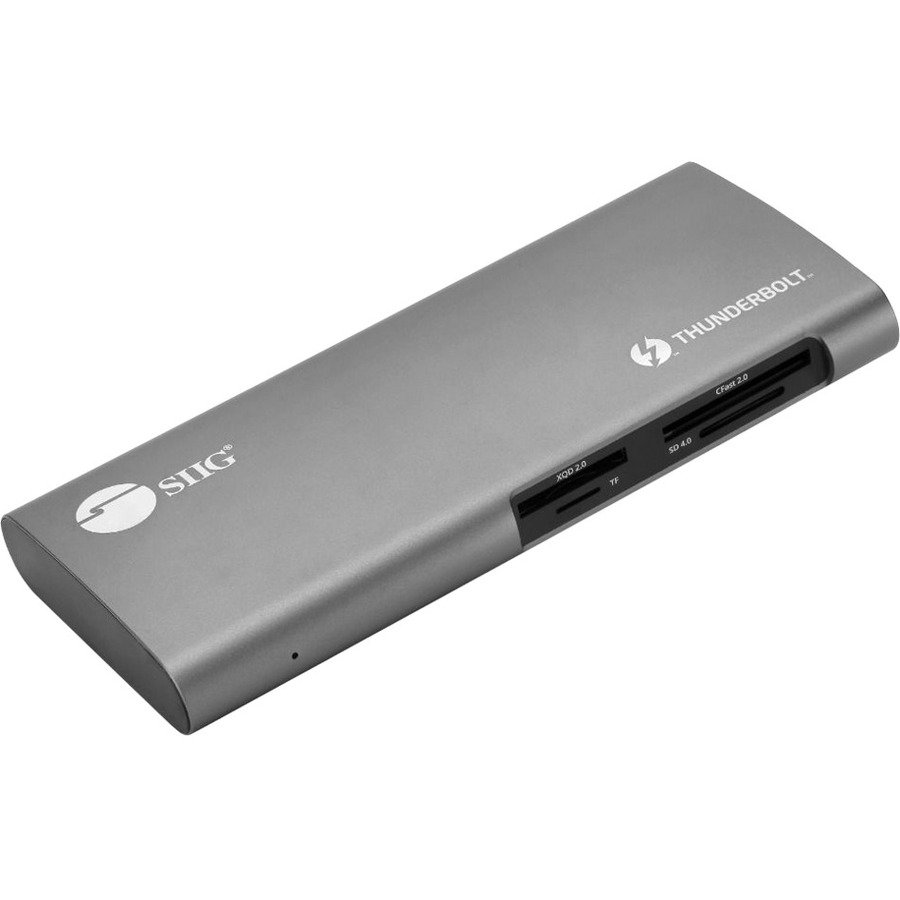

Advanced Titan Ridge Thunderbolt 3 docking station adds multiple connectivity options to your Titan Ridge Thunderbolt 3 or USB-C DP Alt enabled computer, notebook, and laptop
• POWERFUL WORKSTATION: Expand multiple connectivity ports to your Thunderbolt 3 enabled MacBook Pro or Windows. Provides one 8K Thunderbolt 3 (Titan Ridge) port with 60W power delivery or one 8K DisplayPort 1.4 port, three USB 3.1 Gen 1 ports, one RJ45 Gigabit Ethernet port, and multi-slot memory card reader/writer
• SUITABLE FOR PROFESSIONAL PHOTOGRAPHER: With your Titan Ridge Thunderbolt 3 laptop, allows one 8K video output and most popular memory cards, meets the demand of professional and amateur photographers, improving work efficiency, read/write to 4 different memory cards simultaneously with only one docking
• MEMORY CARD READER INTERFACE: Supports the latest memory cards such as UHS-II SD 4.0, CFast 2.0, XQD 2.0
• 60W POWER DELIVERY: Up to 60W Power Delivery through Thunderbolt 3 port to charge your laptop. Includes 120W power adapter to provide enough power for Power Delivery and your connected peripherals
• 8K HIGH RESOLUTION: Allows a single 8K resolution from a single Titan Ridge Thunderbolt 3 or USB-C DisplayPort 1.4 port to experience the clearest image output
• Thunderbolt 3 allows connecting two 4K Ultra HD displays simultaneously through a DisplayPort and Thunderbolt 3 port
• SUPER HIGH-SPEED DATA TRANSFER: Thunderbolt 3 port allows data transfer speeds up to 40Gb/s and daisy chaining of Thunderbolt devices, such as monitors, external hard drives and RAID storage, plus three USB 3.1 Gen1 Type-A ports support data transfer rates up to 5Gbps
• ALUMINUM COOLING SOLUTION: Premium aluminum housing provides efficient heat dissipation for reliable performance and long life
More from the Manufacturer
Overview
Advanced Titan Ridge Thunderbolt 3 docking station adds multiple connectivity options to your Titan Ridge Thunderbolt 3 or USB-C DP Alt enabled computer, notebook, and laptop through a single cable to offer a new generation tech and high compatibility. Compliant with Mac
system for M1, M2, M3 Pro, & Max
Features
With a powerful Intel Titan Ridge IC making this docking station become the fastest connection that compatible with Thunderbolt 3 and USB-C DP Alt mode
8K/4K High-Resolutions
Allows you to connect either a single 8K 60Hz / 4K 144Hz resolution through a Thunderbolt 3 (USB-C compatible, DP Alt mode) / DisplayPort 1.4 port or dual 4K@60Hz Ultra HD display through a DisplayPort and Thunderbolt3 ports to display the crystal-clear video quality
Monitor solutions:
Notes :
- Ensure the product complete performance, recommend to connect with Thunderbolt 3 system with DP 1.4 source and device
- The Thunderbolt 3 has the same design as the USB-C port and capabilities of USB-C, but USB-C does not have the capabilities of Thunderbolt 3. Backward compatible with USB 3.1
- The Docking's Thunderbolt 3 output does not work when connecting to non-Thunderbolt 3 USB-C port or USB-C DP Alt mode
- Non-Titan Ridge Thunderbolt 3 source connection will only support up to 5K30Hz Thunderbolt display and 4K60Hz DisplayPort display
- The USB Type-C connector with DisplayPort technology via an Alternative Mode (Alt Mode) and allows a USB-C equipped computer and cable to connect directly to a display/monitor
High Performance
* When connecting to a DP 1.4 Alt mode USB-C host port the resolution will be 8K@30Hz(4:2:0) for single DisplayPort monitor only

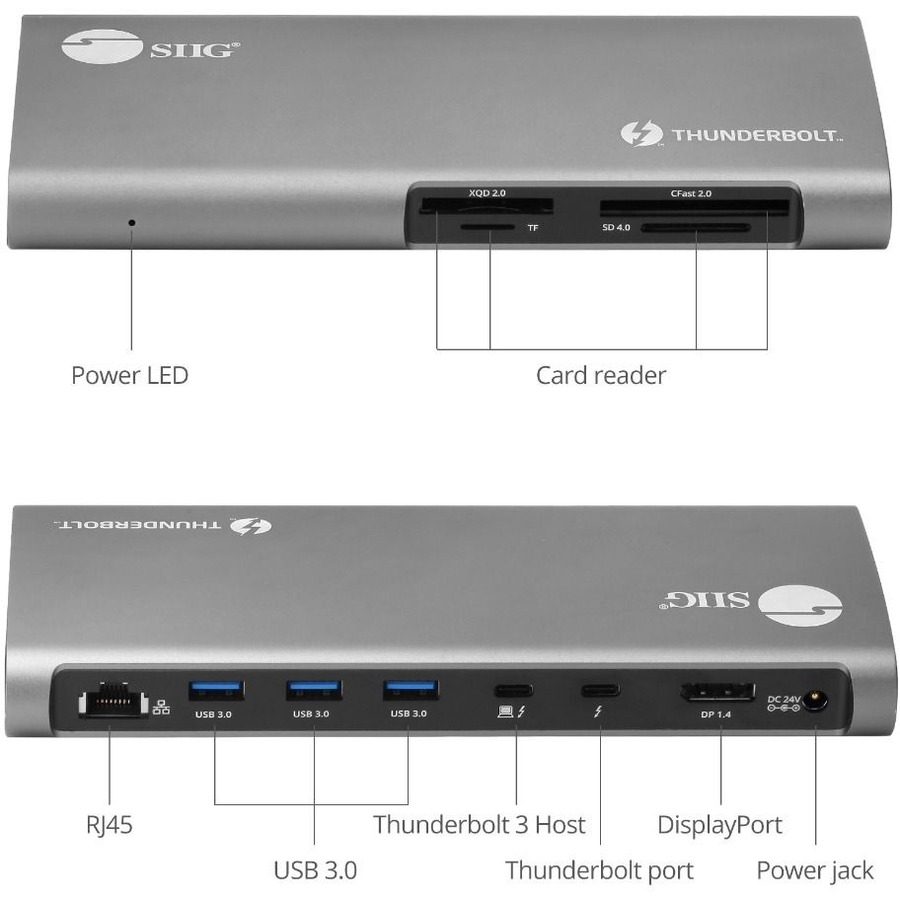

Multiple Connectivity Port
One Thunderbolt 3 port with 60W power delivery(Host), one Thunderbolt 3 with 5V/3A charging port , one DisplayPort 1.4 port, three USB-A 5Gbps with 5V/1.5A charging ports, one Gigabit Ethernet port, and multi-slot memory card reader/writer (XQD 2.0 / CFast 2.0 / Micro SD 3.0 (TF) / SD 4.0)
Memory Card Reader Interface
Supports the latest memory cards such as XQD 2.0, SD 4.0 UHS-II, CFast 2.0, TF/Micro SD 3.0, meets the demand of professional and amateur photographers, improving work efficiency

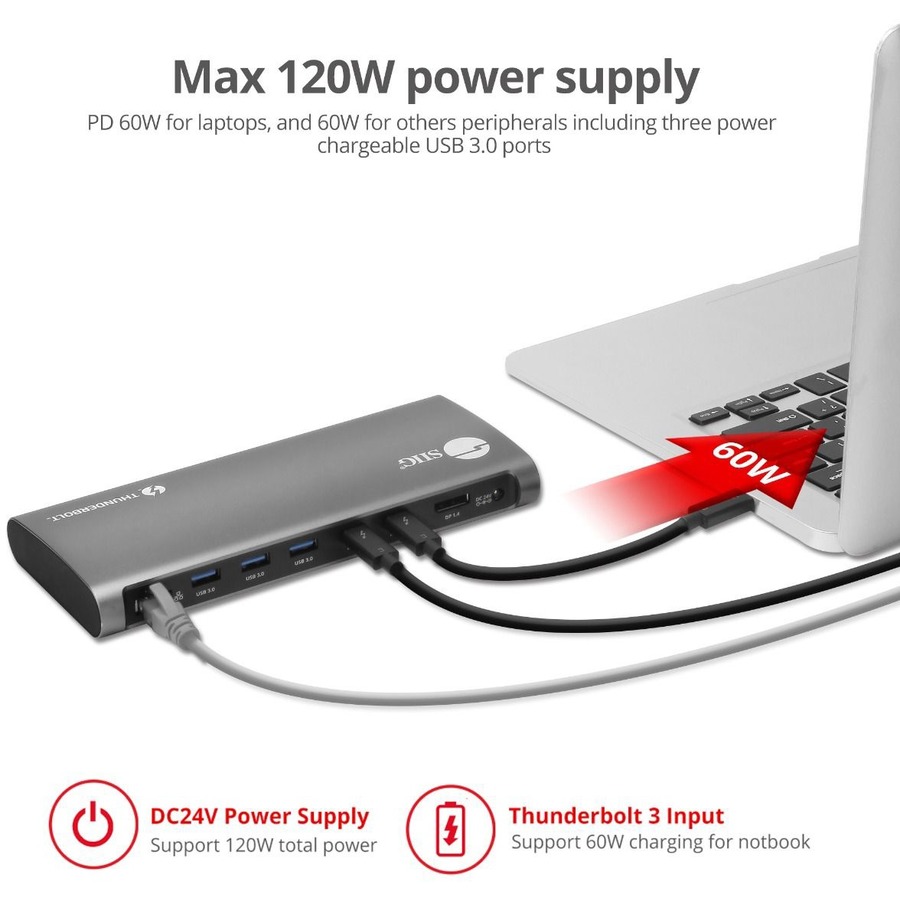

60W Power Delivery
PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone. Includes 120W power adapter to provide enough power for the connected peripherals
High-Speed Data Transfer
Delivers three USB-A ports with 5V/1.5A charging and supports data transfer rates up to 5Gbps
1G Ethernet Data Transmission
Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps
Maximum Compatibility
Compliant with mac
M1, M2, M3 Pro, & Max systems for single extend video output and Mirror mode only
Compatible with Windows
11 / 10 or macOS
10.13 or new
Aluminum Housing Design
Premium aluminum housing provides efficient heat dissipation for reliable performance and long life
Limited Warranty: 2 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | JU-DK0G11-S1 |
| Brand Name | SIIG |
| Product Name | Docking Station |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 5 |
| Number of USB 3.1 Gen 1 Type-A Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female, Source connection / 1 x 24-pin, Thunderbolt 3 USB-C, Female, Output |
| Network (RJ-45) | Yes |
| Number of DisplayPort Outputs | 1 |
| DisplayPort | Yes |
| Thunderbolt | Yes |

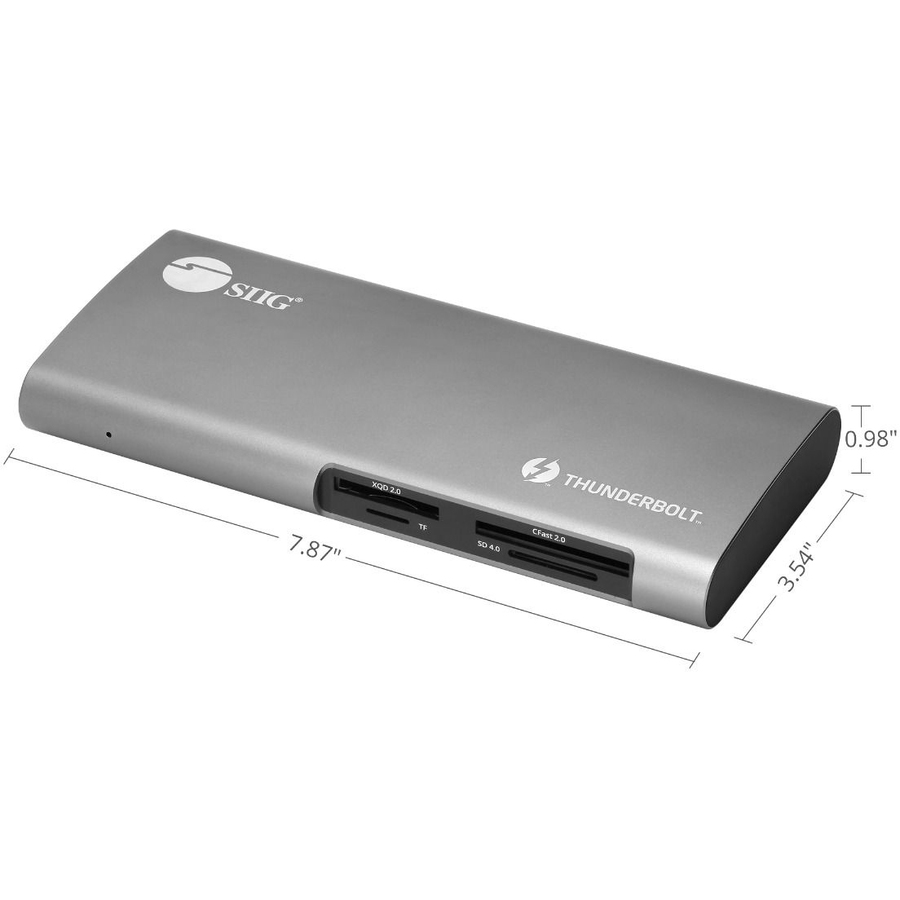

| Physical Characteristics | |
| Height | 0.98" |
| Width | 7.87" |
| Depth | 3.54" |
| Weight (Approximate) | 9.44 oz |
| Power Description | |
| Maximum Power Supply Wattage | 60 W |
| Technical Information | |
| Connectivity Technology | Wired |
| Device Supported | Monitor, Desktop PC, Notebook |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |

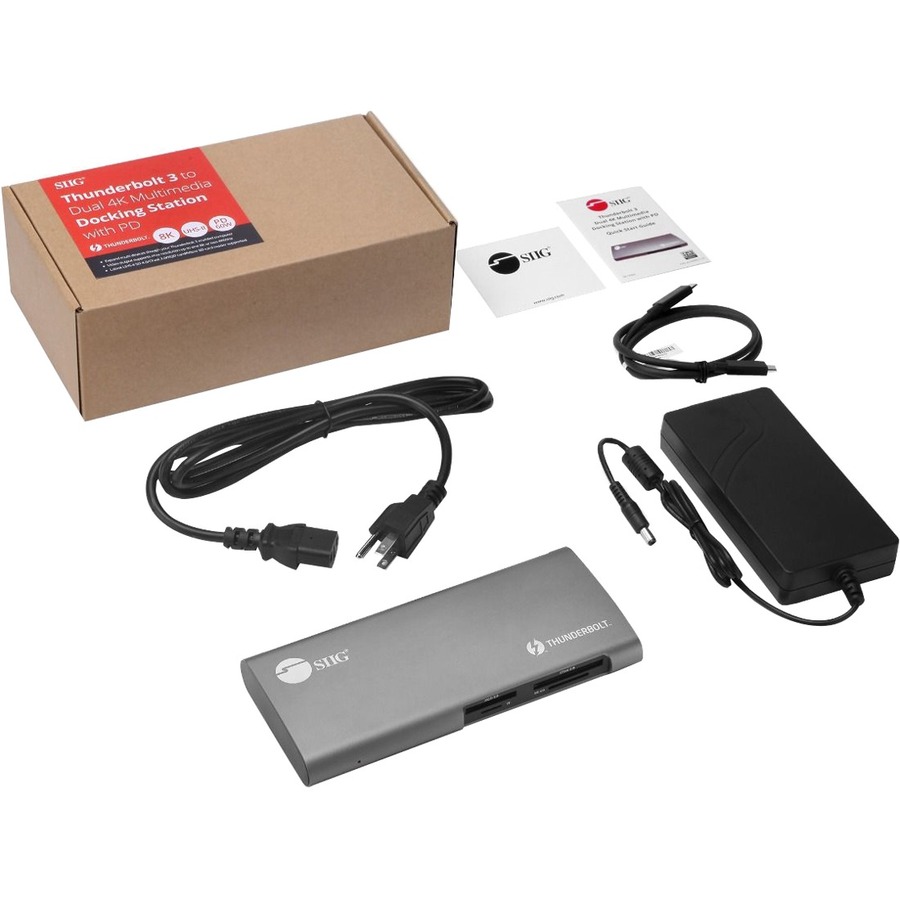

| Package Contents |
|
| Compatibility | Apple MacBook Pro Notebook |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
