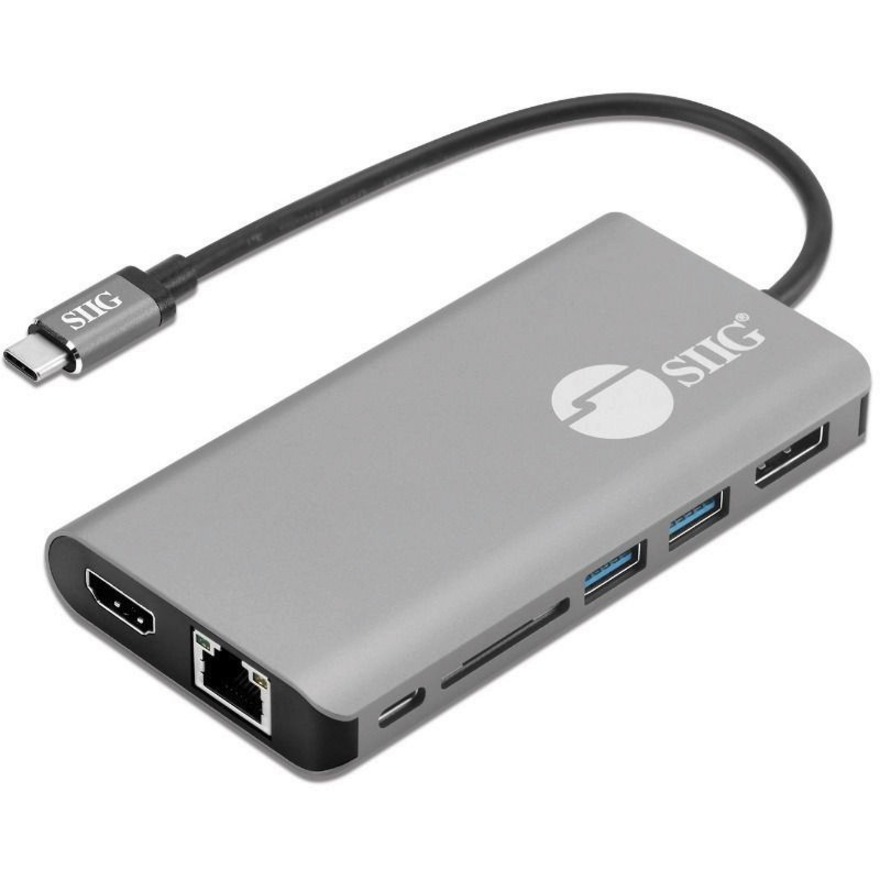

SIIG USB-C MST Video with Hub, LAN and PD 3.0 Docking - 7-in-1 MST Docking Station with 100W PD - MacOS for DP or HDMI Video

• Transforms a single USB-C port, with DP Alt mode or Thunderbolt 3 technology, into multiple connectivity ports including one USB-C port (Charge and Data), one HDMI port, one DisplayPort port, one Gigabit Ethernet, two USB 3.0 ports and one SD memory card slot

• Supports Mirror mode with identical content displayed on each display, Extended mode with individual content displayed on each screen

• DisplayPort Multi Stream Transport (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs

• Supports PD 3.0 specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices

• Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology

• Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more

• USB Type-AGen-1 ports support data transfer rate up to 5Gb/s

• SD flash memory card slots support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer

• Plug-n-play, no driver installation or power adapter required

• Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go

More from the Manufacturer

Overview

Versatile and compact external docking station adds multiple connectivity ports to USB-C with DP Alt Mode enabled computers and up to 100W PD charging of your laptop. HDMI/DisplayPort video output, single 4K@30Hz, dual 1080p, two USB-A 5Gbps, one SD memory card slot, Compliant with Mac

system for M1, M2, M3 Pro, & Max

Features

Dual displays and multiple connections by a single USB-C output with DP Alt mode or Thunderbolt 3 and MST technology, whatever you are on the go or docking at a workstation

Note:

- Requires a USB-C port that supports “DisplayPort Alternate Mode” (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality

High Resolution

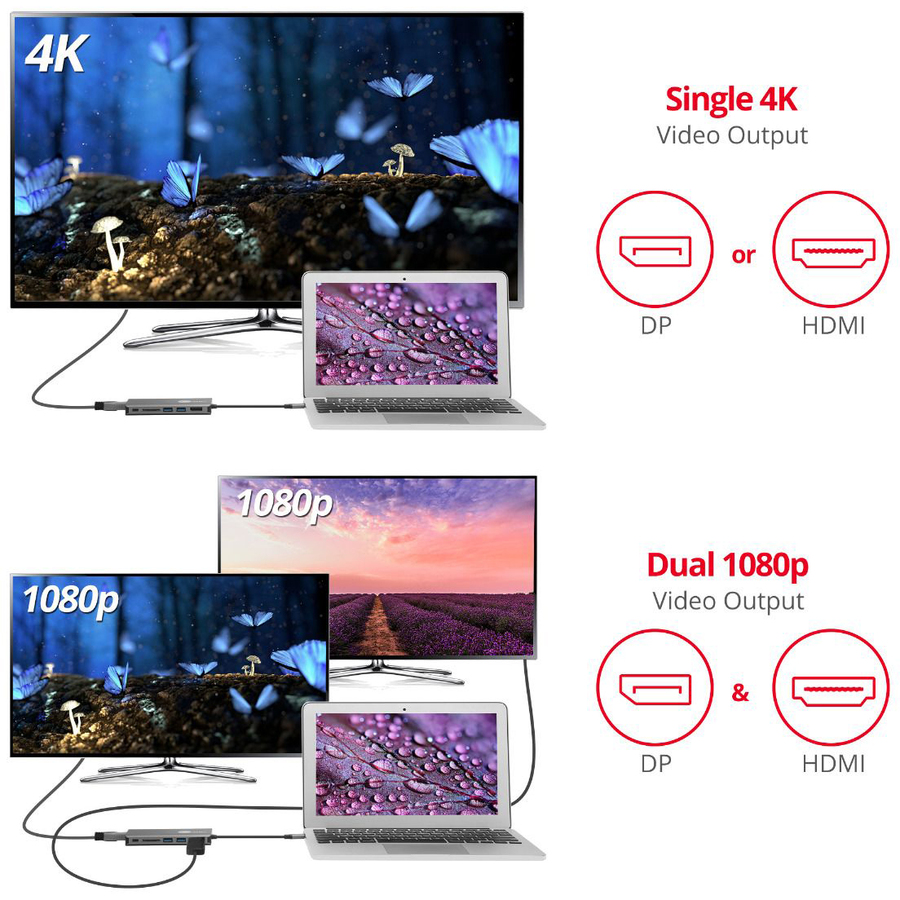

Supports UHD video resolutions up to single 4K (3840x2160) @30Hz Ultra HD display or dual/ triple Full HD 1080p displays

Monitor solution:

Note:

1. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays

2. Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode

3. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays

4. Panoramic Video Wall mode requires an AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter

5. AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays)

Multiple Connectivity Ports

Adds one USB-C port (Host), one USB-C 5Gbps (PD 100W), one HDMI video outport port, one DisplayPort video output port, two USB-A 5Gbps ports, one Gigabit Ethernet, and one SD memory card slot

Connection

SuperSpeed USB Data Transfer

Delivers two USB-A and support data transfer rate up to 5Gbps, one USB-C 5Gbps with PD 100W. Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more

1G Ethernet Data Transmission

Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps

100W Power Delivery Pass through

Supports PD 3.0 specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices. Power adapter is not included

*Note: The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected

SD Memory Card Slot

Support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer

Maximum Compatibility

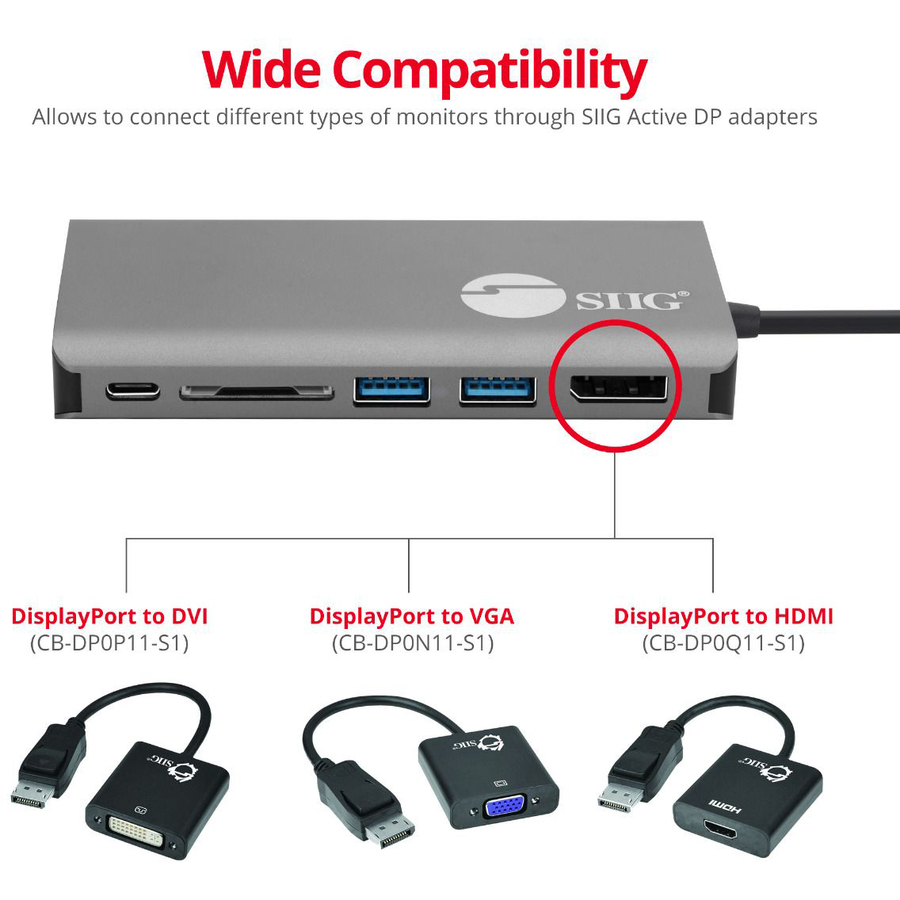

Compatible with DisplayPort 1.2 graphics cards with AMD Eyefinity, NVIDIA Surround or Intel Collage technology

Supports Plug-n-play, hassle-free set up without complicated hardware or driver installation

*Note:

- Requires GPU graphics cards to support at least 2 external displays to use both video ports at the same time with extended mode

- Compliant with mac

M1, M2, M3 Pro, & Max systems for single extend video output and Mirror mode only

- macOS

system for DP or HDMI video output

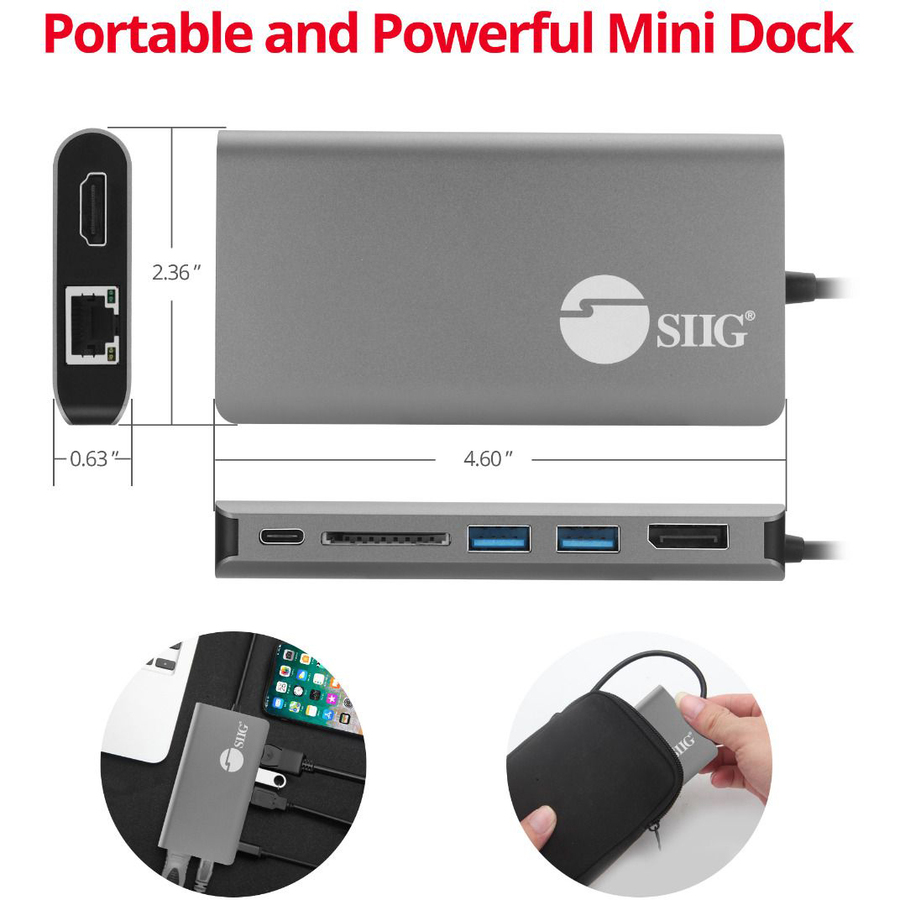

Aluminum Housing Design

Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go
