SIIG HDMI 4K60Hz EDID Emulator
SIIG

SIIG HDMI 4K60Hz EDID Emulator

HDMI 4K60Hz 18Gbps video Emulation / Amplifies and equalizes the HDMI signal transmission - Compliant with HDCP 2.2 / HDMI 4K60Hz 4:4:4 8-bit / HDMI 4K60Hz 4:2:0 10-bit HDR - CEC bypass - 7.1 ch audio - 17 EDID modes management - Micro USB FW updated - ESD protection - Metal housing - Wall Mountable - 3 years warranty - TAA Compliant

SKU
CE-H24Z11-S1
Category
Video Processing/Capturing Modules

MSRP$109.99

$83.00

Save 25%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H24Z11-S1
Category
Video Processing/Capturing Modules

Overview

Emulates and learns the EDID of a video display providing constant and reliable EDID data to the HDMI source device to prevent audio/video loss

• Provides reliable EDID data between the source and display to ensure audio and video signal compatibility to provide a smooth stable high quality audio and video experience

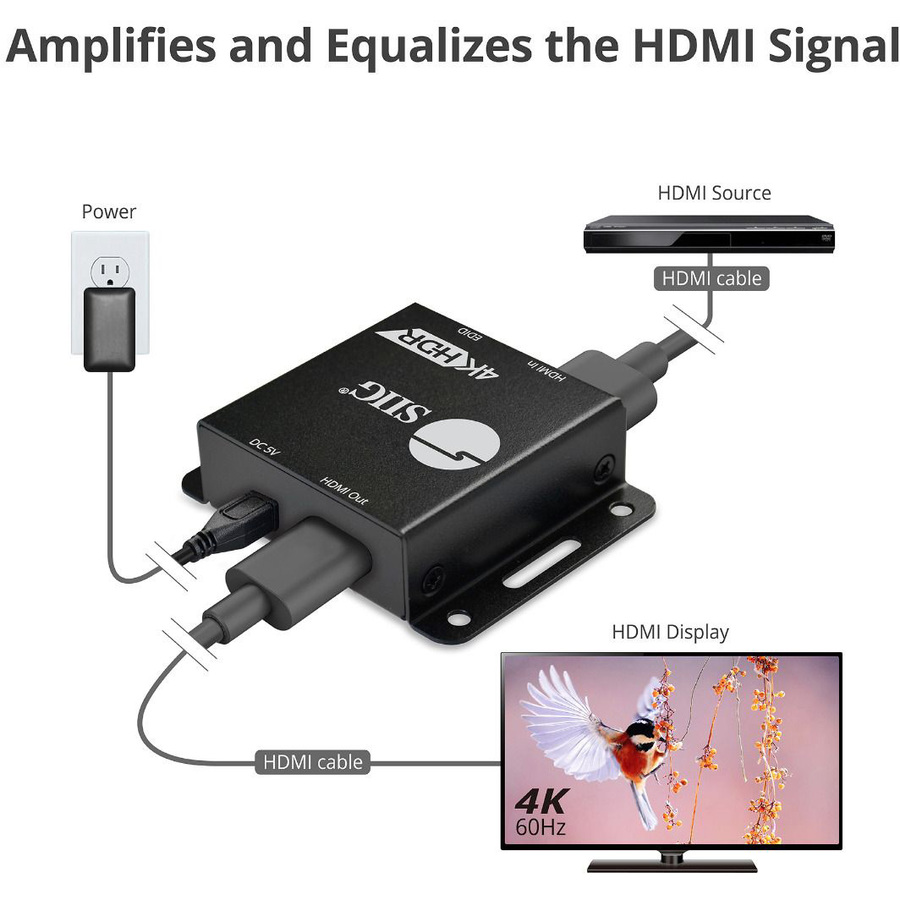

• Amplifies and equalizes the HDMI signal transmission for use with longer HDMI cables and allows for multiple layers of cascading

• Supports video resolution up to 4Kx2K 60Hz (YUV 4:4:4 8bit) or HDR 4Kx2K (YUV 4:2:0 10bit)

• Supports 3D, CEC, HDMI 2.0 and HDCP 2.2 protocols

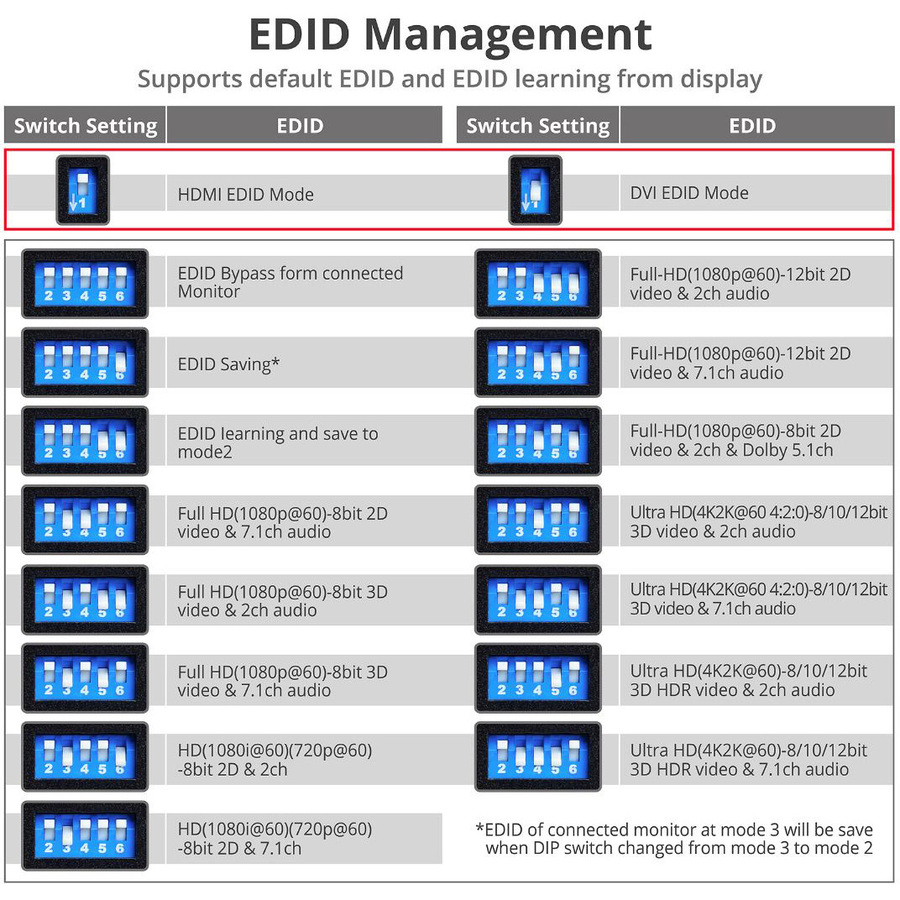

• Supports 17 EDID modes including default EDID and EDID learning from the display

• Built-in Micro USB power connector provides external power and also can be used for firmware updating as needed

• Wall mount metal housing enhances durability and provides excellent heat dissipation for reliable performance and long lifespan

Highlights

  • The video emulator is a great choice for capturing and saving your favorite photos, audio and videos recorded by the capture card
  • To fulfill your needs, this video emulation function is a perfect choice
  • Mountable to a wall, saves you floor space and yet easy-to-reach

Specifications

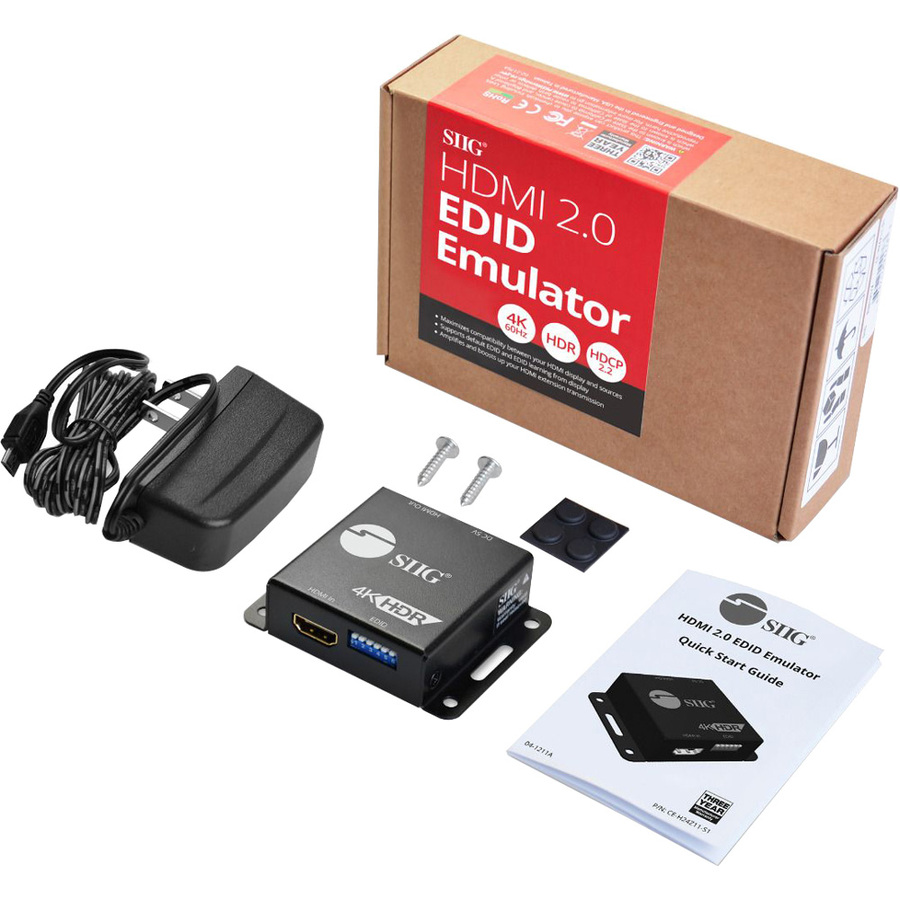

Package Contents
  • HDMI 2.0 EDID Emulator
  • Power Adapter
  • Quick Start Guide
Product TypeVideo Emulator
Manufacturer Part NumberCE-H24Z11-S1
Limited Warranty3 Year
Weight (Approximate)0.22 lb
Form FactorWall Mountable
FunctionsVideo Emulation
ManufacturerSIIG, Inc
Product NameHDMI 2.0 EDID Emulator
Brand NameSIIG
Country of OriginChina

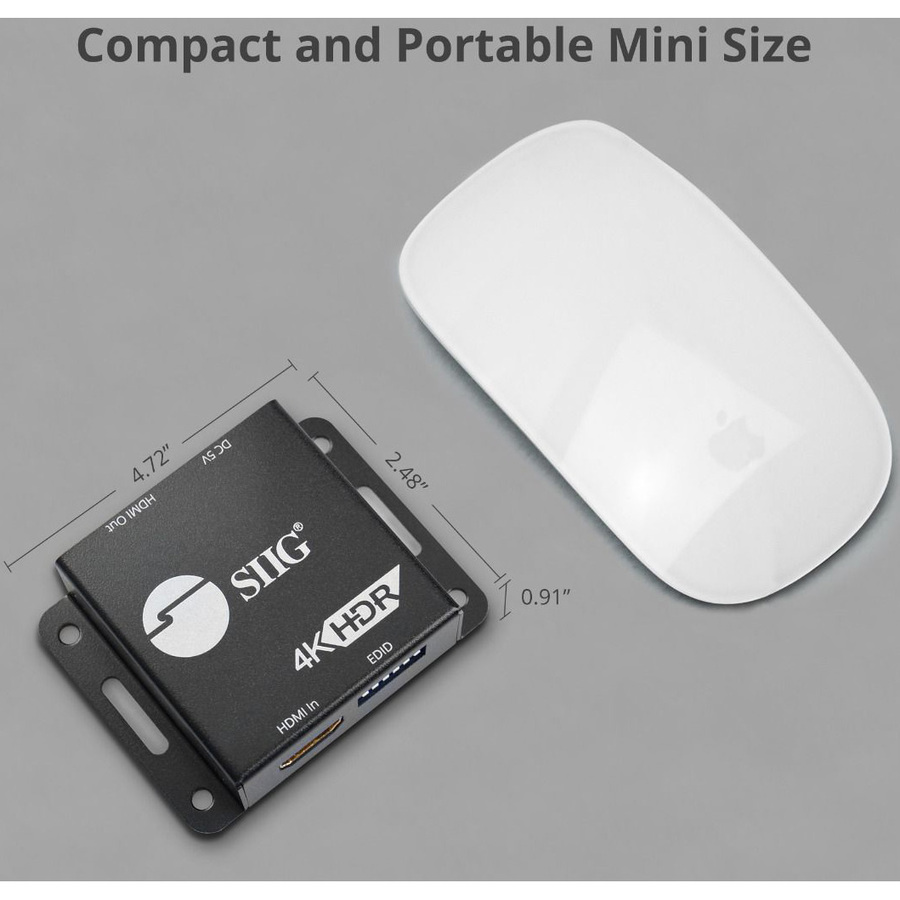

Height0.7"
Width2.2"
Depth0.7"
Environmentally FriendlyYes
USBYes
HDMIYes
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
