SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo/Toslink Optical/Coaxial S/PDIF
SIIG

SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo/Toslink Optical/Coaxial S/PDIF

EDID Management - Uncompressed Formats Supported - Up to 4K30Hz 4:4:4 or 4K60Hz 4:2:0 - HDMI 4K input to HDMI 4K output with Audio extractor - 3.5mm for 2-ch stereo audio / Coaxial & Toslink for 5.1-ch - HDCP 1.4 - Aluminum housing - Micro USB power input - portable design easy setup & plug & play - 2 years warranty

SKU
CE-H26Q11-S1
Category
Video Processing/Capturing Modules

MSRP$29.99

$19.76

Save 34%

In stock: 40

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H26Q11-S1
Category
Video Processing/Capturing Modules

Overview

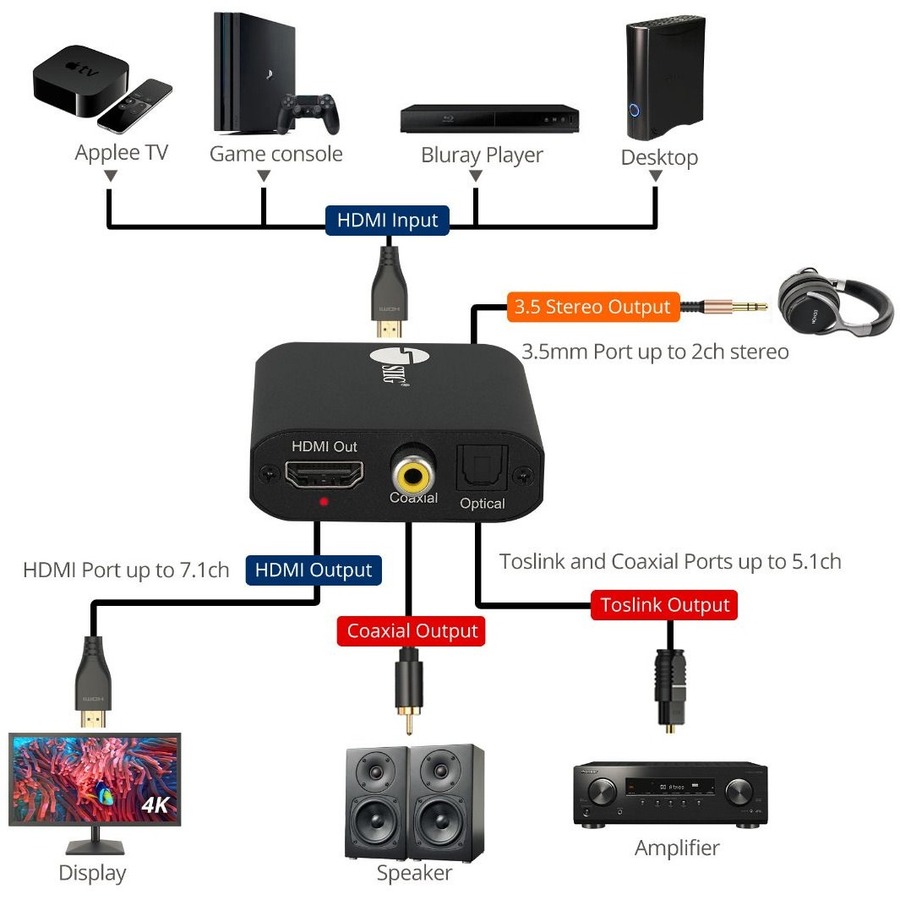

Extracts 4K HDMI audio and splits it to analog stereo, Toslink optical digital, and Coaxial S/PDIF outputs

Features

• Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or

coaxial S/PDIF outputs

• Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit

• Supports 340MHz/10.2Gbps per channel bandwidth

• Supports up to 16-bit per channel (48-bit all channel) deep color

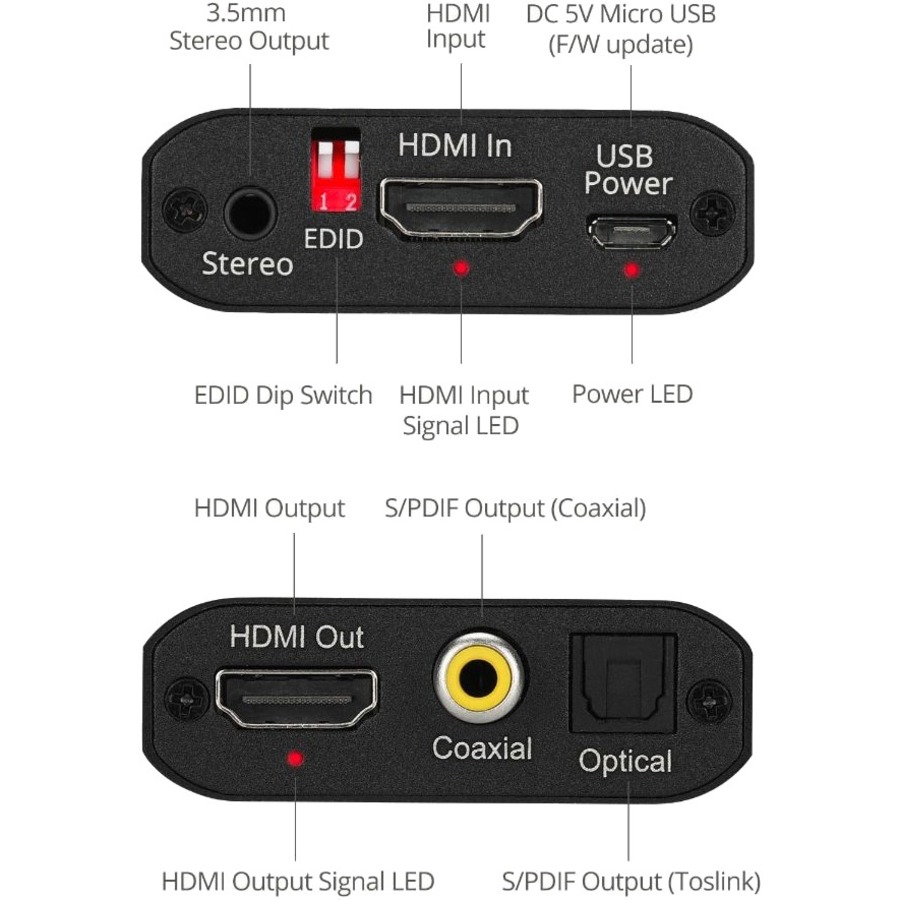

• EDID management DIP switches allows the best performance between the connected devices

• Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output

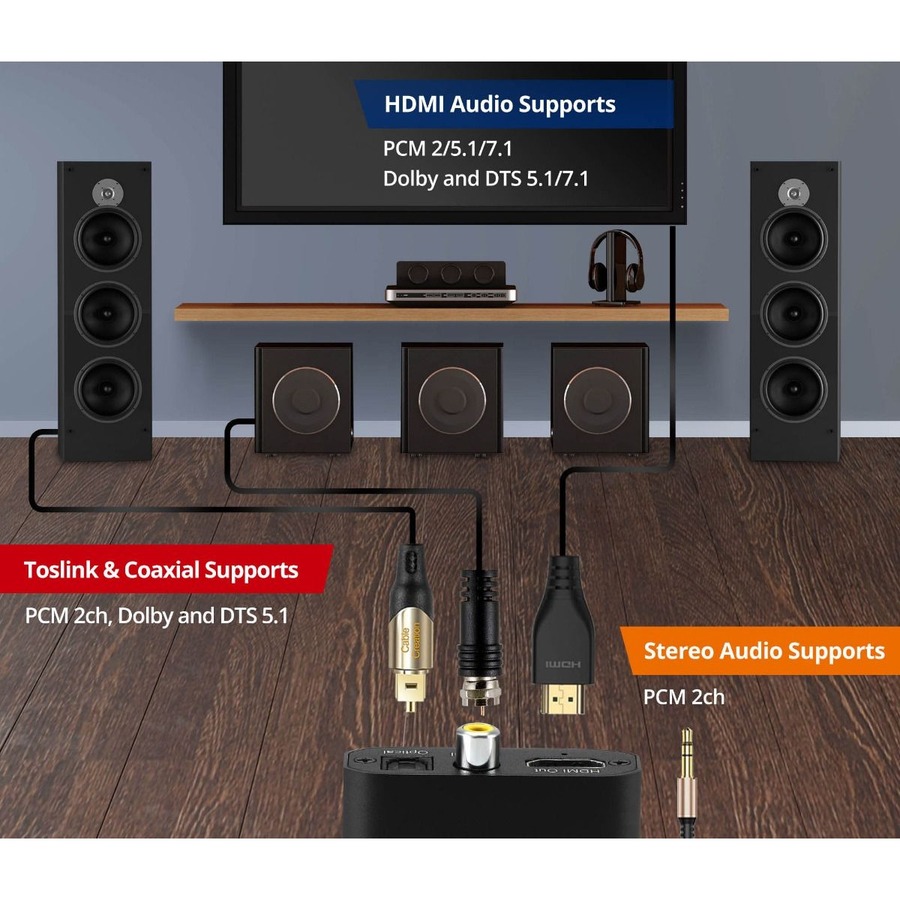

• Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital

• Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation

Highlights

  • Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or coaxial S/PDIF outputs
  • Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
  • Supports 340MHz/10.2Gbps per channel bandwidth
  • Supports up to 16-bit per channel (48-bit all channel) deep color
  • EDID management DIP switches allows the best performance between the connected devices
  • Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
  • Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
  • Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation

Specifications

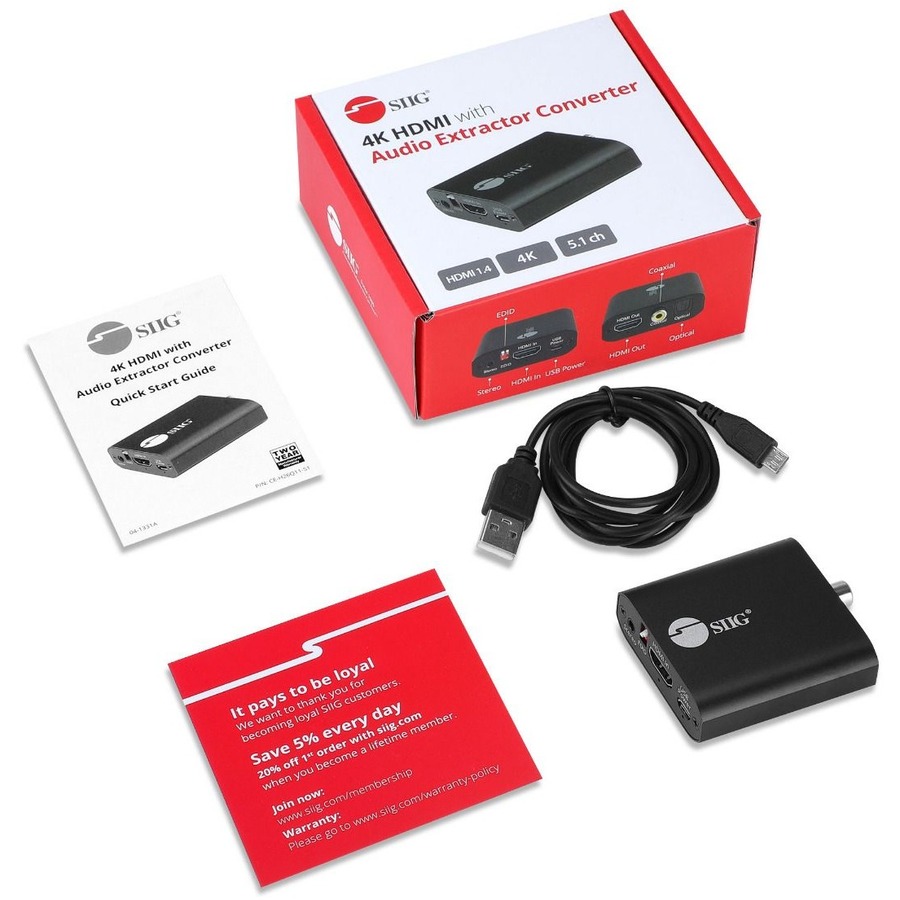

Package Contents
  • 4K HDMI with Audio Extractor Converter
  • Micro USB Power Cable
  • Quick Start Guide
Product TypeSignal Converter
Manufacturer Part NumberCE-H26Q11-S1
Limited Warranty2 Year
Weight (Approximate)0.11 lb
Form FactorExternal
FunctionsSignal Conversion, Audio Extraction, Audio Compression
ManufacturerSIIG, Inc
Product Name4K HDMI with Audio Extractor Converter
Maximum Resolution3840 x 2160
Brand NameSIIG
Country of OriginChina
Height0.8"
Width2.2"
Depth2.6"
Environmentally FriendlyYes
USBYes
HDMIYes
Audio Line OutYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
