SIIG HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor
Compliant with HDCP 1.4/2.2 - 18Gbps Video bandwidth - High performance HDMI to DisplayPort Adapter - Convert the HDMI 4K60Hz to DisplayPort 4K60Hz video only - support 3.5mm 2 Channel audio and S/PDIF 5.1 Channel audio out - color 4:2:0 or 4:2:2 will be converted to 4:4:4 - Support EDID selection - ESD protection - Micro USB for FW update or Power input - Metal housing with Wall mountable - 3 years warranty - TAA Compliant
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE-H26A11-S1
Category
Video Processing/Capturing Modules
Overview
HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor
High performance HDMI to DisplayPort adapter allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display.

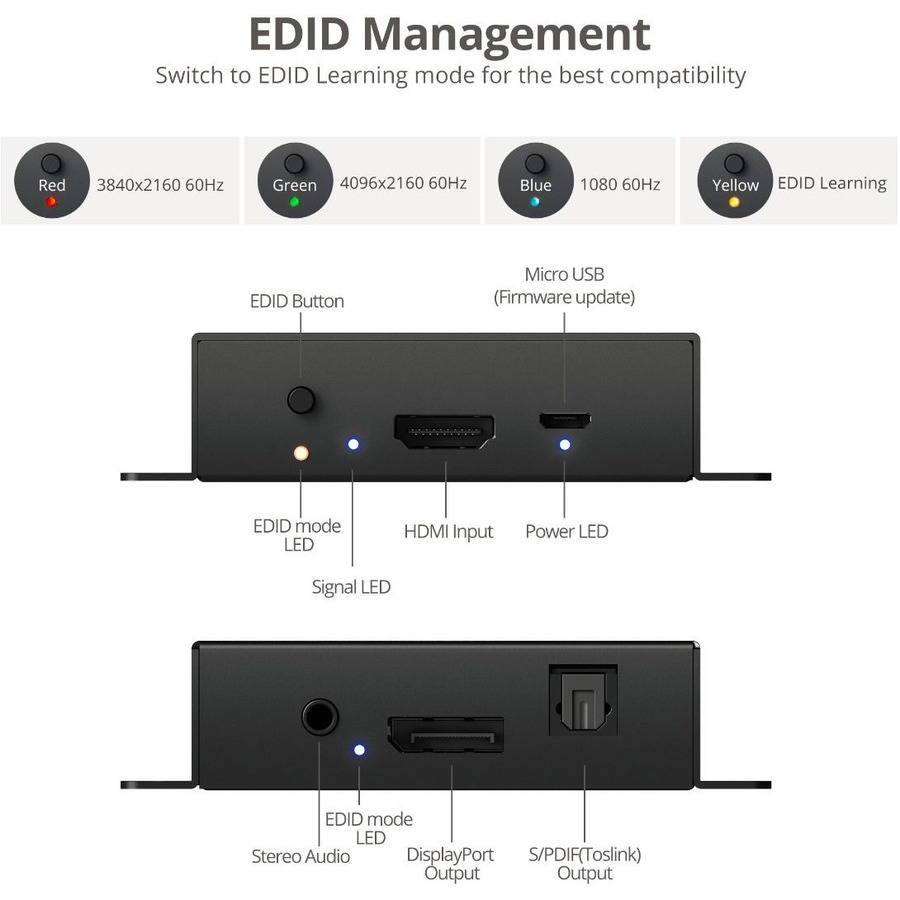

Supports UHD 3840x2160@60Hz (4:4:4 8bit), 4096x2160@60Hz, 1080p@60Hz, 1920x1080@144Hz resolution via EDID management push button, allowing for expanded compatibility with different monitors.
Compliant with HDMI 2.0a, DisplayPort 1.2a and HDCP 2.2
Separate Toslink audio jack and 3.5mm Stereo audio jack, extracts 5.1ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device.

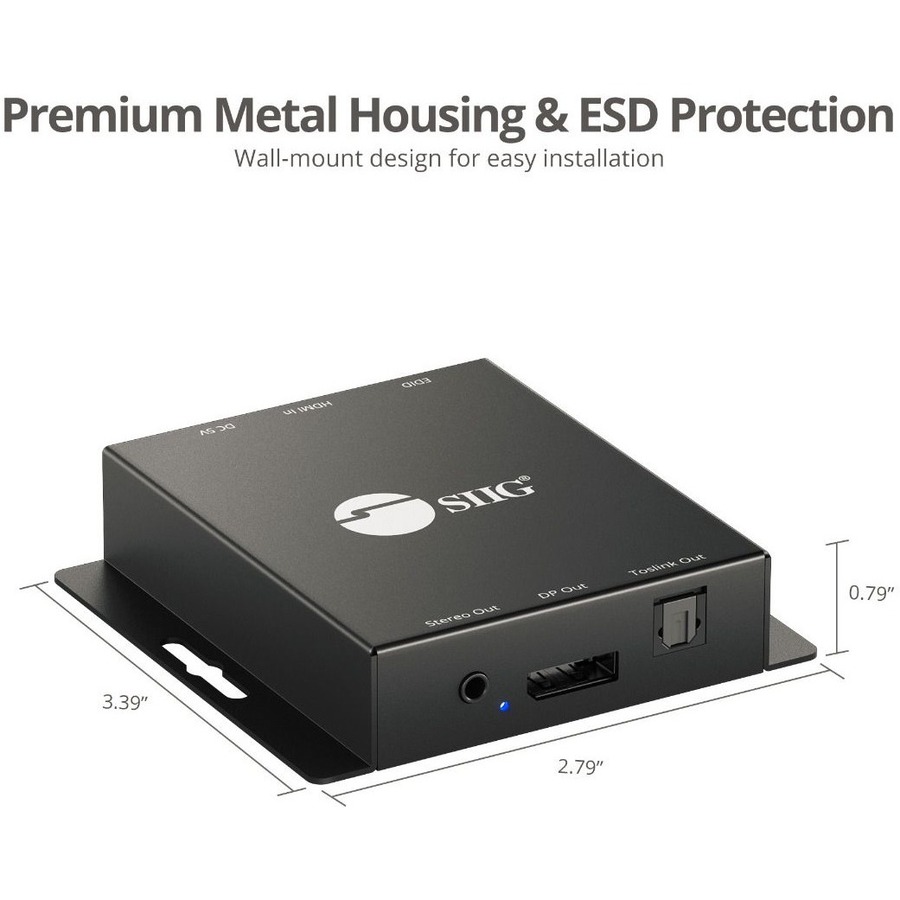

Sturdy metal housing adds durability and improves heat dissipation and cooling for stable operation during extended hours of use
Dual mode Micro USB port to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility
Plug & Play Installation - No driver or software installation required
High performance HDMI to DisplayPort adapter allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display. Note: This is not a bi-directional adapter. Does not work for DisplayPort to HDMI conversion
Supports UHD 3840x2160@60Hz (4:4:4 8bit), 4096x2160@60Hz, 1080p@60Hz, 1920x1080@144Hz resolution via EDID management push button, allowing for expanded compatibility with different monitors. Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4
Compliant with HDMI 2.0a, DisplayPort 1.2a and HDCP 2.2
Separate Toslink audio jack and 3.5mm Stereo audio jack, extracts 5.1ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device. Note: The DisplayPort output does not contain audio stream, only one audio output can be connected at a time
Sturdy metal housing adds durability and improves heat dissipation and cooling for stable operation during extended hours of use
Dual mode Micro USB port to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility
Plug & Play Installation - No driver or software installation required
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
CE-H26A11-S1
Brand Name
SIIG
Product Name
HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor
Product Type
Signal Converter
Interfaces/Ports
USB
Yes
DisplayPort
Yes
HDMI
Yes
Audio Line Out
Yes
Physical Characteristics
Form Factor
Wall Mountable
Height
0.8"
Width
3.4"
Depth
2.8"
Weight (Approximate)
0.38 lb
Technical Information
Functions
Signal Conversion, Audio Extraction
Maximum Resolution
3840 x 2160
Warranty
Limited Warranty
3 Year
Miscellaneous

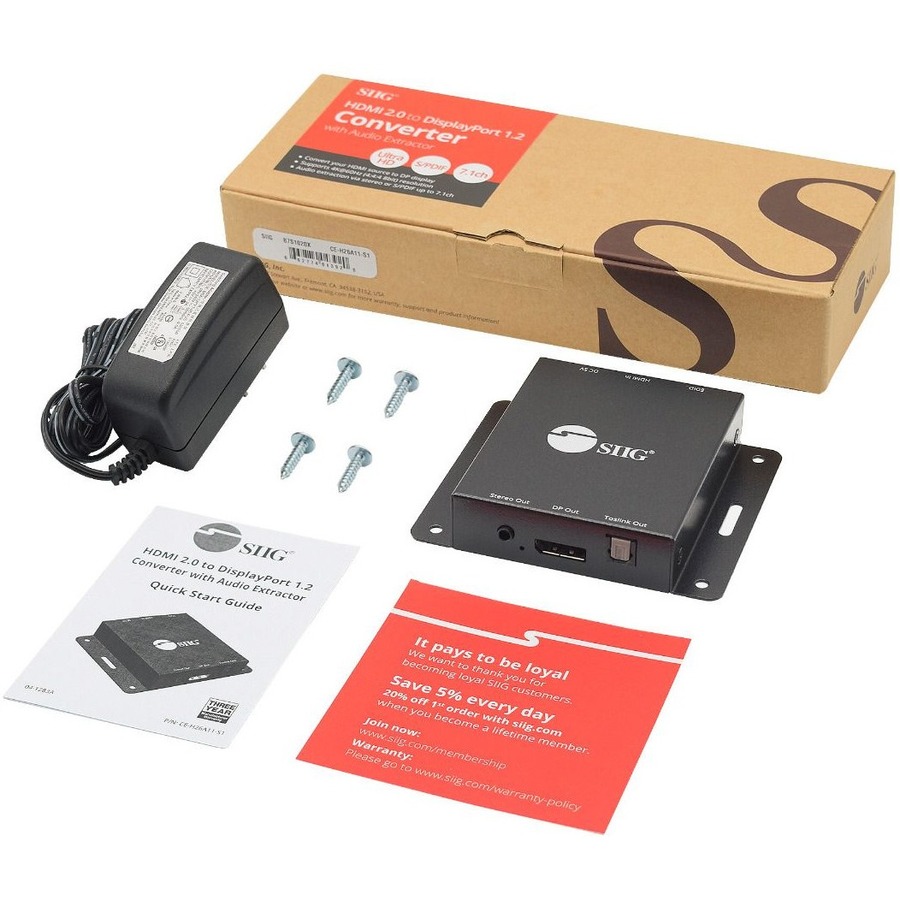

Package Contents
HDMI 2.0 to DisplayPort 1.2 Converter with Audio Extractor
