SIIG 1080p HDMI Video H.264 H.265 IPTV Encoder with Loopout
SIIG

SIIG 1080p HDMI Video H.264 H.265 IPTV Encoder with Loopout

Supports RTSP / HLS / RTMP (S) / RTP / UDP Protocols - Supports CBR/VBR Two Coding Modes

SKU
CE-H27511-S1
Category
Video Processing/Capturing Modules

MSRP$279.99

$223.99

Save 20%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H27511-S1
Category
Video Processing/Capturing Modules

Highlights

  • Support multiple video decoding: H.265 mainstream, H.264 basic, mainstream and advanced quality, MJPEG/JPEG basic quality
  • Broadcast resolutions supports up to 1080p@60Hz 4:4:4 8 bit, and support HDCP 1.4
  • Supports RTSP / HLS / RTMP (S) / RTP / UDP protocols
  • Audio coding format supports AAC, AAC+, AAC++/AC3/MP2/MP3
  • Maximum supports 2 channel video stream decoding, supports 1 channel only audio stream decoding
  • Preview your incoming HDMI signal via the local HDMI pass-thru output port
  • Support CBR/VBR two coding modes, maximum code rate up to 40Mbps (Main code stream is 40M, Sub-code stream is 8M)
  • Support analog audio extraction and analog audio embedded
  • High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation

Specifications

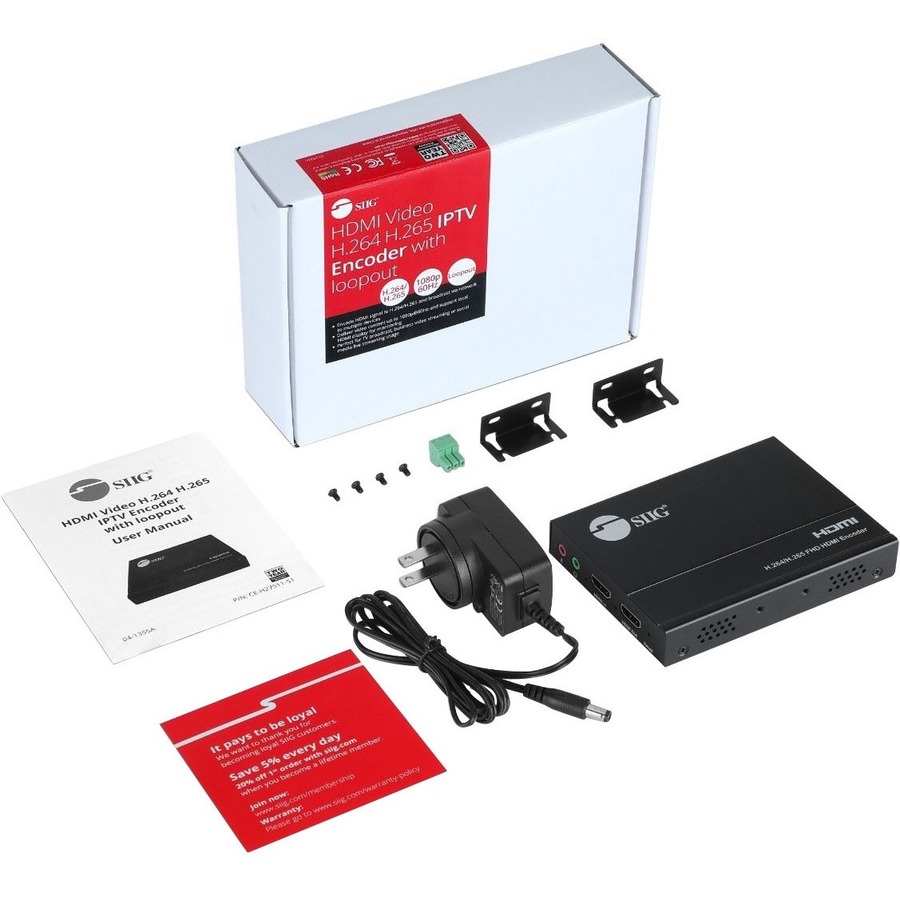

Package Contents
  • HDMI Video H.264 H.265 IPTV Encoder with Loopout
  • Power Adapter DC 12V/1A
  • Mounting Ears & Screw Kit
  • Phoenix Plugs
  • User Manual
Product TypeVideo Encoder
Manufacturer Part NumberCE-H27511-S1
Limited Warranty2 Year
Weight (Approximate)0.65 lb
FunctionsVideo Encoding, Video Decoding, Video Streaming, Audio Streaming, Audio Decoder, Audio Extraction, Audio Embedding
ManufacturerSIIG, Inc
Product NameHDMI Video H.264 H.265 IPTV Encoder with Loopout
Video FormatsH.264, H.265, MJPEG, JPEG
Maximum Resolution1920 x 1080
Brand NameSIIG
Country of OriginChina
Height0.8"
Width4.9"
Depth3.5"
Environmentally FriendlyYes
HDMIYes
Network (RJ-45)Yes
Audio Line InYes
Audio Line OutYes
Screen Mode SupportedFull HD
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
