Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FGN3132-SA
Category
Video Processing/Capturing Modules
Overview
The N3000 Series' H.264 compression engine delivers low-latency 1080p60 video at half the bandwidth of comparable encoders. High profile H.264 encoders output unicast or multicast to one or more N3000 Series decoders. Multiple selectable streaming protocols (RTP, RTSP, and more) allow for software endpoints during video to the desktop applications or third-party hardware endpoints like Roku, Amino, or Google TV. Adjustable bit-rates from 32-Kbps to 10-Mbps give the highest video fidelity at the lowest bandwidths on the market in keeping with SVSI's commitment to provide unsurpassed Networked AV quality.

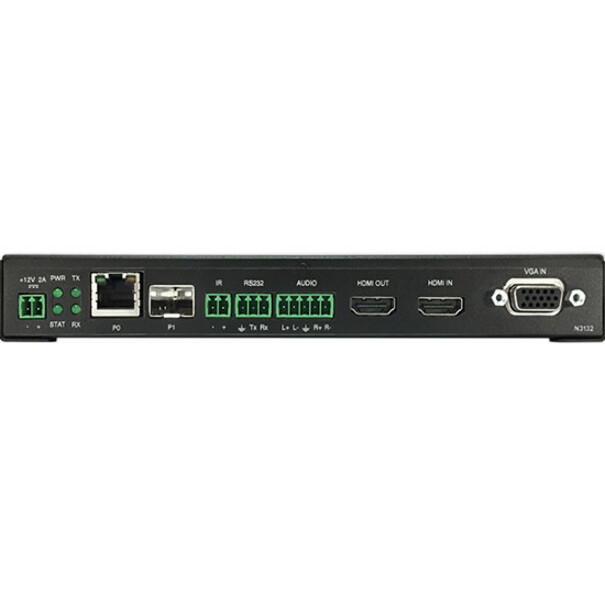

H.264 encoder includes IR, serial, balanced audio, RJ45 and 1GB SFP (fiber or copper) network connections, digital HDMI and analog VGA video input. H.264 encoder card requires NMXACC-N9206 cage.
Common Applications
The NMX-ENC-N3132 is the perfect solution for quality streaming over low bit rate WAN. Common applications include distance education, Multi-Site Enterprise, and IPTV Streaming.
Highlights
Power Over Ethernet (PoE) - Eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
Infrared (IR) - Infrared emitter connection allows control of low-cost, IR-only display devices
Onboard Control - All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
Unlimited Scalability
Pass-Through HDMI - HDMI interface allows easy installation with local display such as desktop PC applications
Stand Alone or Card - Available as a stand alone device, or card for use with NMX-ACC-N9206
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FGN3132-SA
Brand Name
AMX
Product Series
N3000
Product Model
NMX-ENC-N3132
Product Name
H.264 Compressed Video over IP Encoder, PoE, SFP, HDMI, USB for Record
