SKU
FG1015-200
Category
Video Processing/Capturing Modules
Overview

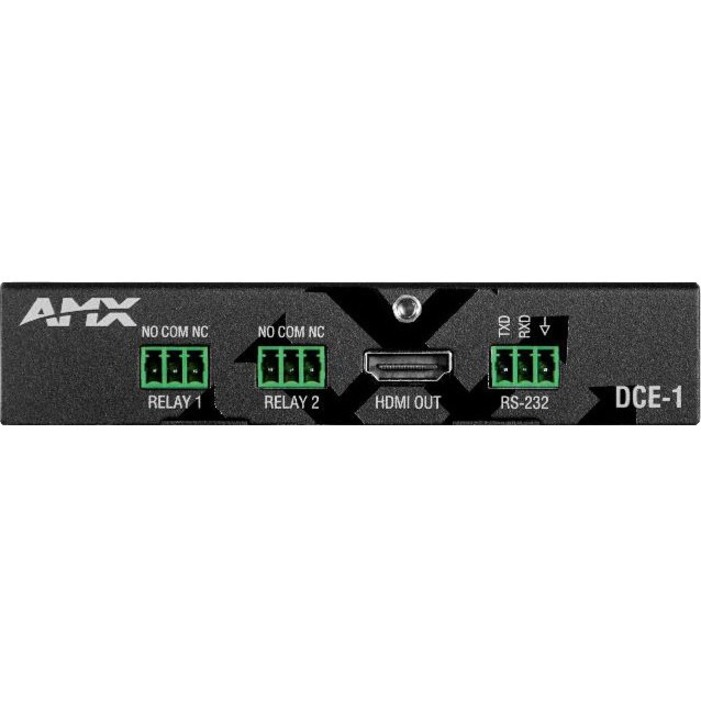

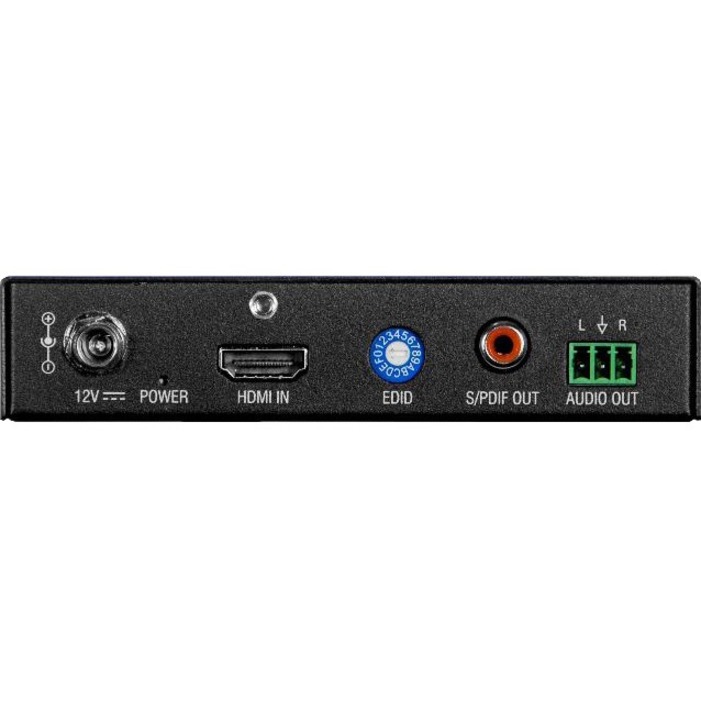

The AMX DCE-1 In-Line Controller combines CEC control, EDID emulation and audio extraction in a single, cost-effective device. The DCE-1 provides EDID emulation for resolutions up to 4K60 4:4:4, and includes HDCP 2.2 support, offering compatibility with the latest displays and source devices. The integrator can either copy the EDID from the output or select from one of 15 preprogrammed EDIDs.
The controller provides a fixed EDID to the source device to ensure it reliably outputs video in the correct resolution for the display. The DCE-1 also offers audio de-embed capabilities, with digital SPDIF and analog output options. To simplify display control, the DCE-1 also offers the ability to turn the display on and off using CEC or RS232 strings whenever a source device is connected or disconnected.
Common Applications
Ideal for a variety applications requiring in-line EDID emulation, audio extraction, or simple display control.
Features
• Extended Display Identification Data (EDID) - Provides a fixed EDID to the source to ensure that it always reliably outputs video
• 4K60 4:4:4 and HDCP 2.2 Support - Support the latest source and display devices. Experience pixel-for-pixel video reproduction of 4K60 source video with full 4:4:4 color space
• Signal-Based Display Control - Use CEC or RS232 to automatically turn displays on/off in response to a change in the input signal
• Audio De-embed Capabilities - Remove audio from line to be used in signal processing, amplification, and more
Highlights
Memorizes the display to reduce loss of signals and display quality as you disconnect or reconnect the device
To fulfill your needs, this video emulation function is a perfect choice
This surface-mountable device is quick and easy to install so that you can do the work yourself and speed up the department's work
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG1015-200
Brand Name
AMX
Product Model
DCE-1
Product Name
4K60 In-Line Controller
Product Type
Video Emulator
Interfaces/Ports
HDMI
Yes
Audio Line Out
Yes
Physical Characteristics
Form Factor
Surface-mountable
Height
1"
Width
4.7"
Depth
3"
Weight (Approximate)
0.66 lb
Technical Information
Functions
Video Emulation, Audio Extraction, Audio De-embedding
Maximum Resolution
4096 x 2160
Screen Mode Supported
4K
Miscellaneous
Package Contents
4K60 In-Line Controller
12 VDC Power Adapter
V-Style Surface Mount Brackets
Country of Origin
Mexico
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
