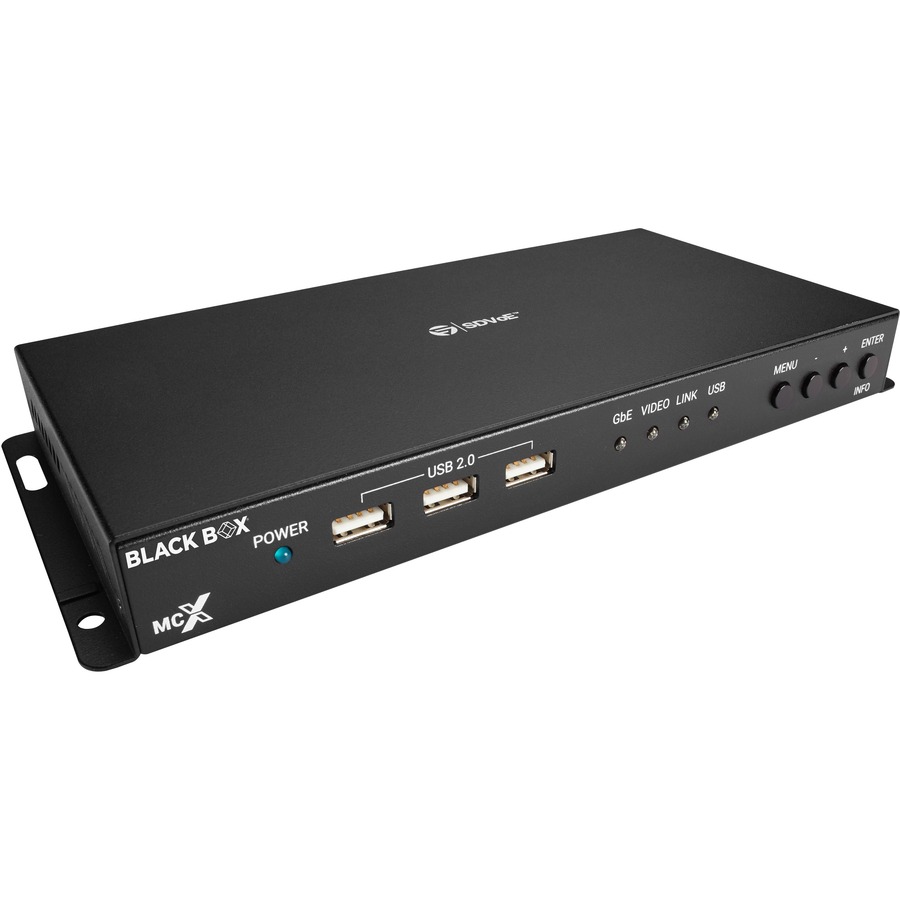

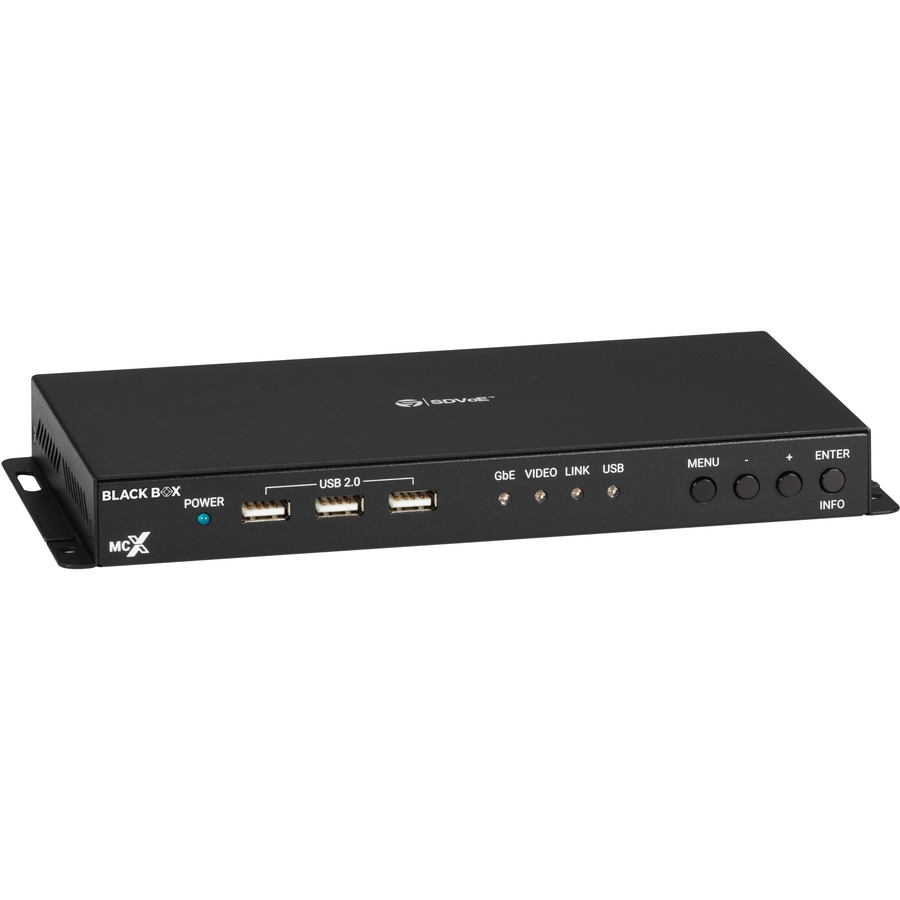

Black Box MCX G2 HDMI Decoder - 4K60, Copper
Functions: Video Decoding, Video Switcher - 4096 x 2160 - 4K - Network (RJ-45) - USB - Audio Line In - Audio Line Out - 1 - PC - TAA Compliant
- SKU
- MCXG2DC01
- Category
- Video Processing/Capturing Modules
MSRP$1,754.52
$1,373.10
Save 22%In stock: 19
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MCXG2DC01
- Category
- Video Processing/Capturing Modules
Overview
MCX Gen2 Encoders and Decoders extend and switch video, audio, RS-232, and USB 2.0 signals, or display all of your sources via built-in video wall management. Ideal for point-to-point secure video conferencing, hotel or convention center displays, multi-monitor broadcasts, distributed video matrix or video wall systems, and remote KVM system control, the encoders/decoders comply with TAA specifications.
Easy Setup - Easy Management
Connect each encoder to an AV source (computer, content player) and connect it to a managed 10-GbE network switch. Connect a decoder to each screen you want to display content on and connect it to the same switch. Use the MCX Gen2 Manager for switching or to build and manage a video wall.
Uncompressed 4K 60 Hz 4:4:4 Video
MCX extends uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays without sacrificing video quality, or frame rate. It supports up to 10-bit HDR using Software-Defined Video over Ethernet (SDVoE), allowing AV and data to exist on the same network without reducing network performance, functionality, or capability.
Create Ergonomic Workflows for Operators

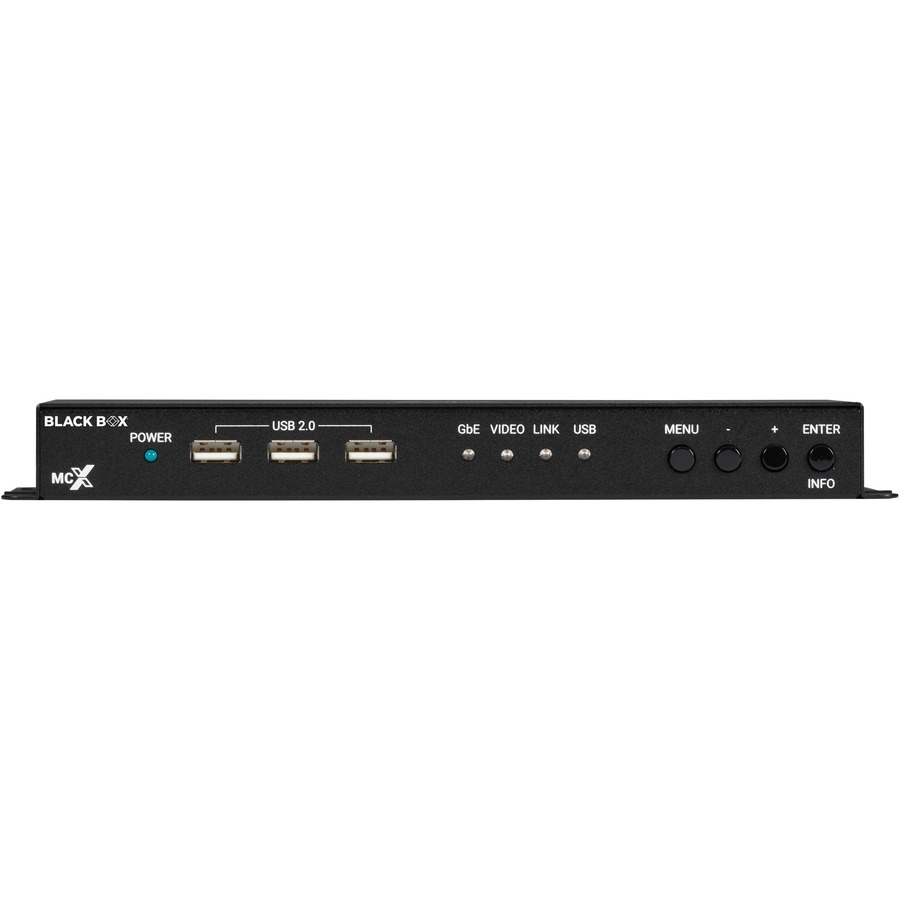

Front-panel configuration buttons and On-Screen Display (OSD) streamline workflows.
Choose Copper or Fiber Versions to Suit Your Application
Fiber and copper versions are available.
Zero Latency
Data transfer delay is undistinguishable; encoding and decoding happens in real-time (0.03 milliseconds).
HDMI and USB-C Encoding and Decoding

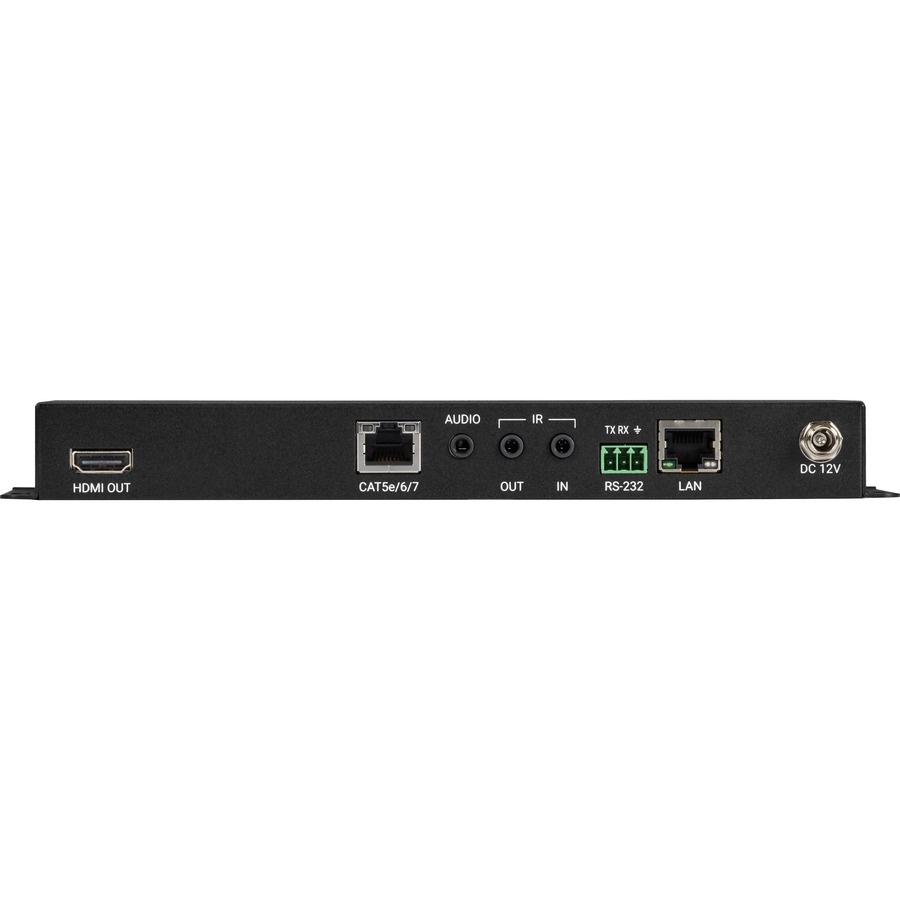

Connect a variety of devices to your MCX Gen2 units through the HDMI and USB-C ports. Transmit multiple control and data signals with the audio and video, including IR and RS-232.
Local Video Out
Show the input source on a local monitor.
Works with MCX Gen2 Controller
The MCX Gen2 Controller, Ethernet switches, and the encoders/decoders form a distributed video matrix, a multi-viewer system, or a video wall system.
More from the Manufacturer
Highlights
- HDMI connectivity, 10-Gbps Ethernet, and analog audio
- IP switchable with zero latency (requires optional MCX Gen2 Controller)
- Ultra-light compression, lossless for most content
- Extension up to 30 km over fiber (maximum distance depends on the SFP+ module and type of fiber used)
- AV, IR, RS-232, and USB 2.0 extension
- Basic configuration via front-panel buttons with an OSD
Specifications

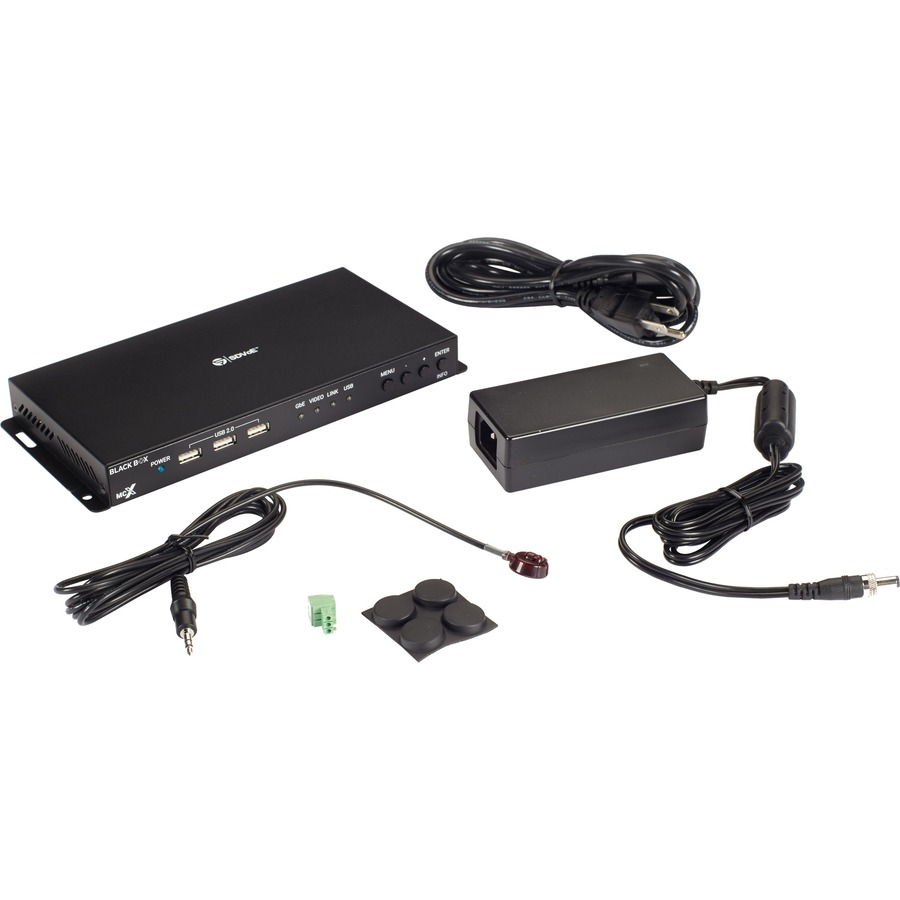

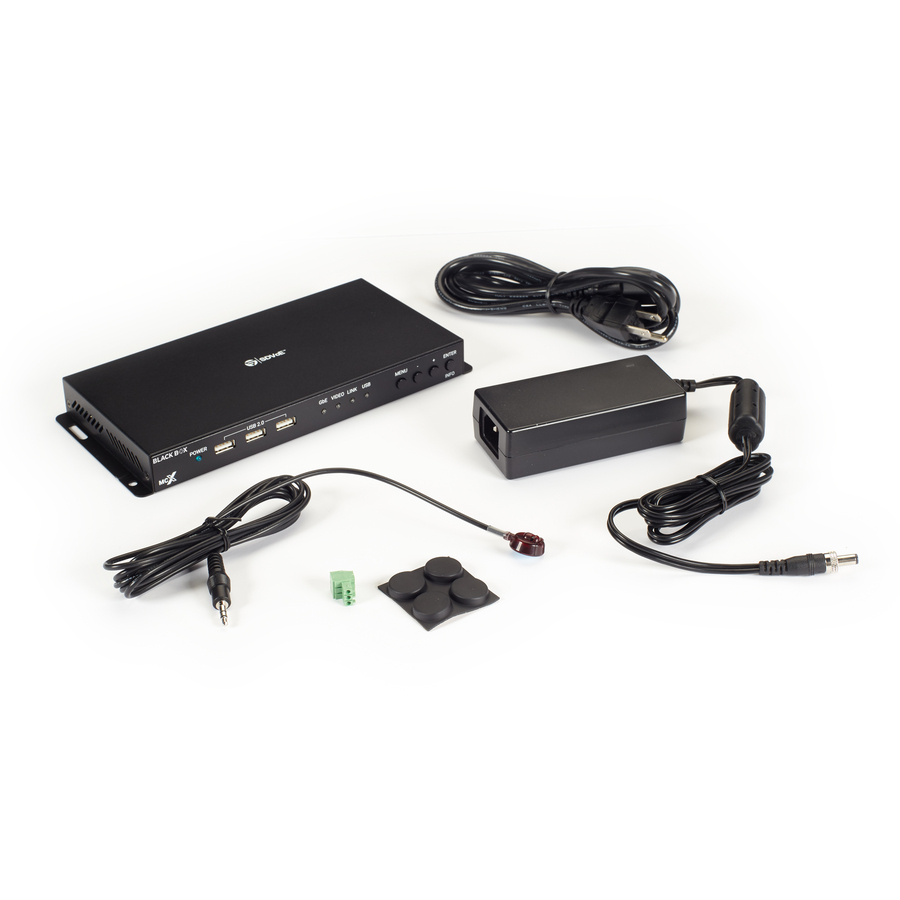

| Package Contents |
|
|---|---|
| Product Type | Video Decoder |
| Manufacturer Part Number | MCXG2DC01 |
| Packaged Quantity | 1 |
| Platform Supported | PC |
| Weight (Approximate) | 2.02 lb |
| Functions | Video Decoding, Video Switcher |
| Manufacturer | Black Box Corporation |
| Product Name | MCX G2 HDMI Decoder - 4K60, Copper |
| Product Series | MCX Gen2 |
| Maximum Resolution | 4096 x 2160 |
| Brand Name | Black Box |
| Height | 1" |
| Width | 8.5" |
| Depth | 4.6" |
| Environmentally Friendly | Yes |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| TAA Compliant | Yes |
| Screen Mode Supported | 4K |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
