Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AMX-UVC1-4K
Category
Video Processing/Capturing Modules
Overview

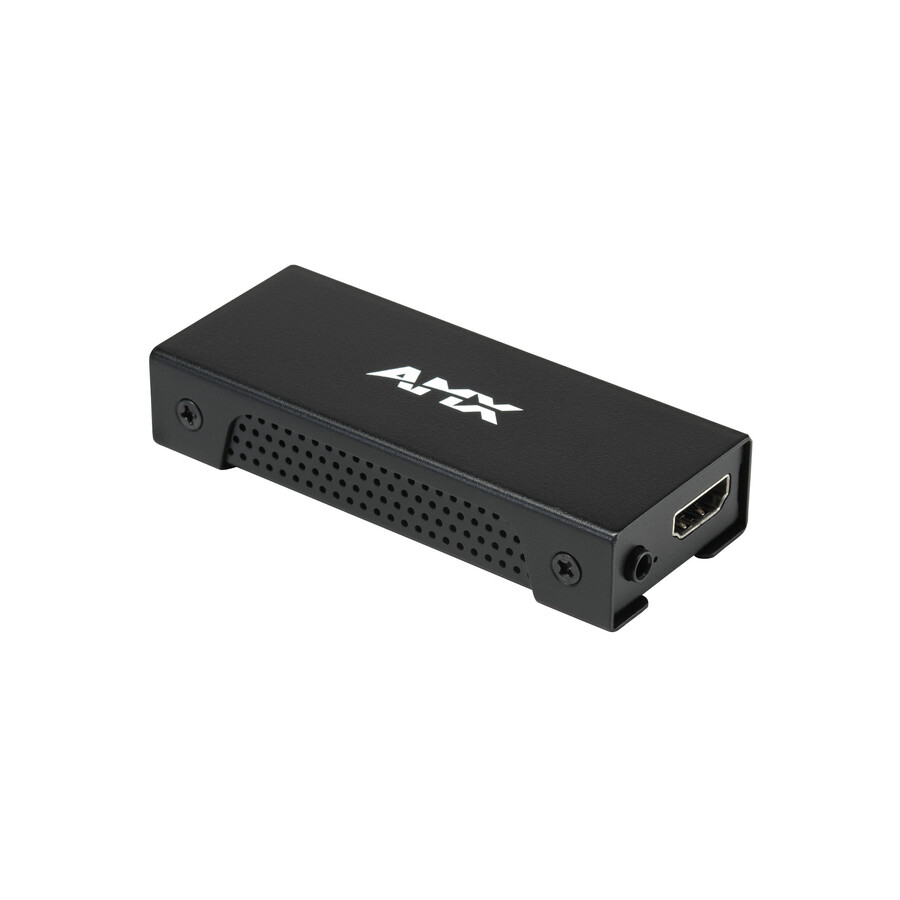

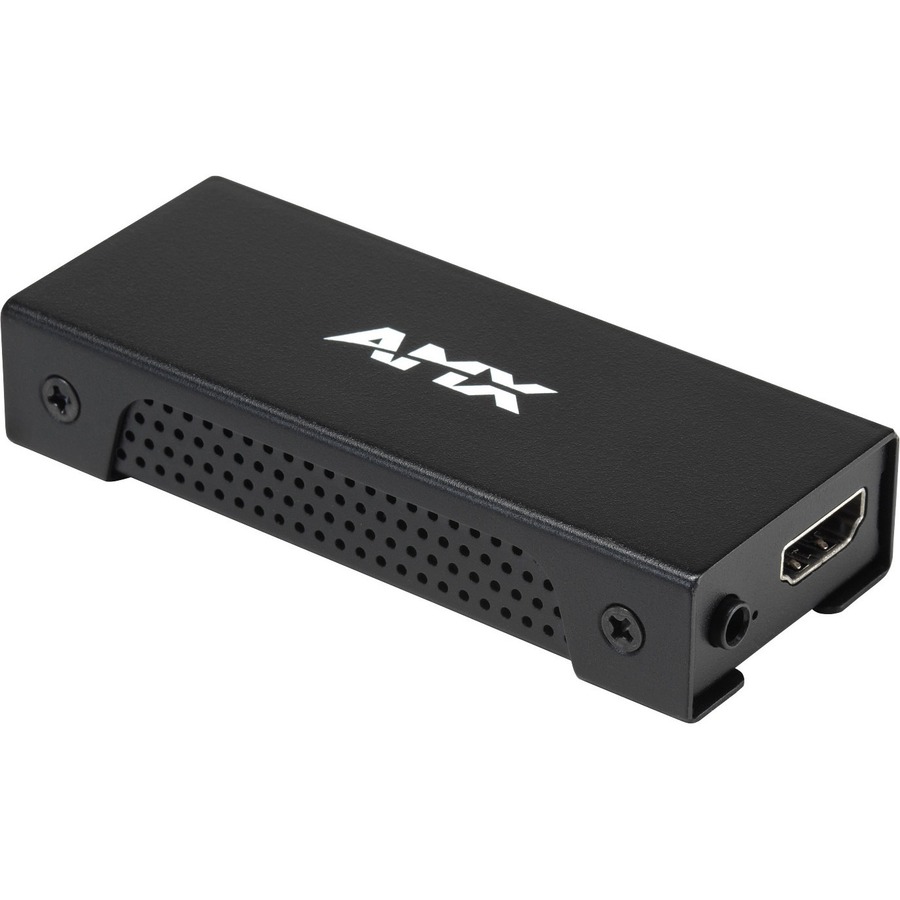

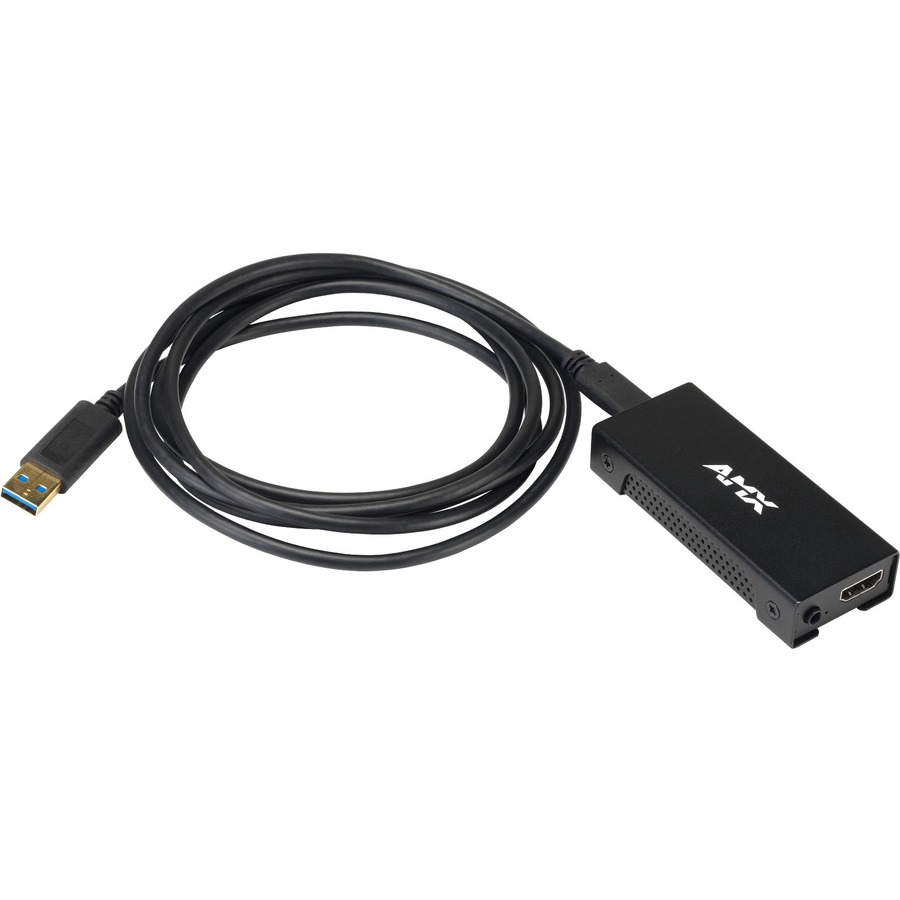

The UVC1-4K captures content from HDMI video sources for seamless importation into PCs and video conferencing software such as Zoom or Teams via USB. It supports HDMI video input resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color and outputs resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010).
The UVC1-4K solves the issue of PCs that lack HDMI or other video inputs for importing content from video cameras, document cameras, DVD players or other traditional video sources. It also serves as an ideal solution for users of the AMX TPC-TPI-PRO professional in-room presentation management system, offering the ability to preview and control their presentation and environment from a single, third-party touch panel interface.
Common Applications
The UVC1- 4K is ideal for colleges and universities leveraging software video conferencing or software lecture recording solutions for distance learning or when using TPC-TPI-PRO to preview and control in-room video. It is also a great fit for corporate applications where software video conferencing is deployed.
Highlights
HDMI 2.0 Support - HDMI video input supports resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color
USB 3.0 Capture - UVC video output supports resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010)

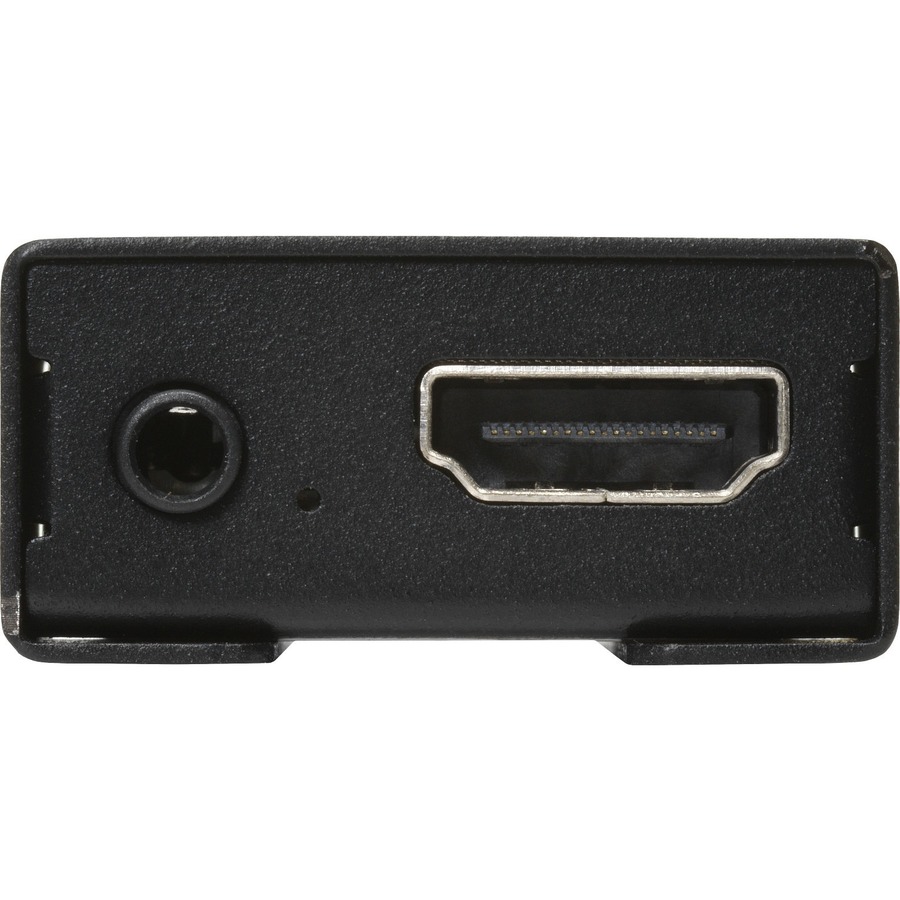

Audio Input Embedded - Audio input support includes analog stereo audio and HDMI embedded audio
Support for Popular OS Platforms - Windows 10 (64-bit), macOS (10.12 or newer)
UVC Software Compatible - Supports Zoom, Teams, WebEx, Skype, Slack, Discord, BlueJeans, GoToMeeting, VLC, and more.
Ideal TPC-TPI-Pro Companion - Works with AMX TPC-TPI-PRO professional in-room presentation management system to enable users to preview and control their presentation and environment from a single, third-party touch panel interface
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
AMX-UVC1-4K
Brand Name
AMX
Product Model
UVC1-4K
Product Name
UVC1-4K 4K HDMI to USB Capture Device
Product Type
Video Capturing Device
Interfaces/Ports
USB
Yes
HDMI
Yes
Physical Characteristics
Height
0.7"
Width
1.4"
Depth
3.4"
Weight (Approximate)
0.21 lb
Software
Operating System Supported
Windows 10, Mac OS X 10.12 Sierra
Technical Information
Functions
Video Capturing, Audio Embedding
Maximum Resolution
4096 x 2160
Screen Mode Supported
4K
Maximum Frame Rate
60 fps
Platform Supported
PC, Mac
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
