Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FGN2312-CD
Category
Video Processing/Capturing Modules
Overview
The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.

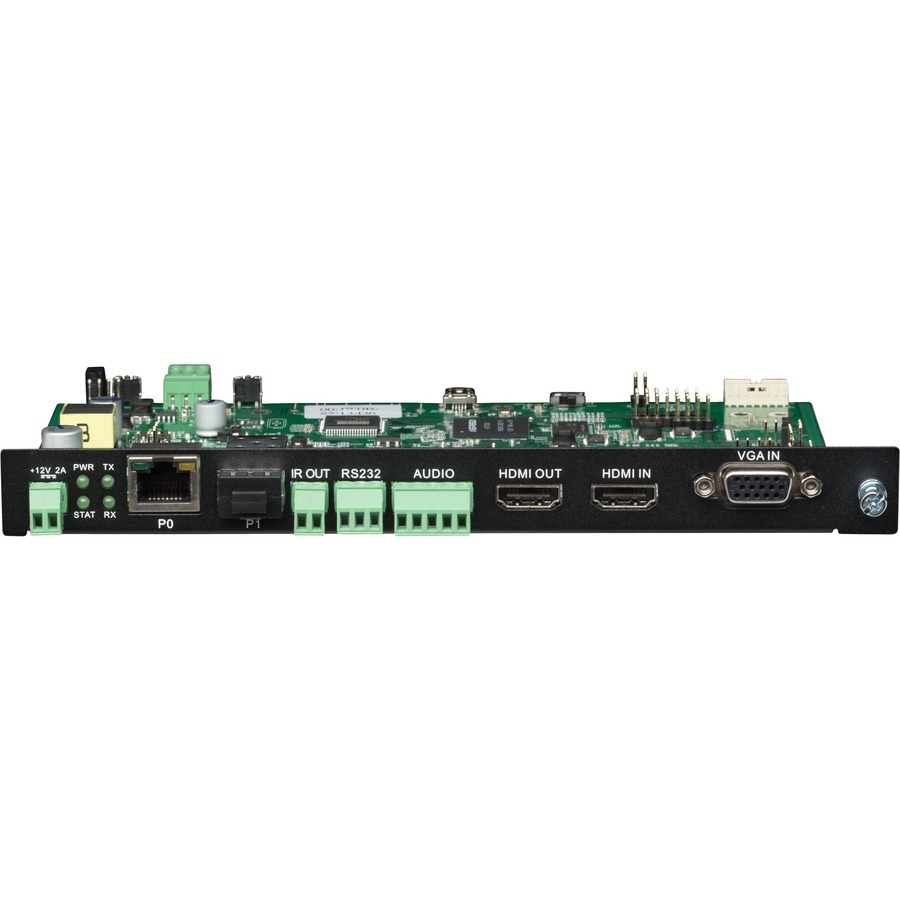

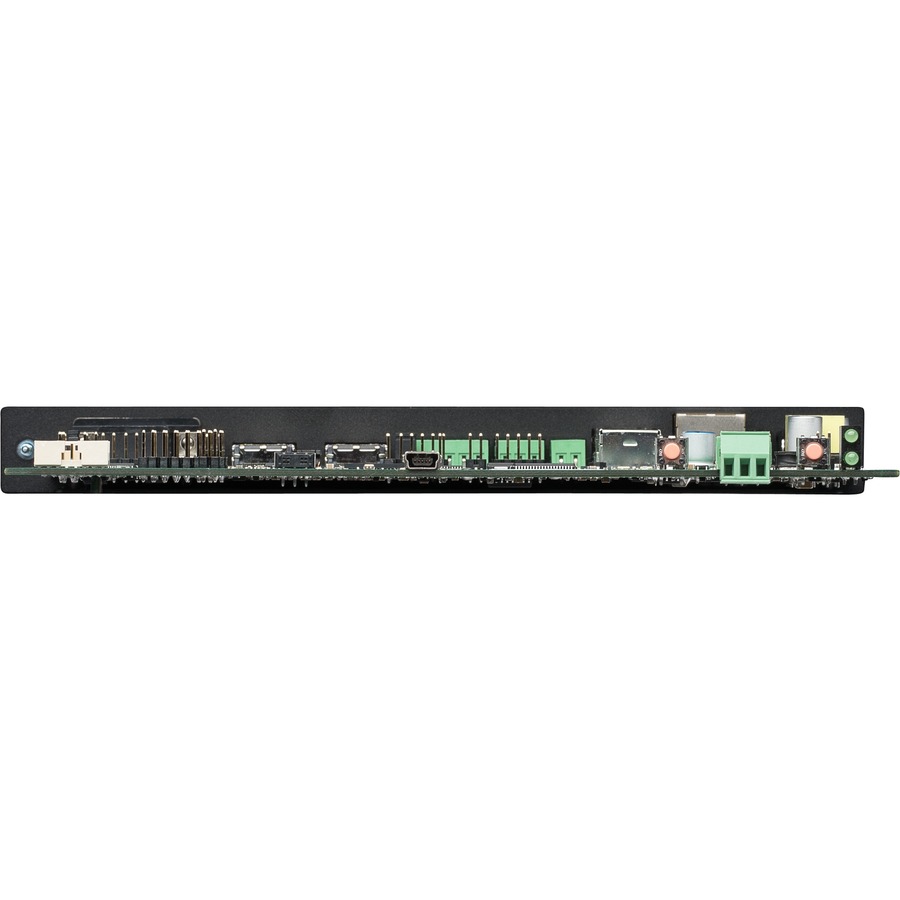

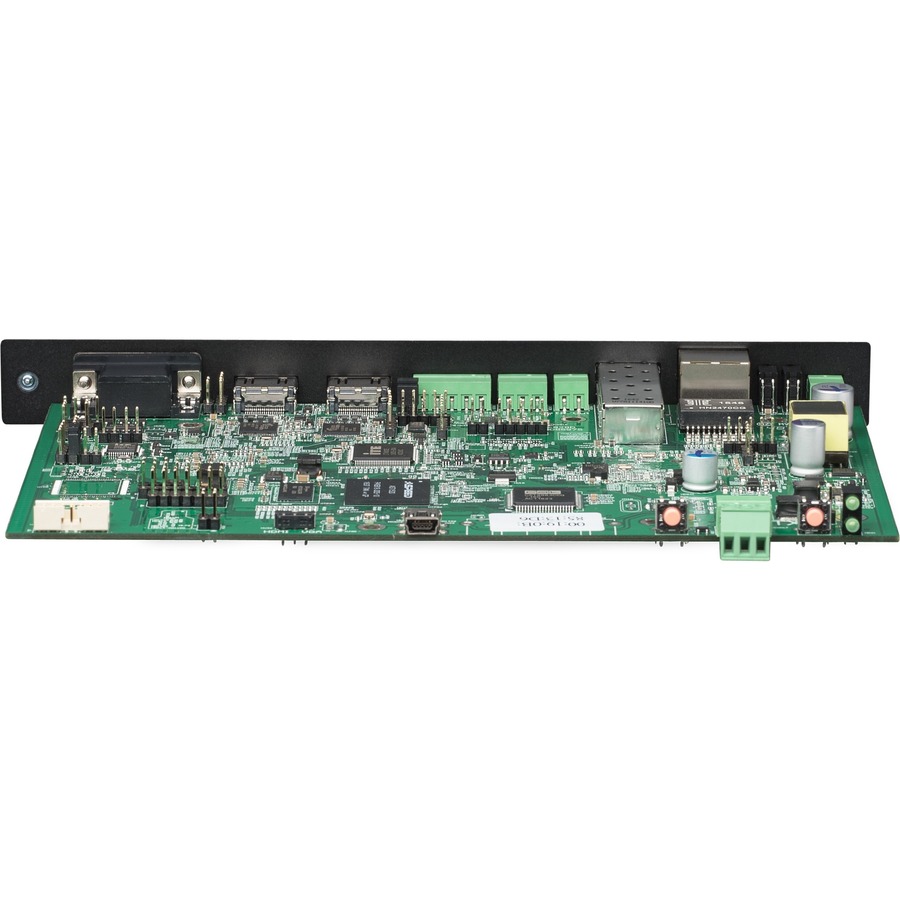

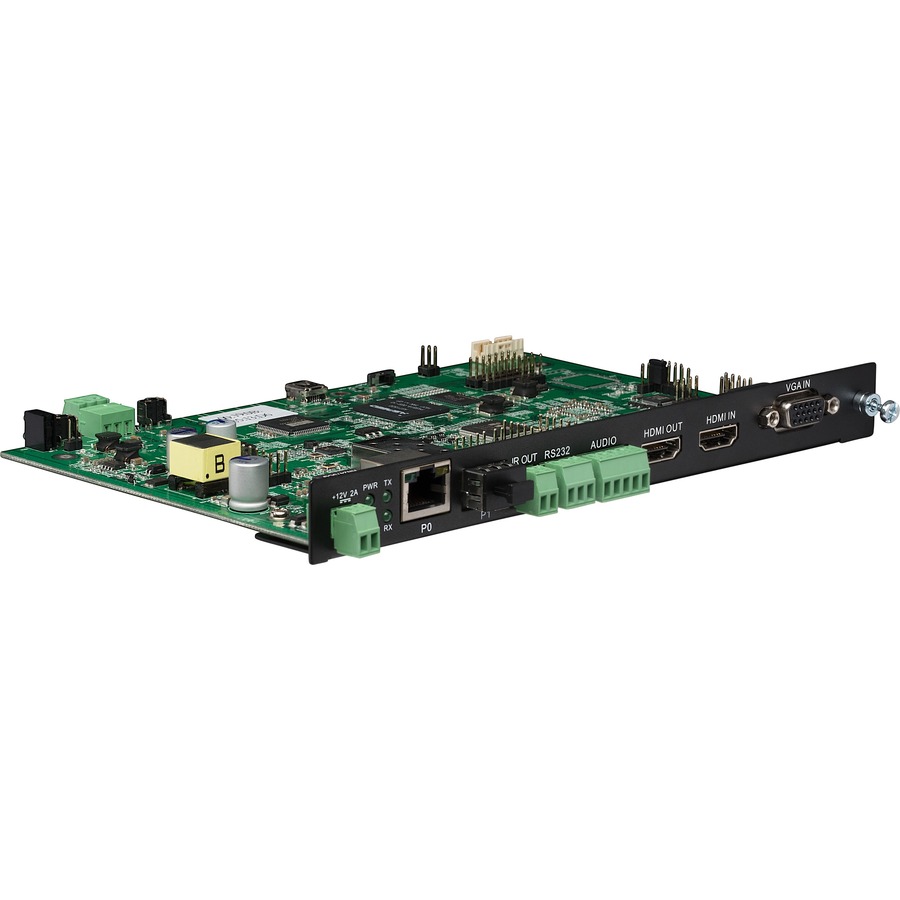

Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVMover- IP extension. It also comes in a card version compatible with SVSI's N9206 card cage for high-density applications.
Highlights
Design Flexibility - Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
Advanced Security including SSL/TLS and HTTPS - Satisfies enterprise network security requirements.
Infrared (IR) - Emitter connection allows control of IR-only display devices
Fast Install - With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
Balanced and Unbalanced Audio - Embedded 7.1 digital audio or balanced/unbalanced analog audio
Pass Through HDMI - allows easy installation with local display such as desktop PC applicaitons

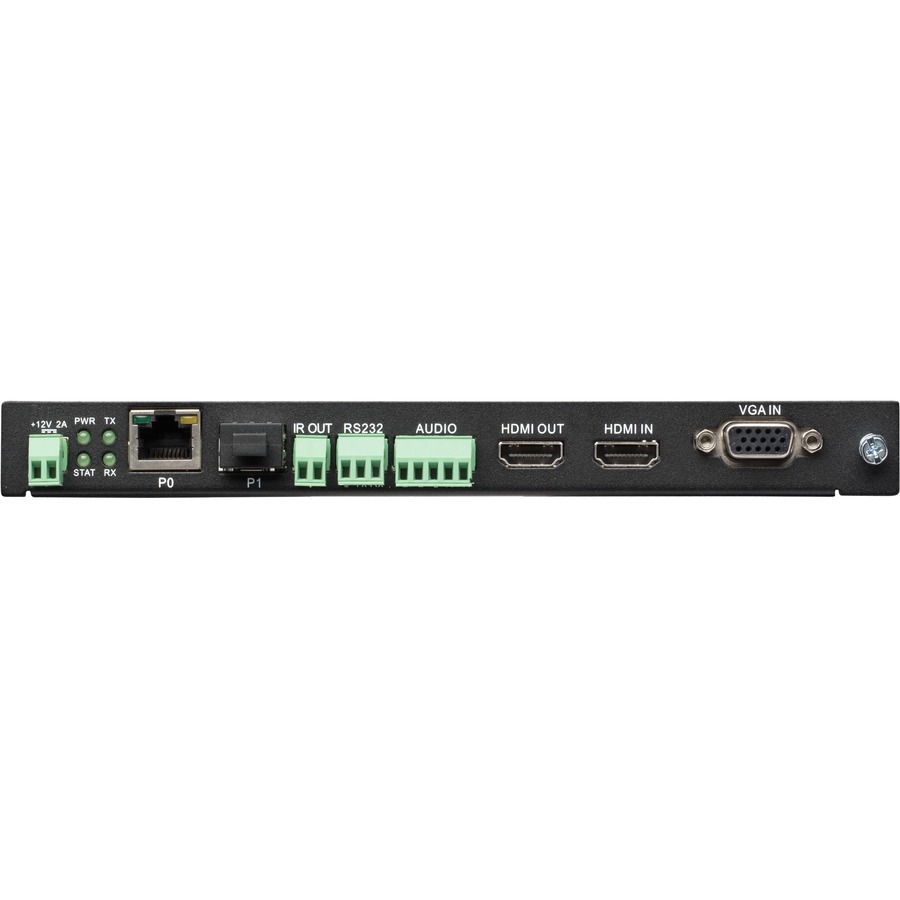

Multiple Connection Options - RJ-45 and SFP network connectors and HDMI video connections
KVM - Single USB-B for KVM applications
Native NetLinx - NetLinx Studio will easily recognize the device
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FGN2312-CD
Brand Name
AMX
Product Series
N2300
Product Model
NMX-ENC-N2312-C
Product Name
N2300 Series 4K UHD Video over IP Card Encoder with KVM, PoE
Product Type
Video Encoder
Interfaces/Ports
HDMI
Yes
VGA
Yes
Network (RJ-45)
Yes
Physical Characteristics
Height
1.1"
Width
7.9"
Depth
5.5"
Weight (Approximate)
1.60 lb
Technical Information
Functions
Video Encoding, Video Scaling, Audio Embedding, Video Streaming
