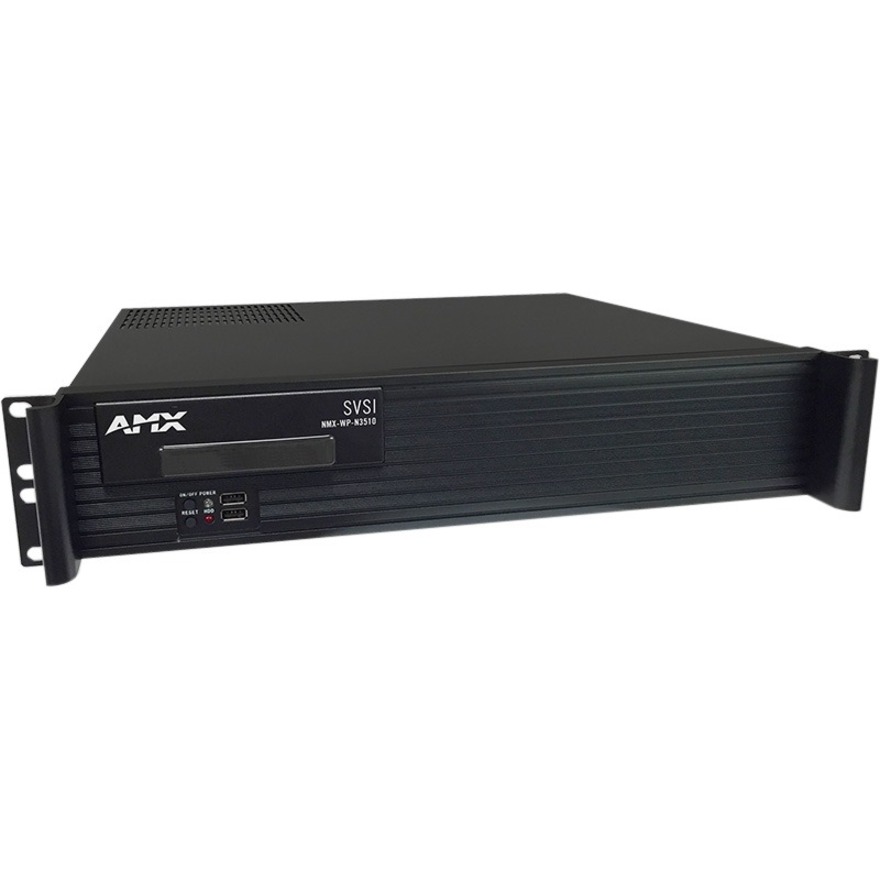

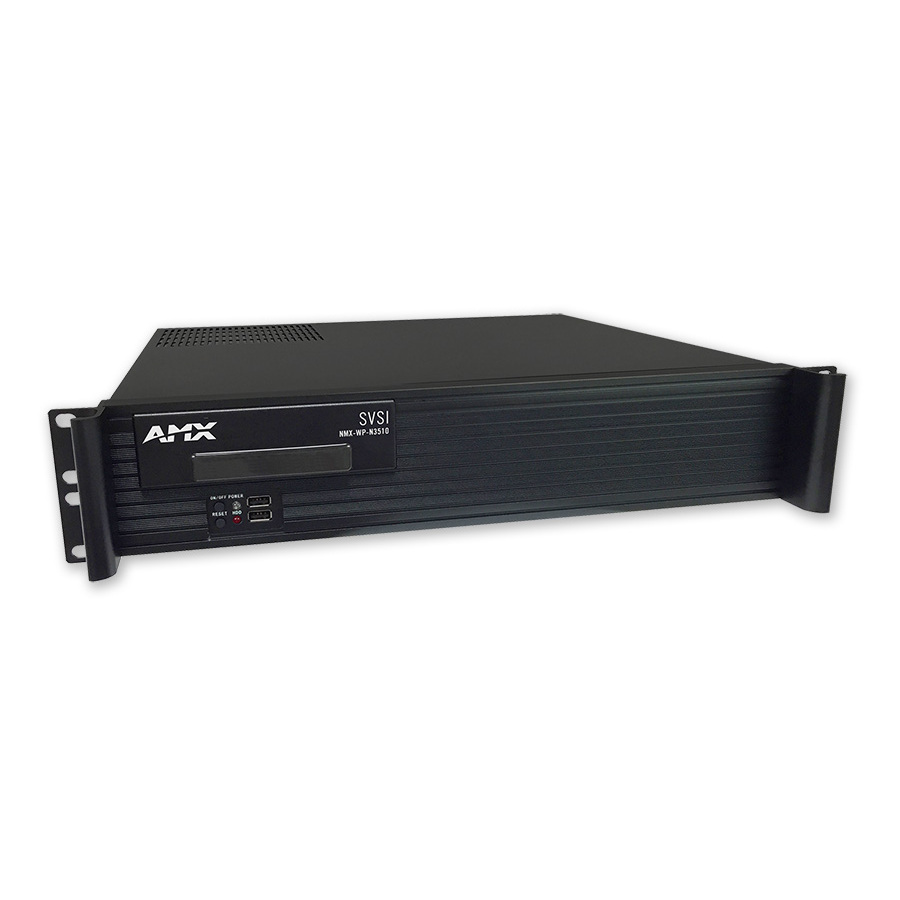

AMX NMX-WP-N3510 Windowing Processor

The NMX-WP-N3510 H.264 Multi-Channel Windowing Processor functions with the N3000 Series family of Video over IP Encoders and Decoders and are capable of handling multiple real-time H.264 streams. This rack-mount appliance accepts up to nine video streams as inputs from SVSI N3000 Series H.264 Encoders (or other third-party main- or high-profile H.264 streams) and outputs one windowed HD video stream for local viewing through an HDMI port or in streaming format to a remote hardware or software decoder.

The combined IP video stream transports H.264 compressed at various resolutions, providing an IT friendly solution for media distribution on the existing network. Digital signage, TV and PC content can be delivered in any combination for viewing on a single large display or a video wall through SVSI N3000 Decoders.

With the SVSI NMX-WP-N3510 H.264 Multi-Channel Windowing Processor, image configuration can be adjusted dynamically through a simple-to-use web interface. Images can be cropped, scaled, and positioned according to the stored presets or in any user-defined configuration. The web interface allows the user to position and stretch windows through drag-and-drop/resize or directly setting values. Common tools like "Snap & Grid" are available to help align window edges. Borders, backgrounds, presets, text overlays, mode and input streams can also be manipulated. A variety of presets make it easy to change the image configuration on the fly allowing switching between presets and switching between video streams within a preset. Just like the SVSI NMX-WP-N2510 Multi-Channel Windowing Processor, the SVSI NMX-WP-N3510 can be stacked to window more than nine H.264 streams to a single display.
