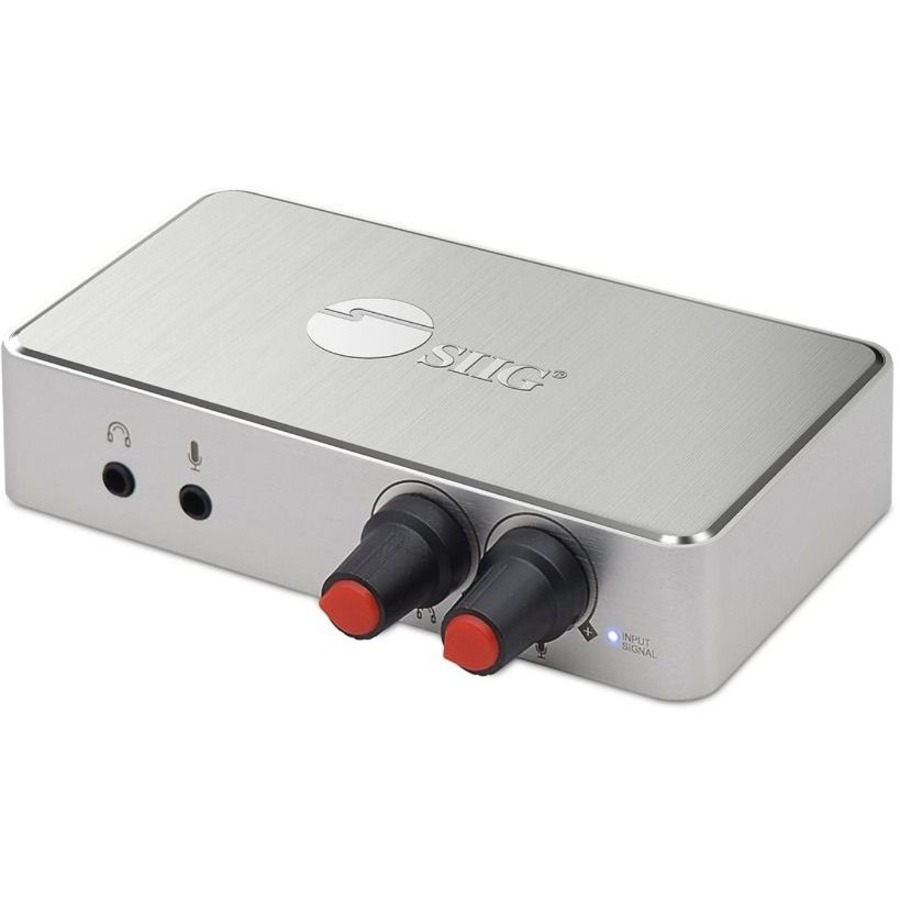

SIIG 4K HDMI Video Capture Box with Volume Control & Loopout
Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE-H27311-S1
Category
Video Processing/Capturing Modules
Overview
Overview
Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant
Features Easily capture and record 4K HDMI live video with low latency via a USB-C device and adjust the sound directly with the volume knob
4K UHD Resolution
Supports streaming 4K (3840x2160) @60Hz Ultra high-definition video resolution and recording 4K (3840x2160) @30Hz UHD video resolution, ideal for game capture
HDR Convert SDR
This 4K HDMI Video Capture Box supports HDR10 to SDR conversion when a monitor/display without HDR or HDMI source with HDR
USB Record
Stream video via USB-C and supports USB Video Class (UVC) 1.0/1.1/1.5 and up to 5Gbps date transfer
Auto Downscaling
Detects and configures the video resolution automatically according to the capabilities of the connected monitor
Stereo Audio/Control
Supports stereo audio embedded and HDMI audio extractor great for adding voice over to your gameplay. Built-in volume control knob to adjust the microphone/headphone volume
Multiple Connectivity Ports

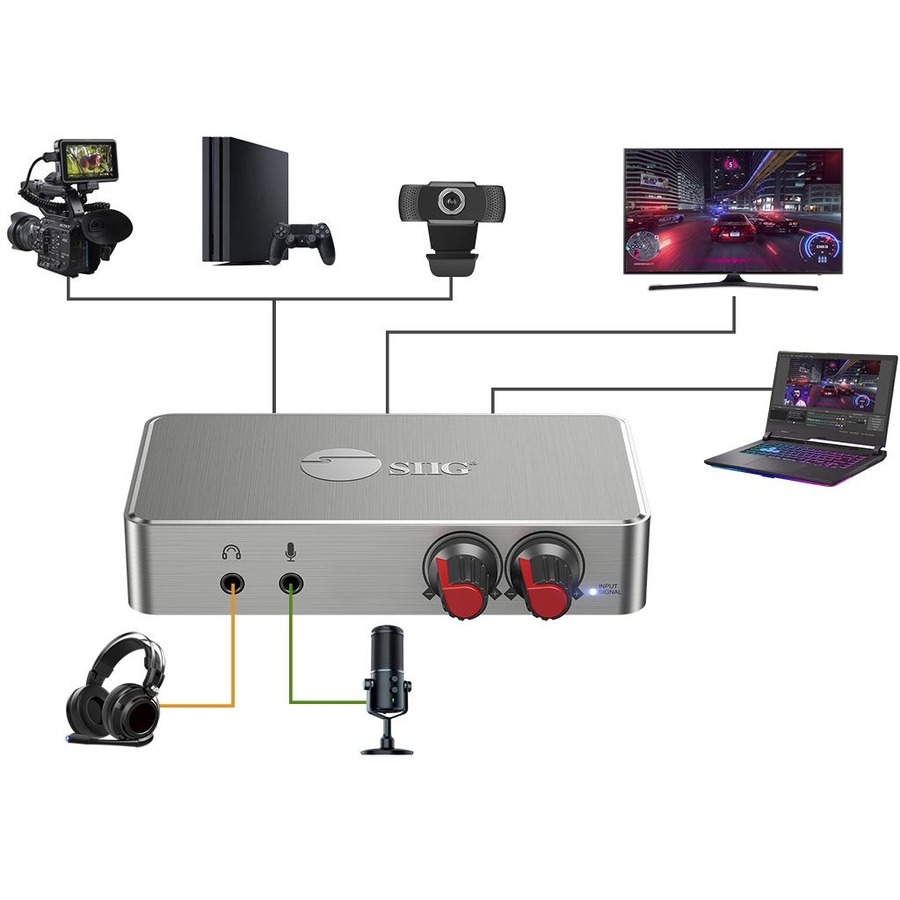

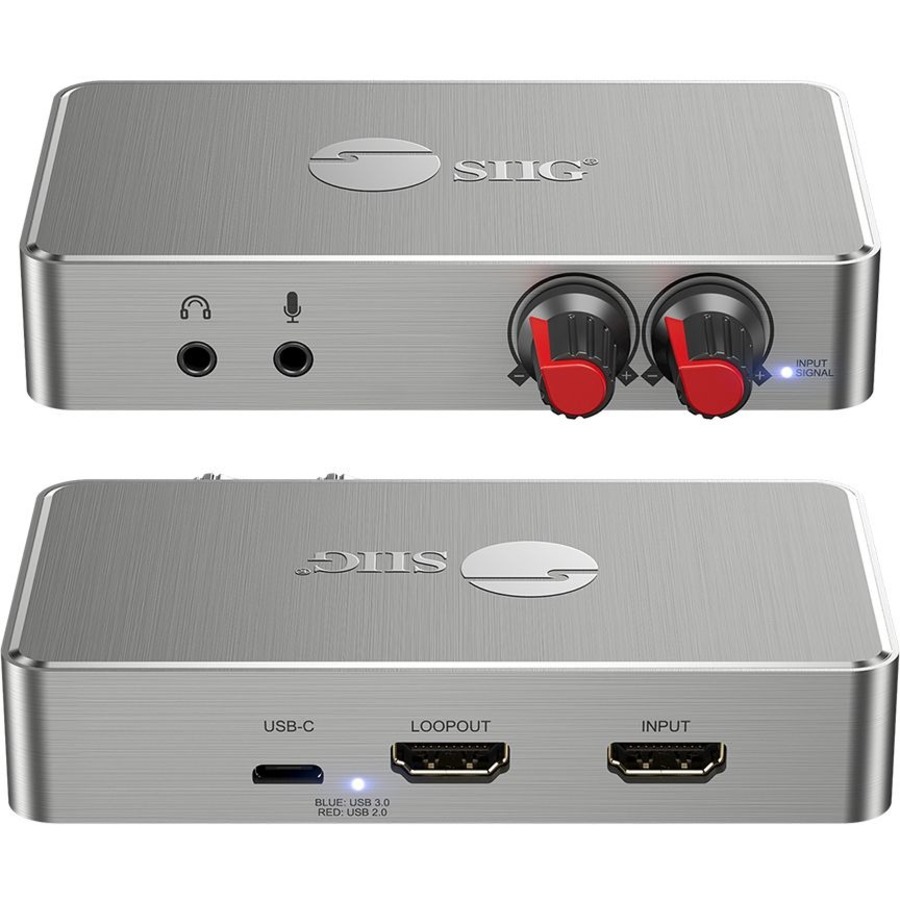

Comes with one HDMI video input port, one HDMI video output port, one USB-C 3.2 Gen 1 output port (Host), one 3.5mm microphone input port, one 3.5mm stereo audio output port, and two audio volume knob
Professional like HDMI capture device with audio embedding through USB 3.1 connection from your PC system, Utilizes USB 3.1 interface for high-speed transmission
Allows capture and record in 4Kx2K@30Hz while viewing at 4K@60Hz simultaneously. This device saves you the cost and hassle of buying a splitter to play and capture at the same time.
Support video capture and record resolution up to 4Kx2K@30Hz, Supports HDR10 to SDR conversion
Supports HDMI input & loopout up to 4Kx2K@60Hz, Supports playing 4K HDR on HDMI out while streaming perfect 4K2K@30 with SDR colors for gameplay capture.
Volume control knob to adjust the MIC/Headphone volume
Automatically detects video formats to ensure plug-and-play operation
Mixed audio support from Line-in and HDMI with HDMI audio extraction to connect analog stereo speakers
Great for online meetings, training, gameing and live broadcast
Compatible with Windows, Mac and Linux OS. Works with most 3rd party software such as OBS Studio, AMCap and VLC
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
CE-H27311-S1
Brand Name
SIIG
Product Name
4K HDMI Video Capture Box with Volume Control & Loopout
Packaged Quantity
1
Product Type
Video Capturing Device
Interfaces/Ports
USB
Yes
HDMI
Yes
Audio Line In
Yes
Audio Line Out
Yes
Physical Characteristics
Height
0.9"
Width
2.5"
Length
4.6"
Weight (Approximate)
0.44 lb
Software
Operating System Supported
Windows 11, macOS 10.15, Linux, Windows 8, Windows 10, Windows 7, Mac OS X 11.0 Big Sur, Mac OS X 11.1 Big Sur
Technical Information
Functions
Video Capturing, Video Streaming, Video Recording
Maximum Resolution
3840 x 2160
Screen Mode Supported
4K
Platform Supported
PC, Mac
Warranty
Limited Warranty
3 Year
Miscellaneous

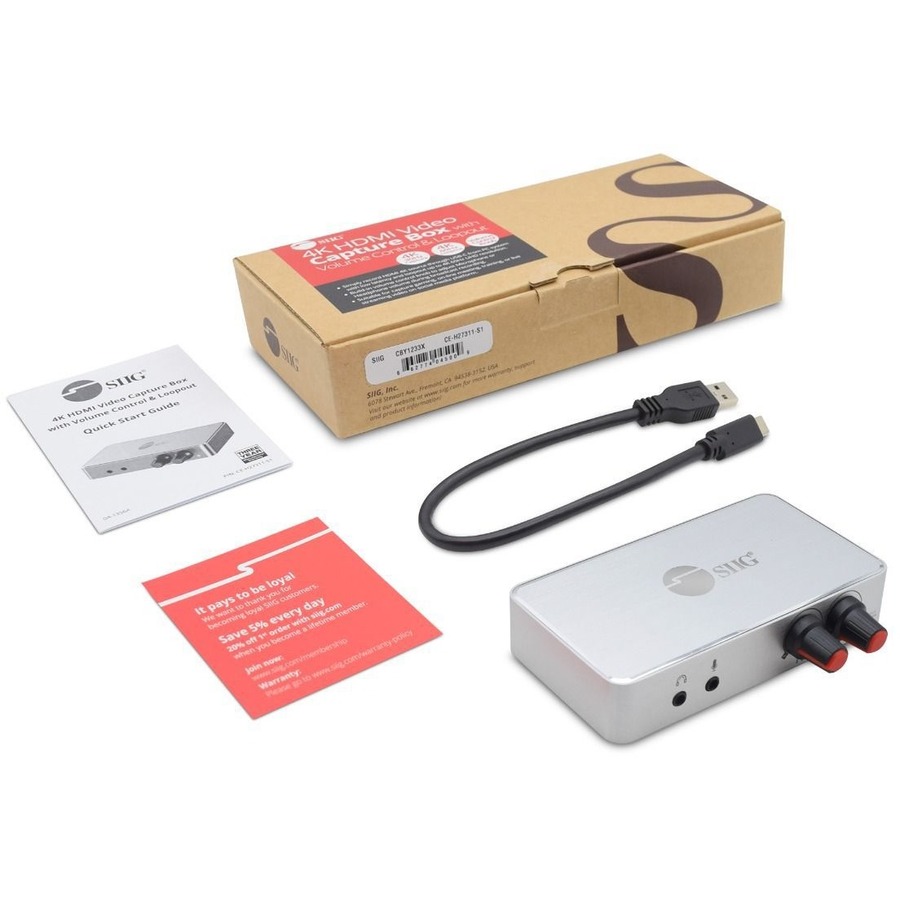

Package Contents
4K HDMI Video Capture Box with Volume Control & Loopout
1 x USB 3.2 Gen 1 Type-C to Type-A Cable, 0.98ft (30cm)
1 x User Reference Guide
Country of Origin
Taiwan
TAA Compliant
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
