Schneider Electric

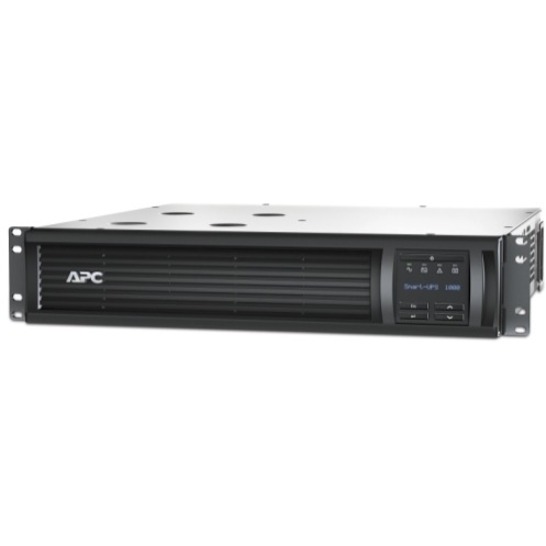

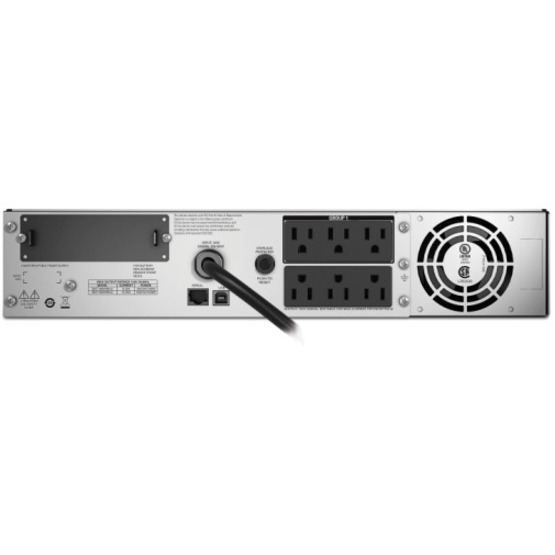

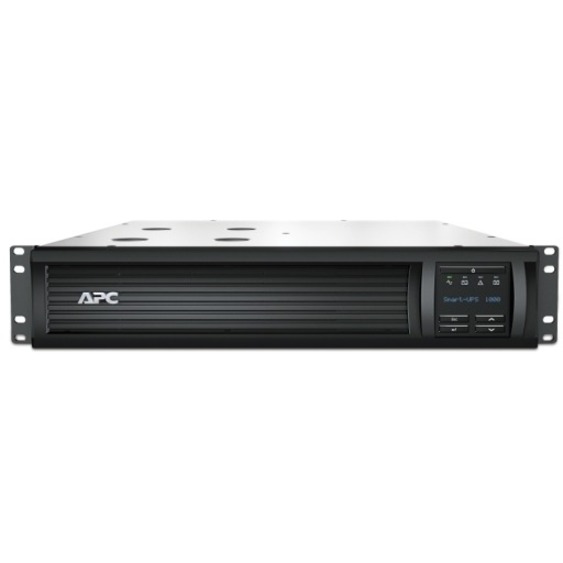

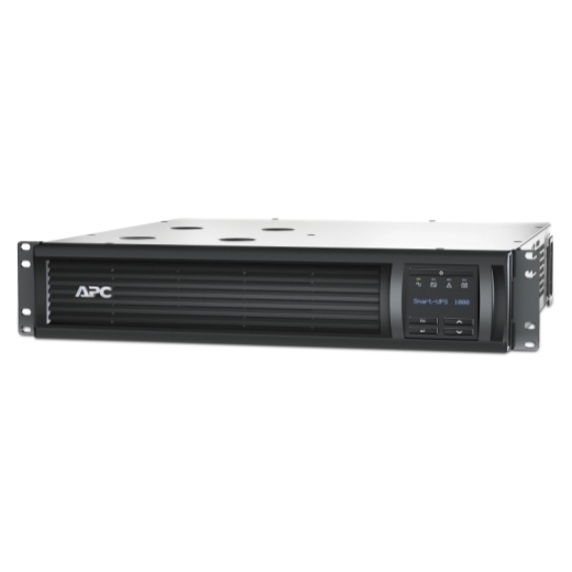

APC Smart-UPS 1000VA LCD RM 2U 120V- Not sold in CO, VT and WA
2U Rack-mountable - 3 Hour Recharge - 9 Minute Stand-by - 110 V AC Input - 120 V AC Output - 6 x NEMA 5-15R
- SKU
- SMT1000RM2U
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMT1000RM2U
- Category
- General Purpose UPS
Overview
Warranty
Limited Warranty: 3 Year
Highlights
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency - Reduces utility costs, generates less heat.
- Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot - Customize UPS capabilities with management cards.
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 110 V AC |
| Manufacturer Part Number | SMT1000RM2U |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 62 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Schneider Electric SA |
| Product Model | SMT1000RM2U |
| Product Name | Smart-UPS SMT1000RM2U 1000VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | NEMA 5-15P |
| Height | 3.50" |
| Width | 17" |
| Depth | 18" |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| USB | Yes |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 31 Minute |
| Backup/Run Time (Full Load) | 9 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 700 W |
| Energy Star | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Receptacle Detail | 6 x NEMA 5-15R |
