for Flash Drive, Monitor, Tablet, Notebook, Keyboard, Mouse, Smartphone, Desktop PC - Charging Capability - USB Type C - 4K @ 60Hz, 4K UHD, 4K - 3840 x 2160 - 3 x USB Ports - 3 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - Space Gray - Wired - Gigabit Ethernet - Windows 8, Windows 10, Windows 11, Android, ChromeOS, iPadOS, macOS 14, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 10.15 Catalina, ... - Portable
Genuine Rocstor through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Y10A312-S1
Category
Docking Stations
Overview

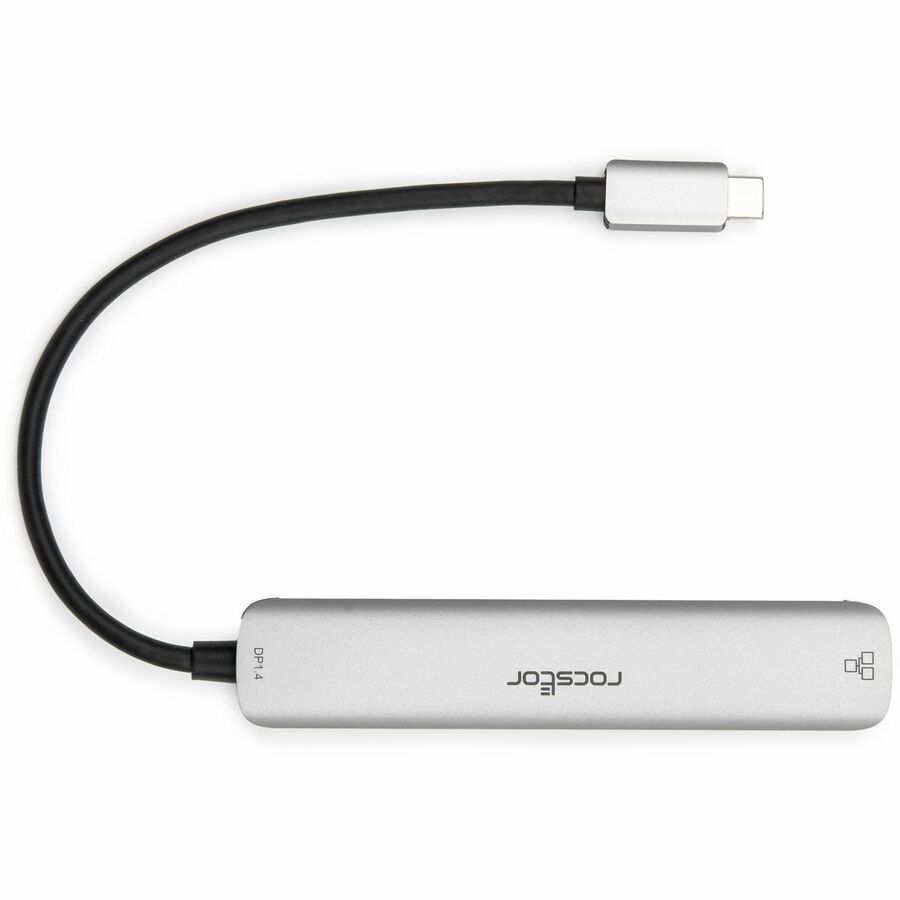

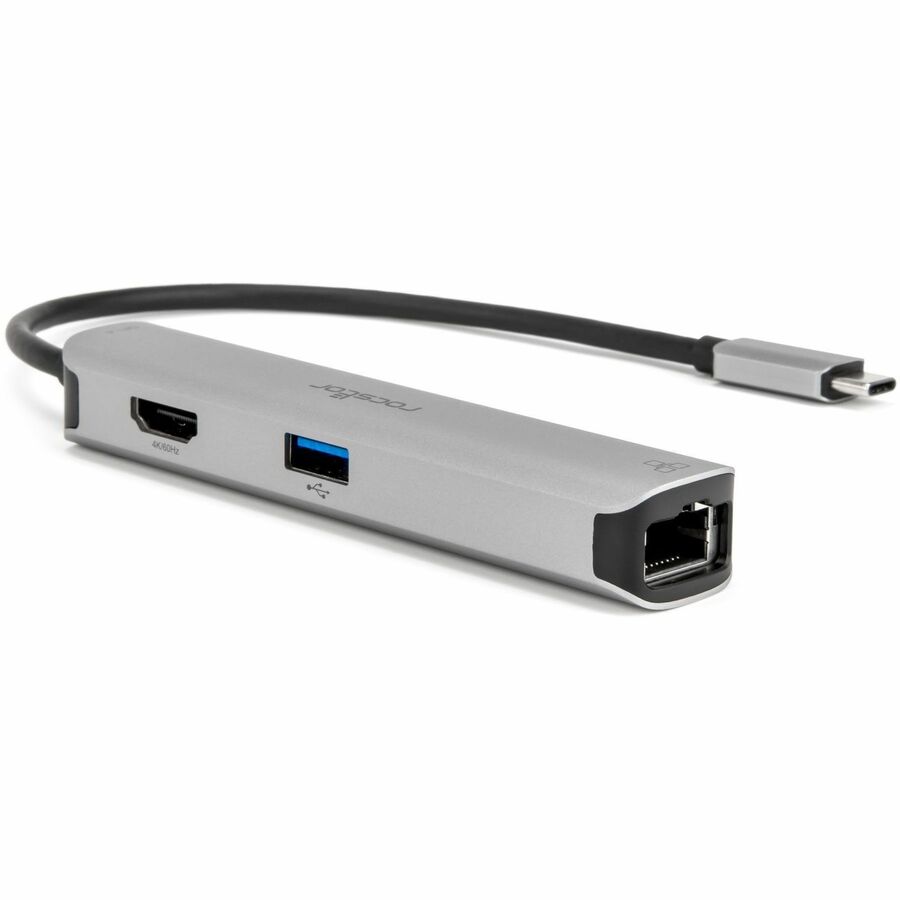

The Rocstor Premium USB-C 5-in-1 4K Multiport Adapter is an ideal solution for expanding the connectivity options of Type-C and Thunderbolt 3/4 hosts, including PCs, laptops, and mobile phones. This versatile hub features an HDMI port, two USB-A ports, and a Gigabit RJ45 Ethernet port, making it particularly beneficial for devices with a single Type-C port. Equipped with the latest DisplayPort 1.4 Alt mode supported IC, the adapter supports HDMI video output at a maximum resolution of 4K/60Hz while concurrently transferring USB 3.1 data at speeds up to 5Gbps. The Gigabit Ethernet port ensures reliable and fast network connectivity, while the USB-A ports provide efficient data transfer and device charging capabilities.
Compatible with all DP Alt mode supported Type-C hosts, the Rocstor 5-in-1 Adapter ensures seamless integration and enhanced functionality. It supports HDR, HDCP 2.2 & HDCP 1.4, and various color depth outputs, delivering an exceptional visual experience. Whether you're using Windows or MacOS, this adapter offers unparalleled versatility and convenience, making it an essential accessory for maximizing your device's connectivity and productivity. Backed by Rocstor 3-year limited warranty and lifetime free technical support.
Highlights

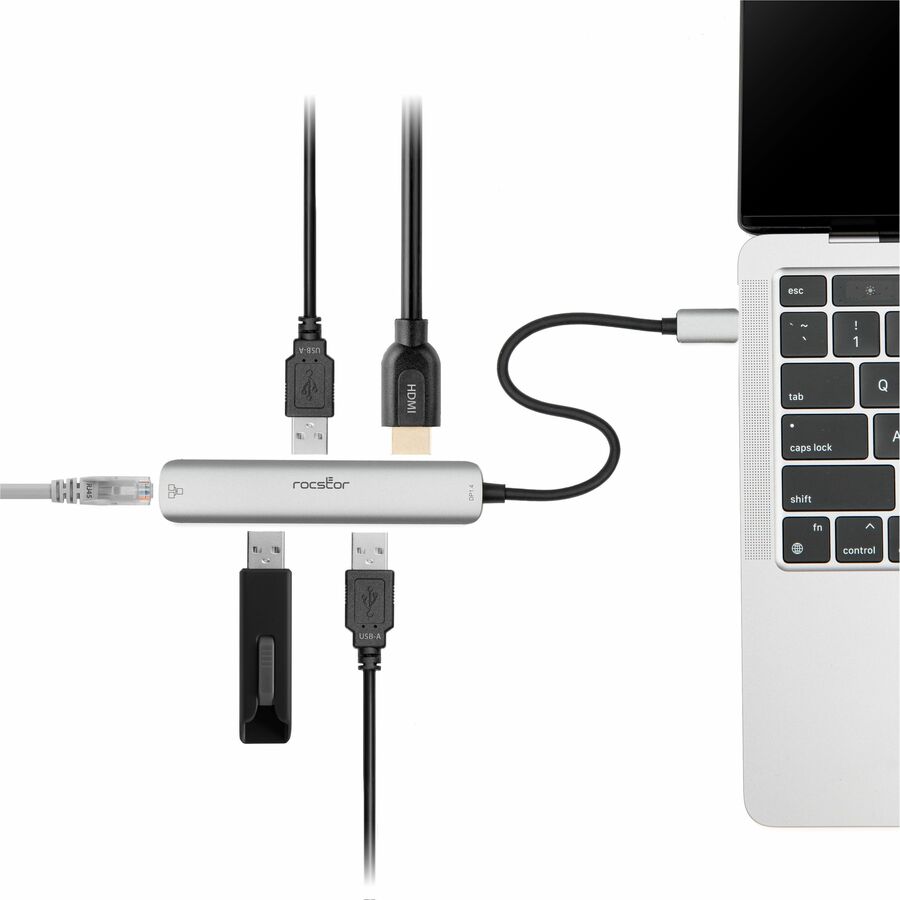

Multiport Expansion: Connects a single Type-C port to HDMI, two USB-A ports, and RJ45 Ethernet.
High-Resolution HDMI Output: Supports 4K/60Hz resolution with DP 1.4 Alt mode.

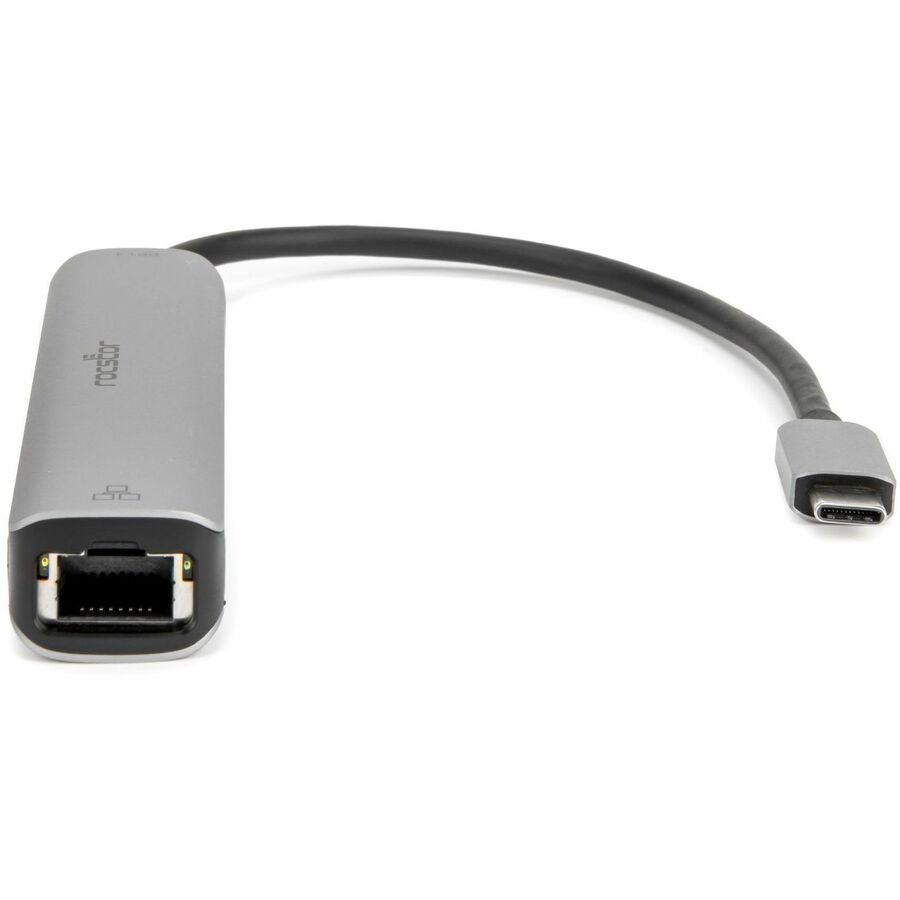

Gigabit Ethernet Port: Ensures fast Ethernet connectivity (10/100/1000Mbps) with Wake-On-LAN support.

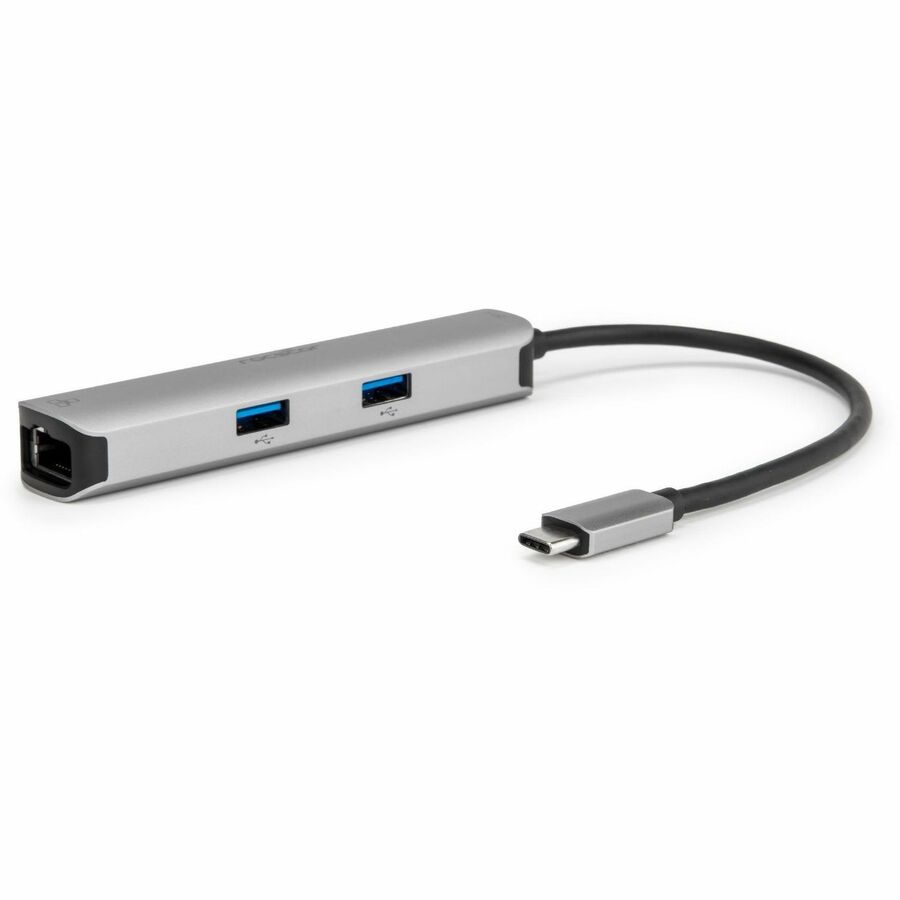

Two USB-A Ports: Provide up to 5Gbps data transfer per port, compliant with USB 3.2 Gen1, and offer max 900mA downstream charging per port.
HDR and HDCP Support: Ensures optimal video quality with enhanced depth, detail, brightness, contrast, and color gamut.
Multiple Color Depth Outputs: Supports 8bit/10bit deep color and various pixel formats (RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0).
Wide Compatibility: Works with all DP Alt mode supported Type-C hosts, including Thunderbolt 3 and 4 ports.
Enhanced Protection: Includes short-circuit, over-current, and over-voltage protection for safe and reliable performance.
Warranty: Rocstor 3-Year Limited Warranty
Specifications
Package Contents
Premium Docking Station
1 x User Manual
Host Interface
USB Type C
Product Type
Docking Station
Compatibility
Compatible Devices: Google Chromebook Dell XPS Laptops Apple MacBook Microsoft Surface Tablet Microsoft Surface Notebook USB-C Laptops USB-C Tablets USB4 Laptops Thunderbolt 3 Laptops Thunderbolt 4 Laptops
Device Supported
Flash Drive, Monitor, Tablet, Notebook, Keyboard, Mouse, Smartphone, Desktop PC
Manufacturer Part Number
Y10A312-S1
Packaged Quantity
1
Limited Warranty
3 Year
Weight (Approximate)
1.76 oz
Connectivity Technology
Wired
Form Factor
Portable
Manufacturer
Rocstor
Product Name
Premium Docking Station
Product Line
Premium
Brand Name
Rocstor
Charging Capability
Yes
Operating System Supported
Windows 8, Windows 10, Windows 11, Android, ChromeOS, iPadOS, macOS 14, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 10.15 Catalina, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra
Country of Origin
Vietnam
Height
0.60"
Width
0.90"
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
HDMI
Yes
Network (RJ-45)
Yes
Number of HDMI Outputs
1
Total Number of USB Ports
3
Number of RJ-45 Ports
1
USB Type-C
Yes
USB Type-C Detail
1 x USB-C Male
Number of USB Type-A Ports
3
Product Color
Space Gray
Supported Resolutions
3840 x 2160
Number of USB 3.2 Gen 1 Type-A Ports
3
USB Type-A
Yes
Screen Mode Supported
4K @ 60Hz, 4K UHD, 4K
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
